Name: 22 Pin Female SATA Data Connector SMT and Reverse Type 1.5A Current Rating
Brand: SHUANG YI
SKU: SATA Connector
Rating: 4.5 (109 reviews)

Home > products > SATA Data Connector >

22 Pin Female SATA Data Connector SMT and Reverse Type 1.5A Current Rating

sata power connector

sata interface connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

SATA Connector

Request A Quote

Product Details

Type:

SATA Female Connector

Color:

Black

Application:

PCB, PC, Server, Set-Top-Box

Pin Number:

22Pin

Voltage:

125Vac

Gender:

Female

Current:

1.5 Amps

PCB Angle:

Vertical(90 Degree)

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.

Delivery Time

7~10 Work days

Supply Ability

10000 Pieces Per Day

SATA 7p/F 90° Solder Type Wire to Board Connector

Get Best Price

SATA 7p Female Chassis Connector Solder Wire Type 180° Wire to Board Connector

Get Best Price

Video

SATA Male Chassis DIP Gold Plated 15u'' Wire to Board Connector

Get Best Price

Video

SATA 7p Femal Solder Type 180° Au 15u'' Plated Wire to Board Connector

Get Best Price

86-769-28825589

Contact Now

Product Description

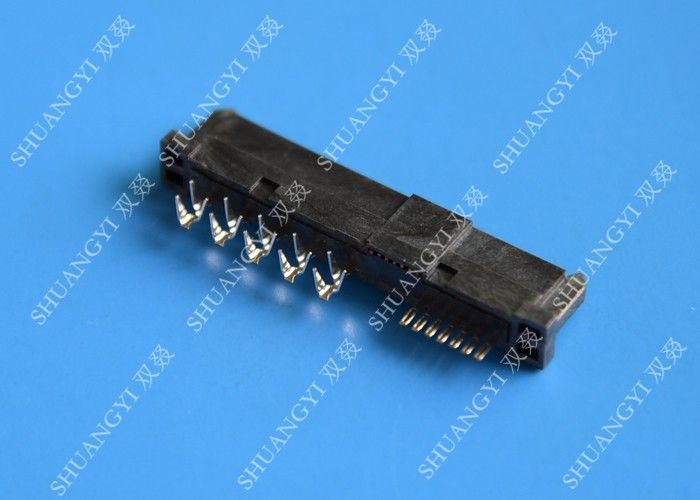

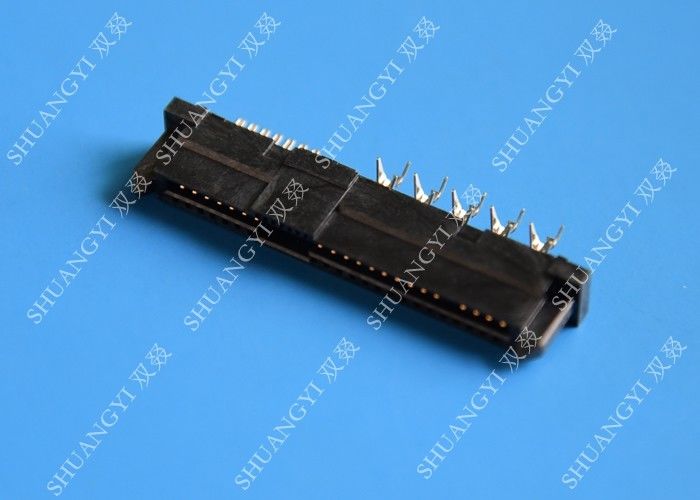

22 Pin Female SATA Data Connector SMT and Reverse Type 1.5A Current Rating

Key Specifications/Special Features:

Type of product: SATA 15+7P female

Product description: SATA 15+7P Female SMT and reverse type H:6.74

Unique selling point of the product: SATA 15 + 7P female mating with SATA 15+7P male Series

Current rating: 1.5A

Voltage rating: 250V AC/DC

Contact resistance: 45m Ohms maximum

Insulator resistance: 1,000m Ohms minimum

Withstanding voltage: 500V AC/minute

Operating temperature range: -40 to +85°C

Insulator material: LCP UL94V-0

Insulator color: black

Contact material: phosphor bronze

Contact plated: selective gold plated

Package: in tube

Primary Competitive Advantages:

Country of Origin

Green Product

Distributorships Offered
