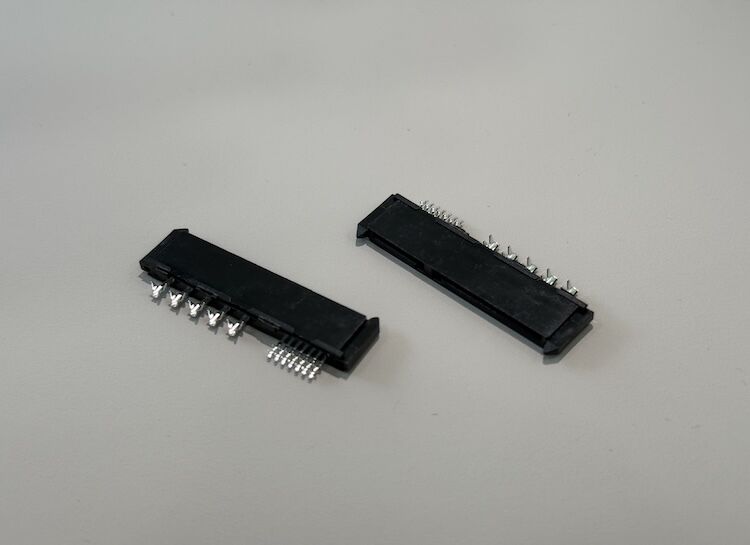

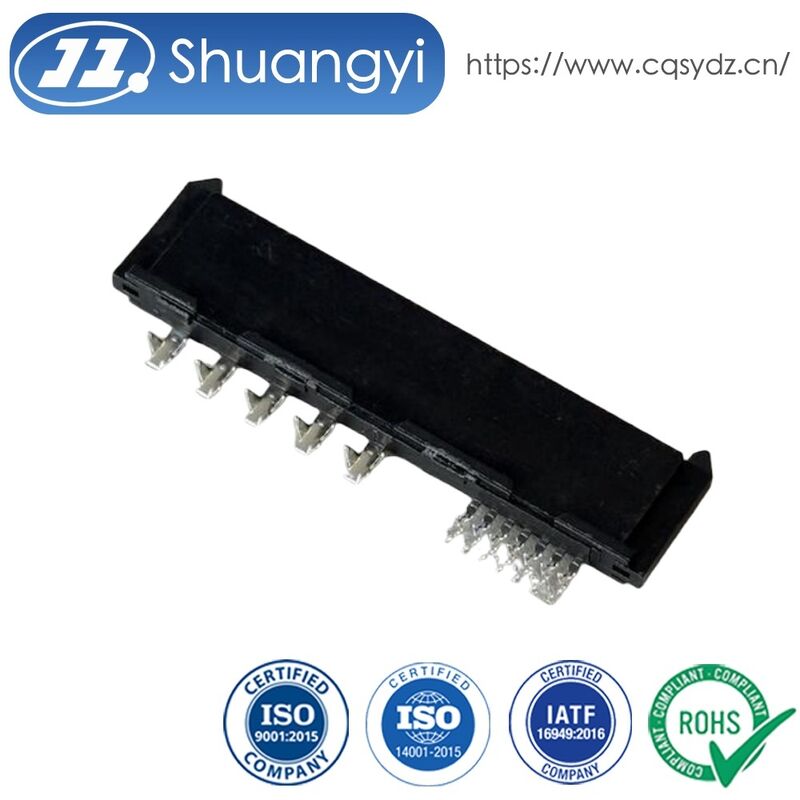

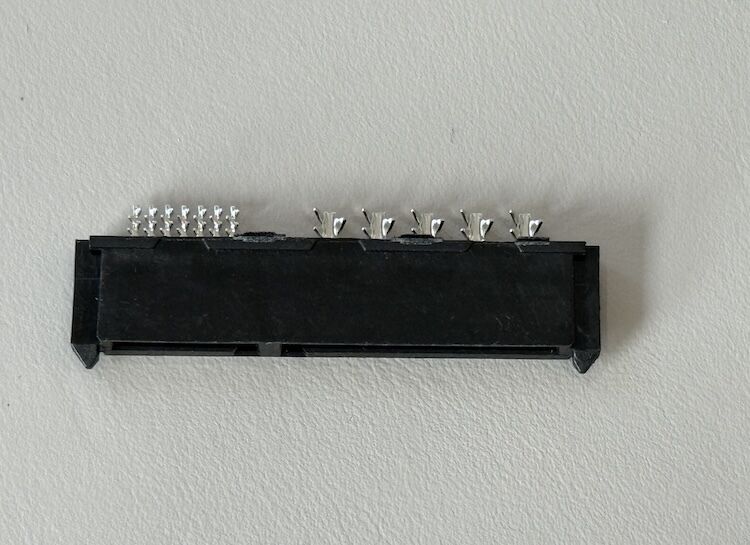

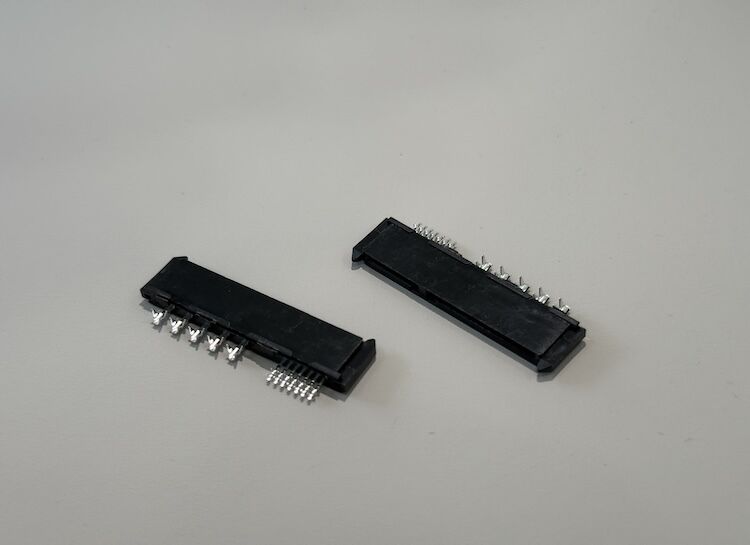

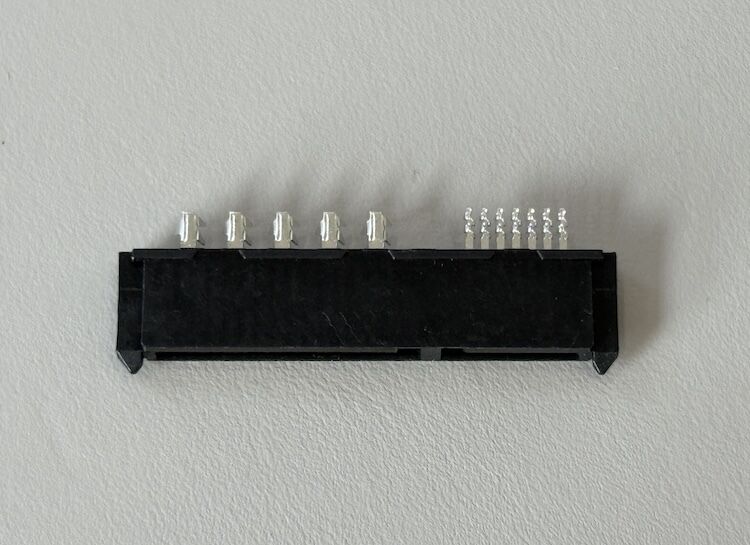

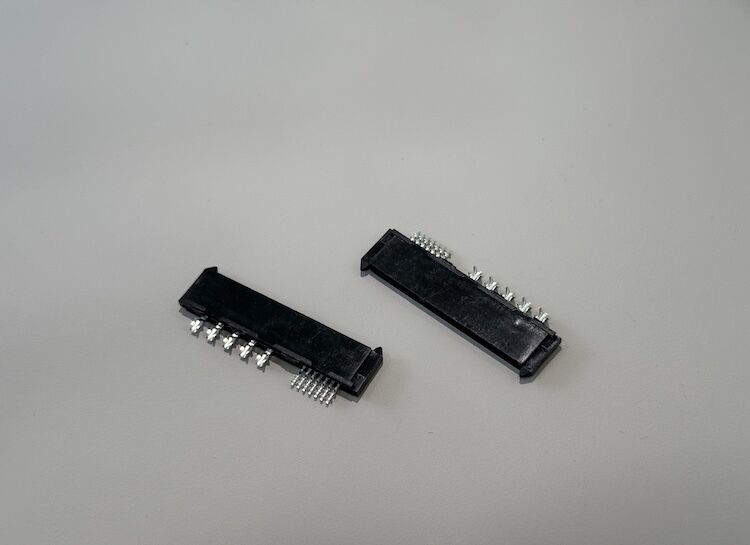

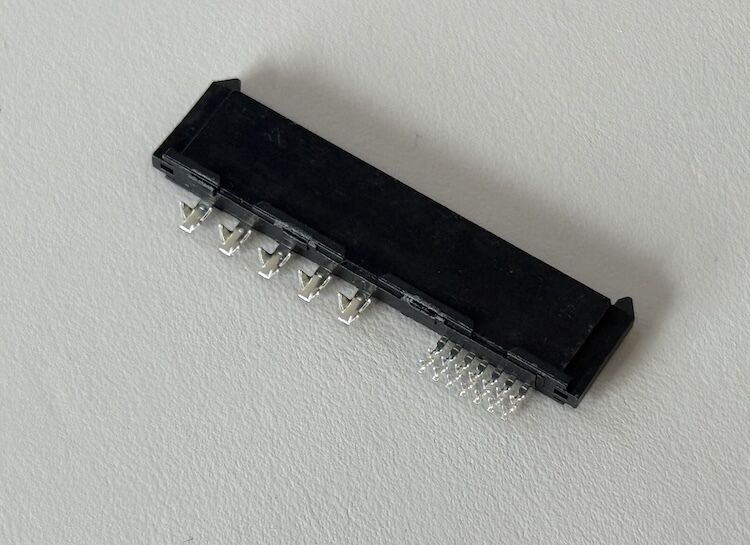

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-53C1A2-000R

Contact Us
Request A Quote
SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications
Product Details
Product Type:
SATA 7+15 Combined Power And Signal Connector
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
22 Pins
Mounting Type:
SMT To PCB With Mechanical Pegs
Housing Material:
High-temperature Thermoplastic, UL94V-0
Contact Material:
Copper Alloy, High Conductivity
Contact Plating:
Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
-20 °C To +85 °C (higher Range Customizable)
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Environmental Compliance:
RoHS / HF / REACH Compliant
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.12-0.18 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization online

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization

Get Best Price
Good price SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications online

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price
Good price SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications online

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price
Good price SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization online

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

Compact SATA female connector integrating both power and high-speed signal contacts in one low-profile housing. Gold-plated terminals provide low contact resistance, stable impedance and long-term corrosion resistance for reliable data and power transmission. The right-angle SMT tail design saves PCB space and allows direct edge mounting on storage or controller boards. High-temperature, flame-retardant housing supports standard reflow soldering. Custom options are available for different board layouts, plating thickness, and cable harness assemblies to match OEM or server designs.



SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 0SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 1SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 2



Series SATA 7+15 combined power and signal connector
Contact positions 22 pins total (7 signal + 15 power), dual row
Pitch 1.27 mm between contacts
Mounting type Right-angle SMT, PCB edge mount
Rated current 1.5 A per contact (at 40 V AC/DC max)
Contact resistance ≤ 30 mΩ
Insulation resistance ≥ 1000 MΩ
Withstand voltage 500 VAC / minute
Operating temperature −20 °C to +85 °C
Terminal plating Ni underplated, Au over contact area, Sn over solder/ crimp area
Housing material High-temperature thermoplastic, UL94 V-0, black
Mechanical mating force ≤ 45 N total
Single pin retention ≥ 0.8 kgf
Compliance RoHS 2.0, halogen-free, REACH compatible
Customization options Tail length, plating thickness, packing and cable harness available



Applications



2.5″ / 3.5″ HDD and SSD connections on desktop, notebook and industrial PCs

Data center servers, RAID cards, NAS and storage backplanes

DVR, set-top boxes and multimedia recorders requiring SATA power and signal interfaces

Embedded boards, industrial control equipment and test fixtures using SATA interconnects

Customized cable assemblies between motherboard and daughter board or drive cage

Precautions

Follow the recommended PCB footprint and keep the connector fully aligned before reflow soldering.

Do not exceed the rated current, voltage or operating temperature; apply suitable derating in high-temperature enclosures.

Avoid repeated excessive insertion or side forces on mated cables to protect the SMT solder joints.

Keep contact area free from dust, flux residue or fingerprints; store products in dry, anti-static packaging.

For long-term or high-vibration applications, confirm mating/unmating force and retention strength with samples under real operating conditions.





SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 3

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 4
SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 5
SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 6
SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 7
SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications 8
