Product Description

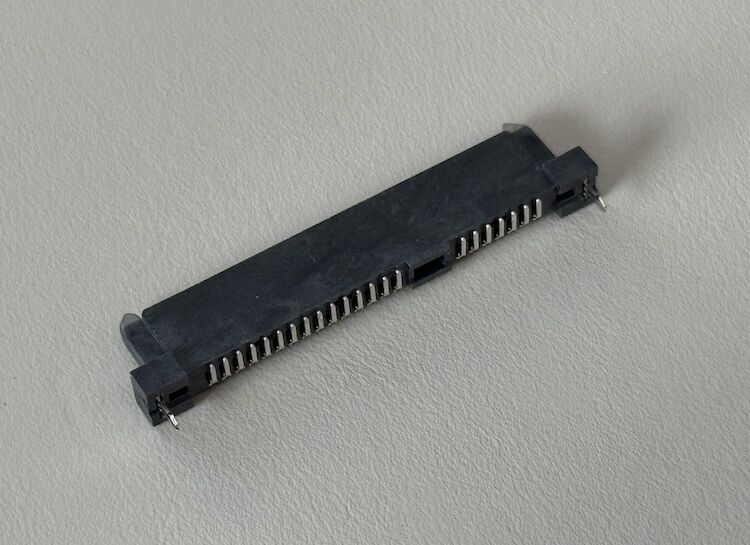

This SATA 22-pin connector is designed for compact PCB applications where reliable high-speed signal and low-voltage power transmission are critical. The 1.27 mm pitch right-angle receptacle mates with standard SATA drive or board connectors, offering a stable interface for data storage and embedded systems.

Gold-plated contacts over nickel ensure low contact resistance and long-term corrosion resistance, while tin-plated solder tails provide robust solderability during reflow. The high-temperature, UL94V-0 housing maintains dimensional stability through multiple thermal cycles and supports automated SMT assembly.

Custom configurations are available, including modified pin counts, different plating thicknesses, special keying, and pre-assembled wire harnesses to match your PCB layout and system requirements.

Applications

2.5" and 1.8" SSD or HDD connection to controller boards

Server and data center storage backplanes, RAID cards and NAS systems

Industrial automation controllers, PLCs and data recorders

Communication base stations and network storage equipment

Embedded computing, single-board computers and custom storage modules
