1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application

1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-86P19A2-13LH

Contact Us
Request A Quote
1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application
Product Details
Product Type:
SATA C22F Female PCB Connector
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
22 Pins
Mounting Type:
SMT To PCB With Mechanical Pegs
Housing Material:
High-temperature Thermoplastic, UL94V-0 Flame Rating
Contact Material:
Copper Alloy, High Conductivity
Contact Plating:
Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
-40 ℃ To +105 ℃
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Environmental Compliance:
RoHS / HF / REACH Compliant
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.21-0.33 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization online

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization

Get Best Price
Good price SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications online

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price
Good price SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications online

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price
Good price SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization online

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This SATA C22F 86-pin female connector is designed for high-density storage interfaces on server and industrial motherboards. The 1.27 mm pitch contact layout offers compact routing while maintaining stable signal paths for high-speed data transmission.

Gold-plated contacts over a nickel barrier provide low contact resistance and long-term corrosion resistance, while the SMT right-angle structure supports automated assembly and reliable solder joints. The housing is made from high-temperature, flame-retardant thermoplastic to withstand reflow soldering and harsh operating environments.

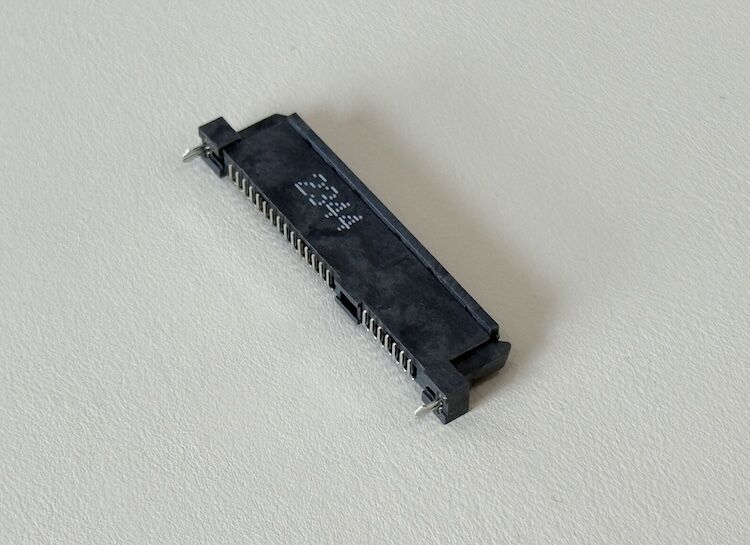

1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 01.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 11.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 2



Connector type SATA C22F female PCB connector
Pitch 1.27 mm (approx.)
Number of positions 86 pins, single row
Mounting style Right-angle, SMT PCB mount
Contact plating Gold over nickel on contact area, tin on solder tail
Housing material High-temperature thermoplastic, UL94 V-0
Rated voltage 30–50 V AC/DC (depending on system design)
Rated current Up to 1.0 A per contact (signal level, derating required)
Contact resistance ≤ 30 mΩ (initial, typical)
Insulation resistance ≥ 1000 MΩ at 500 V DC (typical)
Dielectric withstand 500 V AC for 1 minute (no breakdown)
Operating temperature -40 ℃ to +105 ℃
PCB termination SMT pads with recommended PCB layout available
Compliance RoHS / halogen-free materials available
Customization Pin count, plating thickness and packaging can be customized



Applications



SSD and HDD connection on desktop, notebook and industrial PCs

Server and storage backplane connectors in data centers

Network-attached storage, RAID cards and expansion modules

Industrial control, medical and measurement equipment requiring reliable storage interfaces

Customized storage boards and embedded systems using SATA power and signal in one connector

Precautions

Follow the recommended PCB land pattern and keep-out area to ensure proper coplanarity and solder joint strength.

Maintain clean, dust-free mating surfaces; avoid touching the gold contacts directly to prevent contamination and increased contact resistance.

Control reflow temperature profile within the connector material limits to avoid housing deformation.

Ensure sufficient mechanical support around the connector on the PCB for systems subject to shock or vibration.

When designing high-speed links, keep differential pairs length-matched and route away from strong EMI sources to preserve signal integrity.

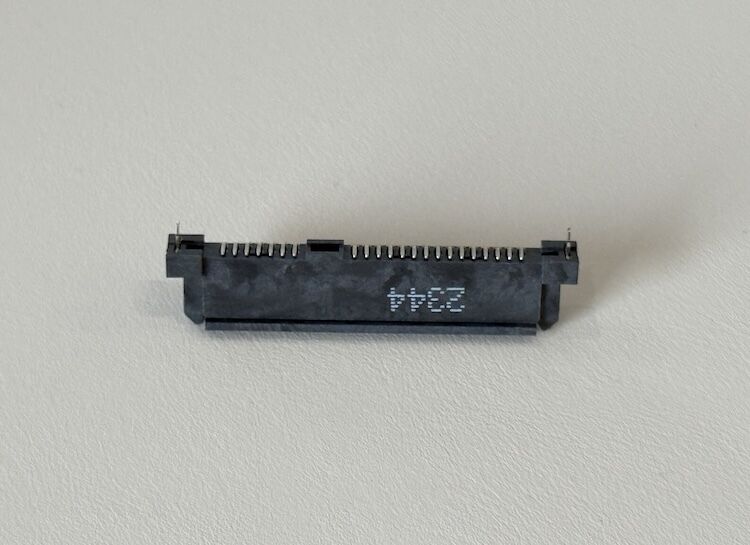

1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 3

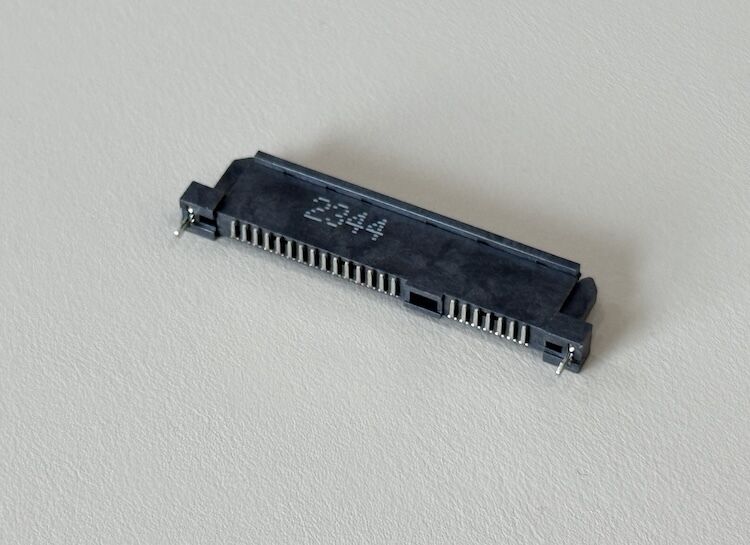

1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 4

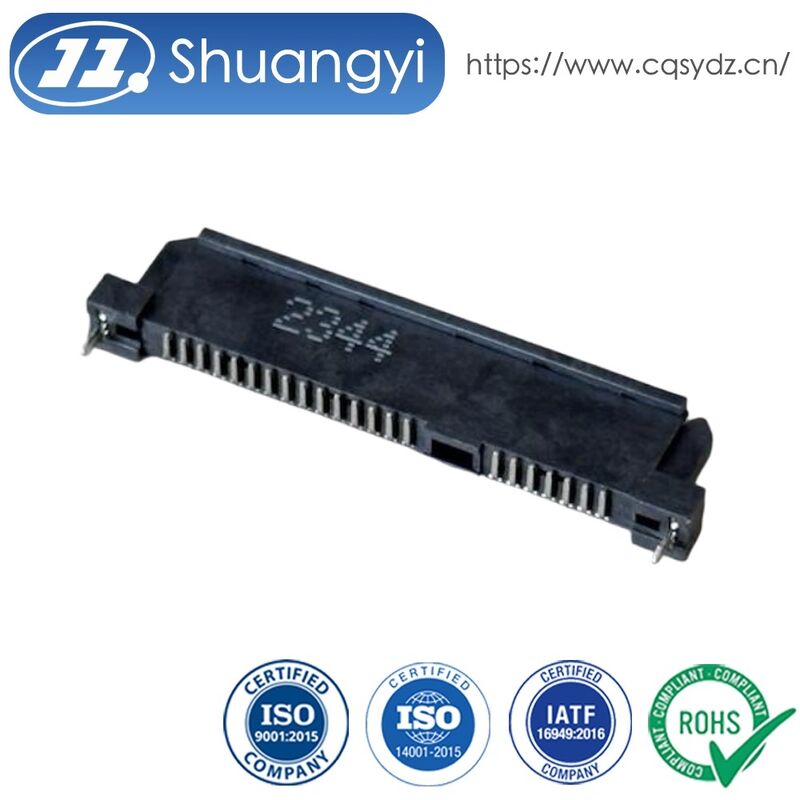

1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 5

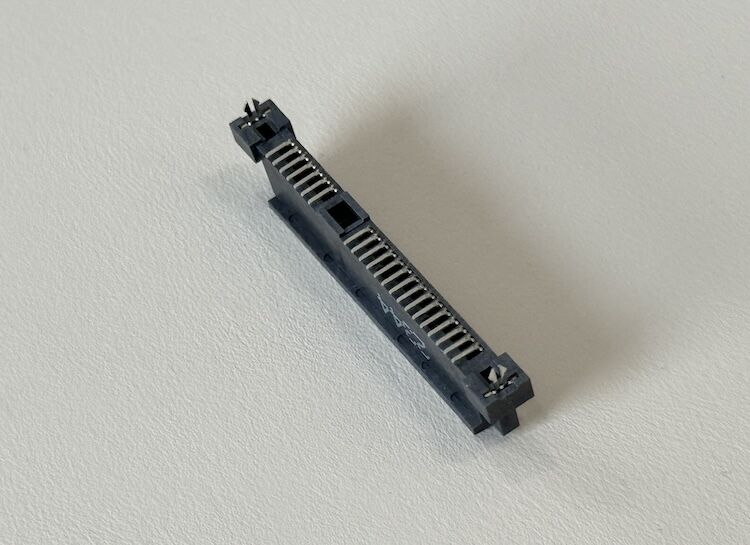

1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 6
1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 7
1.27mm pitch SATA C22F 86-pin female PCB connector gold-plated contact storage connector for SSD HDD server signal transmission customized power and data interface solutions for industrial application 8
