SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-51M1A2-15LR

Contact Us
Request A Quote
SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization
Product Details
Product Type:
SATA 22-pin PCB-mounted Connector, Right-angle Receptacle
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
22 Pins
Mounting Type:
SMT To PCB With Mechanical Pegs
Housing Material:
High-temperature Thermoplastic, UL94V-0
Contact Material:
Copper Alloy, High Conductivity
Contact Plating:
Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
-20 °C To +85 °C (higher Range Customizable)
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Environmental Compliance:
RoHS / HF / REACH Compliant
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.12-0.19 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization online

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization

Get Best Price
Good price SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications online

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price
Good price SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications online

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price
Good price SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization online

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This SATA 22-pin connector combines power and high-speed signal transmission in a compact 1.27 mm pitch housing, ideal for slim storage devices and embedded systems. Gold-plated contacts on a nickel base ensure low contact resistance, excellent conductivity and corrosion resistance over long service life. Tin-plated solder tails provide reliable SMT soldering and stable mechanical retention on the PCB.

The high-temperature, flame-retardant insulator supports reflow soldering, while the low profile body allows tight stacking inside servers and industrial controllers. Custom options are available for different pin counts, keying styles, plating thickness and housing structures to match specific PCB layouts and cable assemblies.

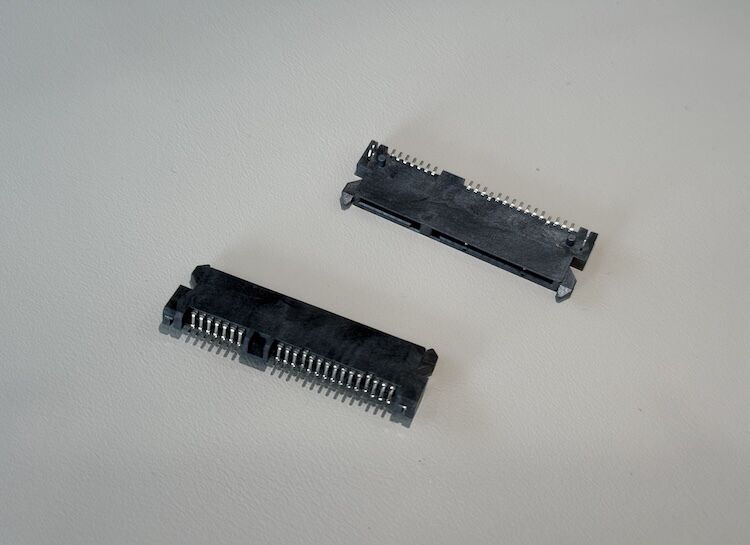

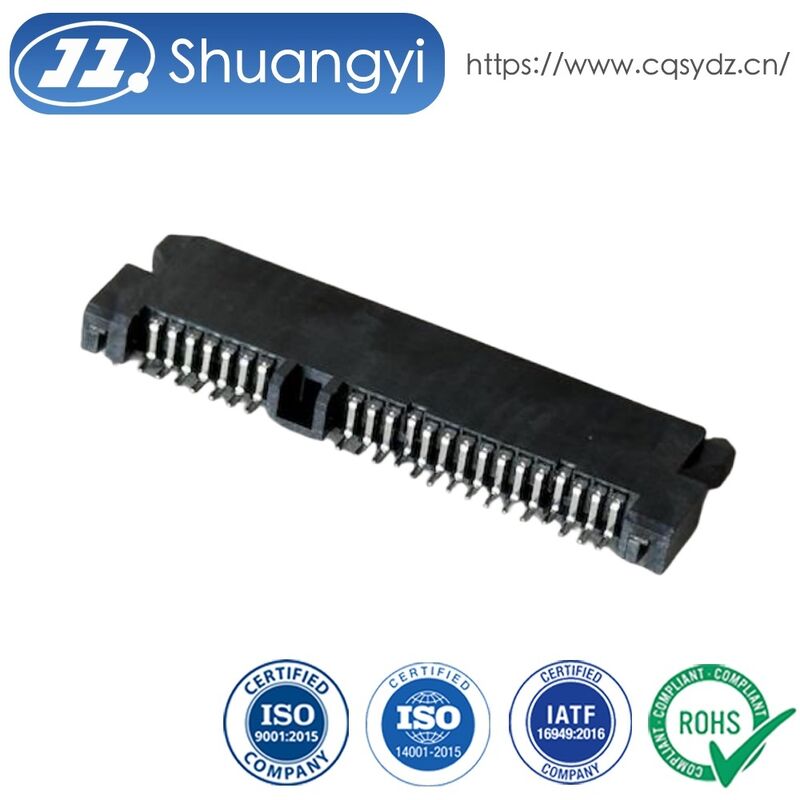

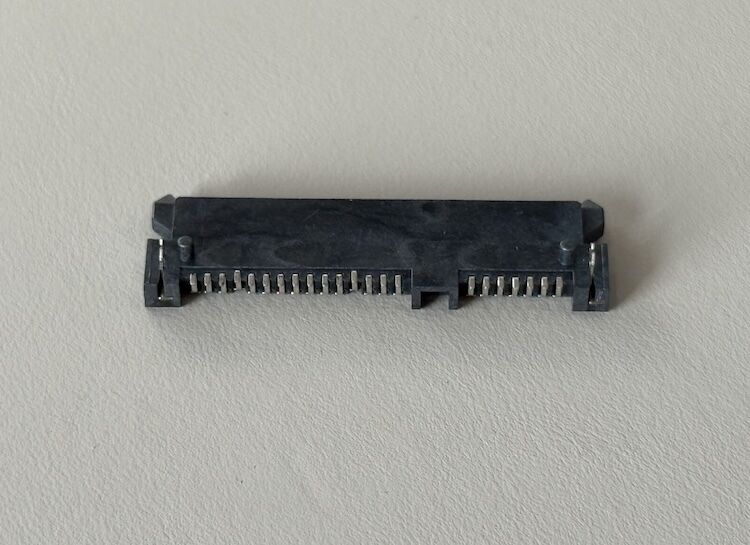

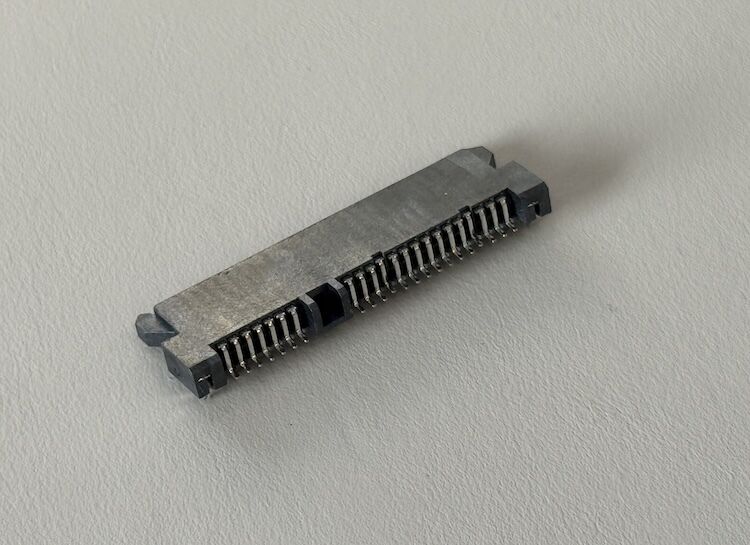

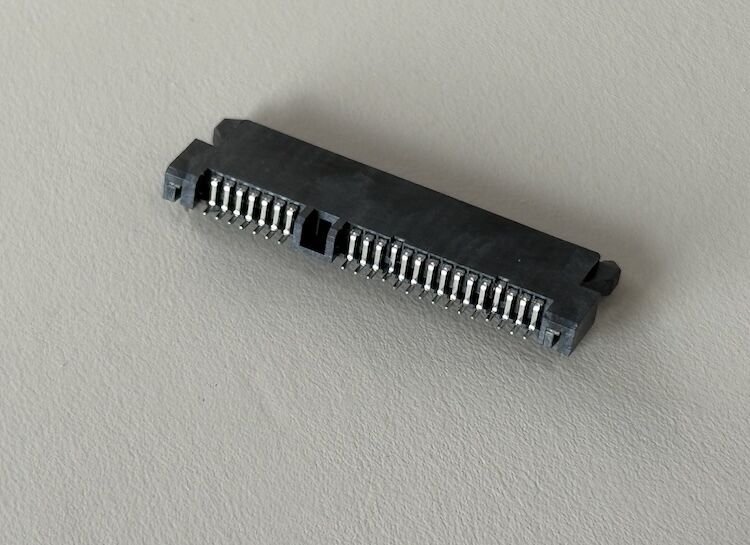

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization 0SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization 1SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization 2



Connector type SATA 22-pin board-to-board / board-to-cable connector, signal + power combined
Pitch 1.27 mm housing pitch
Number of contacts 22 pins (data + power), other pin counts customizable
Mounting style SMT mounting to PCB, with positioning features
Rated current & voltage 1.5 A per contact, 40 VAC rated
Contact resistance ≤ 30 mΩ (initial)
Insulation resistance ≥ 1000 MΩ
Withstand voltage 500 VAC / minute between contacts and housing
Contact plating Ni under-plating, gold flash on contact area, tin on solder tail
Insulator material High-temperature thermoplastic, UL94-V0, black
Operating temperature −20 °C to +85 °C
Compliance RoHS 2.0, HF, REACH-compliant materials



Applications

Server and data-center storage backplanes, HDD/SSD docking boards

Industrial control and automation units requiring compact SATA power & signal connectors

Embedded PCs, DVR/NVR, medical and instrumentation equipment with limited space

Automotive infotainment and telematics modules using SATA-based storage

Customized cable assemblies and wire harnesses for OEM storage solutions

Precautions

Verify pin assignment and SATA standard compatibility before designing the PCB footprint.

Keep connector areas free from flux residue and contamination to maintain low contact resistance.

Avoid exceeding the rated current per contact; distribute power lines appropriately on multi-drive boards.

Ensure correct PCB pad design and reflow profile to prevent solder bridging between fine-pitch terminals.

Do not insert or remove mating parts under load or strong vibration to minimize wear on the gold plating.







SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization 3

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization 4
SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization 5
