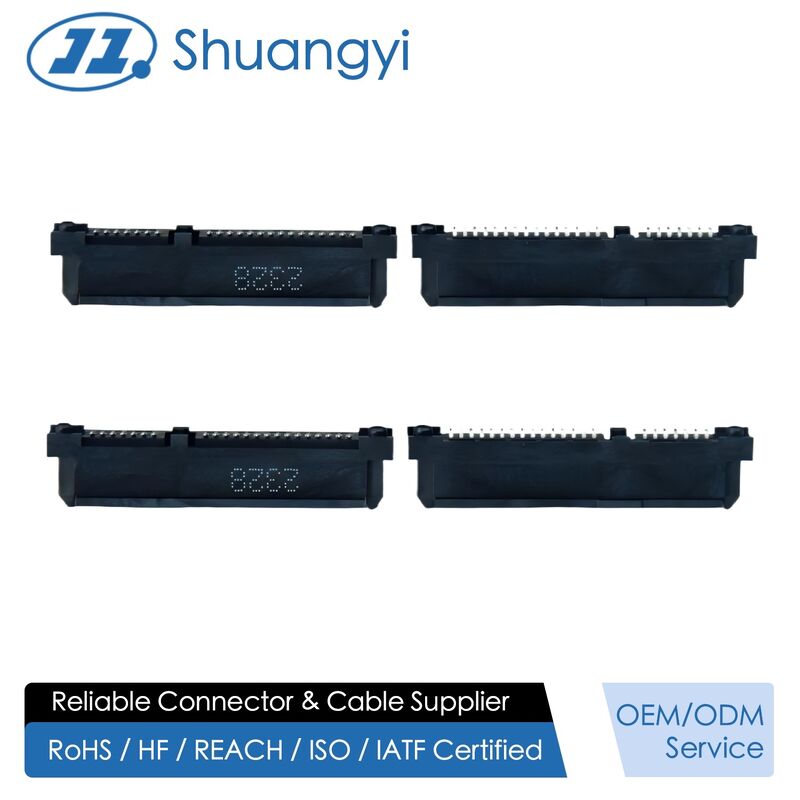

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-71N16A2-000R

Request A Quote

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization

Product Details

Product Type:

Board-to-board SATA Edge Connector, Male, Right-angle SMT

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

22 Pins

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0 Flame Rating

Contact Material:

Copper Alloy, High Conductivity

Contact Plating:

Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

-20 °C To +85 °C (higher Range Customizable)

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.23-0.35 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization

Get Best Price

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable Electronic Transmission Applications

Get Best Price

SATA 22-Pin 1.27mm Pitch Board-to-Board Connector, Gold-Plated Contacts, SMT PCB Edge Power Signal Connector for Server Storage and Automotive Electronics Customization

Get Best Price

Contact Now

Product Description

Product Description

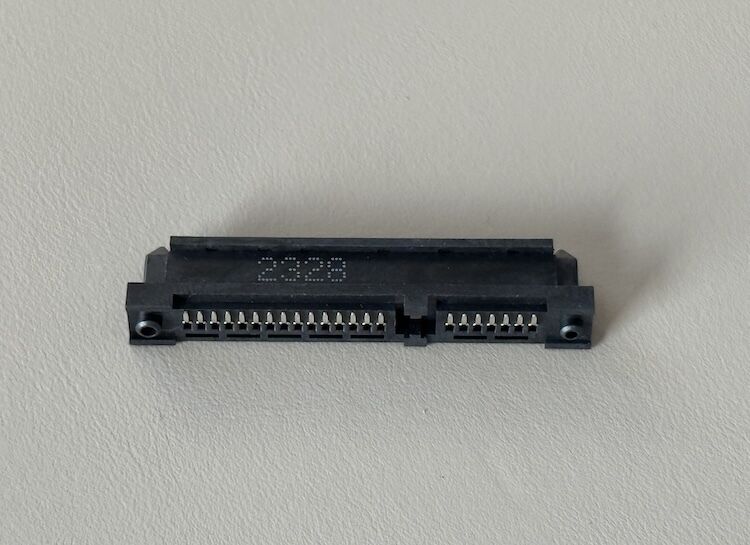

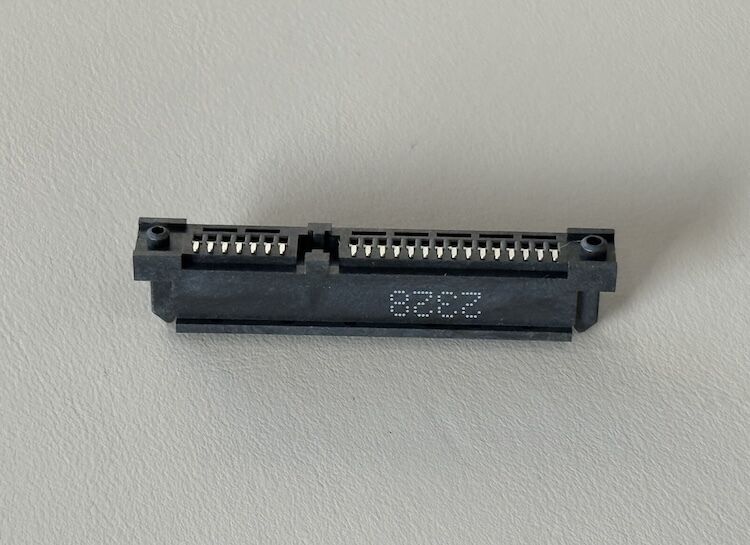

This SATA 22-pin female connector integrates both 7 high-speed signal contacts and 15 power contacts in a compact right-angle SMT package, ideal for direct mounting on storage and server PCBs. The copper-alloy terminals with gold-plated mating surfaces provide low contact resistance and stable data transmission, while the high-temperature UL94V-0 housing withstands reflow soldering and demanding operating environments. Tin-plated solder tails ensure reliable wetting on a wide range of PCB finishes.

The connector is suitable for 2.5-inch or 3.5-inch storage interfaces and custom storage modules, supporting high-speed data paths together with robust power delivery. Custom options such as gold thickness, tail length, locating pegs and special packaging help match your specific production process and reliability targets.

SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization 0

Interface type	SATA 22-pin (7 signal + 15 power), female connector
Application	SSD, HDD, storage backplane, server and industrial control PCB
Mounting style	SMT right-angle, board-edge mating
Pitch	1.27 mm signal contacts (standard SATA), 1.27 mm power section
Pin count	22 pins total, dual function power and data
Housing material	High-temperature thermoplastic, UL94V-0, black
Contact material	Copper alloy terminals
Contact plating	Gold over nickel on mating area, tin over nickel on solder tail
Current rating	Up to 1.5 A per signal pin, higher on power pins (depending on layout)
Voltage rating	5 V / 12 V system level, in line with SATA power rail design
Operating temperature	−40 °C to +105 °C (typical for high-temp connector materials)
PCB thickness range	Compatible with standard storage PCB thickness (e.g. 1.0–1.6 mm)
Compliance	RoHS / REACH / halogen-free options available
Customization	Different gold thickness, packing, pin length and layout can be customized

Applications

SSD and HDD connection on desktop, notebook and industrial PCs

Server and storage backplane connectors in data centers

Network-attached storage, RAID cards and expansion modules

Industrial control, medical and measurement equipment requiring reliable storage interfaces

Customized storage boards and embedded systems using SATA power and signal in one connector

Precautions

Name: SATA 22-Pin 7+15 Female PCB Connector, Right-Angle SMT Power and Signal Connector for SSD HDD Storage, Server Backplane, Industrial Electronic Transmission Customization
Brand: ShuangYi Precision Electronics Co., LTD
SKU: SATA-C22F-71N16A2-000R
Price: 0.23 USD
Availability: InStock
