Name: Lightweight SMT 22 Pin Power Supply SATA Connector With LCP Housing
Brand: SHUANG YI
SKU: SATA Connector
Rating: 4.6 (124 reviews)

Home > products > SATA Data Connector >

Lightweight SMT 22 Pin Power Supply SATA Connector With LCP Housing

sata power connector

sata interface connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

SATA Connector

Request A Quote

Product Details

Contact Position:

Contact:

Brass C2680R EH, T=0.25mm

Housing:

LCP

Products Status:

Stock

Contatc Material:

Phosphor Bronze

Application:

Audio & Video

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.

Delivery Time

7~10 Work days

Supply Ability

10000 Pieces Per Day

SATA 7p/F 90° Solder Type Wire to Board Connector

Get Best Price

SATA 7p Female Chassis Connector Solder Wire Type 180° Wire to Board Connector

Get Best Price

Video

SATA Male Chassis DIP Gold Plated 15u'' Wire to Board Connector

Get Best Price

Video

SATA 7p Femal Solder Type 180° Au 15u'' Plated Wire to Board Connector

Get Best Price

86-769-28825589

Contact Now

Product Description

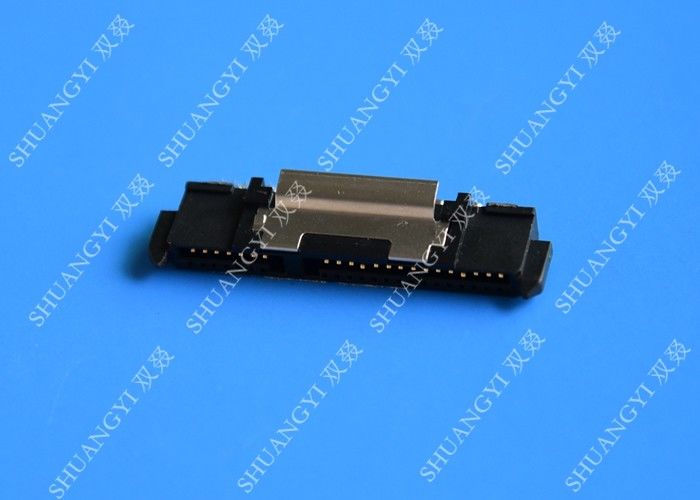

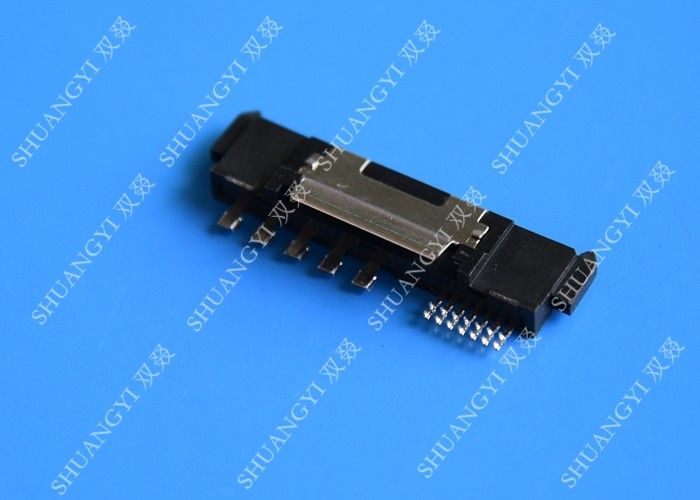

Lightweight SMT 22 Pin Power Supply SATA Connector With LCP Housing

Product Description:

Housing Material: LCP UL94V-0 ROHS

Contact Material: Phosphor Bronze, T=0.25mm

Contact Plated: Gold Plating in the Contact Area, And Tin Plating in the solder tail area, With 50U Min. Nickel under plating over all.

Current Rating: 0.5Amp

Contact Resistance: 30m ohms.

Insulator Resistance: 500Megohms at 500V DC Min..

Dielectric Withstanding: AC 250V for 1 minute

Operating Temp.: -40°C~+80°C

Max Processing Temp.:230°C for 30~60 seconds

260°C for 10 seconds
