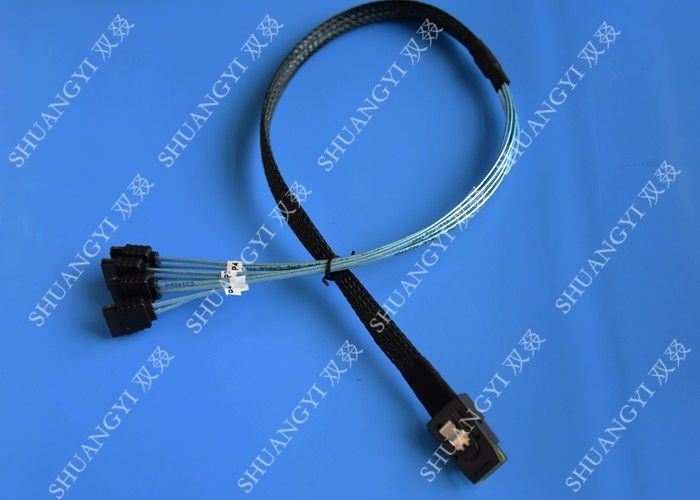

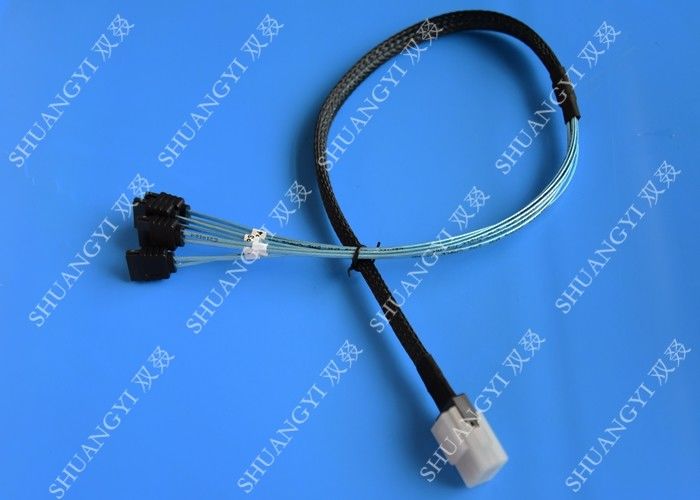

Name: SFF 8087 To 4 SATA Molex SAS Cable Pinout 2 Serial Attached SCSI SATA to HDD
Brand: SHUANG YI
SKU: SFF8087 TO SATA (SY-A160080-0 )
Rating: 5 (114 reviews)

Home > products > Serial Attached SCSI Cable >

SFF 8087 To 4 SATA Molex SAS Cable Pinout 2 Serial Attached SCSI SATA to HDD

mini sas cable

sas hard drive cable

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/ISO14001/SGS/UL/RoHS/Reach

Model Number:

SFF8087 TO SATA (SY-A160080-0 )

Request A Quote

SFF 8087 To 4 SATA Molex SAS Cable Pinout 2 Serial Attached SCSI SATA to HDD

Product Details

Type:

Twisted Pair

Cable Capacity:

480 Mbit/s

Connector(One Side):

Type A-male/female

Connector(Other Side):

Type B-male/female

Shielding:

Braid

VCC Voltage:

5 V

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

1.Custom polybag packing 2.Custom paper box packing 3.According to client's request

Delivery Time

10~15 Work days

Payment Terms

T/T, L/C

Supply Ability

100000 Pieces Per Month

SFF 8087 To 4 SATA Molex SAS Cable Pinout 2 Serial Attached SCSI SATA to HDD

Specification:

Terminal Type	Pin Terminal
Operating Temperature	-25°C~+85°C
Panel Thickness	1~6mm
Base Material	PBT
Indicator Type	LED(R,G,Y,O,B,W)
Indicator Voltage	6V/12V/24V/36V/110V/220V
Indicator Life	>40000 hours

Cable Features:

Comply with Molex standard “pin out 2”, pls see the linking as follows:

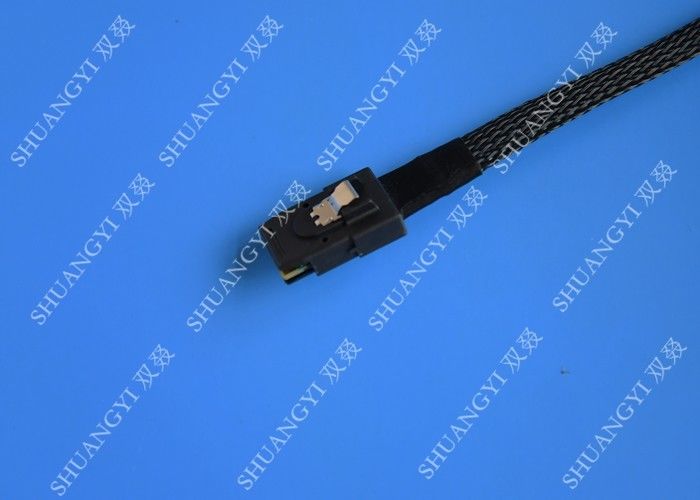

Mini SAS (SFF-8087) is the Controller
4 Sata is the Backplane

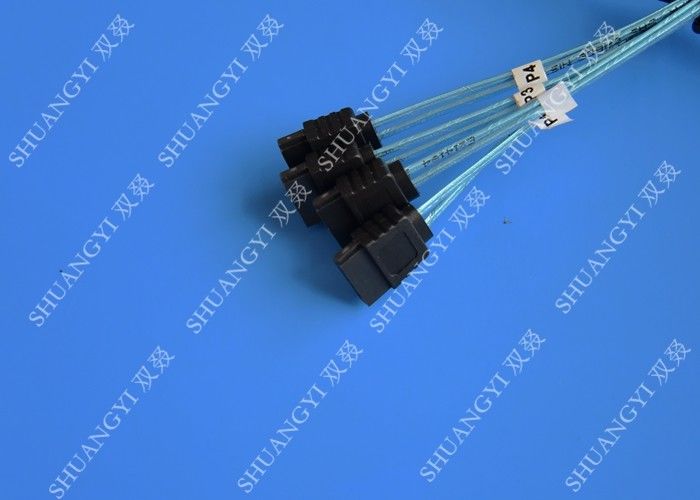

Controller (Mini SAS 4i SFF-8087) to 4x 7Pin SATA storage

Be careful: there are two kinds of version of this cable, ours comply with
Molex Pin out 2, This cable can be used as follows:

Mini SAS (SFF-8087 Controller) to 4sATA (Backplane)
Mini SAS (SFF-8087 HOST) to 4sATA (target) cable

Key Specifications/Special Features:

Mini SAS to 4 SATA cable, uses to connect your Mini SAS controller to SATA backplane.

Mini SAS (SFF-8087) is the Controller

4 Sata is the Backplane

Controller (Mini SAS 4i SFF-8087) to 4x 7Pin SATA storage

Be careful: there are two kinds of version of this cable, ours comply with molex Pin out 2

Mini SAS (SFF-8087 Controller) to 4sATA (Backplane)

Mini SAS (SFF-8087 HOST) to 4sATA (target) cable

Actually it is very simple to confirm whether this is the correct cable you are looking for:

Mini SAS (SFF-8087 is the HOST

4SATA is the TARGET
