Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P F TO SATA 7P F + PH2.54 4P

Request A Quote

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Product Details

Product Type:

SATA Data And Power Connector Cable / Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Plated, Selective Gold Plating Available

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

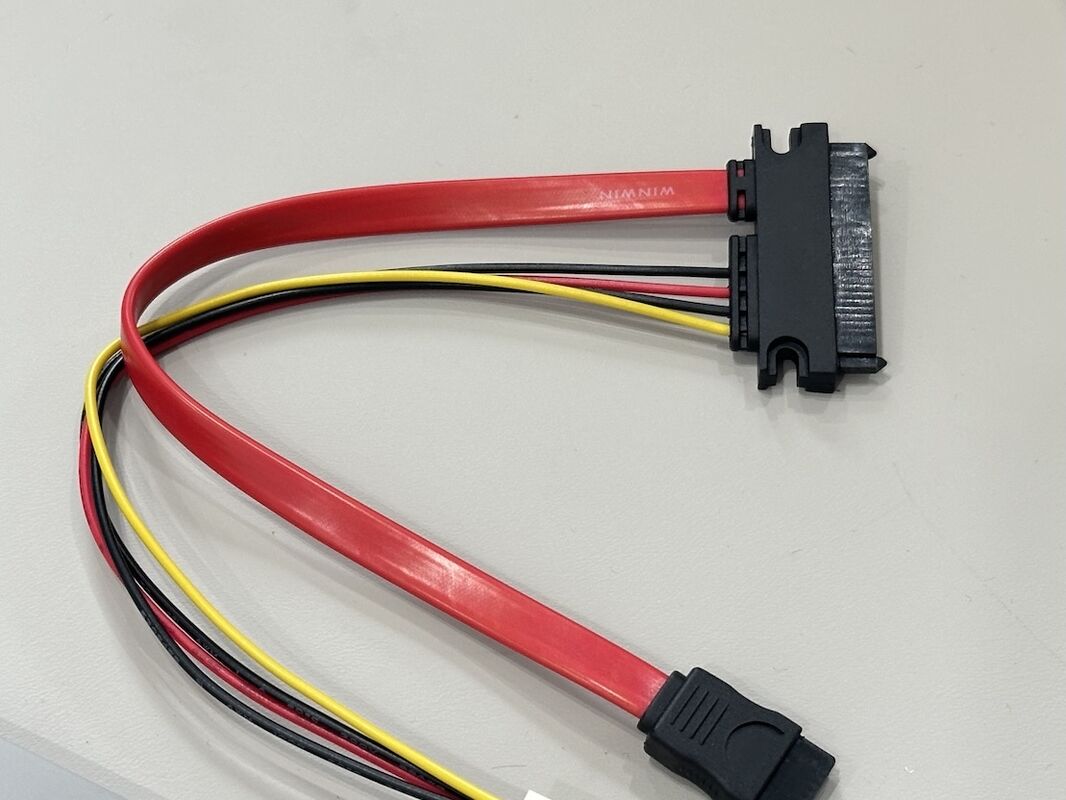

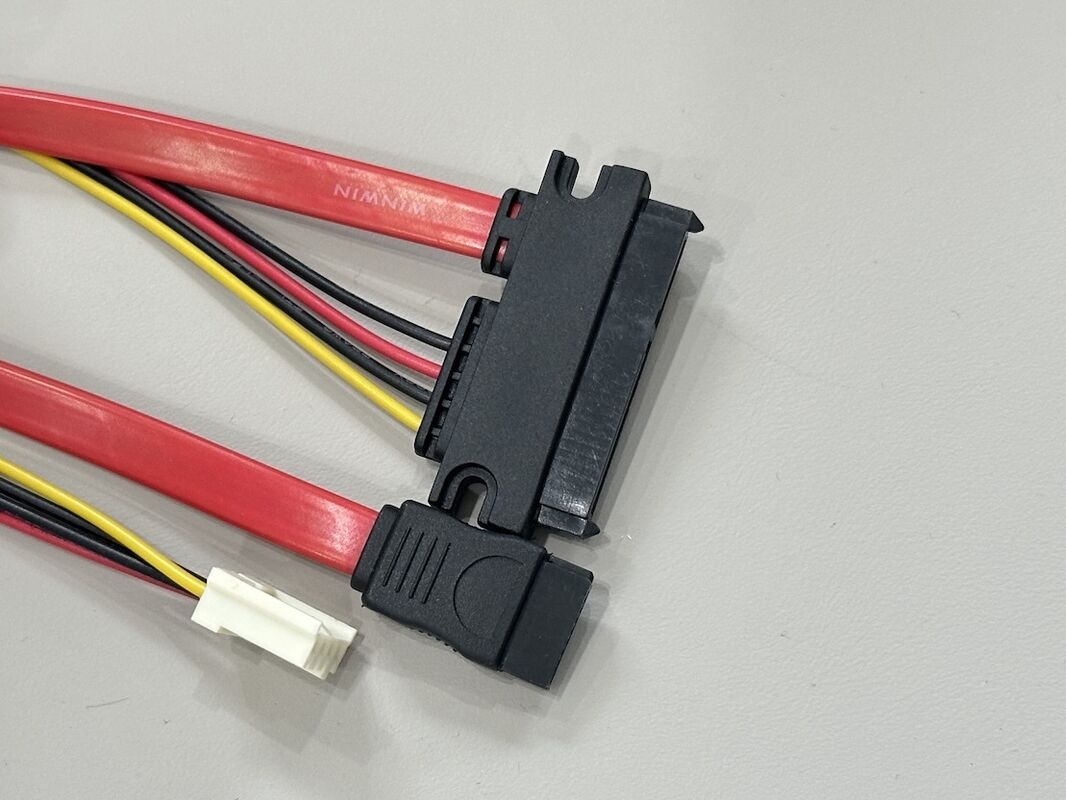

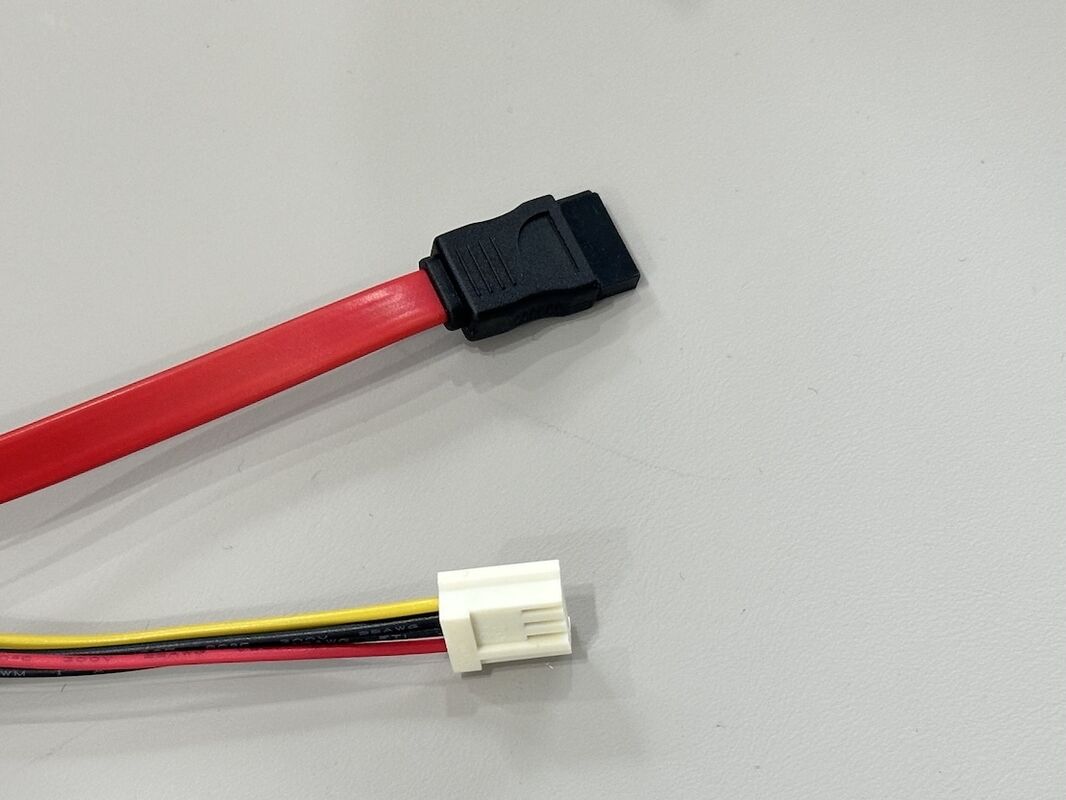

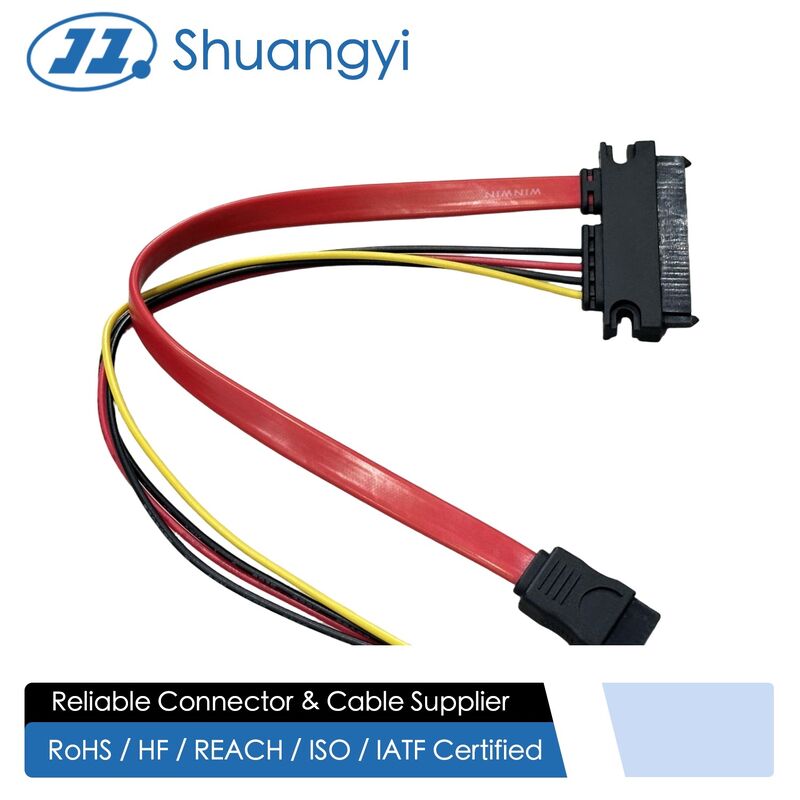

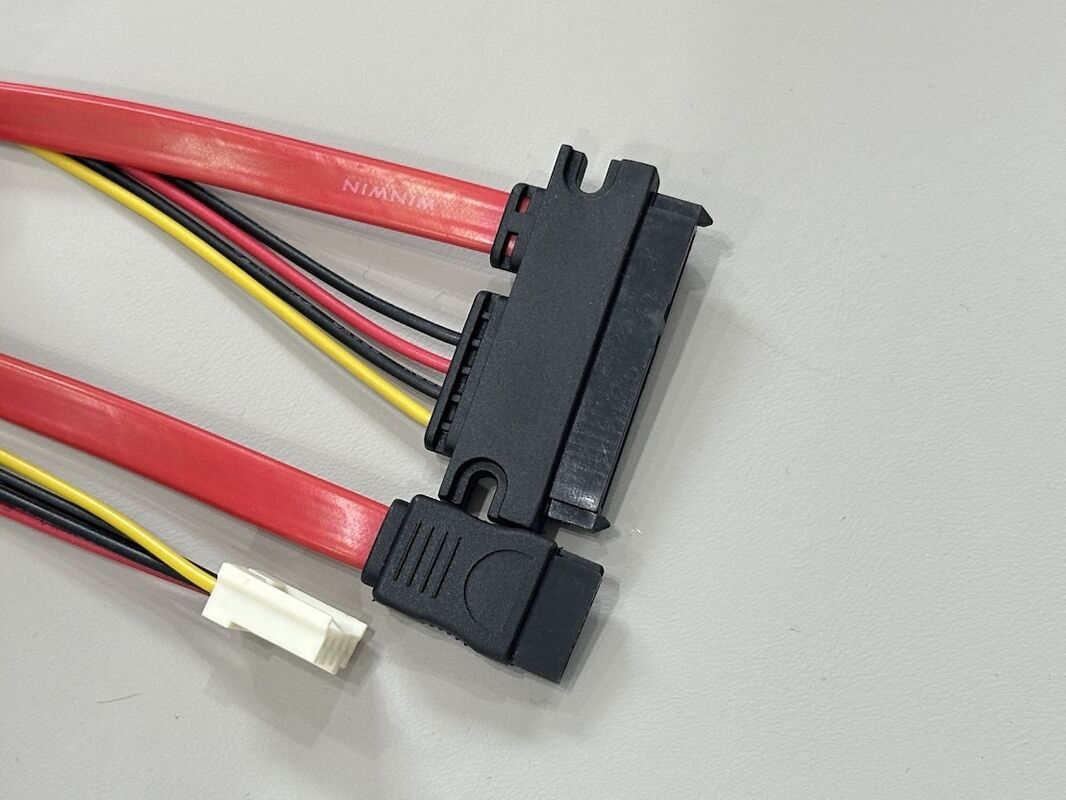

This cable assembly integrates SATA data and power into one compact harness. The drive end features a combined 7+15-pin SATA connector, while the opposite side offers a standard SATA 7-pin host plug for data and a small micro power connector for the PSU or PCB header.

Shielded SATA cable ensures stable high-speed signal transmission up to 6 Gb/s, and thick copper power wires guarantee reliable 5 V and 12 V delivery to the drive. The slim, flexible structure helps reduce clutter in tight chassis and improves airflow around HDDs and SSDs. Custom connector options and cable lengths can be provided to match different server, industrial PC, or storage layouts.

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications 0

Product type	SATA data and power connector cable / harness
Function	Combines SATA 7+15 pin drive connector with separate micro power connector

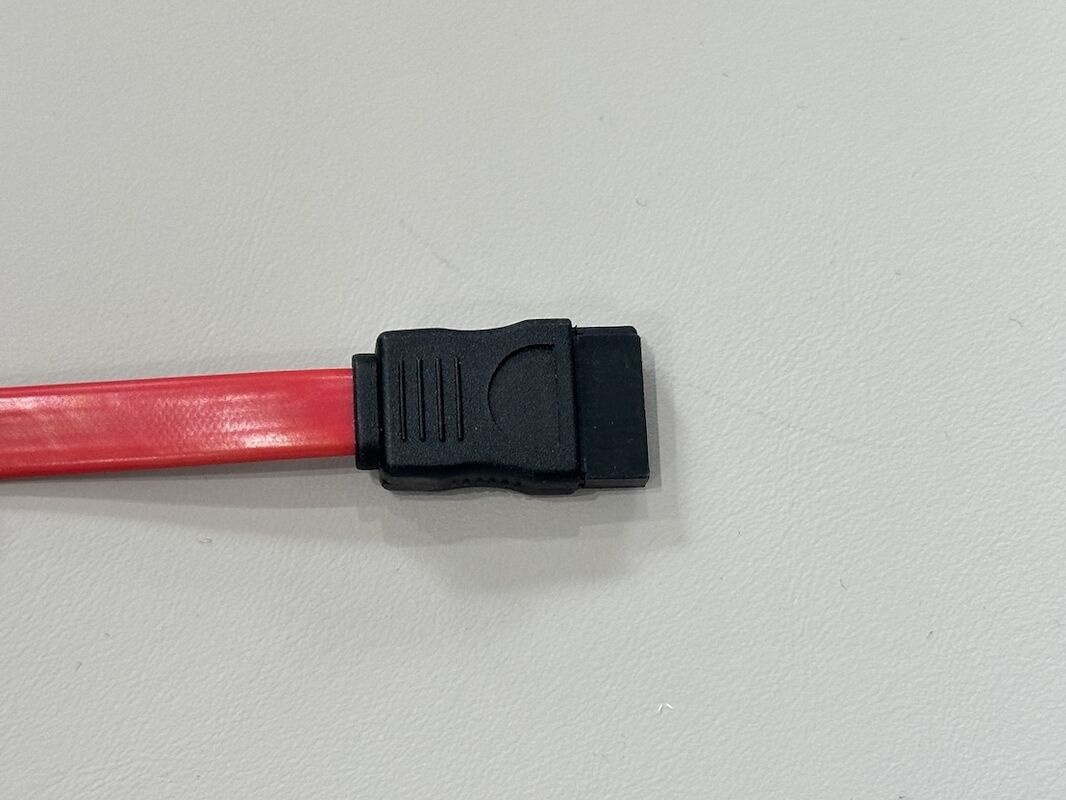

Host data connector	SATA 7-pin straight plug, female

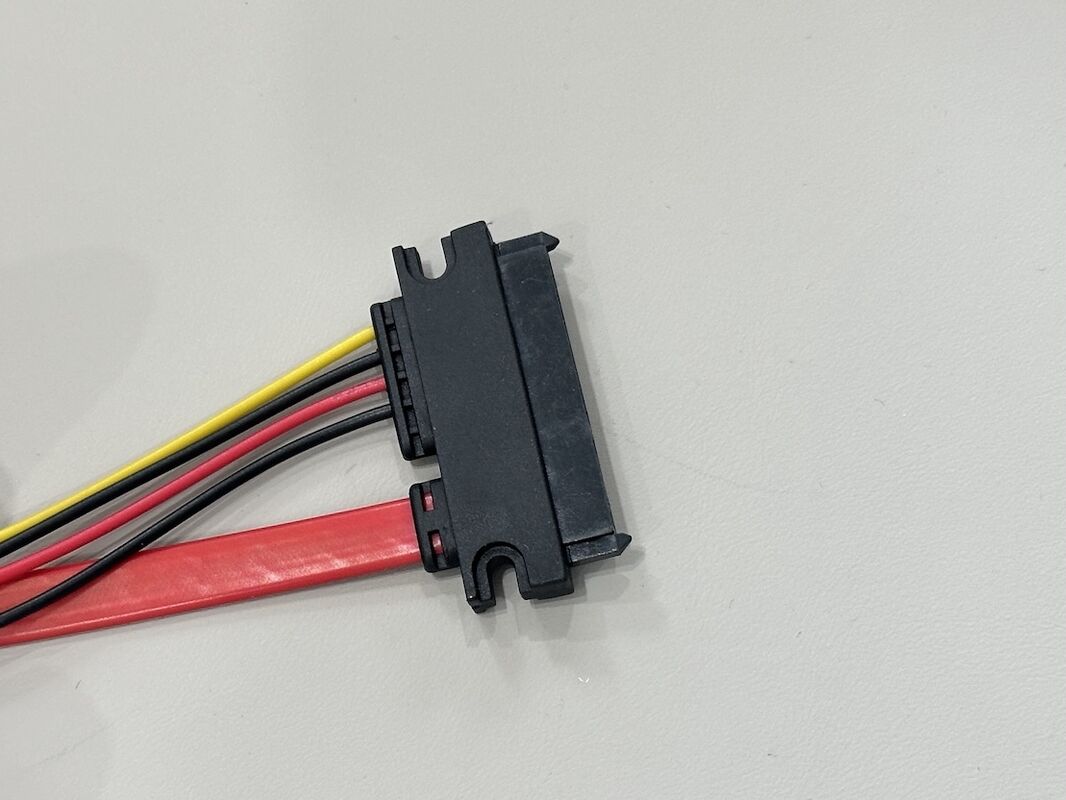

Drive-side connector	SATA 7+15-pin combined data & power connector, receptacle
Power input connector	Micro 3–4 pin white housing for PCB/PSU header (typical pitch 2.50–2.54 mm)
SATA performance	Compatible with SATA I/II/III, up to 6 Gb/s
Data cable type	26–30 AWG shielded SATA ribbon, low skew differential pairs
Power cable type	18–22 AWG stranded copper, yellow/red/black insulation
Standard cable length	300–600 mm (custom lengths available)
Rated voltage	5 V / 12 V DC for HDD/SSD power
Rated current	1.5–3 A per drive (depending on wire gauge and design)
Housing material	High-temperature thermoplastic, UL94V-0
Contact material	Copper alloy terminals
Contact plating	Tin or selective gold on mating area
Operating temperature	−20 °C to +80 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Connector type, pinout, length, labeling, bundling, OEM logo, packaging

Applications

Internal wiring for servers, NAS enclosures, RAID subsystems, and DVR/NVR storage units.

Desktop or industrial PCs where the motherboard or PSU uses a small power header instead of a full SATA power cable.

OEM storage modules and backplanes that require a pre-terminated SATA data and power harness for fast assembly.

Custom embedded systems or instruments using 2.5"/3.5" SATA HDDs and SSDs as removable or fixed storage.
