SATA data and power connector cable harness, right-angle 7 pin serial ATA wire cable with 4 pin power connector for HDD SSD server storage customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7 +15P Fx5 TO SATA 7P Fx5 +PH4.2x20P.HSG

Request A Quote

SATA data and power connector cable harness, right-angle 7 pin serial ATA wire cable with 4 pin power connector for HDD SSD server storage customization

Product Details

Product Type:

SATA Data And Power Connector Cable / Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Plated, Selective Gold Plating Available

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

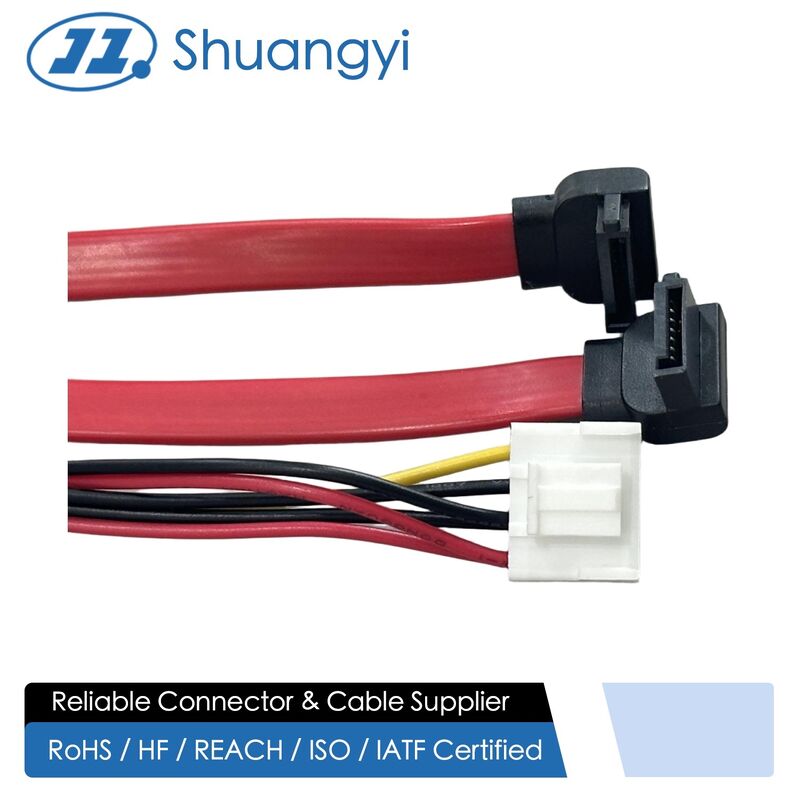

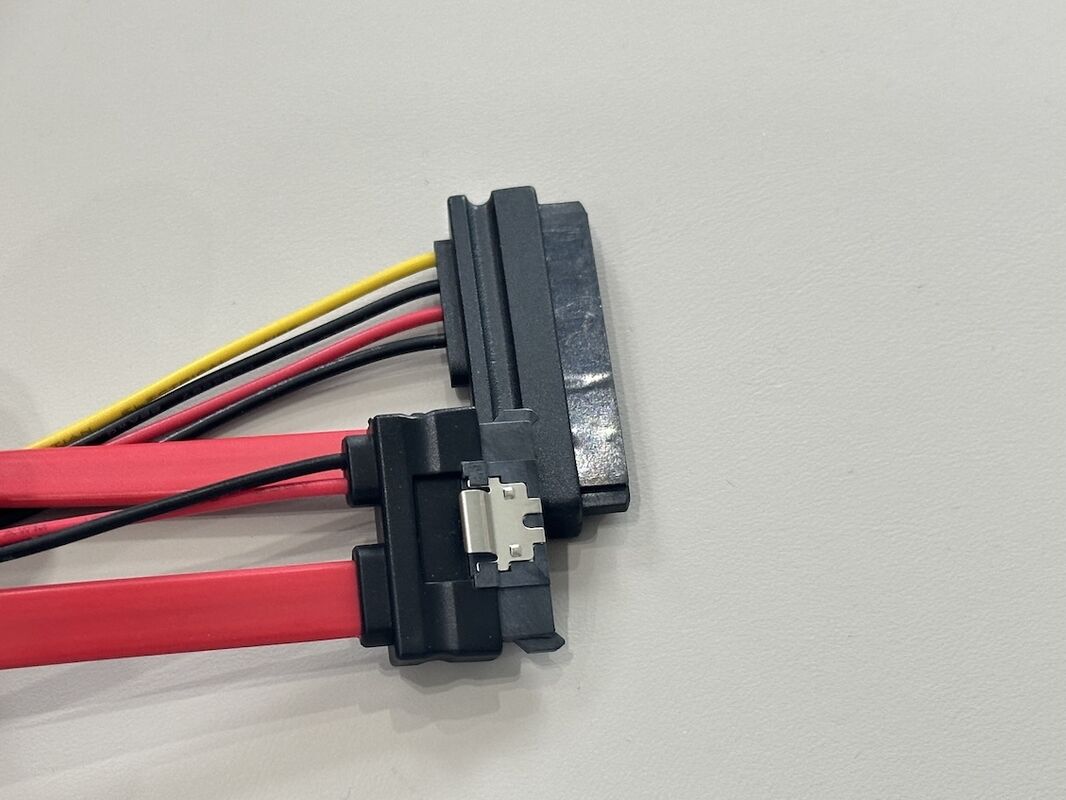

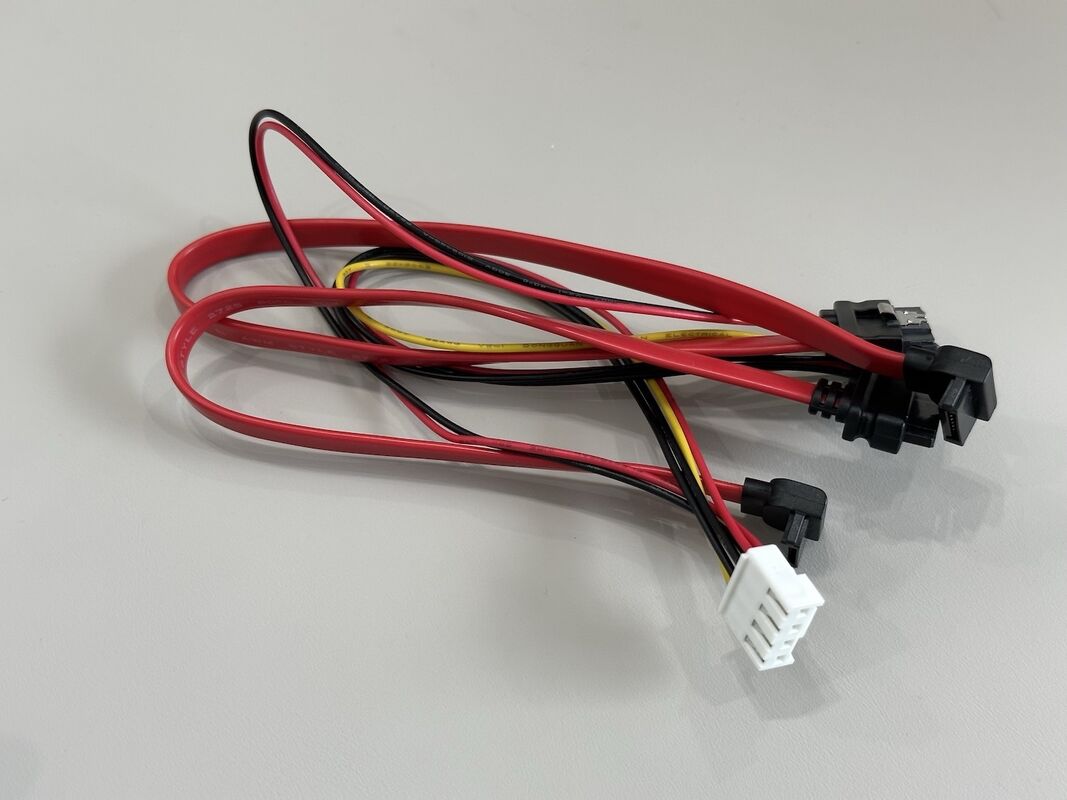

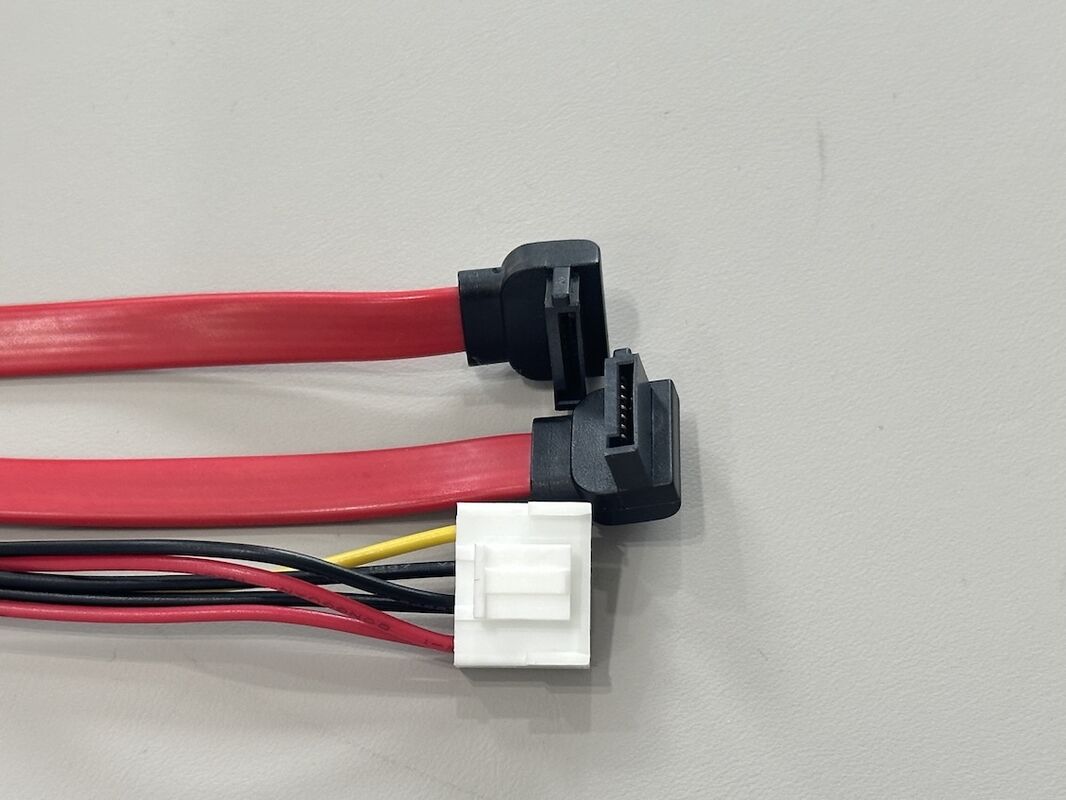

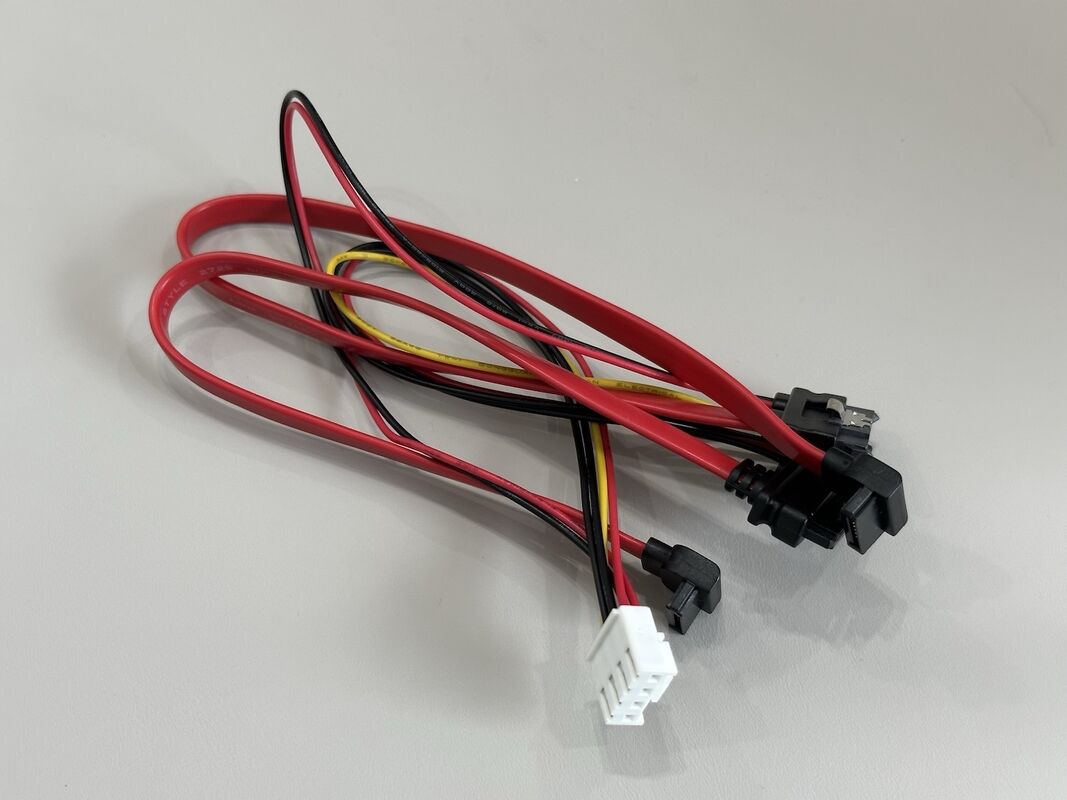

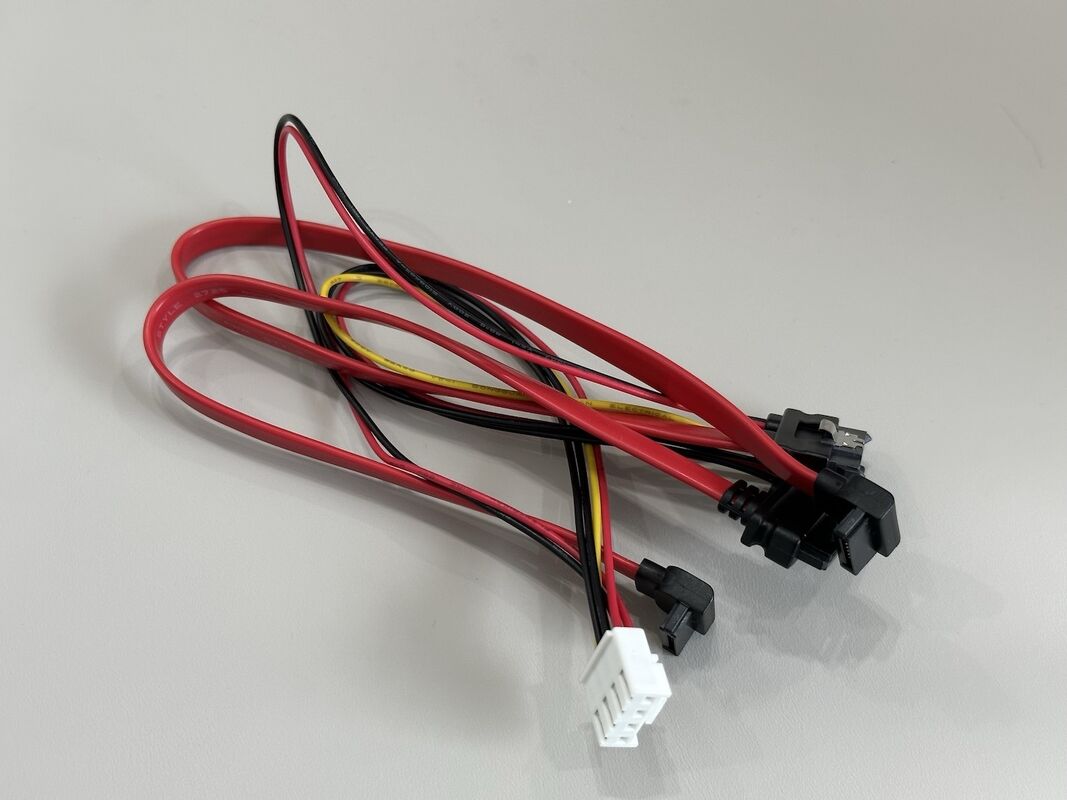

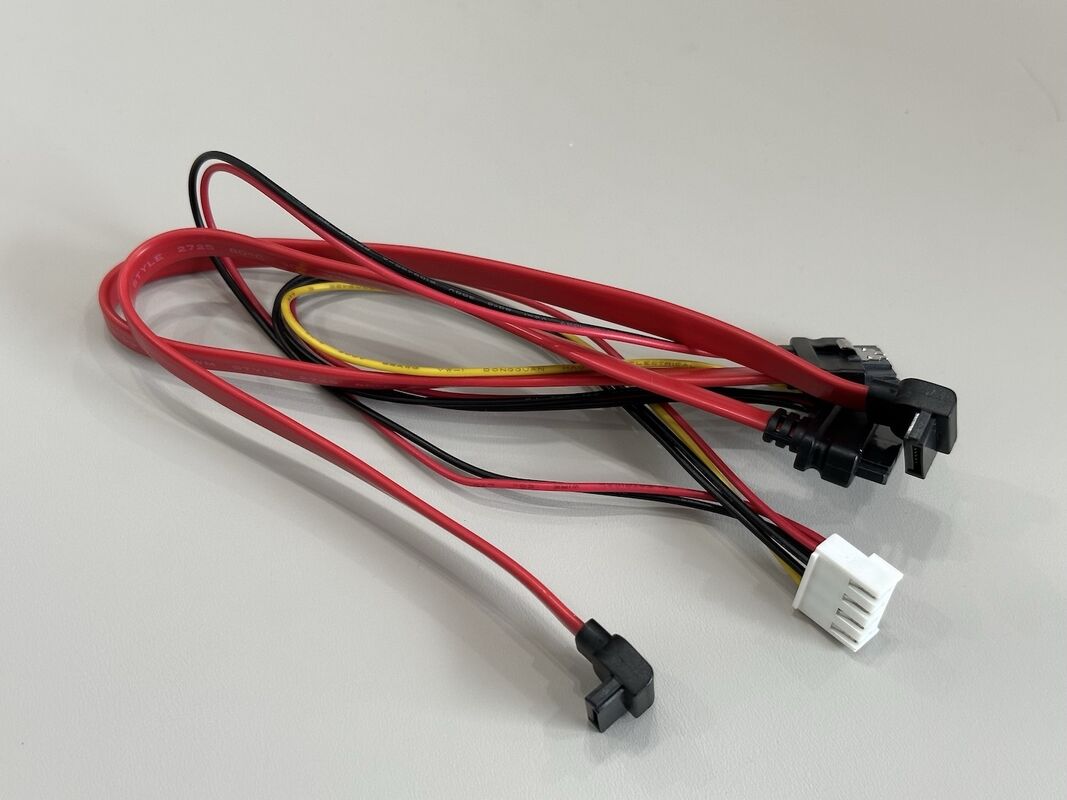

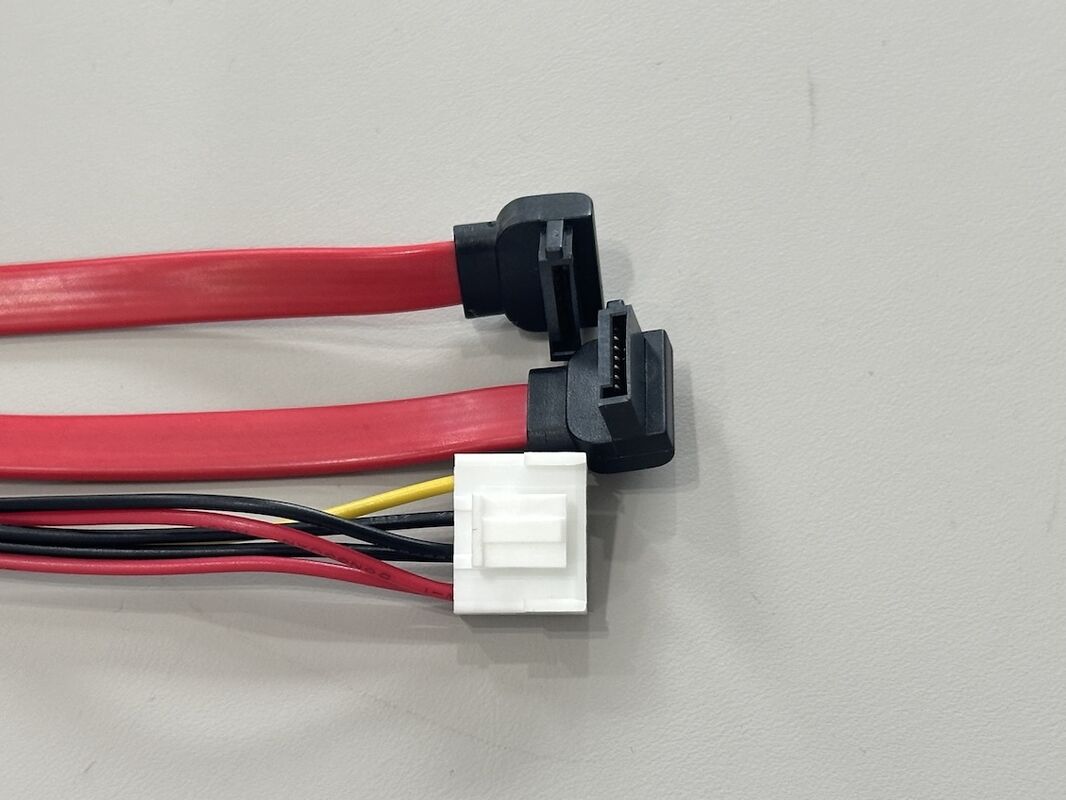

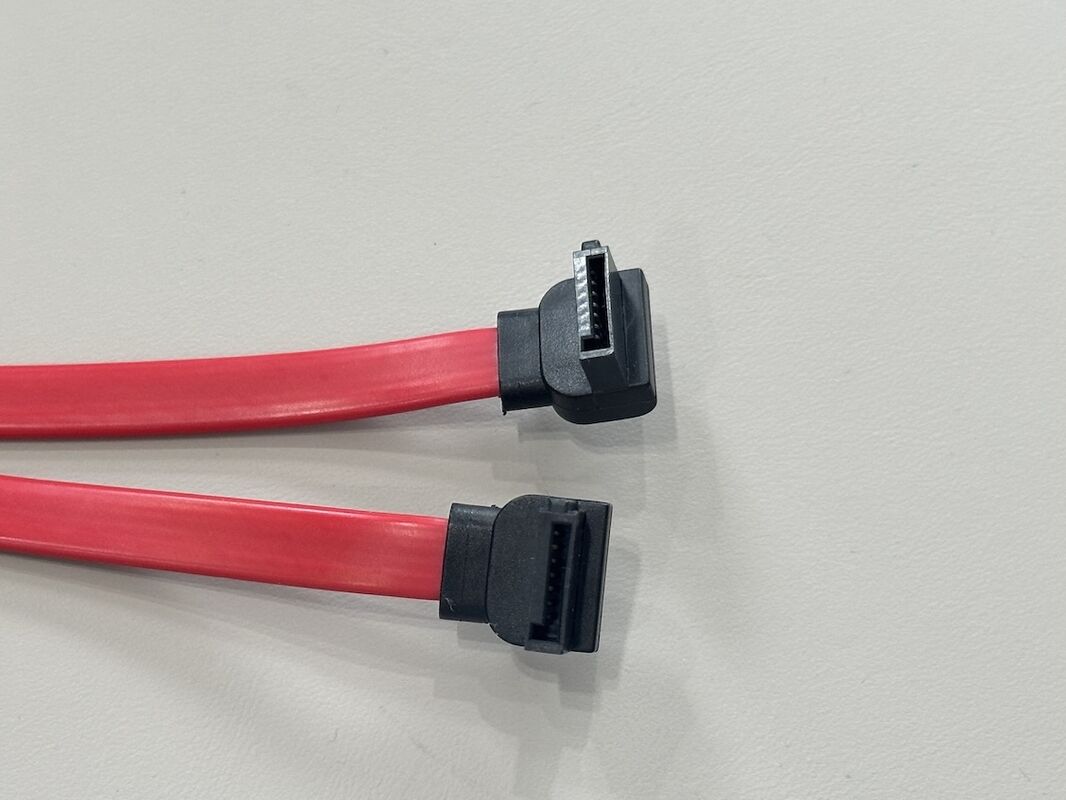

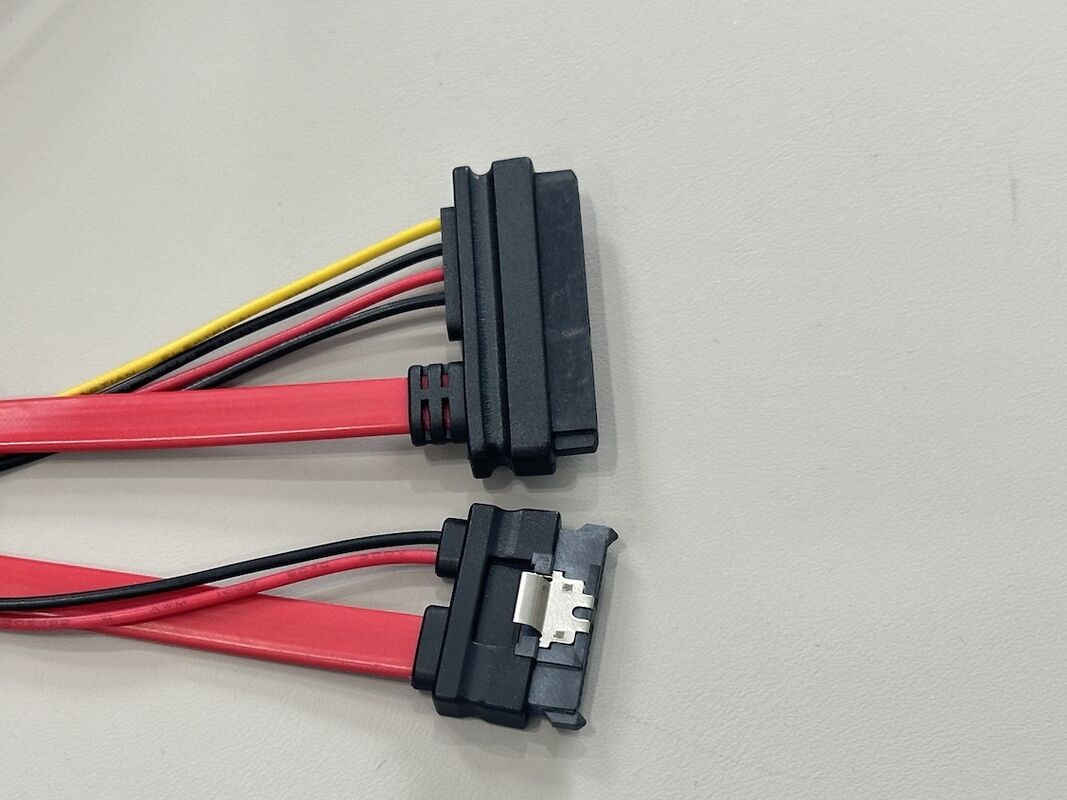

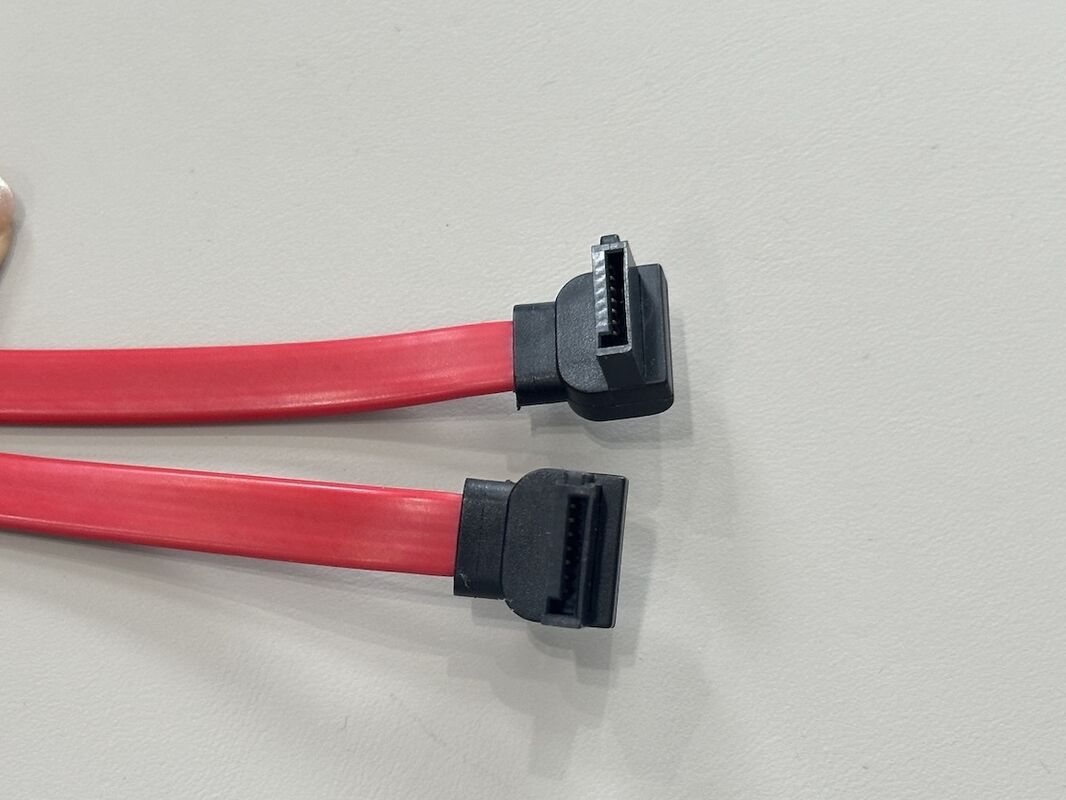

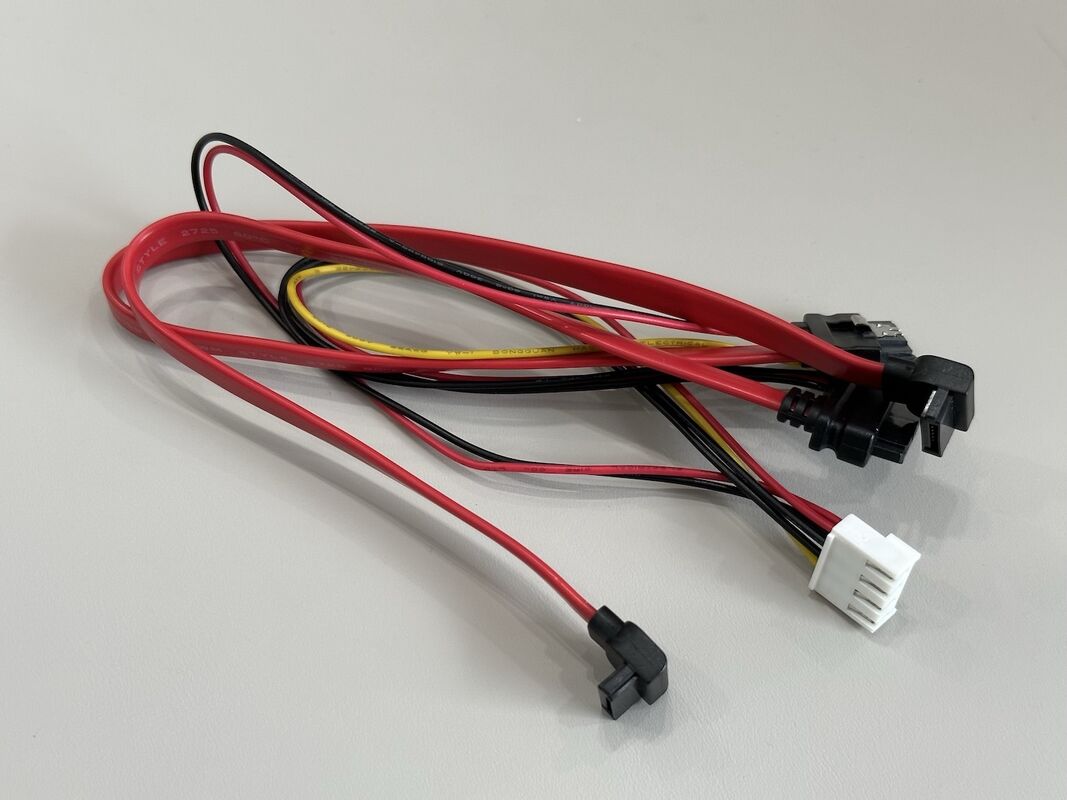

This assembly integrates SATA power and data connections into one neat harness. A 4-pin power connector feeds a SATA 15-pin power plug, while several shielded right-angle SATA 7-pin cables link directly to HDDs or SSDs. The design reduces cable clutter inside servers and desktop systems, improving airflow and simplifying drive installation.

Stranded copper conductors and tightly controlled impedance maintain low-loss power and high-integrity signal transmission up to 6 Gb/s. Right-angle SATA connectors are ideal for narrow chassis or back-to-back mounting, helping the cables exit parallel to the drive surface. The harness can be customized for different drive counts, cable lengths, and connector types to match your storage layout or PCB headers.

SATA data and power connector cable harness, right-angle 7 pin serial ATA wire cable with 4 pin power connector for HDD SSD server storage customization 0

Product type	SATA data and power connector cable / wire harness
Function	Routes PSU power and SATA data from 4-pin header to multiple SATA drives
Data connector type	Right-angle SATA 7-pin male connectors

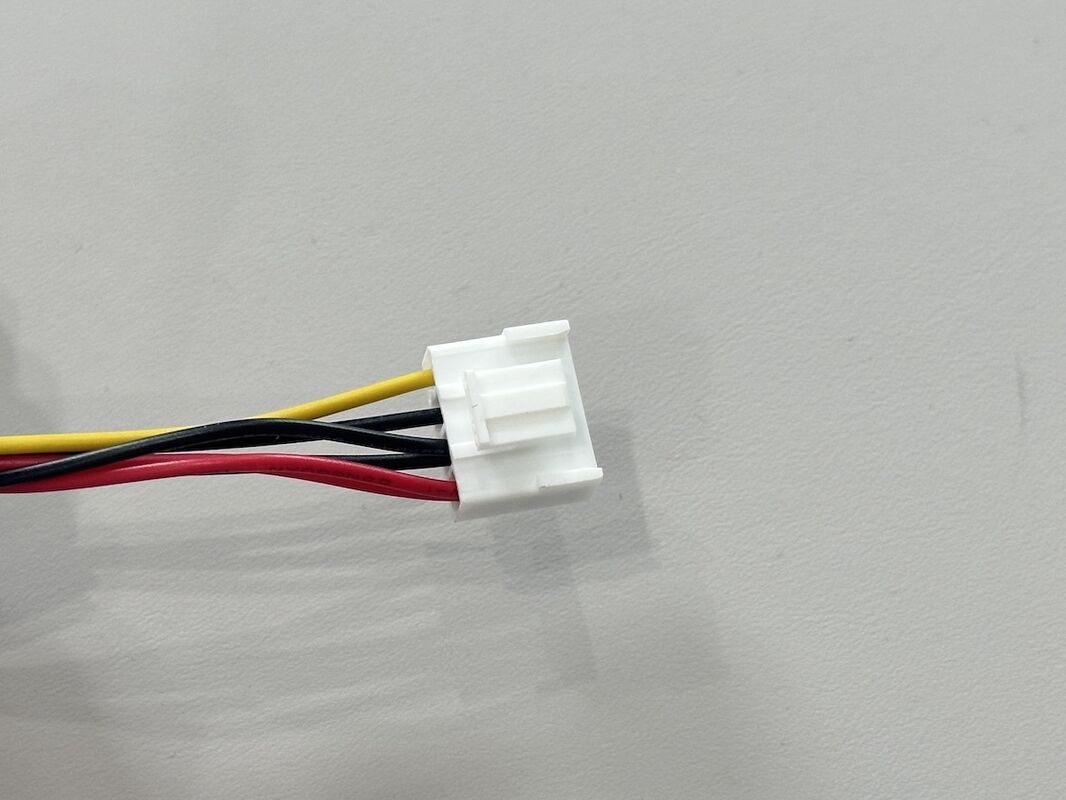

Power connector (PSU side)	4-pin white power connector (header type, pitch 4.20 mm typical)
Power connector (drive side)	SATA 15-pin power plug
Number of SATA data lines	2–3 SATA 7-pin cables (customizable)
SATA performance	Compatible with SATA I/II/III, up to 6 Gb/s
Data wire	26–30 AWG stranded, shielded SATA cable
Power wire	18–22 AWG copper, red/yellow/black insulation
Standard cable length	500–800 mm overall, custom lengths on request
Rated voltage	5 V / 12 V DC for drive power
Rated current	1.5–3 A per drive (depends on gauge and design)
Housing material	High-temperature thermoplastic, UL94V-0
Contact material	Copper alloy terminals
Contact plating	Tin or selective gold on mating area
Operating temperature	−20 °C to +80 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Connector brands, pinout, length, labeling, bundling, packaging, OEM logo

Applications

Internal cabling for tower or rack-mount servers, NAS enclosures, and RAID storage systems.

Desktop workstations and gaming PCs where multiple SATA drives share a compact cable set.

Industrial PCs, DVR/NVR recorders, and embedded storage modules using SATA HDDs or SSDs.

OEM storage backplanes or custom PCBs requiring pre-terminated SATA data and power harnesses.

Precautions

Name: SATA data and power connector cable harness, right-angle 7 pin serial ATA wire cable with 4 pin power connector for HDD SSD server storage customization
Brand: ShuangYi Precision Electronics Co., LTD
SKU: SATA 7 +15P Fx5 TO SATA 7P Fx5 +PH4.2x20P.HSG
Price: 0.79 USD
Availability: InStock
