SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P F TO SATA 7P F 90° WITH LOCK +SATA 15P F IDC

Request A Quote

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Product Details

Product Type:

Combined SATA Data And Power Connector Cable / Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Plated, Selective Gold Plating Available

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

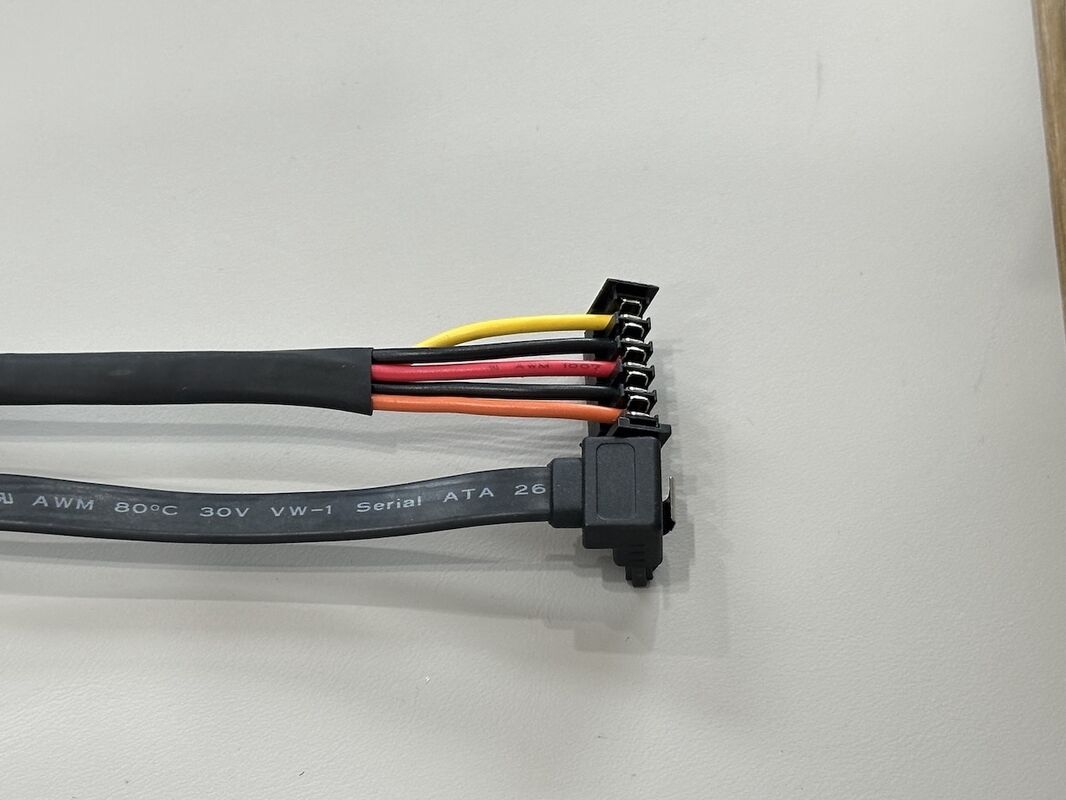

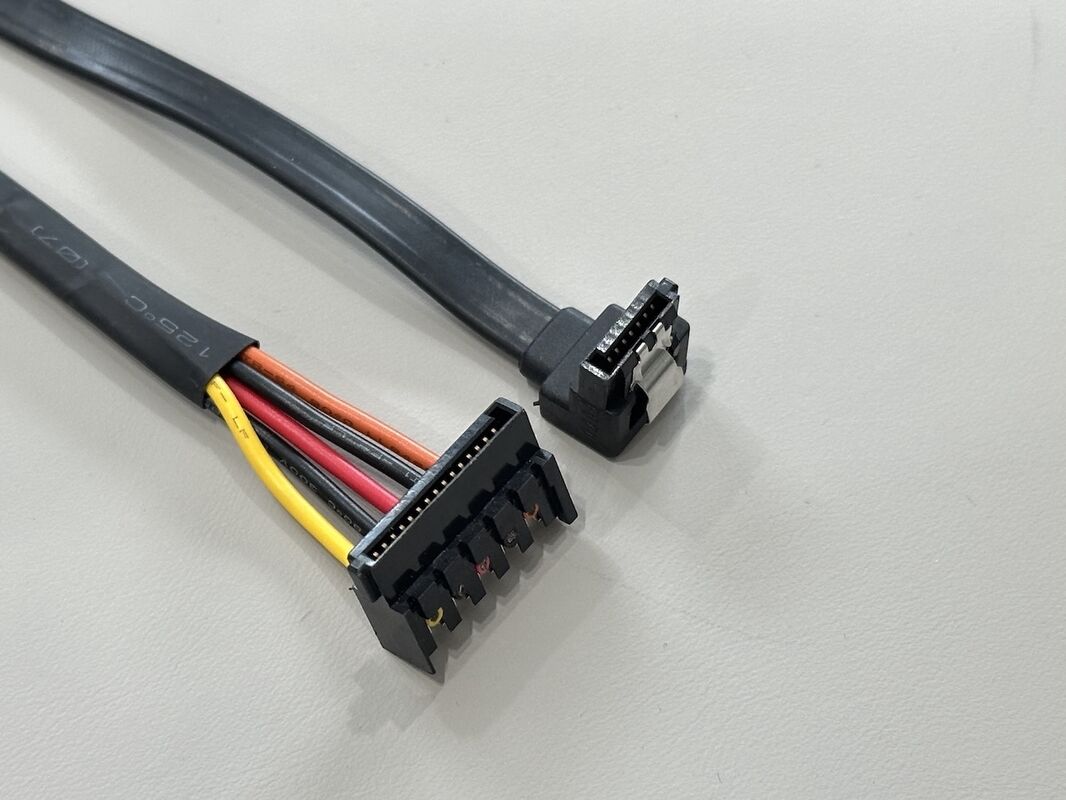

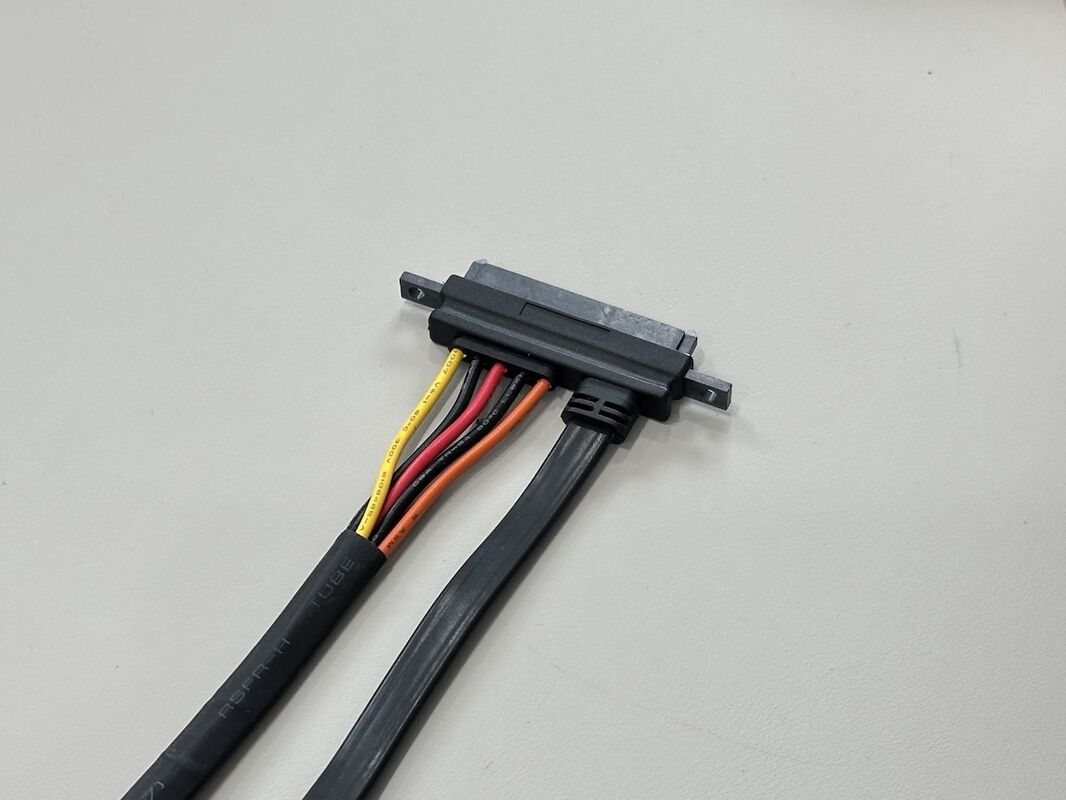

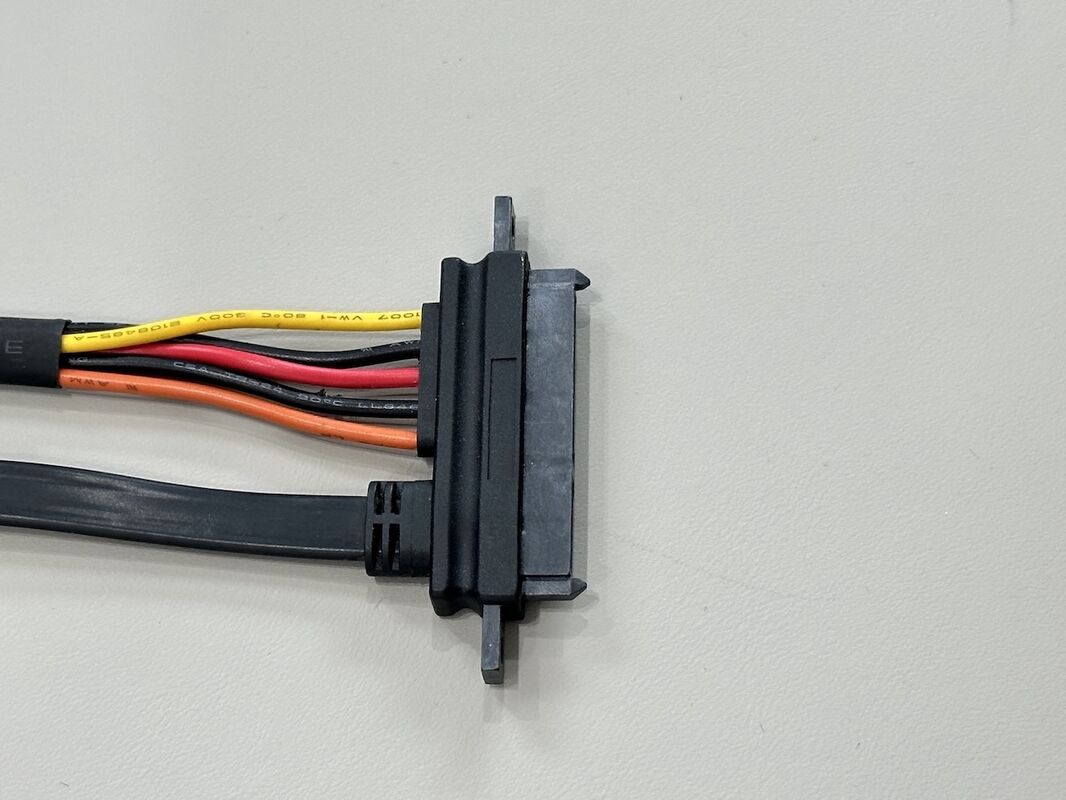

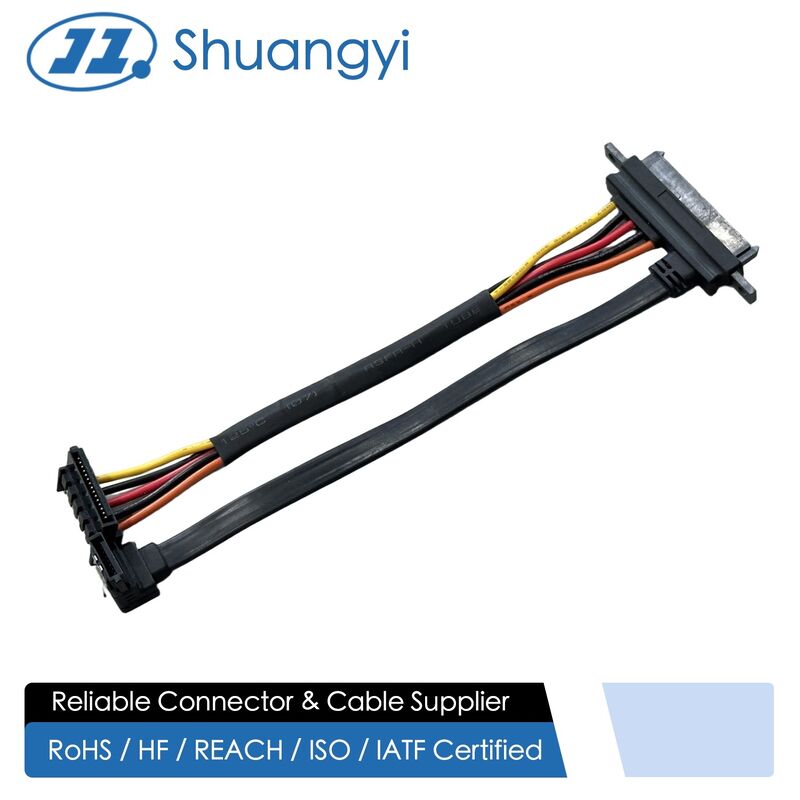

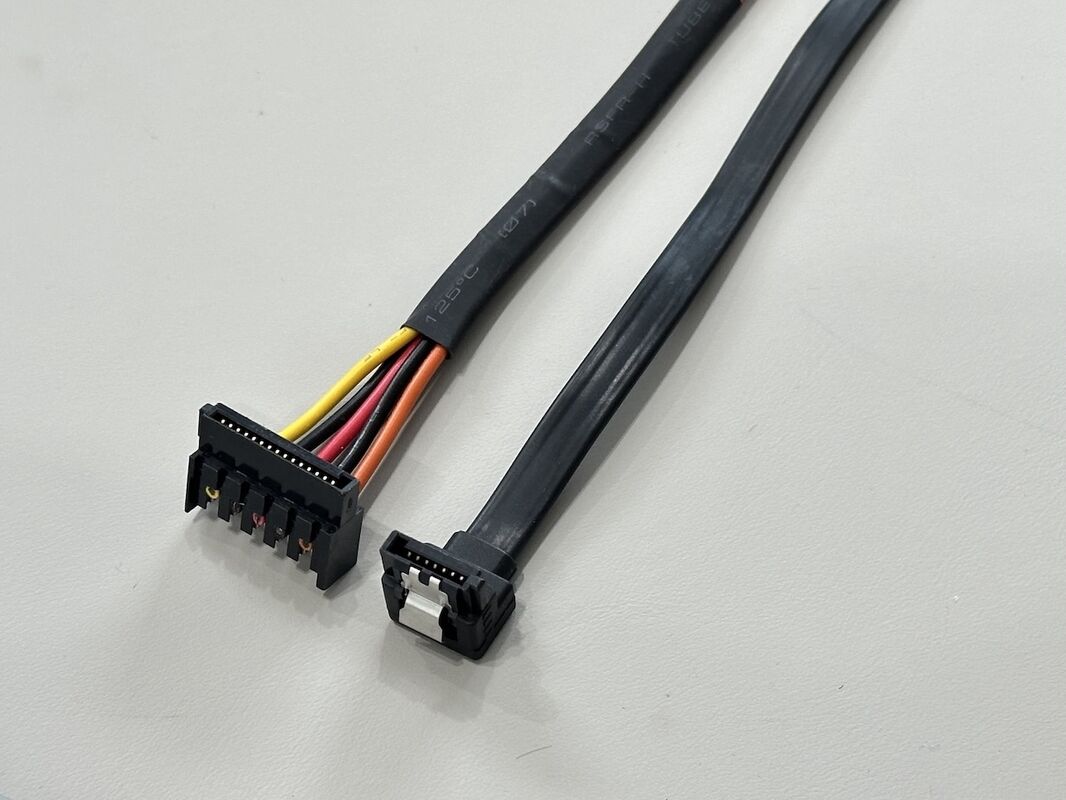

This harness combines SATA data and power lines in a compact assembly that links a standard 7+15 pin SATA drive connector to a 22-pin PCB board connector. The flat SATA ribbon maintains controlled impedance for high-speed serial signals, while the separate round power bundle delivers stable 5 V and 12 V to the backplane or power board.

The mounting-ear SATA plug is suitable for fixed drive trays or metal brackets, and the board-side connector mates directly with a dedicated header, eliminating loose internal cabling. Durable thermoplastic housings and copper-alloy terminals ensure long service life in demanding storage and industrial environments. Cable length, wire gauge and connector types can be customized to match specific chassis and PCB layouts.

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization 0

Product type	SATA data and power connector cable / wire harness
Function	Adapts 7+15 pin SATA drive connector to 22-pin PCB board connector
Connector A	SATA 7+15 pin combined data & power receptacle with mounting ears
Connector B	22-pin board connector (data + power), for mating with PCB header/backplane
Supported interface	Serial ATA, up to 6 Gb/s
Number of contacts	22 positions total (7 data, 15 power)
Data cable	Flat ribbon SATA cable, 26–30 AWG stranded copper
Power cable	Multicore round wire harness, 18–22 AWG copper (orange, red, black, yellow)
Standard cable length	300–500 mm between connectors, customizable
Rated voltage	5 V / 12 V DC typical, max 30 V DC
Rated current	1.5–3 A per power contact (depends on wire gauge and ambient temperature)
Housing material	High-temperature thermoplastic, UL94V-0
Contact material	Copper alloy terminals
Contact plating	Tin or selective gold on mating area
Operating temperature	−20 °C to +80 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Length, connector style, pin assignment, labeling, sleeving, packaging, logo

Applications

Server and NAS backplanes connecting 2.5"/3.5" SATA HDDs or SSDs to a mainboard or RAID controller.

Storage cages and hot-swap modules where drives are mounted on carriers and wired to a central PCB.

DVR/NVR recorders, industrial PCs and automation controllers using board-level SATA interfaces.

OEM storage systems requiring pre-terminated harnesses for fast assembly and consistent wiring quality.
