SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P F TO SATA 7P F 90 ° +PH2.54 4P

Request A Quote

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Product Details

Product Type:

Combined SATA Data And Power Connector Cable / Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Plated, Selective Gold Plating Available

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

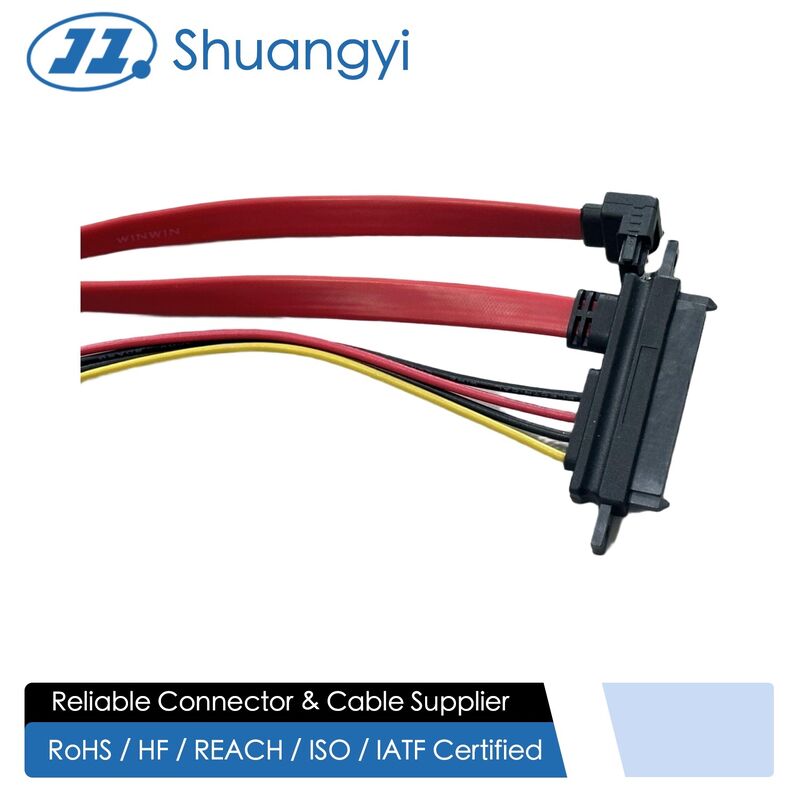

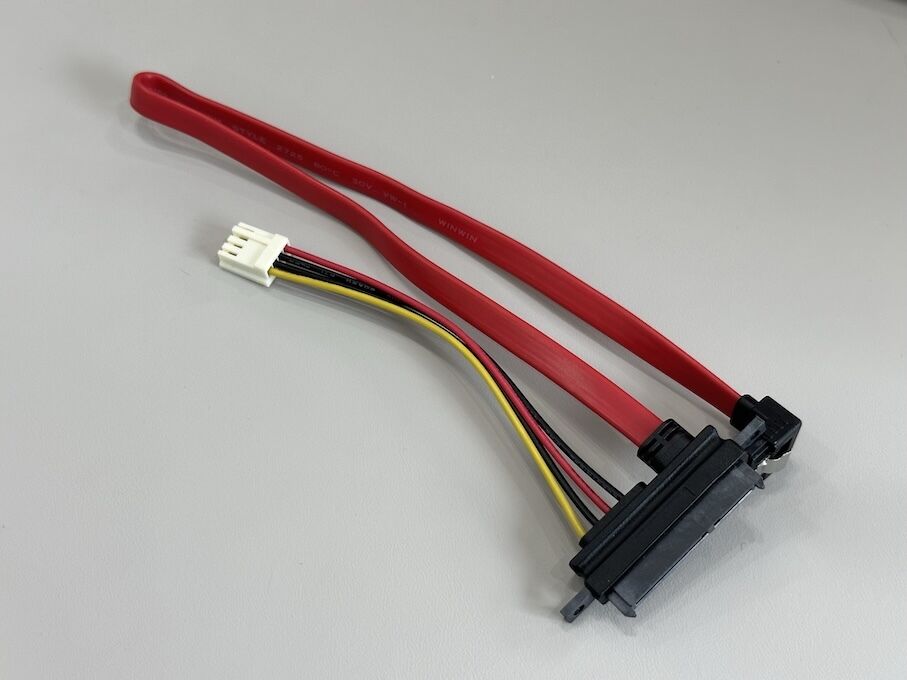

This cable assembly integrates SATA data and power connections into a single, tidy harness. The drive end features a compact 7+15-pin SATA connector, while the host side uses a right-angle 7-pin SATA plug for data and a 4-pin power connector that mates to a PSU or small PCB header.

The shielded SATA ribbon ensures stable high-speed data transmission, and the separate power leads provide reliable 5 V and 12 V supply to the hard drive or SSD. The right-angle plug reduces strain on the drive port and is ideal for shallow chassis or tight rackmount systems. Custom configurations can be produced to match different layouts, controller boards, and power headers.

Product type	Combined SATA data and power connector cable / wire harness

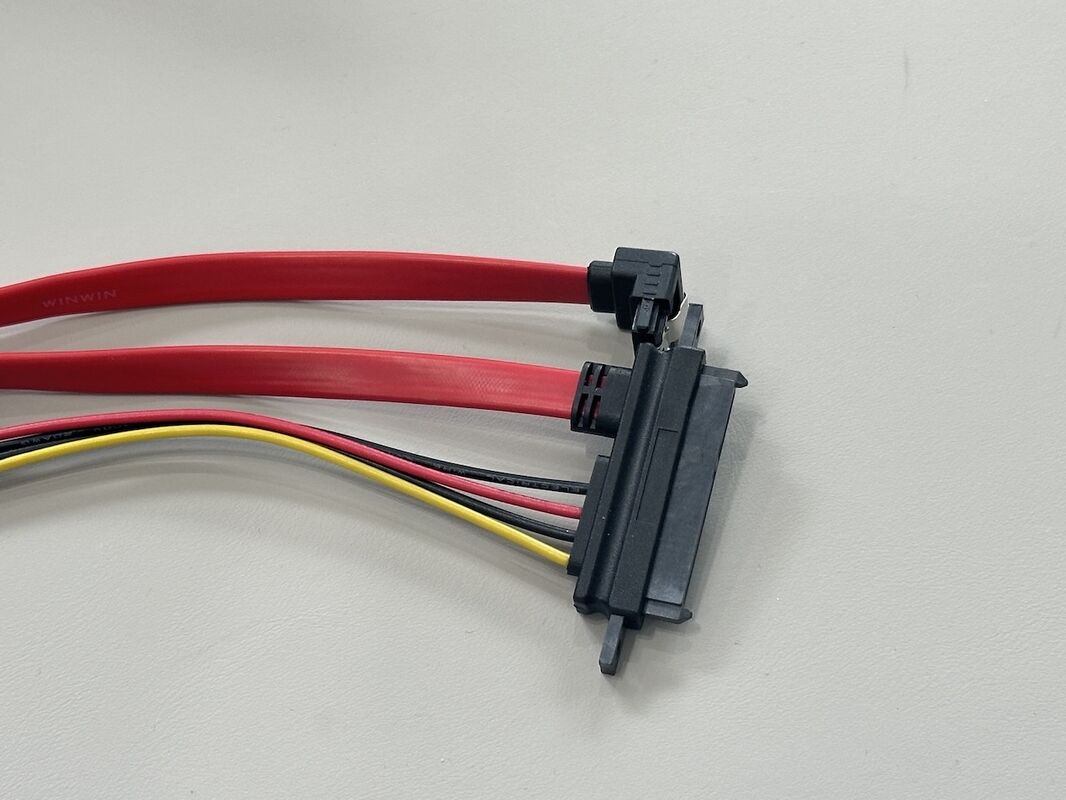

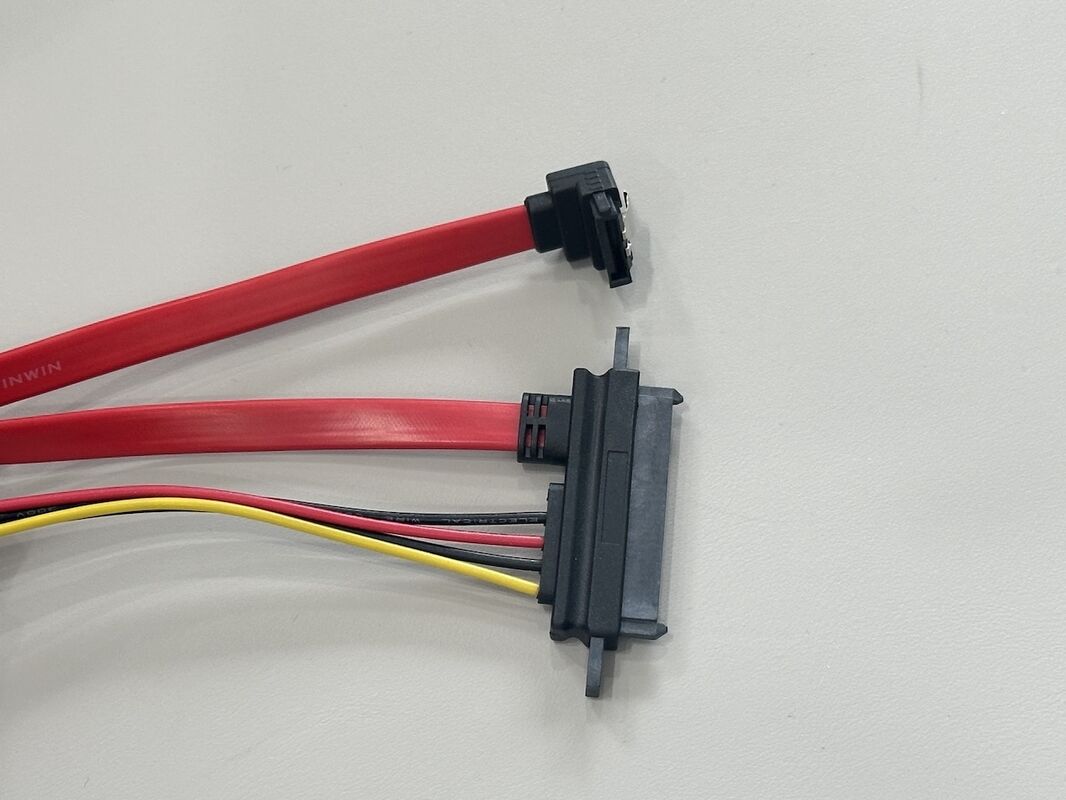

Drive-side connector	7+15-pin SATA combined data & power receptacle

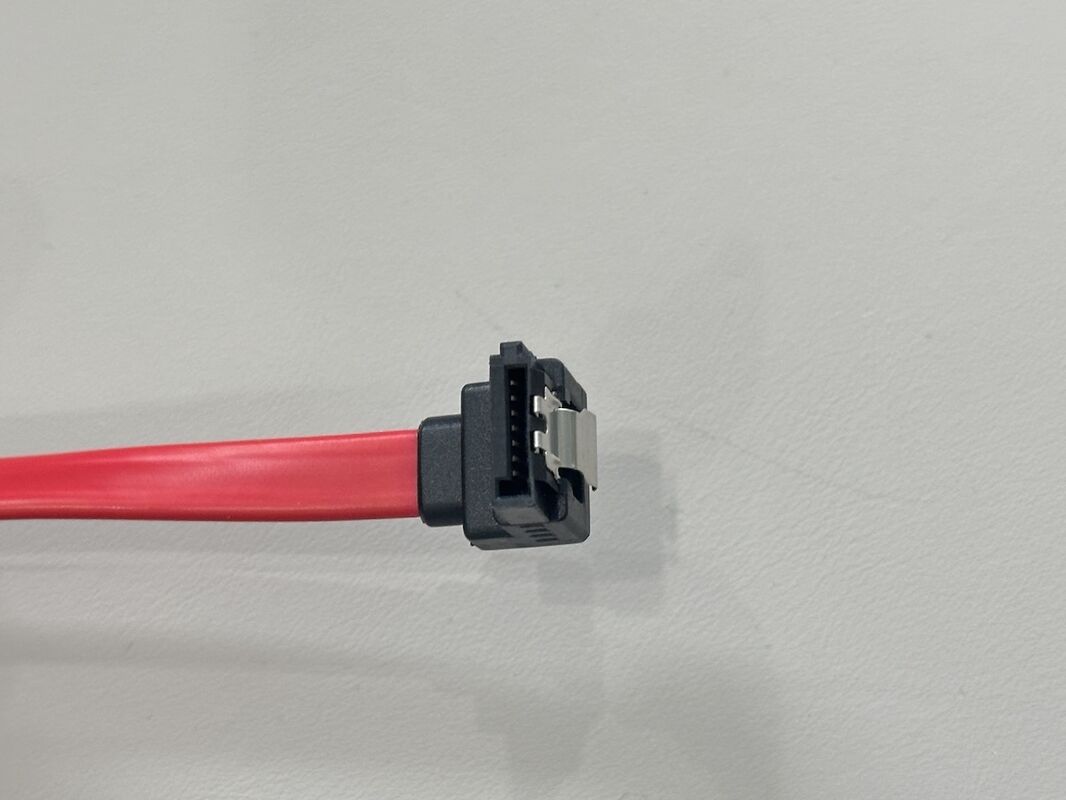

Host data connector	Right-angle SATA 7-pin plug

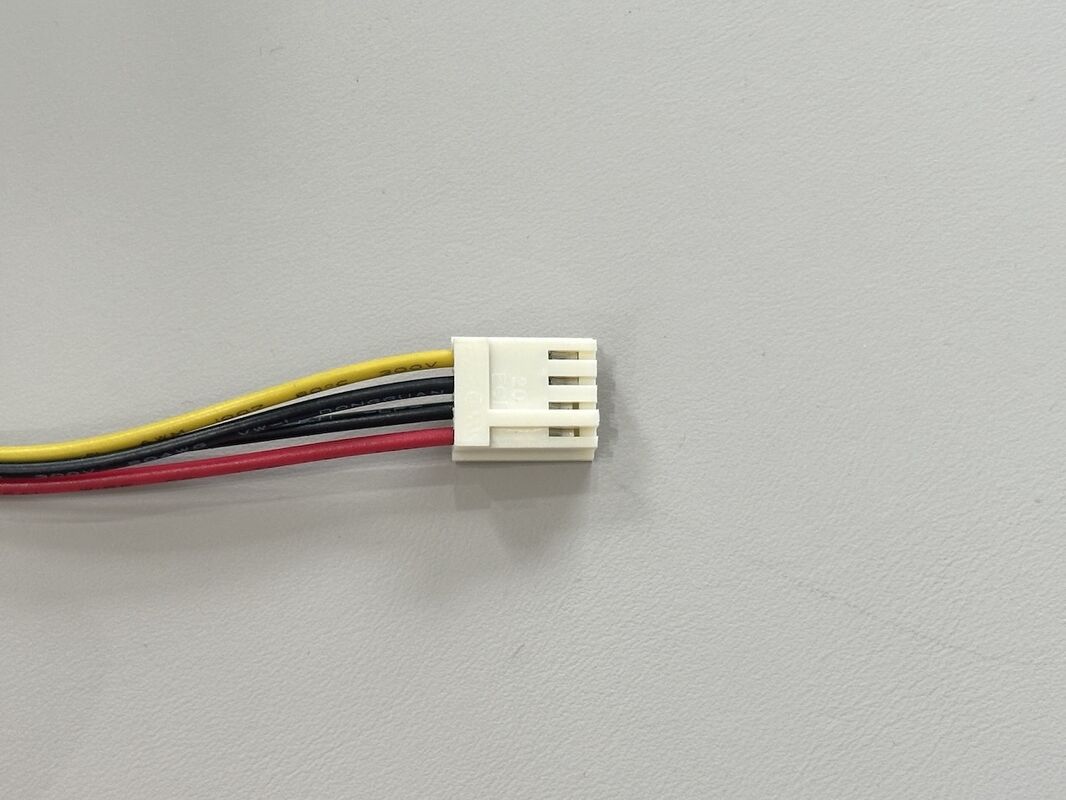

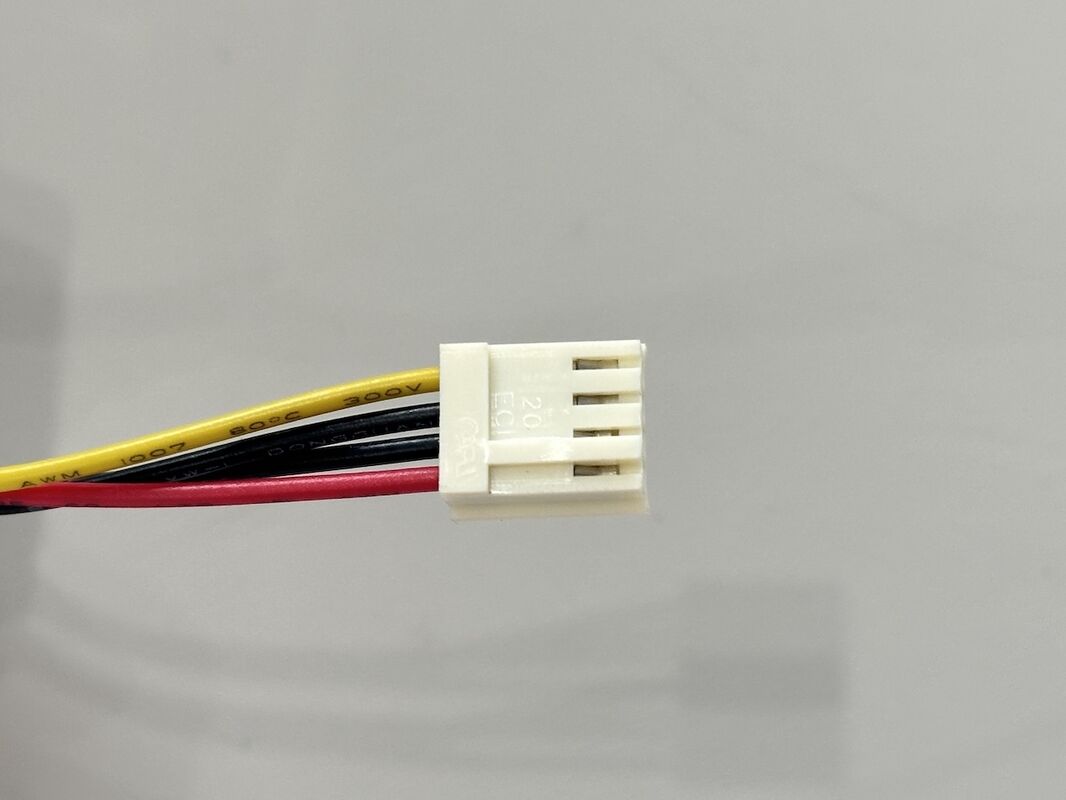

Power input connector	4-pin white power housing for PSU/PCB header (typical 4.20 mm pitch)
SATA version support	SATA I / II / III, data rate up to 6 Gb/s
Data cable	26–30 AWG shielded SATA ribbon cable
Power cable	18–22 AWG stranded copper, black/red/yellow insulation
Overall cable length	300–600 mm standard; other lengths available on request
Rated voltage	5 V and 12 V DC for HDD/SSD
Rated current	1.5–3 A per drive (depending on gauge and ambient temperature)
Housing material	High-temperature thermoplastic, UL94V-0 flame-retardant
Contact material	Copper alloy terminals
Contact plating	Tin or optional selective gold on mating surfaces
Operating temperature	−20 °C to +80 °C
Insulation resistance	≥ 1000 MΩ @ 500 V DC
Dielectric withstand	1000 V AC for 1 minute
Compliance	RoHS / REACH / halogen-free options
Customization options	Connector brands, pin configuration, pitch, length, wire color, labels, logo

Applications

Internal cabling for servers, NAS systems, RAID arrays and DVR/NVR recorders using SATA HDDs or SSDs.

Desktop or industrial PCs where the motherboard or power board provides a 4-pin header rather than a full SATA power cable.

OEM storage modules, backplanes and embedded systems requiring pre-terminated SATA harnesses for quick assembly.

Upgrades or repairs where a combined SATA data-power lead simplifies internal wiring and airflow management.

Precautions

Name: SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization
Brand: ShuangYi Precision Electronics Co., LTD
SKU: SATA 7+15P F TO SATA 7P F 90 ° +PH2.54 4P
Price: 0.79 USD
Availability: InStock
