SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P F TO SATA 7P F 90°+VH3.96 2x4P

Request A Quote

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Product Details

Product Type:

Combined SATA Data And Power Connector Cable / Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Plated, Selective Gold Plating Available

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

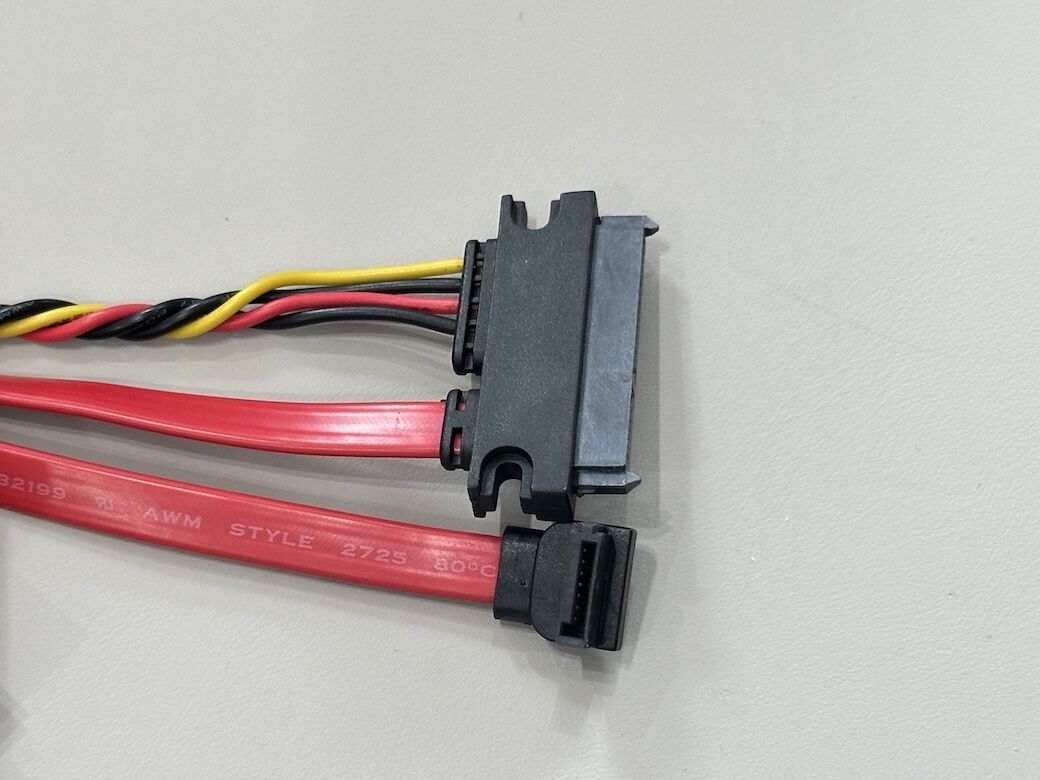

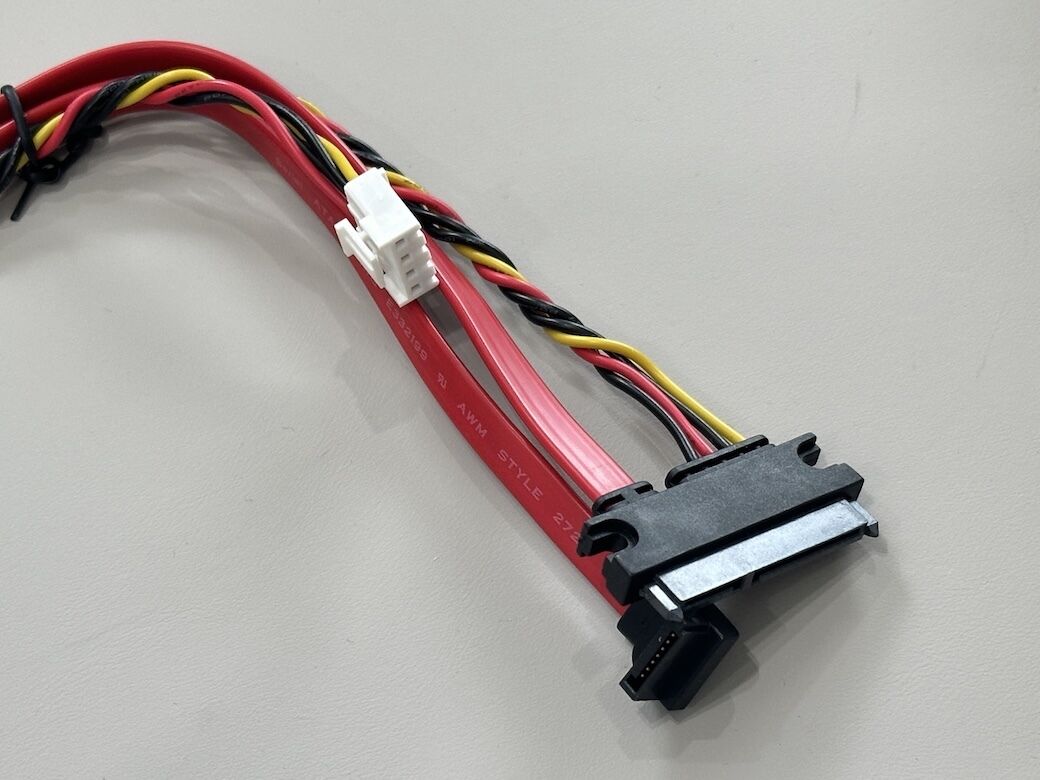

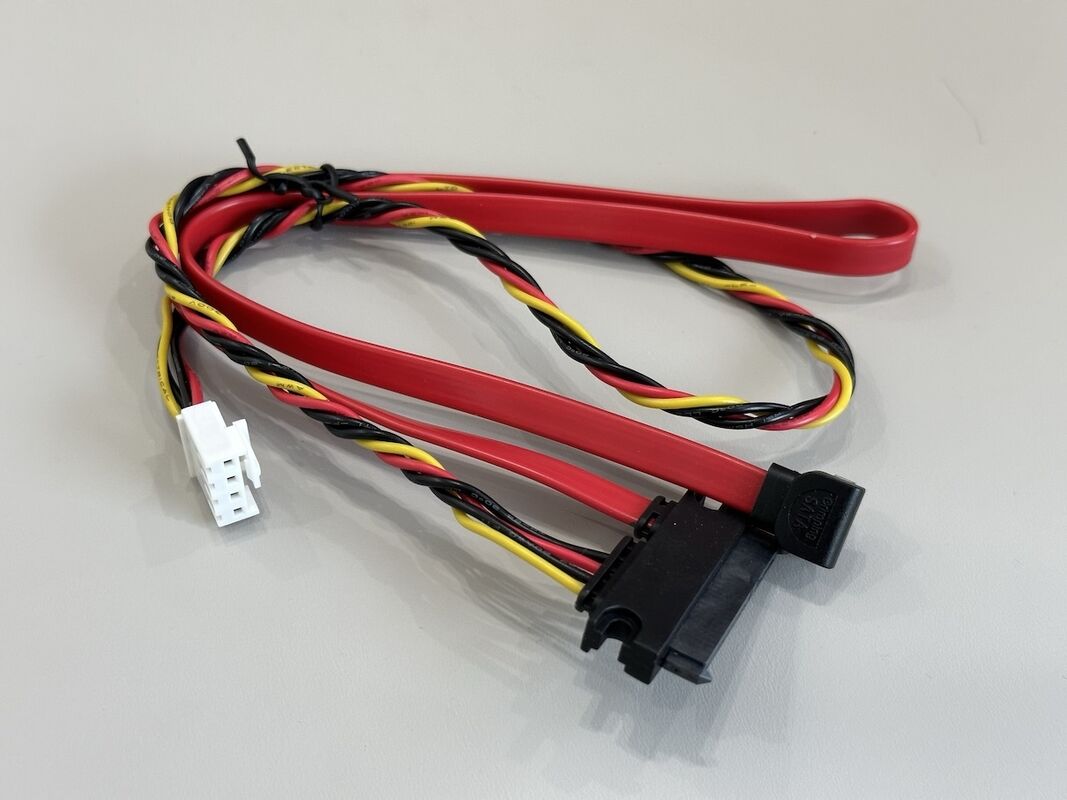

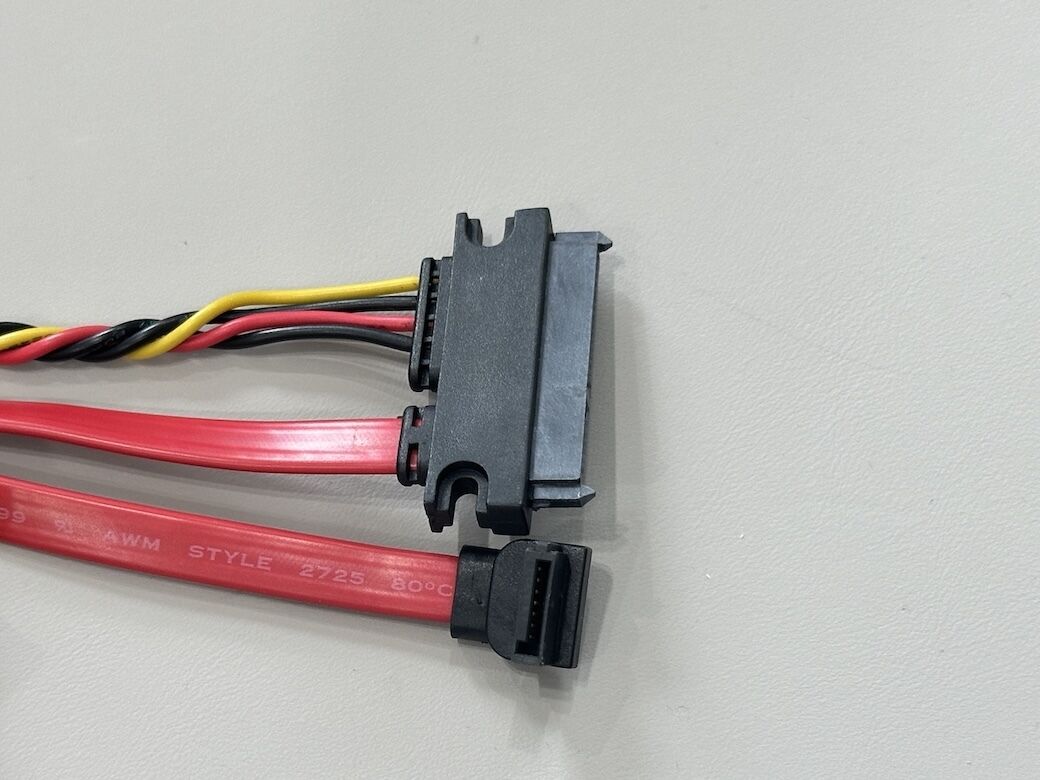

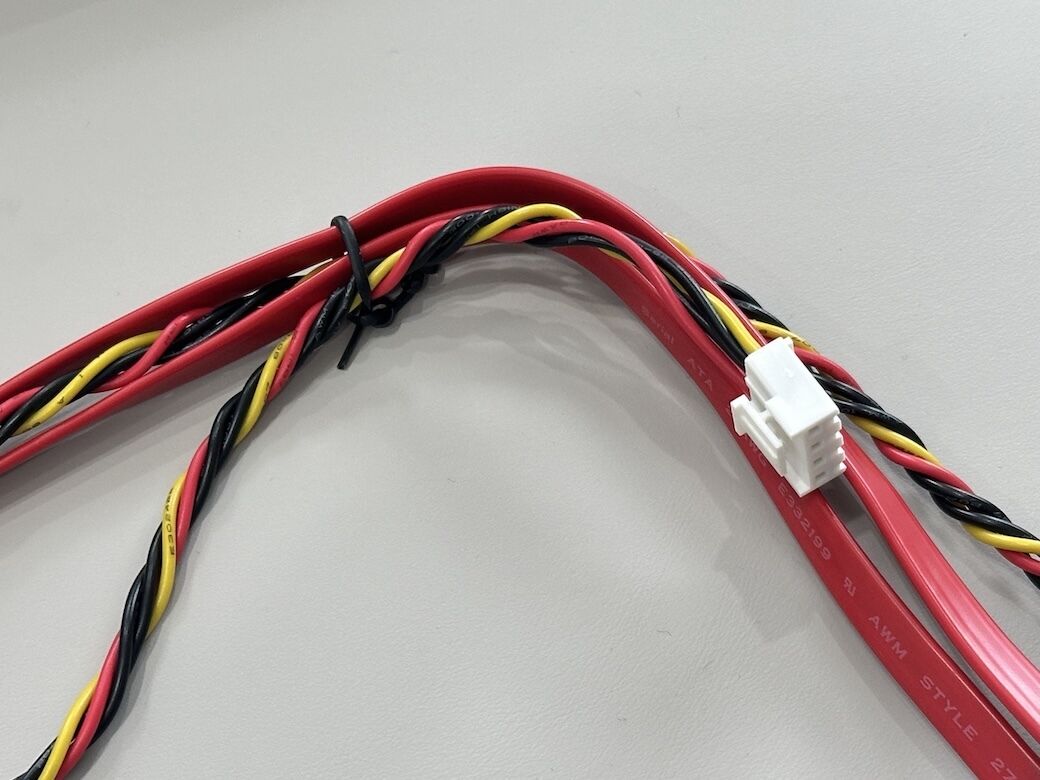

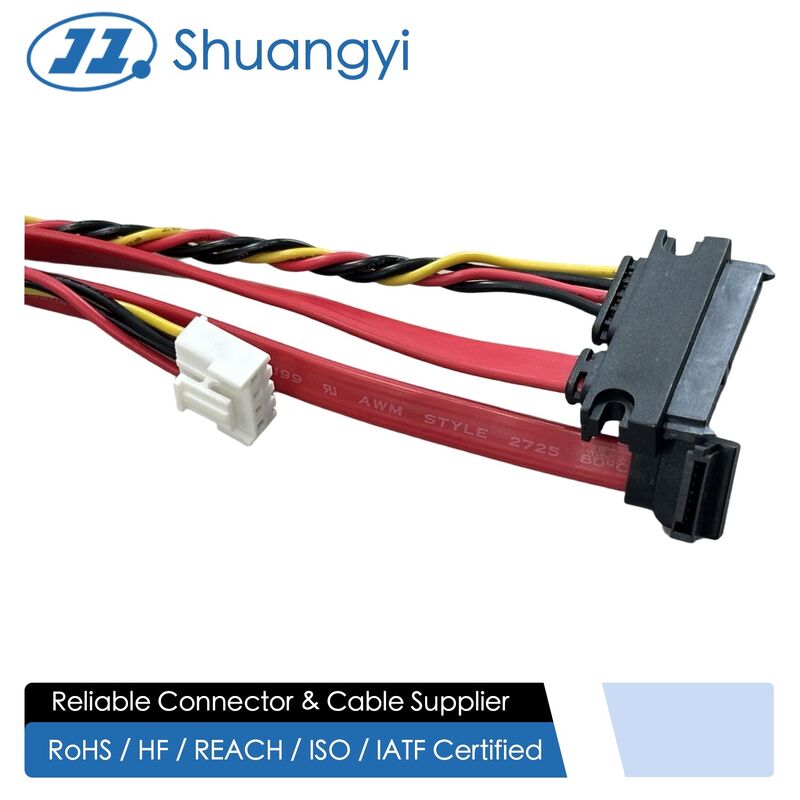

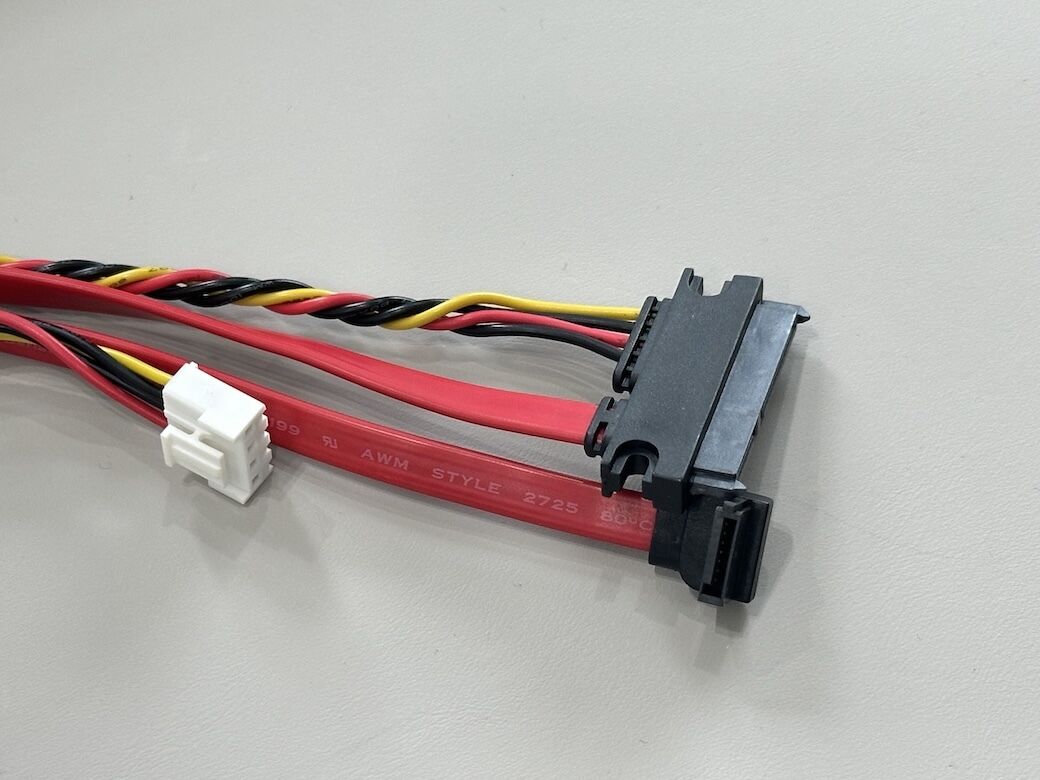

This assembly combines SATA data and power into one practical harness. A right-angle 7-pin SATA plug and a 4-pin power terminal connect to the host side, while a compact 7+15-pin SATA connector mates directly with the HDD or SSD. Shielded flat SATA cable maintains stable high-speed signal transmission, and the twisted power wires reduce crosstalk while keeping the routing flexible and tidy.

Designed for dense chassis and server racks, the right-angle connector allows the cable to exit along the drive surface, saving space and improving airflow. The harness can be customized with different lengths, gauges, and connector brands to fit proprietary PCB headers and power distribution schemes.

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization 0

Product type	SATA data and power connector cable / wire harness
Drive-side connector	7+15-pin SATA combined data & power receptacle
Host data connector	Right-angle SATA 7-pin plug
Power input connector	4-pin white housing for PSU or PCB header
Interface standard	Serial ATA, compatible with SATA I/II/III, up to 6 Gb/s
Number of conductors	7 data lines + 3 power circuits (5 V / 12 V / GND)
Data cable type	Flat SATA ribbon, 26–30 AWG stranded copper
Power cable type	Twisted red / yellow / black wires, 18–22 AWG stranded copper
Standard cable length	400–600 mm overall; other lengths customizable
Rated voltage	5 V and 12 V DC (max 30 V DC system use)
Rated current	1.5–3 A per power circuit, depending on wire gauge and ambient temperature
Housing material	High-temperature thermoplastic, UL94V-0 flame-retardant
Contact material	Copper-alloy terminals
Contact plating	Tin or selective gold plating on mating area
Operating temperature range	−20 °C to +80 °C
Insulation resistance	≥ 1000 MΩ @ 500 V DC
Dielectric strength	1000 V AC for 1 minute
Compliance	RoHS / REACH / halogen-free options
Customization options	Connector brand, pinout, pitch, cable length, sleeving, labeling, packaging, logo

Applications

Internal wiring of servers, NAS systems, RAID enclosures, and DVR/NVR recorders using SATA drives.

Desktop or industrial PCs where power is supplied through a 4-pin header instead of a standard SATA power cable.

OEM storage modules and backplanes requiring pre-terminated harnesses for quick installation and consistent quality.

Embedded systems and instruments that integrate 2.5"/3.5" SATA HDDs or SSDs as removable or fixed storage.
