SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P F TO SATA 7P F 90°+VH3.96 2x4P

Request A Quote

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Product Details

Function:

Board-level Electrical / Electronic Signal Connection

Drive-side Connector:

7+15-pin SATA Combined Data & Power Receptacle

Host Data Connector:

Latched SATA 7-pin Plug, Straight Type

Power Input Connector:

4-pin White Wire-to-board Housing, Typical 2.50–2.54 Mm Pitch

Interface Standard:

Serial ATA Compatible With SATA I / II / III, Up To 6 Gb/s

Number Of Circuits:

7 Differential Signal Lines + 3 Power Lines (5 V, 12 V, GND Configurable)

Data Cable:

Flat SATA Ribbon, 26–30 AWG Stranded Copper, Impedance Controlled

Power Cable:

Black / Red / Yellow Wires, 18–22 AWG Stranded Copper

Overall Cable Length:

Approx. 250–400 Mm Between Connectors, Length Customizable

Rated Voltage:

5 V And 12 V DC, Maximum 30 V DC System Use

Rated Current:

1.5–3 A Per Power Contact (depends On Wire Gauge And Ambient Temperature)

Housing Material:

High-temperature Thermoplastic, UL94V-0 Flame-retardant

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Or Optional Selective Gold On Mating Area

Operating Temperature Range:

−20 °C To +80 °C

Insulation Resistance:

≥ 1000 MΩ @ 500 V DC

Dielectric Withstand Voltage:

1000 V AC For 60 S

Porduct:

SATA Data And Power Connector Cable / Hybrid Wire Harness

Customization Options:

Connector Brand, Pin Assignment, Cable Length, Sleeving, Labels, Logo, Packaging

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

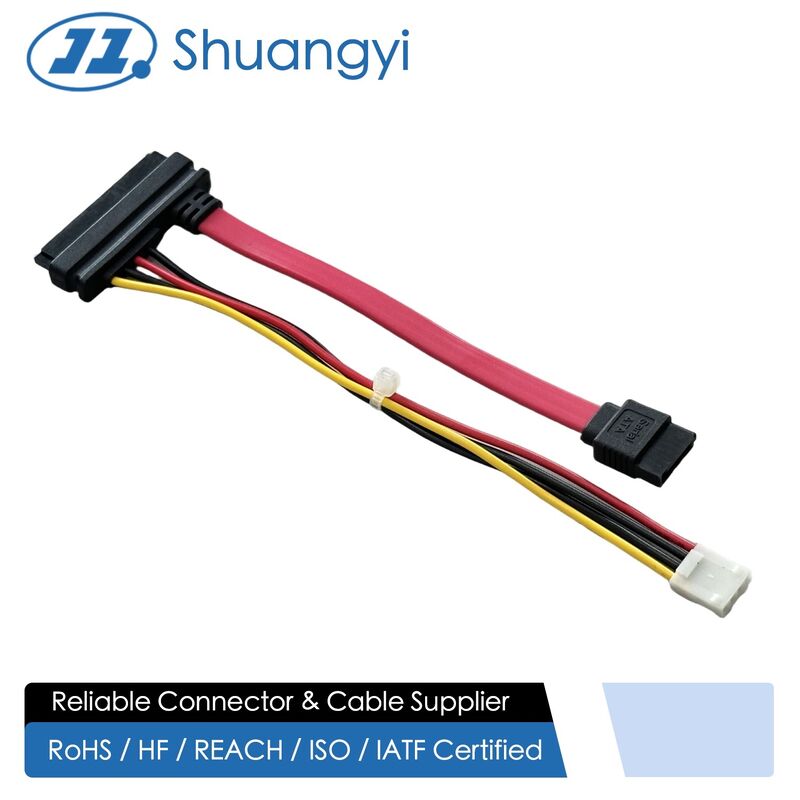

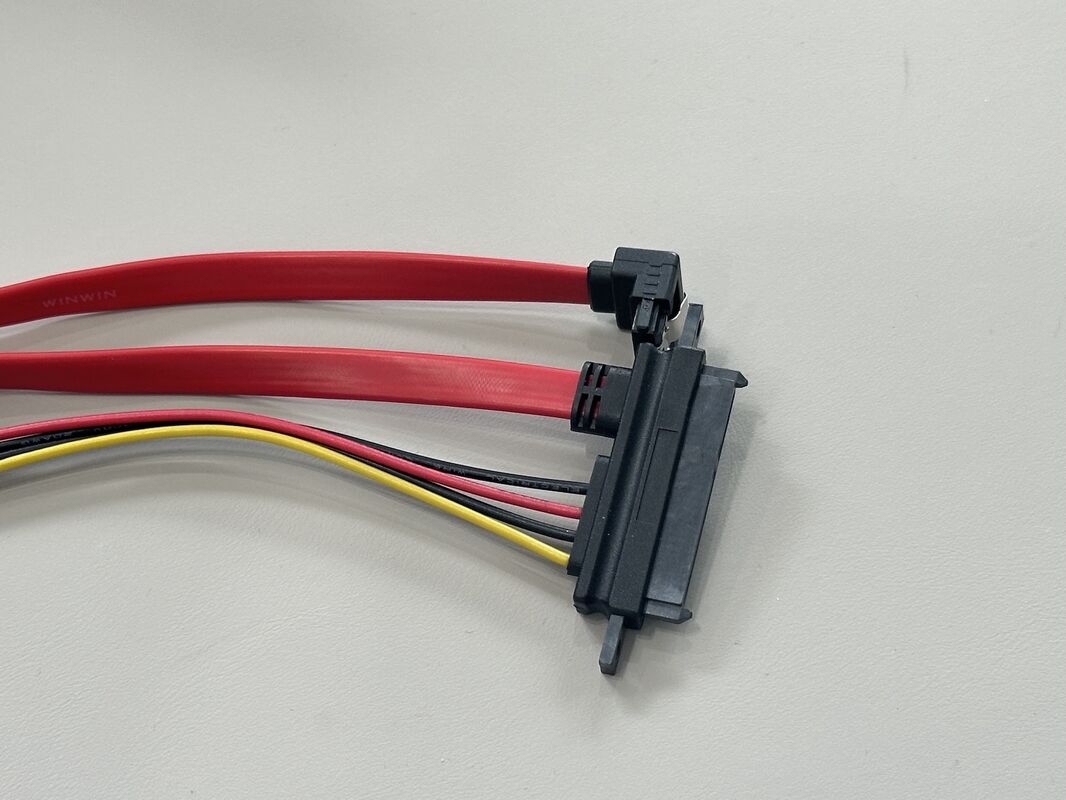

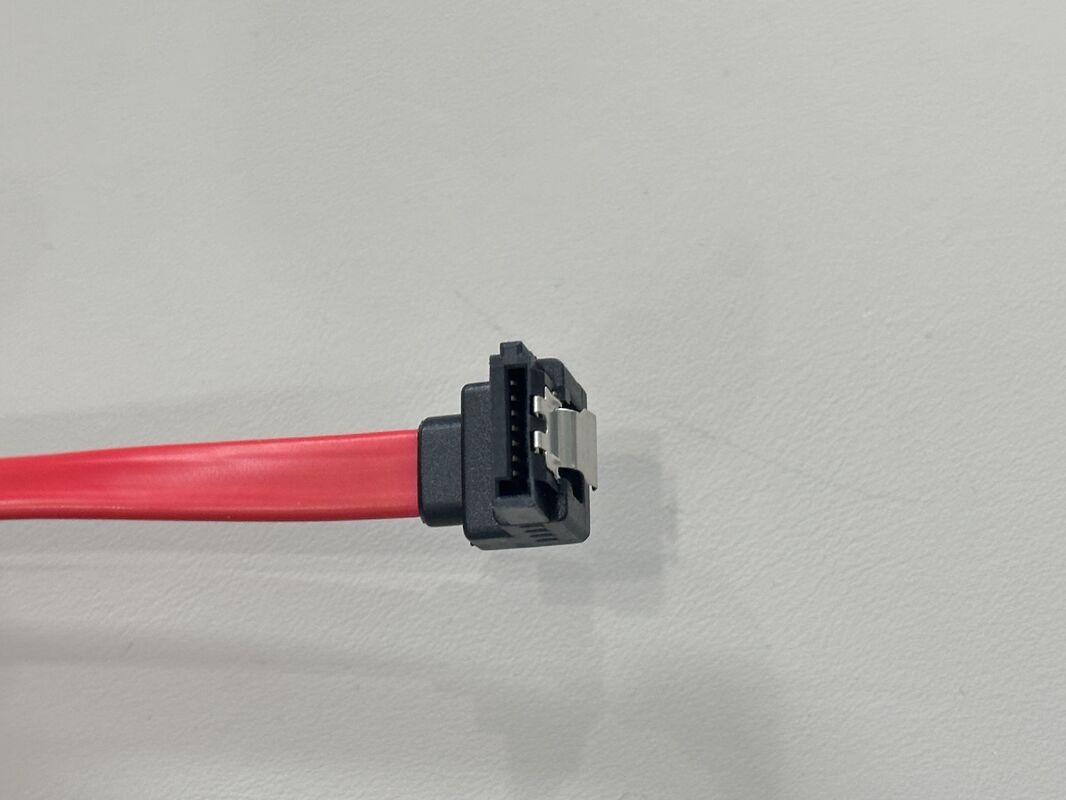

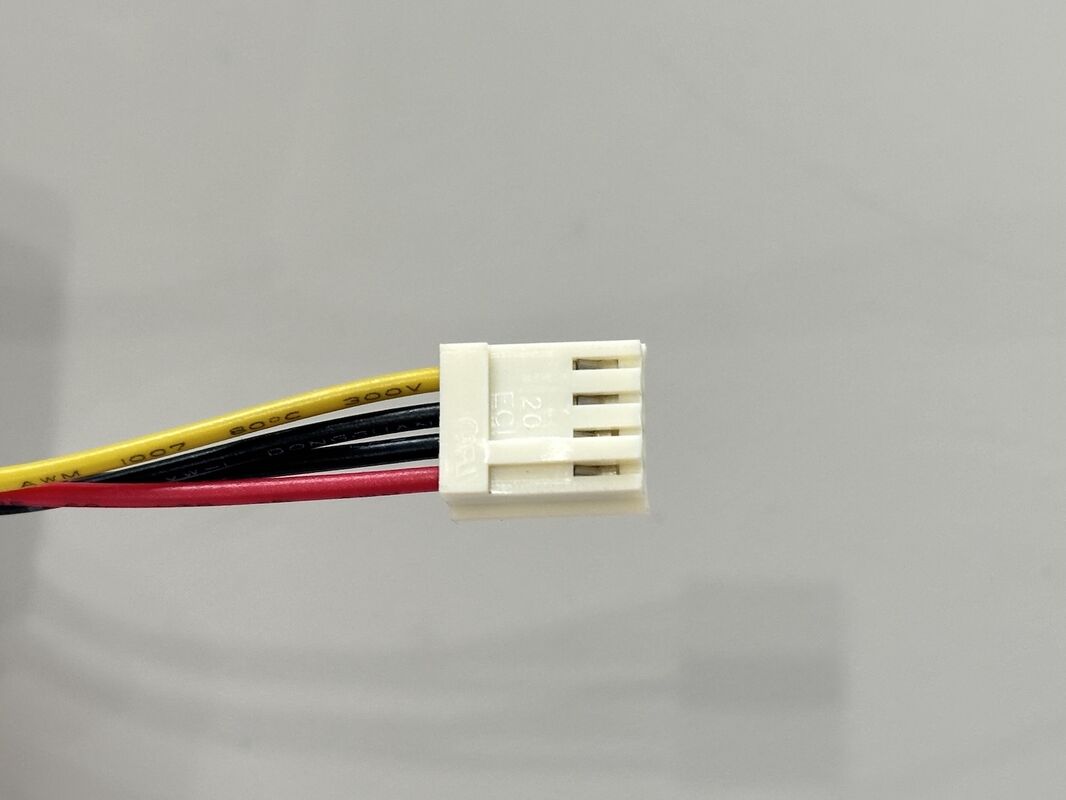

This assembly combines SATA data and power into a compact connector cable designed for 2.5" and 3.5" HDD or SSD installation. One side uses a 7+15-pin SATA connector that mates directly with the drive. The opposite side provides a latched 7-pin SATA plug for reliable data connection and a 4-pin wire-to-board power connector that interfaces with a PSU harness or small PCB power header.

The flat SATA ribbon ensures controlled impedance and low skew for high-speed 6 Gb/s transmission, while the separate copper power leads deliver stable 5 V and 12 V with low voltage drop. The latch on the data connector prevents accidental unplugging during vibration or maintenance, making this harness suitable for server, industrial and embedded storage systems. Cable length, wire gauge and connector styles can be tailored to match your chassis layout and PCB interface.

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization 0

Product type	SATA data and power connector cable / wire harness
Drive-side connector	7+15-pin SATA combined data & power receptacle
Host data connector	Right-angle SATA 7-pin plug
Power input connector	4-pin white housing for PSU or PCB header
Interface standard	Serial ATA, compatible with SATA I/II/III, up to 6 Gb/s
Number of conductors	7 data lines + 3 power circuits (5 V / 12 V / GND)
Data cable type	Flat SATA ribbon, 26–30 AWG stranded copper
Power cable type	Twisted red / yellow / black wires, 18–22 AWG stranded copper
Standard cable length	400–600 mm overall; other lengths customizable
Rated voltage	5 V and 12 V DC (max 30 V DC system use)
Rated current	1.5–3 A per power circuit, depending on wire gauge and ambient temperature
Housing material	High-temperature thermoplastic, UL94V-0 flame-retardant
Contact material	Copper-alloy terminals
Contact plating	Tin or selective gold plating on mating area
Operating temperature range	−20 °C to +80 °C
Insulation resistance	≥ 1000 MΩ @ 500 V DC
Dielectric strength	1000 V AC for 1 minute
Compliance	RoHS / REACH / halogen-free options
Customization options	Connector brand, pinout, pitch, cable length, sleeving, labeling, packaging, logo

Applications

Internal wiring of servers, NAS systems, RAID enclosures, and DVR/NVR recorders using SATA drives.

Desktop or industrial PCs where power is supplied through a 4-pin header instead of a standard SATA power cable.

OEM storage modules and backplanes requiring pre-terminated harnesses for quick installation and consistent quality.

Embedded systems and instruments that integrate 2.5"/3.5" SATA HDDs or SSDs as removable or fixed storage.
