Product Description

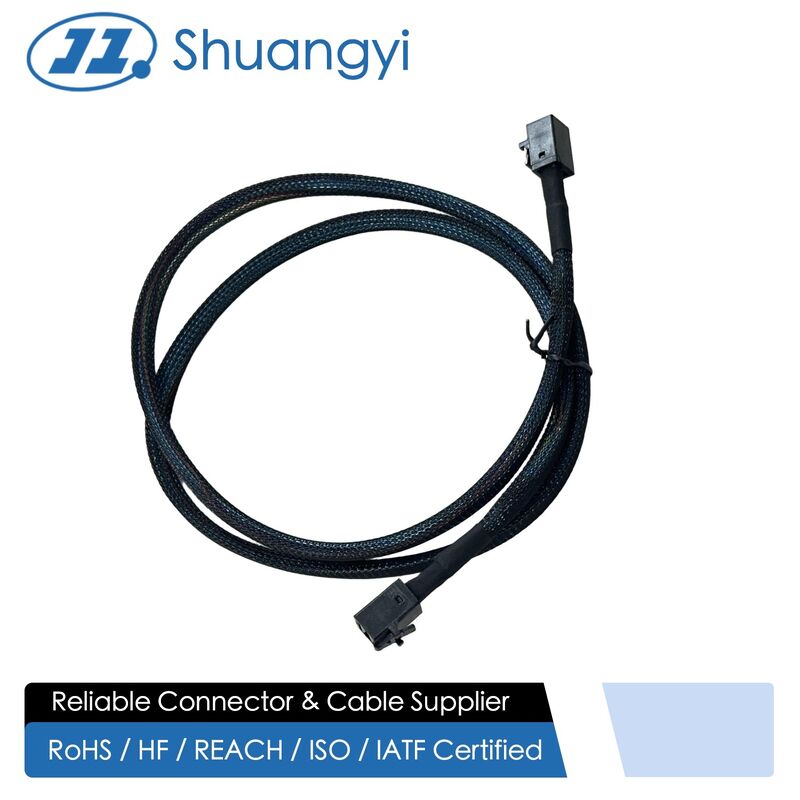

This Mini SAS HD SFF-8643 to Mini SAS SFF-8087 connector cable is designed for internal high-speed storage links where reliable, low-loss signal transmission is critical. One end uses a compact SFF-8643 high-density connector for modern RAID or HBA cards, while the other end features the classic SFF-8087 plug for legacy backplanes and drive cages, allowing easy migration and mixed-generation configurations in server platforms.

Precision 30AWG copper twinax wires with individual and overall braid shielding maintain controlled impedance and low crosstalk across all differential pairs. The black PET braided sleeve provides mechanical protection, neat cable management and a professional look inside high-end electronic systems. Robust metal latches on both terminals ensure a secure mating interface under vibration and frequent maintenance.

OEM customers can request length changes, alternative routing, labeling, and integration into complex harnesses that combine SAS data with auxiliary power or control lines, meeting different chassis and PCB layouts.

Applications

Internal connection between Mini SAS HD host ports and SAS-8087 backplanes in 1U/2U/4U rackmount servers

Expansion links in JBOD/JBOF enclosures, DAS/NAS devices and enterprise storage arrays

High-density RAID subsystems in data centers and GPU/AI servers where compact, shielded cables are required

Industrial computers and embedded systems using SAS-based SSD/HDD modules on customized PCB backplanes
