Product Description

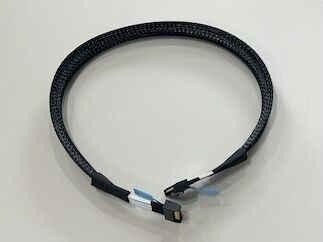

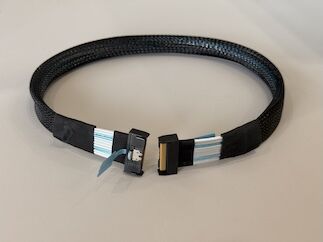

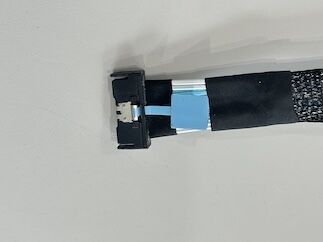

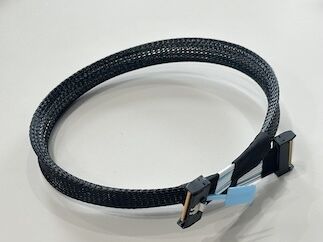

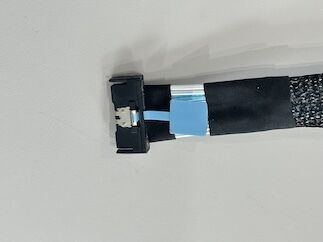

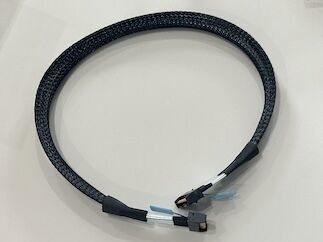

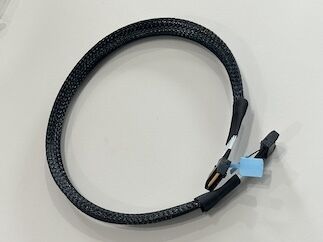

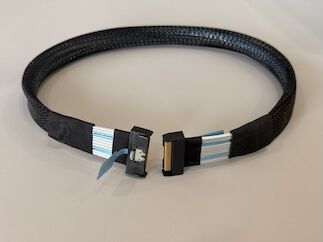

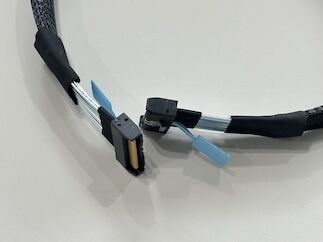

This braided SATA 7Pin data connector cable is designed for clean, durable and low-noise signal transmission in high-performance systems. Both ends use compact right-angle SATA male connectors with secure metal latches, helping reduce stress on drive terminals and saving space behind HDD or SSD bays. Inside the cable, impedance-controlled copper pairs and full shielding keep jitter and crosstalk low for stable 6 Gb/s Serial ATA data rates.

The entire wire cable is wrapped in a black PET braided sleeve that resists abrasion and improves airflow, ideal for gaming builds, workstations and rack server environments where professional cable routing is required. The assembly can be tailored for OEM projects with different lengths, colors, and integration into combined data-and-power harnesses, matching various electronic chassis, PCB layouts and customized storage modules.

Applications

Internal SATA connections between motherboard / RAID card and 2.5"/3.5" HDD or SSD in gaming PCs and modded cases

High-density storage wiring in NAS units, rack-mount servers and JBOD enclosures where tidy cable management is important

DVR / NVR and industrial data recorders requiring robust, shielded SATA connector cables

Embedded systems and compact industrial computers that need flexible, abrasion-resistant SATA wiring with right-angle ends

Custom backplanes and PCB assemblies for storage modules and test fixtures using Serial ATA interfaces
