Product Description

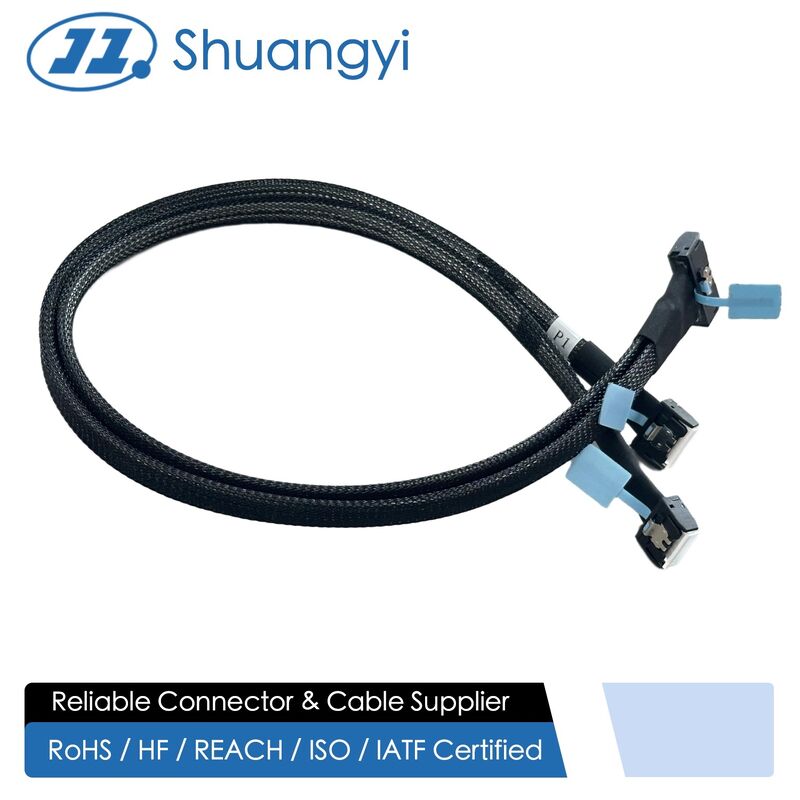

This 3-in-1 braided SATA 7Pin connector cable assembly is designed for compact, organized signal transmission in high-density storage systems. A single host-side right-angle SATA plug fans out inside the braided harness into three separate right-angle SATA connectors, each with a metal latch and pull tab for easy release in crowded server bays.

Each internal wire cable uses impedance-controlled copper twinax pairs with individual shielding to minimize crosstalk and insertion loss, ensuring stable 6 Gb/s SATA data rates to every drive. The common PET braided sleeve keeps the three lines neatly bundled, improving airflow and abrasion resistance while simplifying routing along chassis walls and PCB backplanes. The harness can be tailored for OEM customization, including different branch lengths, labeling for P1/P2/P3, or hybrid assemblies combining SATA data with separate power terminals.

Applications

Connecting three 2.5"/3.5" HDD or SSD from a single SATA host position in desktop towers, workstations and rack-mount servers

High-density NAS, JBOD and storage drawers where multiple drives are mounted close together and tidy cabling is critical

DVR / NVR and industrial data recorders that require several SATA data links within a compact electronic enclosure

Custom PCB backplanes and storage modules using SATA headers for multi-drive connectivity in telecom and edge-computing equipment

System integrators needing pre-bundled SATA connector harnesses to reduce assembly time and wiring errors in batch production
