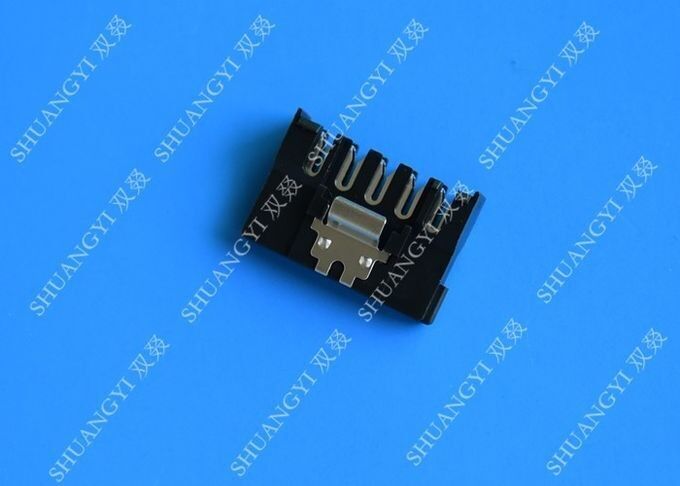

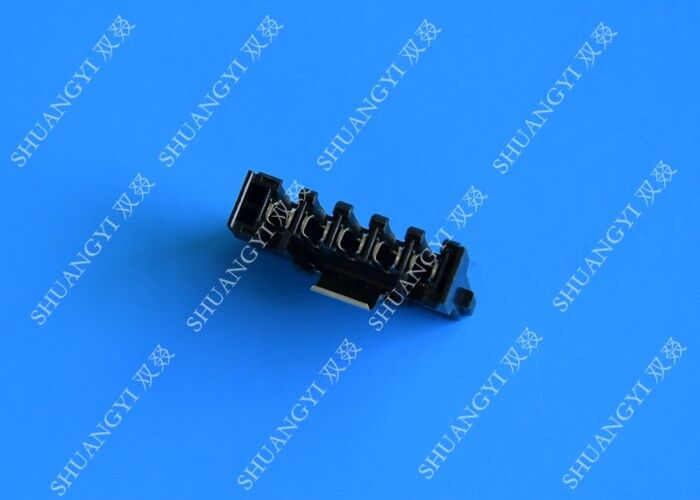

Female IDC 15 Pin SATA Data Connector , PC Server Locking SATA Crimp Connector

Poles: 15Pin

Available: 15Circuits

Pitch Between Poles: 1.27mm

Temperature Range: -20°C--- +85°C

Applicable Wire Range: AWG #18-#30

1. Current Rating: 1.5 Amps

2. Voltage Rating: 125vac

3. Insulation Resistance: 1000 MΩmin

4. Contact Resistance: 30 MΩmax

5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min

1. Insertion Force: 2 CONTACTS....350g 4 CONTACTS….500g

6 CONTACTS….750g 8 CONTACTS….900g

10 CONTACTS....1050g

2. Retention Strength: 7.7KG.F min between jack and plug

3. Durability: 750 mating cycles min

1. Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2. Insulator: LCP/PBT G/F UL 94V-0

3. Terminal: Copper Alloy

4. Ni 50u" Min Plated over Terminal

5. Au Plated on Contact Area

6. Tin 80u" Min Plated on Solder Area

7. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel

8. Shield: 0.20~0.25mm thickness brass with tin plated

9. Shell: Copper Alloy

10. Tin 80u''Min Plated on solder&crimp Area

11. Ni 40u" Plated over shell

12. Gold Plating: 1u" , 3u" , 6u" , 15u" , 30u" , 50u" .

13. RoHS peak wave solder: RoHS-5 peak wave solder temperature rating 235℃±5℃

14. RoHS peak wave solder: RoHS-6 peak wave solder temperature rating 260℃±5℃

1. Operating Temperature: -40℃ to 85℃

2. Storage Temperature: -40℃ to 85℃

1. Networking Products: NIC, HUB, Switch, Router, Bridge,

2. Work Station: PC/System, Printer, Server, NB, Iacable moden, XDSL Application, Set-Top-Box.

3. Products are widely used in computers, laptops, mobile phones, communications, medical and electrical equipments, support power .
