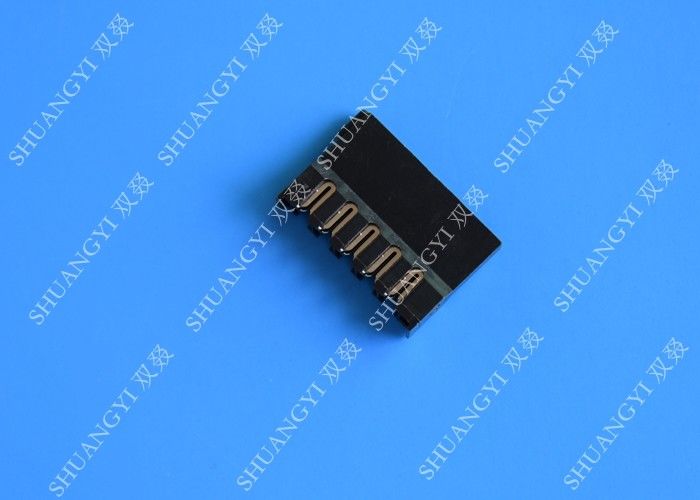

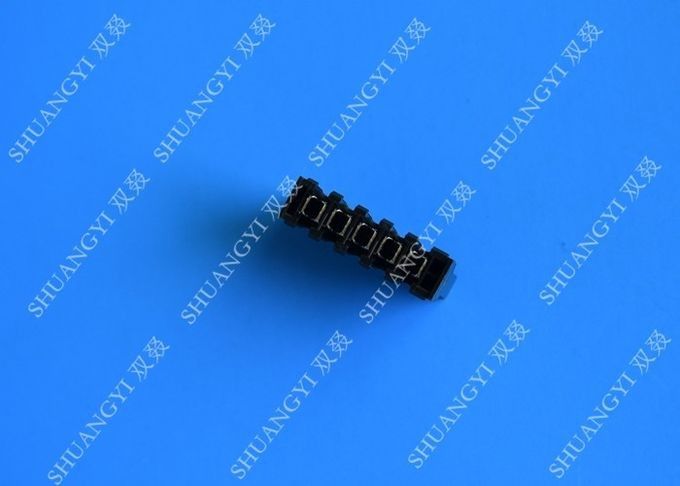

Laptop Slimline Serial ATA SATA External Connector Female IDC 15 Pin

Laptop Slimline Serial ATA SATA External Connector Female IDC 15 Pin

serial ata connectors

sata power connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

SATA Connector

Contact Us
Request A Quote
Product Details
Type:
SATA Female Connector
Color:
Black
Application:
PCB, PC, Server, Set-Top-Box
Pin Number:
15Pin
Voltage:
125Vac
Gender:
Female
Current:
1.5 Amps
PCB Angle:
Vertical(90 Degree)
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Delivery Time
7~10 Work days
Payment Terms
T/T, L/C
Supply Ability
10000 Pieces Per Day
Product Description

Laptop Slimline Serial ATA SATA External Connector Female IDC 15 Pin





Specification:

Poles: 15Pin

Available: 15Circuits

Pitch Between Poles: 1.27mm

Temperature Range: -20°C--- +85°C

Applicable Wire Range: AWG #18-#30



Electrical:

1. Current Rating: 1.5 Amps

2. Voltage Rating: 125vac

3. Insulation Resistance: 1000 MΩmin

4. Contact Resistance: 30 MΩmax

5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min



Mechanical:

1. Insertion Force: 2 CONTACTS....350g 4 CONTACTS….500g

6 CONTACTS….750g 8 CONTACTS….900g

10 CONTACTS....1050g

2. Retention Strength: 7.7KG.F min between jack and plug

3. Durability: 750 mating cycles min



Material:

1. Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2. Insulator: LCP/PBT G/F UL 94V-0

3. Terminal: Copper Alloy

4. Ni 50u" Min Plated over Terminal

5. Au Plated on Contact Area

6. Tin 80u" Min Plated on Solder Area

7. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel

8. Shield: 0.20~0.25mm thickness brass with tin plated

9. Shell: Copper Alloy

10. Tin 80u''Min Plated on solder&crimp Area

11. Ni 40u" Plated over shell

12. Gold Plating: 1u" , 3u" , 6u" , 15u" , 30u" , 50u" .

13. RoHS peak wave solder: RoHS-5 peak wave solder temperature rating 235℃±5℃

14. RoHS peak wave solder: RoHS-6 peak wave solder temperature rating 260℃±5℃



Operating And Storage Temperature:

1. Operating Temperature: -40℃ to 85℃

2. Storage Temperature: -40℃ to 85℃



Application:

1. Networking Products: NIC, HUB, Switch, Router, Bridge,

2. Work Station: PC/System, Printer, Server, NB, Iacable moden, XDSL Application, Set-Top-Box.

3. Products are widely used in computers, laptops, mobile phones, communications, medical and electrical equipments, support power .
