Multi-drop SATA data and power connector cable harness, 1-to-multi serial ATA wire assembly for HDD / SSD, server backplane, storage cabinet customization and PCB power transmission

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7 +15P Fx5 TO SATA 7P Fx5 +PH4.2x20P.HSG

Request A Quote

Multi-drop SATA data and power connector cable harness, 1-to-multi serial ATA wire assembly for HDD / SSD, server backplane, storage cabinet customization and PCB power transmission

Product Details

Product Type:

SATA Data And Power Connector Cable / Multi-branch Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Tin Plated, Selective Gold Plating Available

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

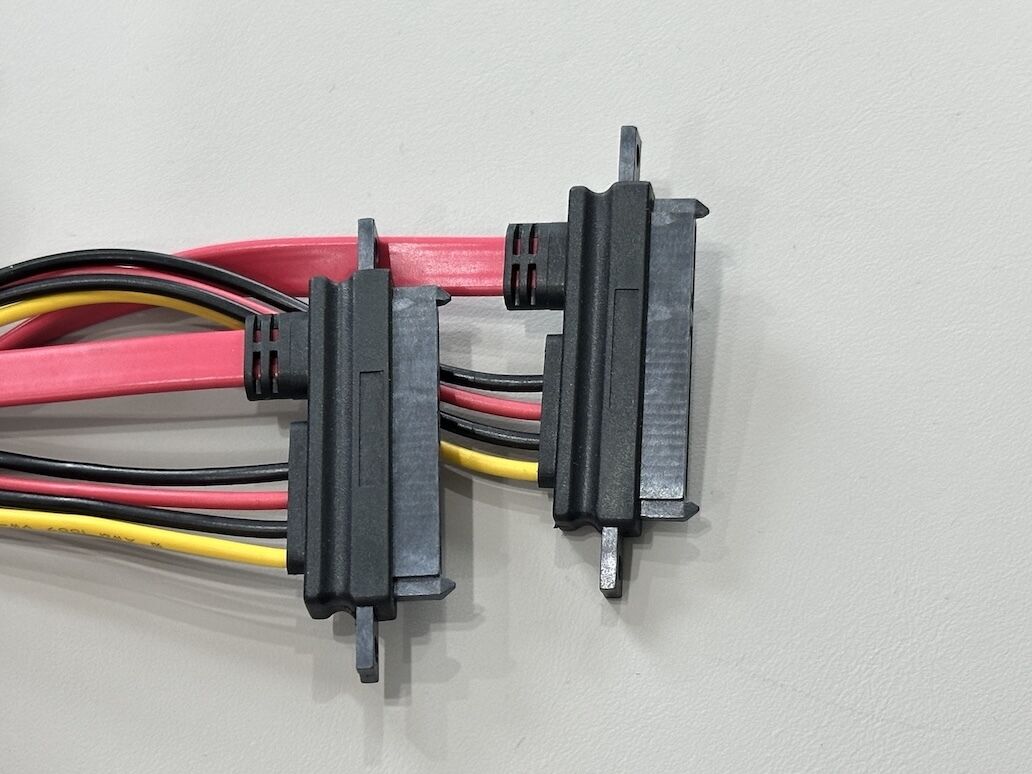

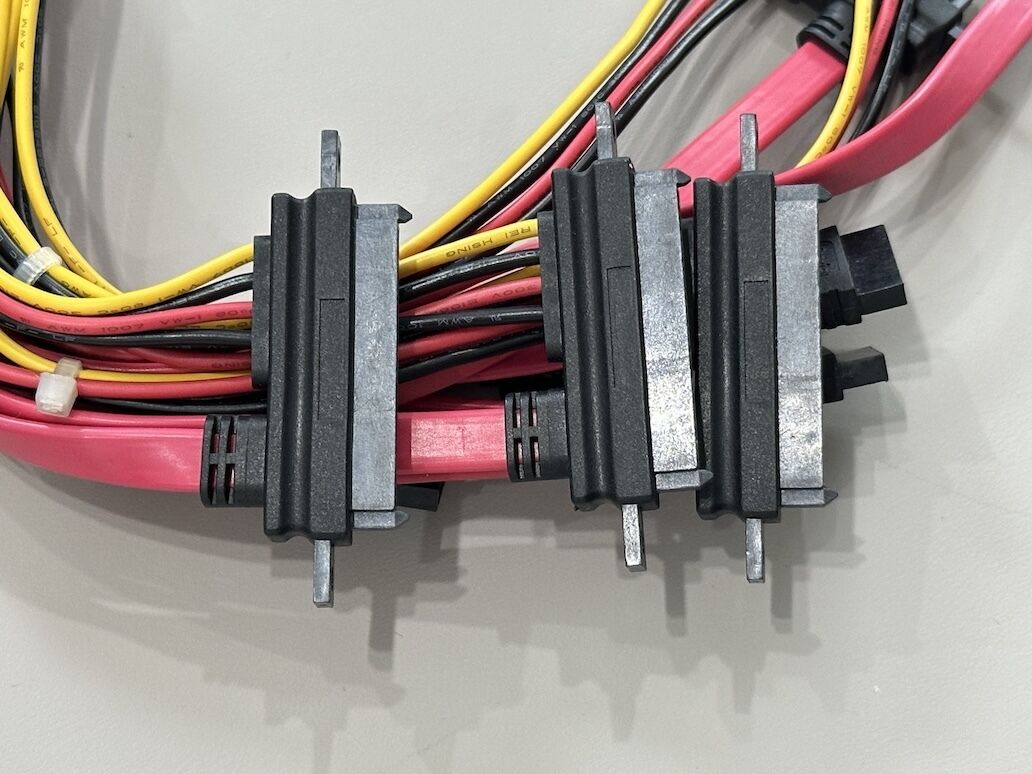

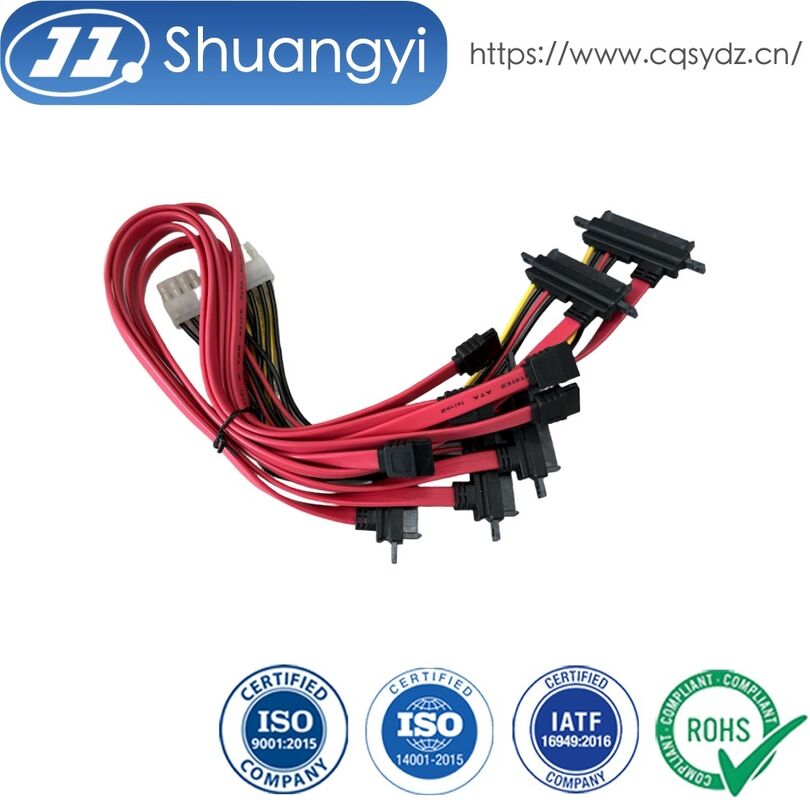

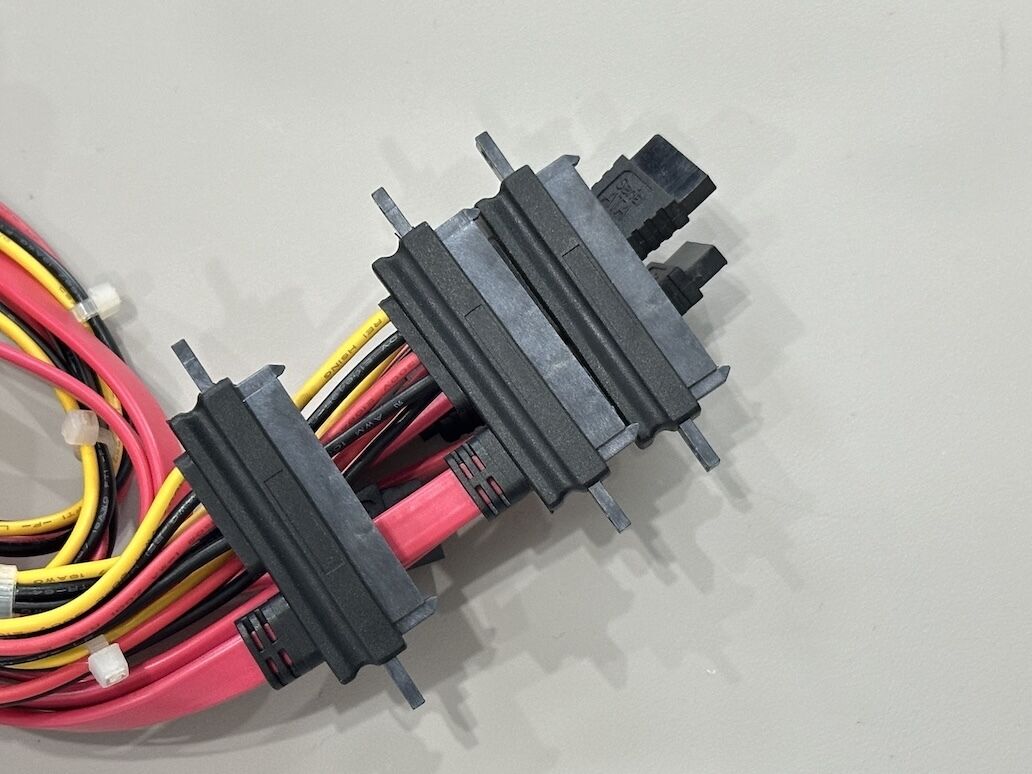

This assembly is a multi-drop SATA connector harness that combines both data and power lines in a single, organized cable set. A single host interface on the PSU or controller side is fanned out to several SATA 7+15-pin connectors, allowing multiple HDDs or SSDs to be powered and linked using one consolidated harness.

Shielded SATA data cables maintain low crosstalk and stable signal integrity at up to 6 Gb/s, while the thicker power wires guarantee reliable 5 V and 12 V delivery to each drive. The compact connectors, pre-crimped terminals, and bundled routing make installation fast and tidy in dense storage bays and narrow server chassis. Custom harness designs are available to match the layout of storage trays, backplanes, and proprietary PCBs.

Multi-drop SATA data and power connector cable harness, 1-to-multi serial ATA wire assembly for HDD / SSD, server backplane, storage cabinet customization and PCB power transmission 0

Product category	SATA data and power connector cable / multi-branch harness
Function	One host input to multiple SATA 7+15-pin drive connectors

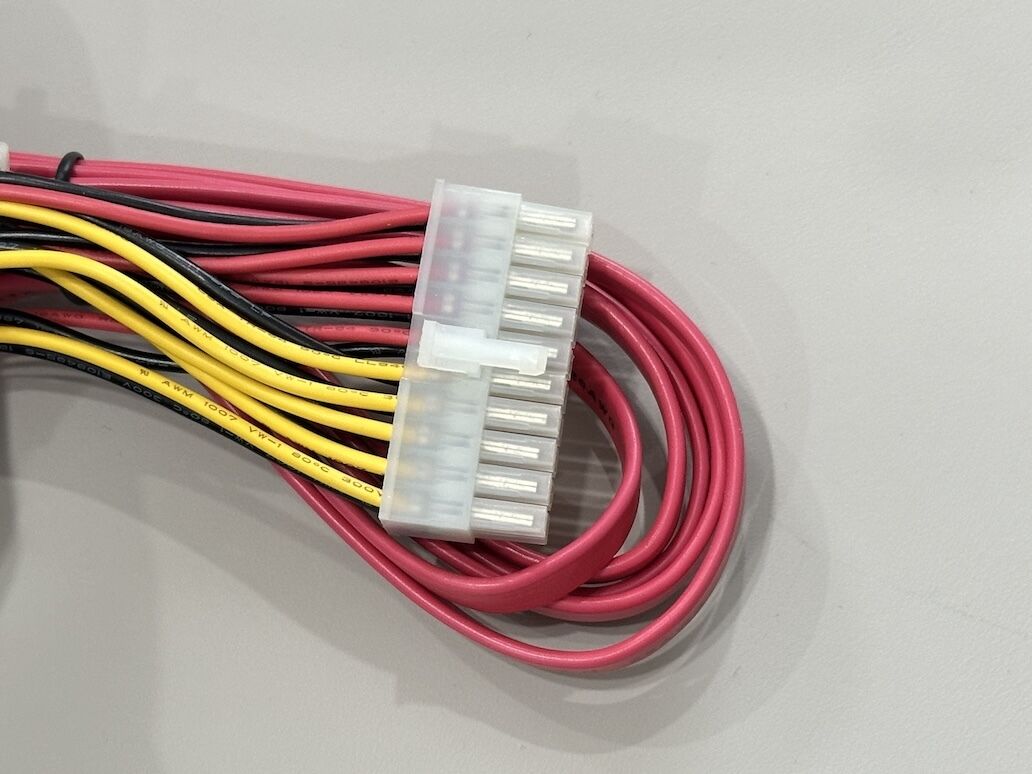

Host side connector	4-pin/6-pin power plug plus main SATA data connector (customizable)
Drive side connectors	Multiple SATA 7+15-pin combined data & power female connectors
Number of SATA drops	4–8 branches as required (custom quantity available)
SATA version	SATA I/II/III, up to 6 Gb/s
Wire type – data	26–30 AWG shielded ribbon cable, low skew differential pairs
Wire type – power	18–22 AWG stranded copper, red/yellow/black insulated wires
Standard harness length	500–800 mm overall, individual branch length customizable
Rated voltage	5 V and 12 V DC for HDD/SSD power
Rated current	Typically 1.5–3 A per drive (depending on wire gauge and design)
Housing material	High-temperature thermoplastic, UL94V-0
Contact material	Copper alloy terminals
Plating	Tin or selective gold on mating area
Operating temperature range	−20 °C to +80 °C
Flame rating / compliance	RoHS / REACH / halogen-free options
Custom options	Branch quantity, cable length, connector type, labeling, bundling, packaging

Applications

Mass-storage servers, NAS enclosures, and JBOD chassis requiring multiple SATA drives on one harness.

Industrial PCs and DVR/NVR systems where several HDDs or SSDs share a common controller or backplane.

OEM storage modules and RAID systems that need pre-terminated data and power cabling for quick assembly.

Upgrade kits for tower or rack systems, helping organize wiring and reduce clutter in the drive area.

Precautions

Name: Multi-drop SATA data and power connector cable harness, 1-to-multi serial ATA wire assembly for HDD / SSD, server backplane, storage cabinet customization and PCB power transmission
Brand: ShuangYi Precision Electronics Co., LTD
SKU: SATA 7 +15P Fx5 TO SATA 7P Fx5 +PH4.2x20P.HSG
Price: 0.79 USD
Availability: InStock
