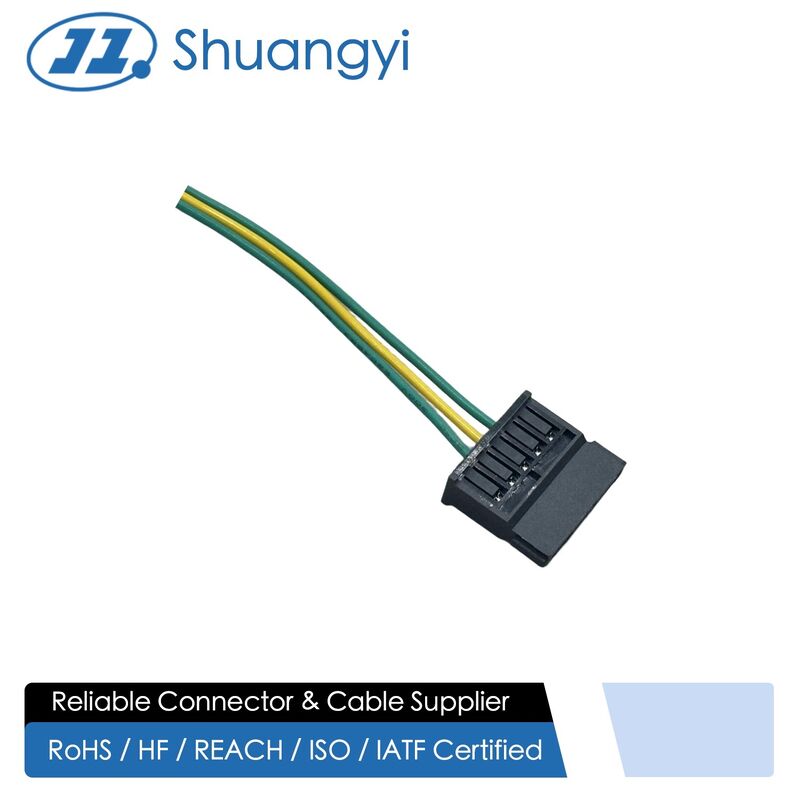

SATA power to 4-pin PCB connector wire cable, signal and power transmission harness, female terminals, customized pitch cable for server, industrial control and automotive devices

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

Mx 4.2 2x4P M TO Mx 4.2 2x3P F

Request A Quote

SATA power to 4-pin PCB connector wire cable, signal and power transmission harness, female terminals, customized pitch cable for server, industrial control and automotive devices

Product Details

Product Type:

4-pin To 6-pin Power Connector Cable / Adapter Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

PA66 (nylon), UL94V-0 Flame-retardant

Contact Material:

Phosphor Bronze Terminals

Contact Plating:

Tin Plated (gold Plating Available On Request)

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

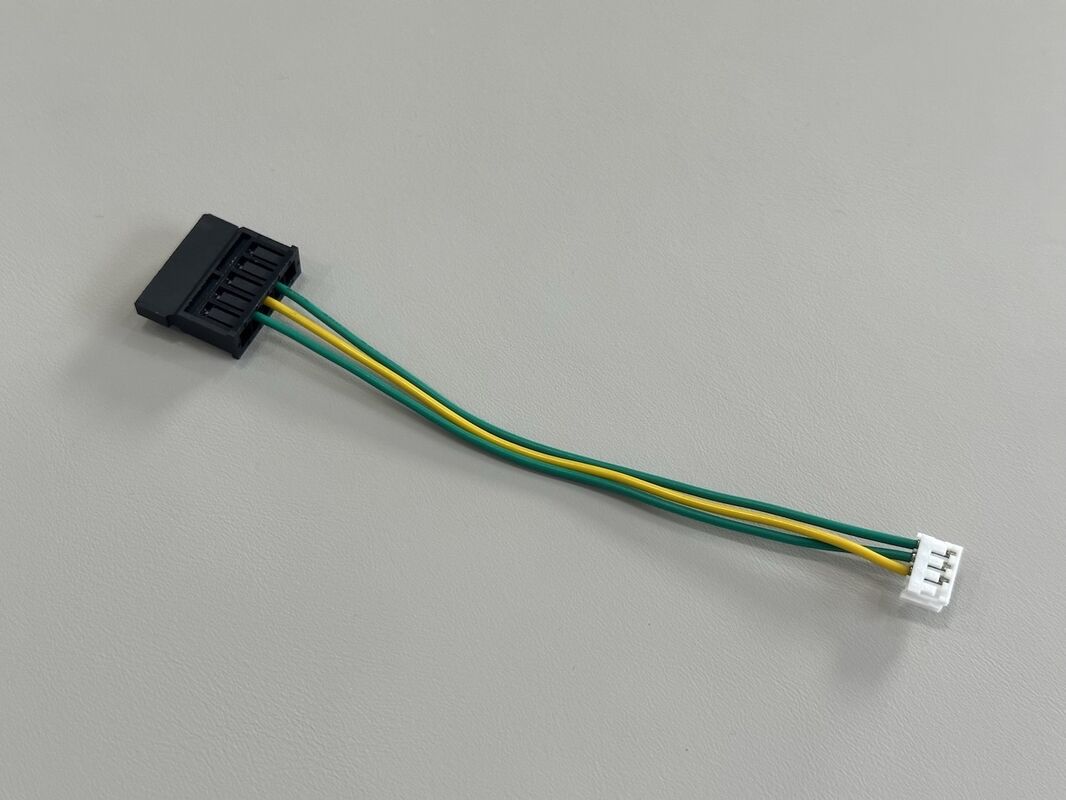

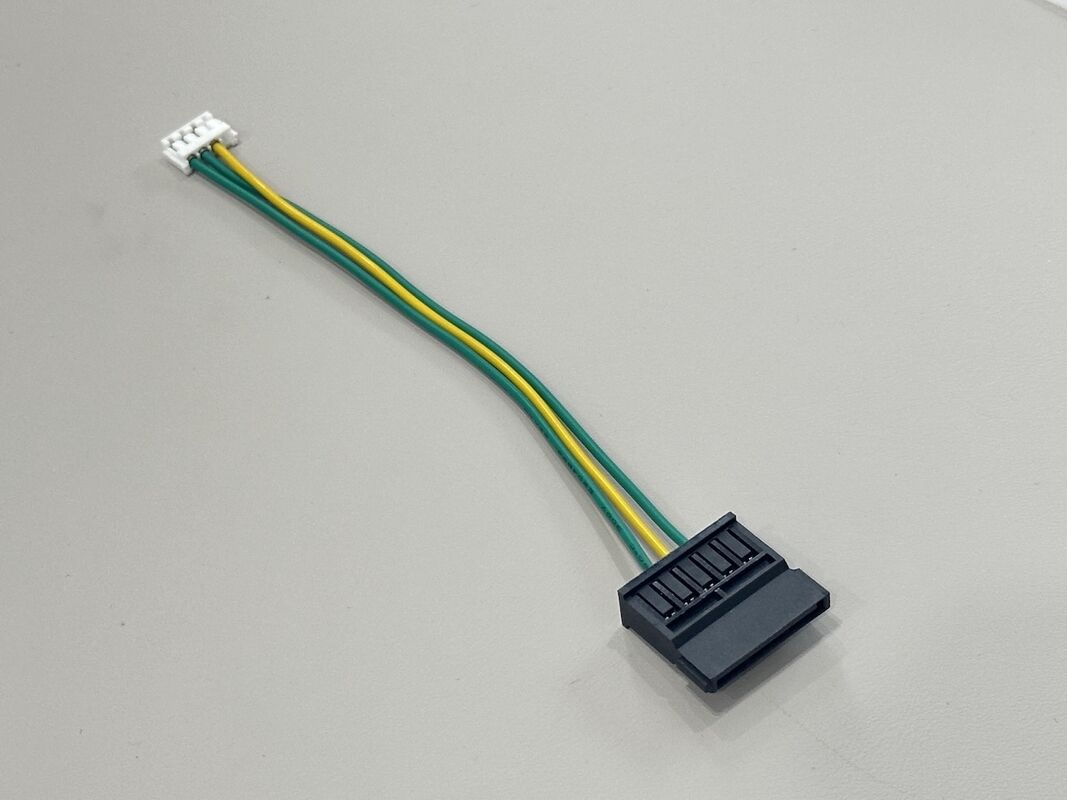

This SATA power to 4-pin PCB connector cable provides a compact way to route power and low-current signals from a standard SATA power interface to a small board-mounted connector. The harness uses high-quality stranded copper wire and reliable crimped terminals to maintain stable power transmission and consistent signal integrity.

The SATA side mates with common power outputs found on PC and server power supplies, while the 4-pin micro connector side plugs directly into control boards, fans, indicator modules, or sensor PCBs. Color-coded wires help identify circuits quickly during installation and maintenance. Custom options are available to match specific PCB footprints, voltage rails, and current requirements.

SATA power to 4-pin PCB connector wire cable, signal and power transmission harness, female terminals, customized pitch cable for server, industrial control and automotive devices 0

Product type	SATA power to 4-pin PCB connector cable / adapter wire harness
Function	Converts SATA power output to 4-pin board connector

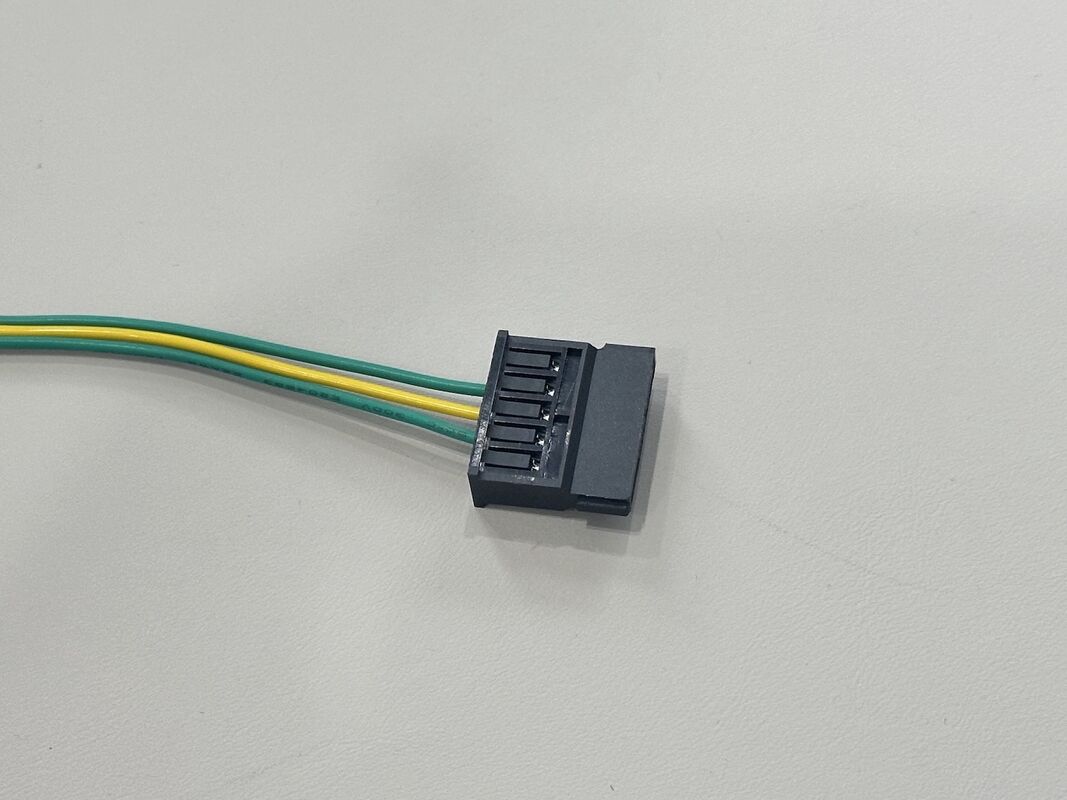

Connector A	15-pin SATA power female connector

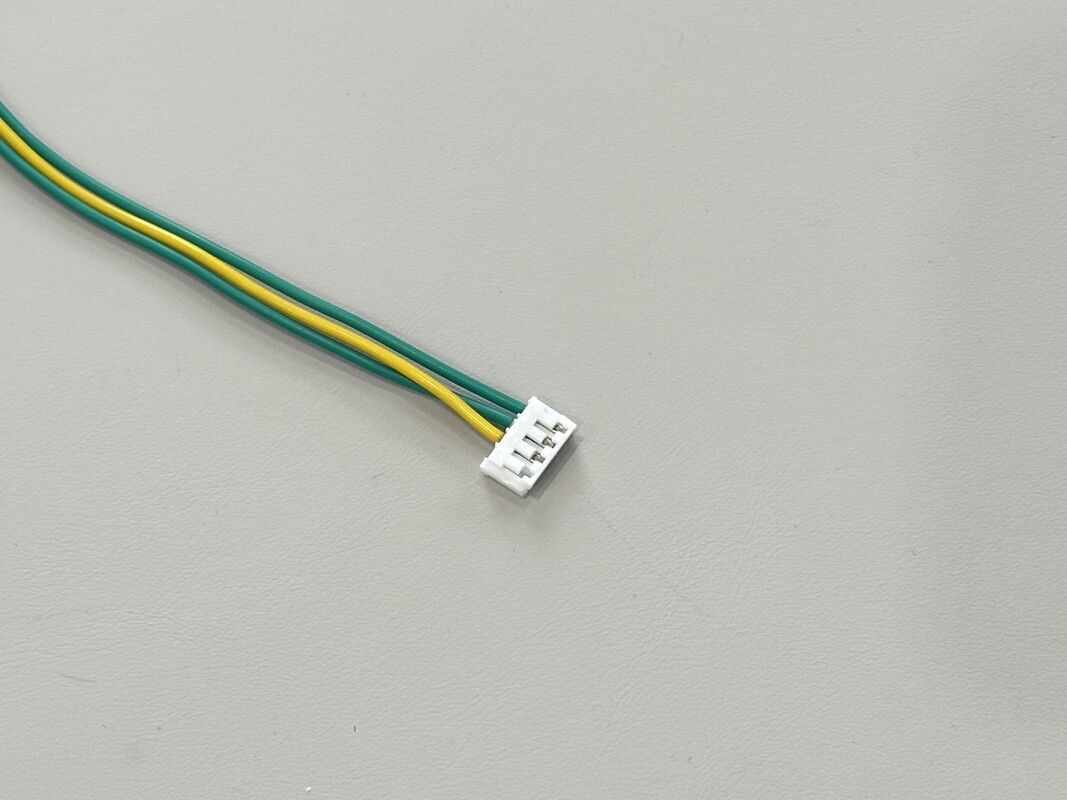

Connector B	4-pin micro PCB connector (2.0 mm pitch, locking type)
Number of positions	15 contacts (SATA side), 4 contacts (PCB side)
Wire gauge	24 AWG stranded tinned copper (22–26 AWG customizable)
Wire insulation	PVC insulated wires, green and yellow color coding
Cable length	200 mm standard, length and routing customizable
Rated voltage	5–12 V DC typical SATA power, max 300 V AC/DC
Rated current	Up to 3 A per circuit (depending on wire gauge and ambient temperature)
Contact material	Phosphor bronze terminals
Contact plating	Tin plated (gold-flash and selective plating available on request)
Housing material	High-temperature thermoplastic (PA or PBT), UL94V-0 flame retardant
Termination method	Crimp contacts with fully inserted terminals
Operating temperature	−20 °C to +105 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Connector type, pin assignment, wire color, cable length, packaging, customer logo

Applications

Power and control connection between PC/server SATA power outputs and small control boards or sensor modules.

Internal wiring for industrial control cabinets, embedded systems, and IoT gateways using SATA-based power rails.

Customized harnesses for LED indicator boards, low-power pumps, fans, or relay boards in automation equipment.

Prototype and OEM cable assemblies where a compact PCB connector is needed on one side and standard SATA power on the other.

Precautions

Name: SATA power to 4-pin PCB connector wire cable, signal and power transmission harness, female terminals, customized pitch cable for server, industrial control and automotive devices
Brand: ShuangYi Precision Electronics Co., LTD
SKU: Mx 4.2 2x4P M TO Mx 4.2 2x3P F
Price: 0.79 USD
Availability: InStock
