Product Title (≈25 words) 4pin power splitter connector cable, male to dual female wire harness, electrical terminals for PSU, SATA,automotive, internal computer power transmission customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

Mx 4.2 2x4P M TO Mx 4.2 2x3P F

Request A Quote

Product Title (≈25 words) 4pin power splitter connector cable, male to dual female wire harness, electrical terminals for PSU, SATA,automotive, internal computer power transmission customization

Product Details

Product Type:

4-pin To 6-pin Power Connector Cable / Adapter Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

PA66 (nylon), UL94V-0 Flame-retardant

Contact Material:

Phosphor Bronze Terminals

Contact Plating:

Tin Plated (gold Plating Available On Request)

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

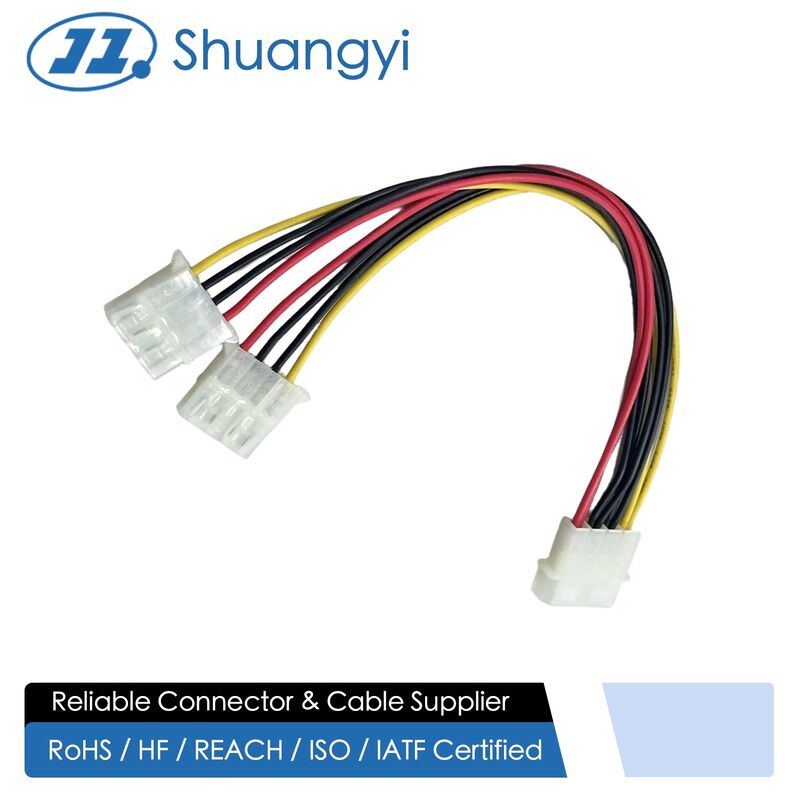

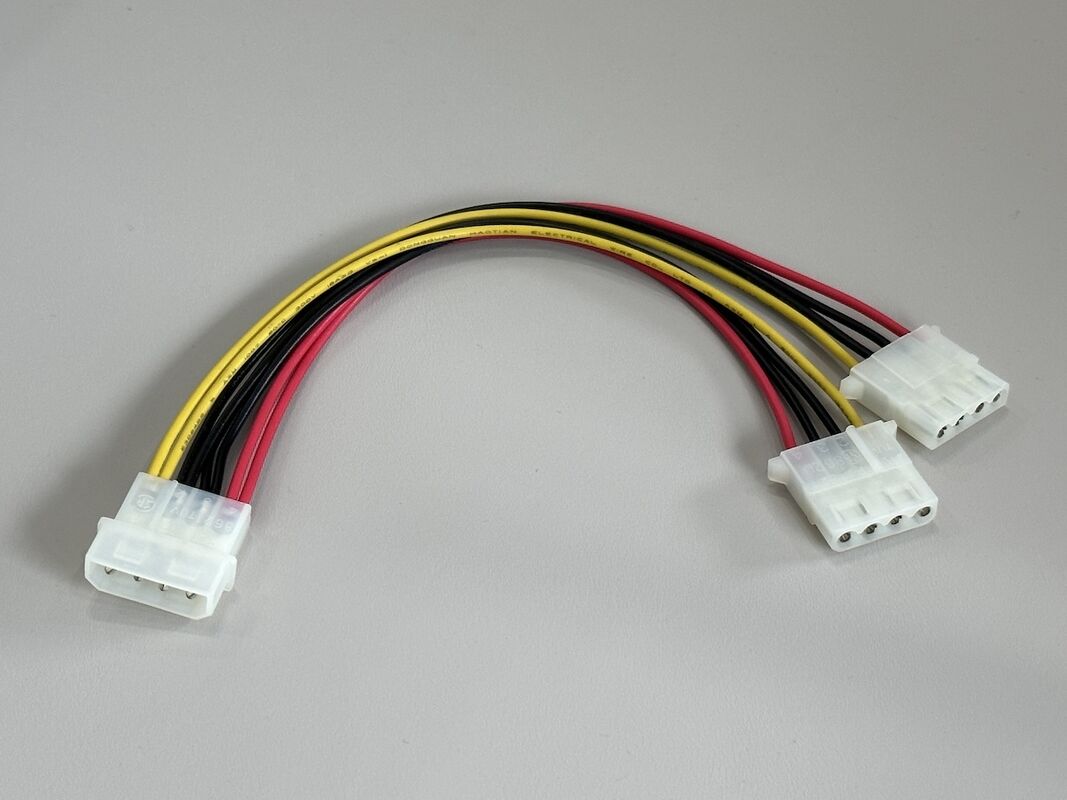

This 4-pin power splitter connector cable is designed to distribute one power supply output to two devices. The assembly uses high-conductivity copper wires and robust crimped terminals to provide stable power transmission with low electrical resistance. Nylon housings with polarizing keys and locking ramps ensure secure mating and prevent accidental disconnection during vibration or movement.

The Y-type wire harness helps optimize cable management inside computer cases, servers, and control cabinets. Color-coded leads simplify installation and troubleshooting, while the compact connector design saves space around the PCB and PSU output area. Custom versions can be produced to match specific PCB layouts, terminal types, and current requirements.

Product Title (≈25 words) 4pin power splitter connector cable, male to dual female wire harness, electrical terminals for PSU, SATA,automotive, internal computer power transmission customization 0

Product type	4-pin power splitter connector cable / Y-type wire harness
Function	One male 4-pin input to two female 4-pin outputs

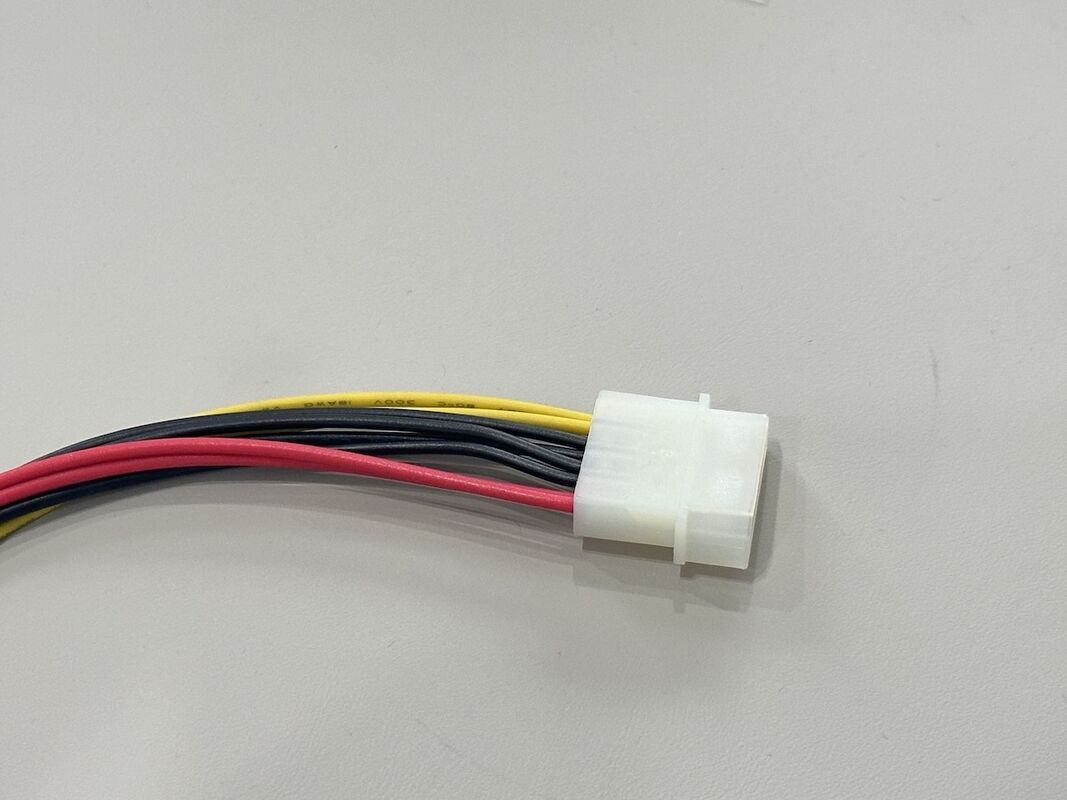

Connector A	Male 4-pin peripheral power plug (Molex-style)

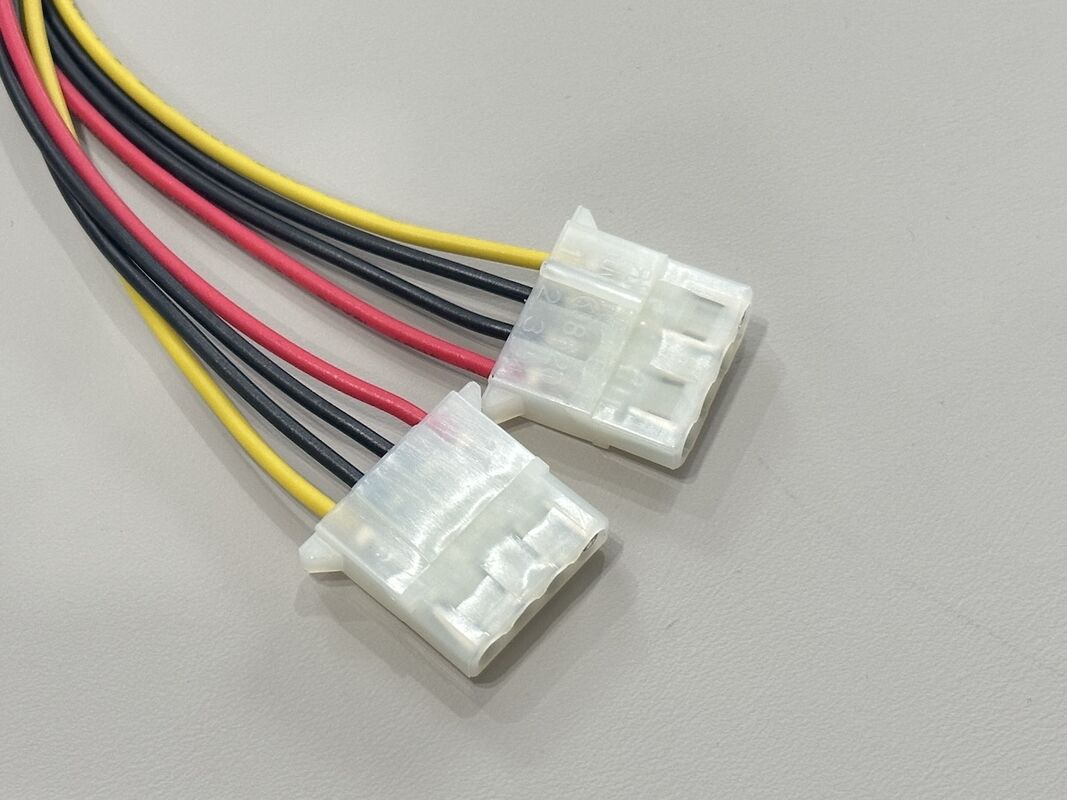

Connector B	Dual female 4-pin peripheral power sockets
Number of positions	4 pins per connector
Pin pitch	4.20 mm typical peripheral power pitch
Wire gauge	18 AWG stranded copper (other gauges 16–22 AWG available)
Wire insulation	PVC, red/yellow/black color-coded power wires
Standard cable length	200 mm (length customizable on request)
Rated voltage	300 V AC/DC
Rated current	Up to 7 A per contact (depending on gauge and ambient temperature)
Contact material	Phosphor bronze terminals
Contact plating	Tin plated, optional selective gold plating
Housing material	PA66 (nylon), UL94V-0 flame-retardant
Termination method	Crimp contacts inserted into mating housings
Operating temperature	−20 °C to +105 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Length, wire gauge, colors, connector type, pin count, packaging, customer logo

Applications

Extending one PSU peripheral power output to two devices such as HDDs, optical drives, fans, or SATA adapters.

Internal power wiring for desktop PCs, gaming systems, workstations, and server racks.

Power distribution harnesses for industrial controllers, mining rigs, storage arrays, and embedded electronics.

Customized power cable assemblies for automotive electronics, LED lighting bars, and DC distribution boxes.
