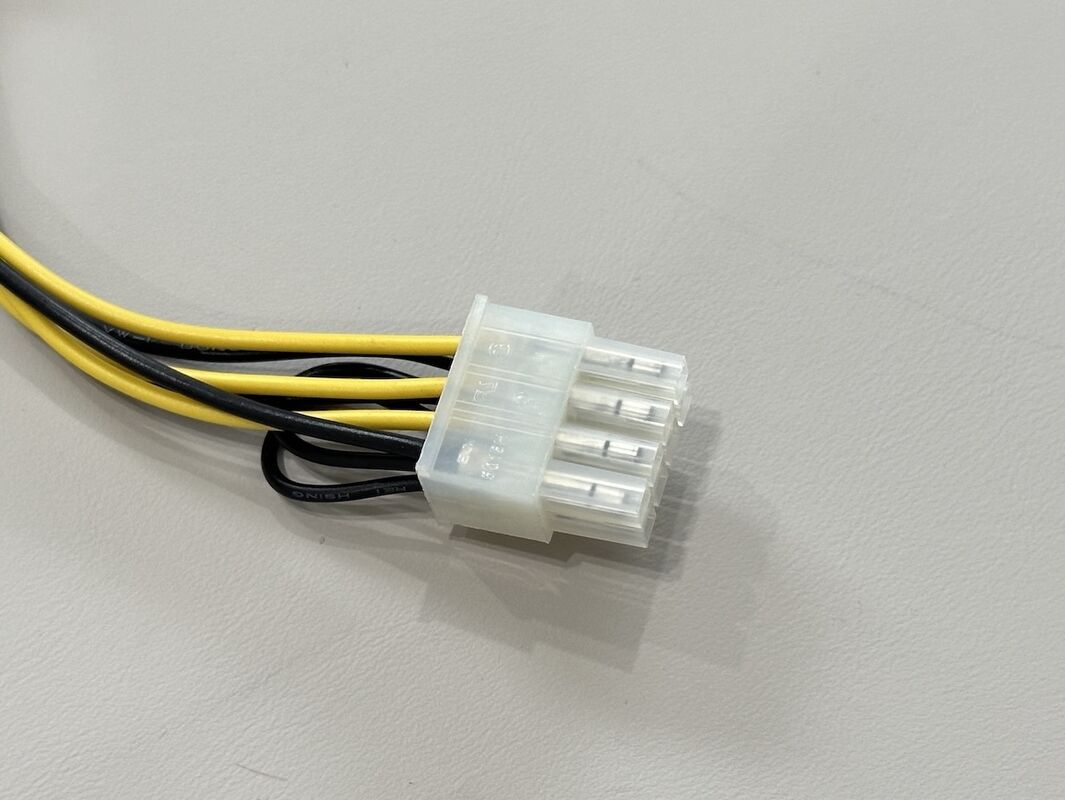

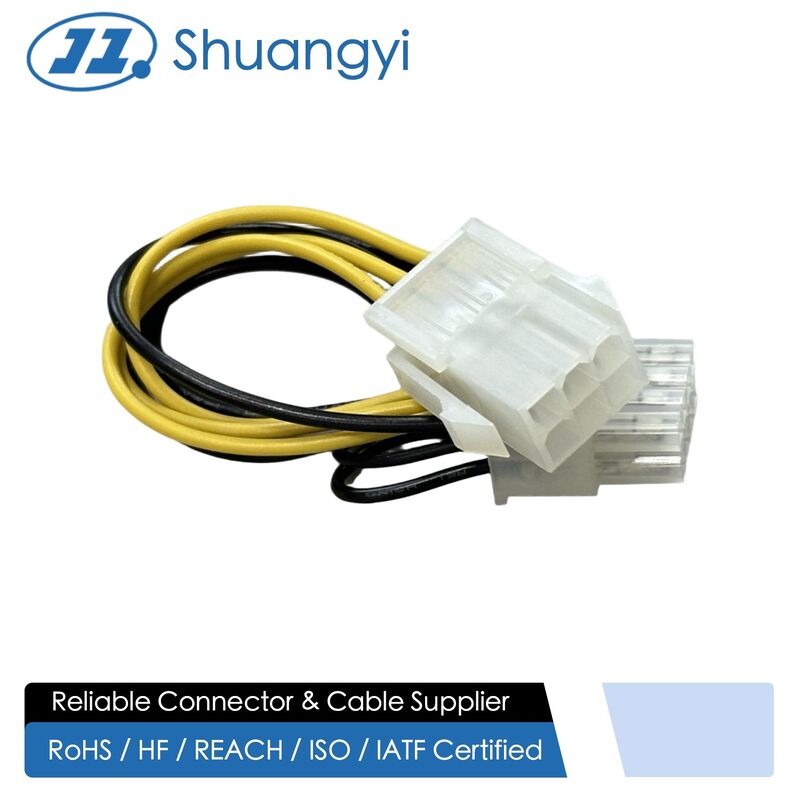

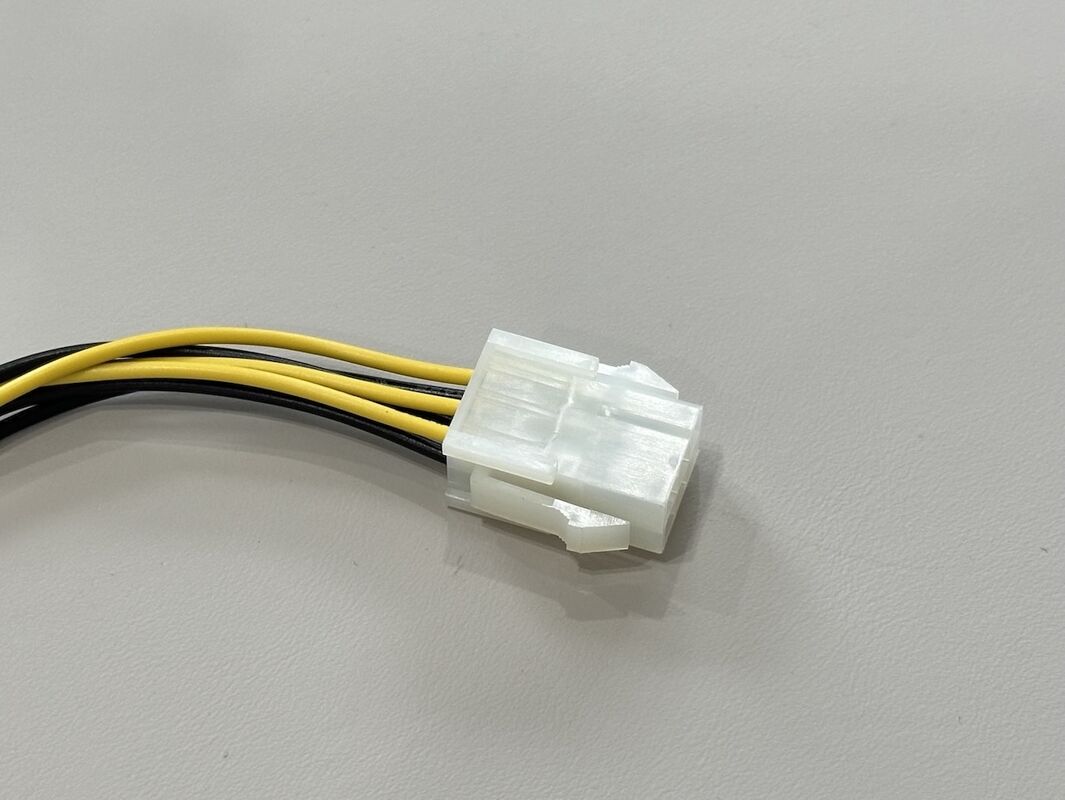

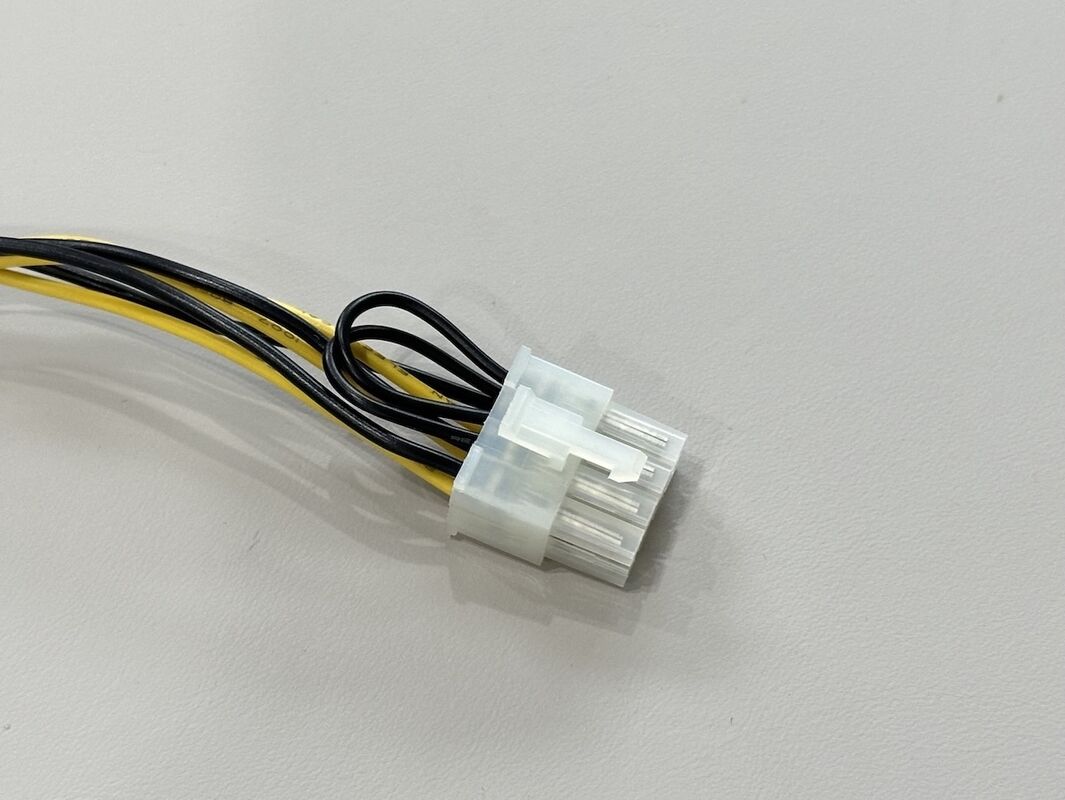

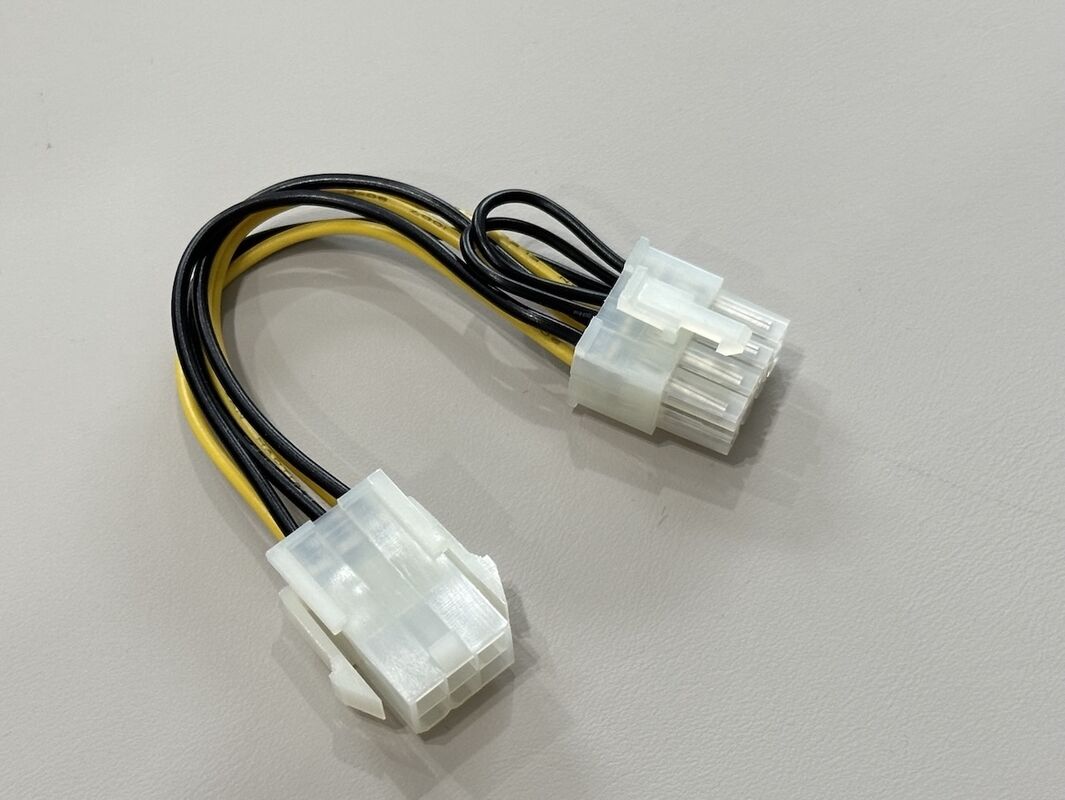

Power connector cable male 4-pin to female 6-pin GPU PCIe, electrical wire harness for PC power supply, server graphics card, automotive DC power transmission customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

Mx 4.2 2x4P M TO Mx 4.2 2x3P F

Request A Quote

Power connector cable male 4-pin to female 6-pin GPU PCIe, electrical wire harness for PC power supply, server graphics card, automotive DC power transmission customization

Product Details

Product Type:

4-pin To 6-pin Power Connector Cable / Adapter Wire Harness

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

PA66 (nylon), UL94V-0 Flame-retardant

Contact Material:

Phosphor Bronze Terminals

Contact Plating:

Tin Plated (gold Plating Available On Request)

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA data power connector cable harness, right angle 7+15 pin to 4 pin wire terminal, twisted power cable for server HDD SSD signal transmission customization

Get Best Price

SATA 7+15 pin data power connector cable, flat ribbon wire harness to 22-pin PCB board connector for electronic HDD SSD server storage signal transmission customization

Get Best Price

SATA data power connector harness, 7+15 pin drive connector with right-angle 7 pin cable and 4 pin power connector for HDD SSD server storage customization

Get Best Price

Serial ATA data power connector cable, 7+15 pin SATA wire harness with micro 4 pin power connector for HDD SSD server storage transmission customization applications

Get Best Price

Contact Now

Product Description

Product Description

This power connector cable converts a standard 4-pin peripheral power output to a 6-pin PCIe connector for graphics cards and other electronic equipment. High-conductivity 18 AWG copper wires and reliable crimped terminals ensure low-loss power transmission and stable electrical performance. The nylon housings with locking features provide secure mating with mating terminals, preventing accidental disconnection under vibration.

The wire harness is designed for easy routing inside PC cases and server chassis. Black and yellow power wires clearly distinguish ground and 12 V lines, simplifying installation and maintenance. Custom wire length, connector combinations, and pin configurations are available to match different PCB layouts, power supplies, and device interfaces.

Power connector cable male 4-pin to female 6-pin GPU PCIe, electrical wire harness for PC power supply, server graphics card, automotive DC power transmission customization 0

Product type	4-pin to 6-pin power connector cable / adapter wire harness
Connector A	Male 4-pin peripheral power plug (Molex-style)
Connector B	Female 6-pin PCIe GPU power connector
Pin pitch	4.20 mm (typical PCIe / peripheral power pitch)
Number of positions	4 pins (input), 6 pins (output)
Wire gauge	18 AWG stranded tinned copper (customizable 16–22 AWG)
Wire insulation	PVC, black and yellow power wires
Cable length	150 mm standard, length and routing customizable
Rated voltage	300 V AC/DC
Rated current	Up to 7 A per contact (depending on wire gauge and ambient temperature)
Contact material	Phosphor bronze terminals
Contact plating	Tin plated (gold plating available on request)
Housing material	PA66 (nylon), UL94V-0 flame-retardant
Termination method	Crimp terminals inserted into plastic housings
Operating temperature	−20 °C to +105 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Cable length, wire gauge, color, connector type, pin count, packaging, logo

Applications

Supplying 12 V power from desktop PC power supplies to 6-pin PCIe graphics cards.

Power adapter cable for workstation and server upgrades where additional GPU power connectors are required.

DC power transmission inside industrial PCs, mining rigs, and embedded control cabinets.

Replacement or customized harnesses for OEM system integrators and automotive/industrial electronic projects.

Precautions

Name: Power connector cable male 4-pin to female 6-pin GPU PCIe, electrical wire harness for PC power supply, server graphics card, automotive DC power transmission customization
Brand: ShuangYi Precision Electronics Co., LTD
SKU: Mx 4.2 2x4P M TO Mx 4.2 2x3P F
Price: 0.79 USD
Availability: InStock
