Product Description

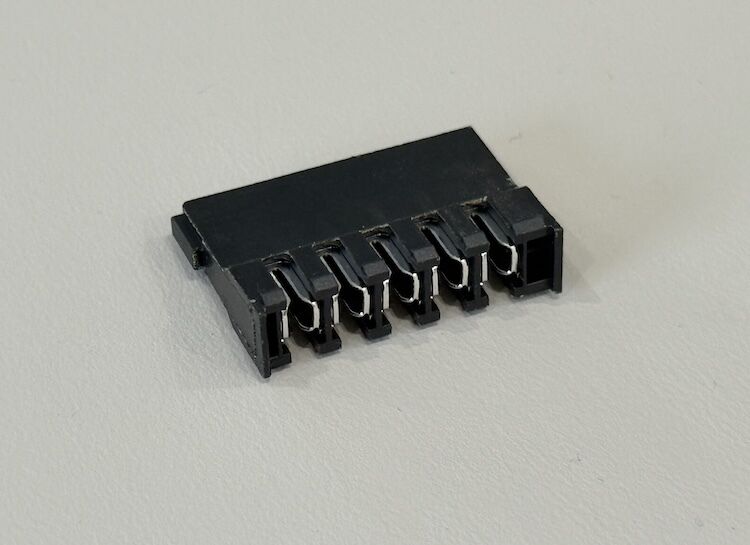

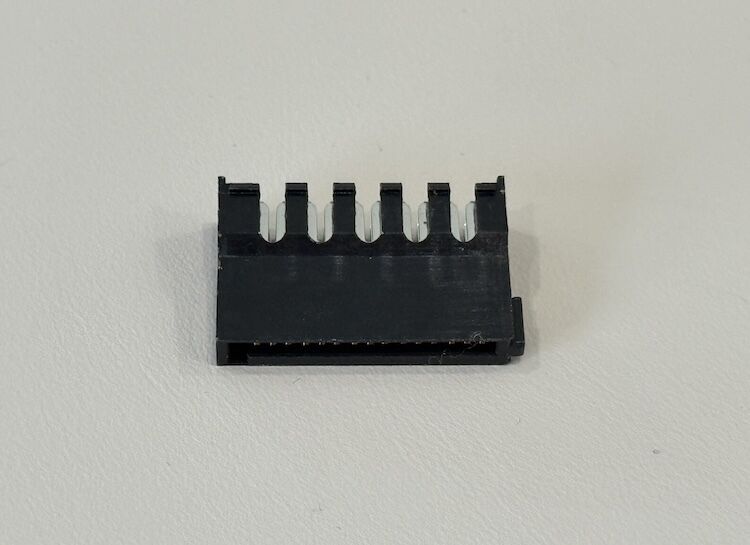

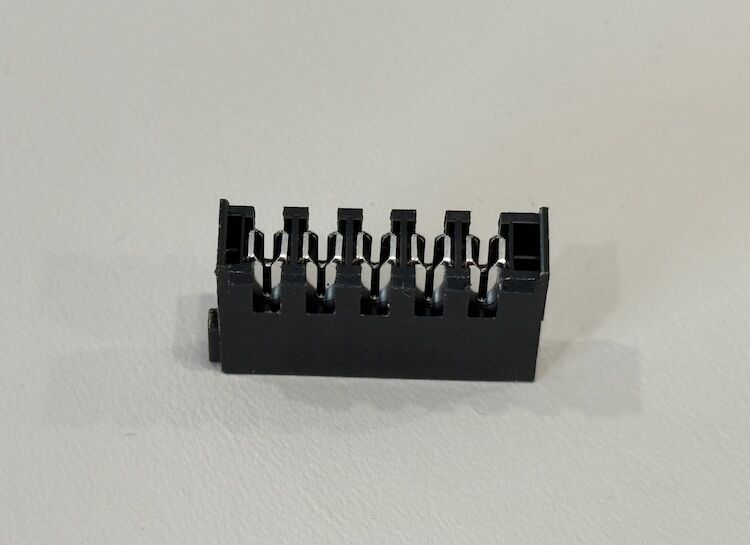

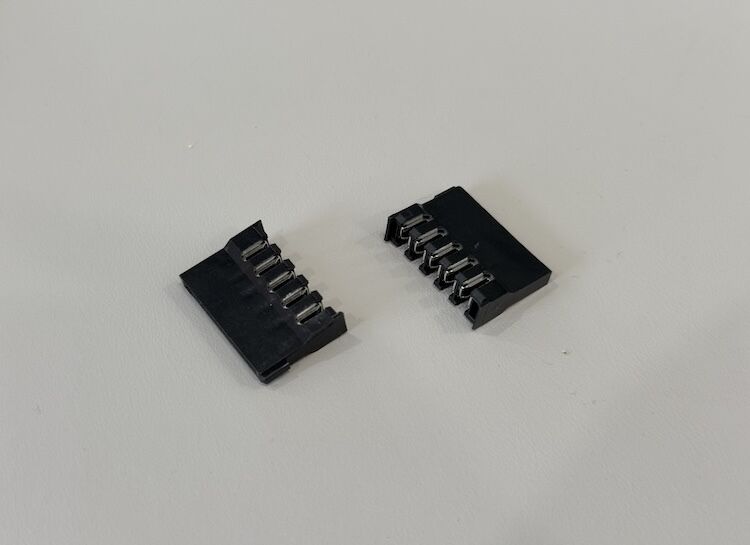

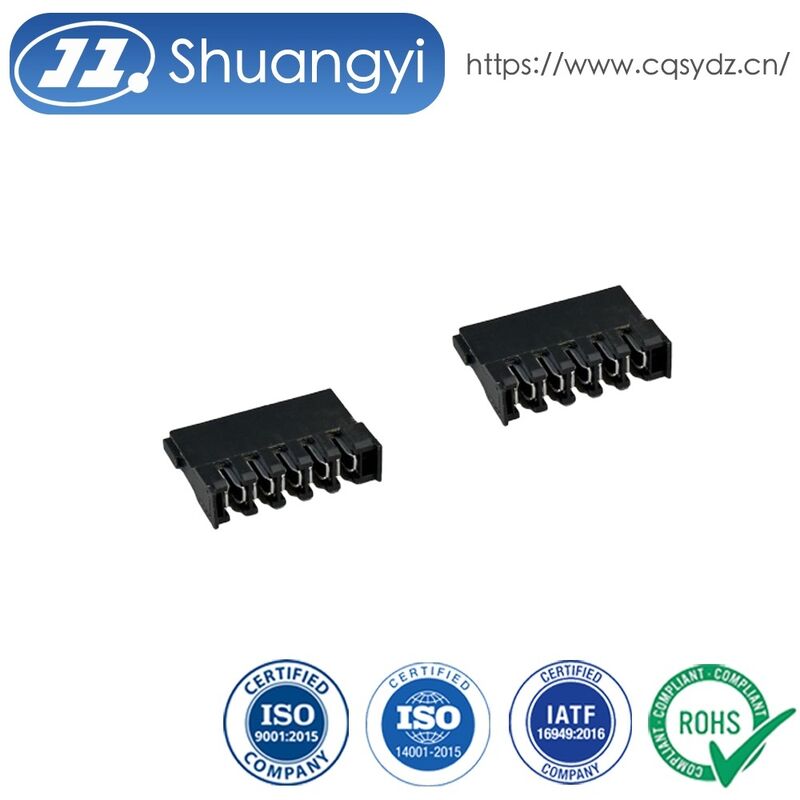

This 2.54 mm pitch 6-pin IDC female connector is designed for compact wire-to-board terminations where fast assembly and reliable electrical contact are required. Insulation displacement contacts pierce the wire insulation during termination, providing stable contact resistance and minimizing manual stripping operations. High-temperature, flame-retardant thermoplastic housing and corrosion-resistant plated contacts ensure long-term performance in demanding electrical and electronic systems.

Multiple pin counts, wire gauges and plating options can be customized to match specific PCB layouts, harness designs and electrical ratings. The connector structure offers consistent contact pressure and good retention on the board, supporting repeated mating with compatible headers while maintaining signal integrity and power delivery.

Applications

Power and signal harnesses in automotive electronics, body control and lighting modules

Control boards in appliances, industrial controllers and instrumentation equipment

Low-voltage power distribution and auxiliary signal lines in server, storage and communication devices

Customized PCB assemblies requiring quick IDC termination for multi-core cables
