Product Description

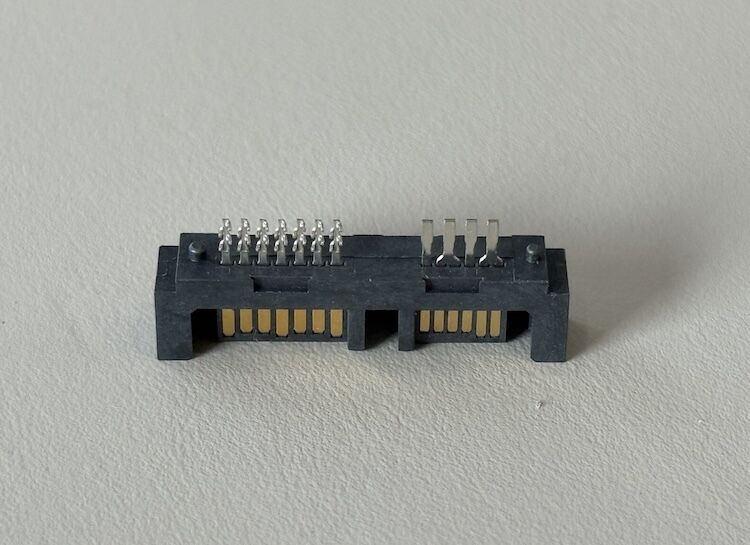

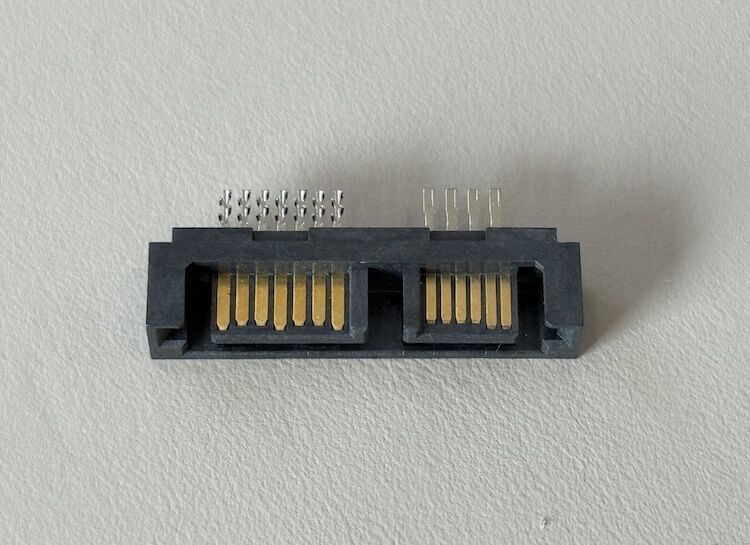

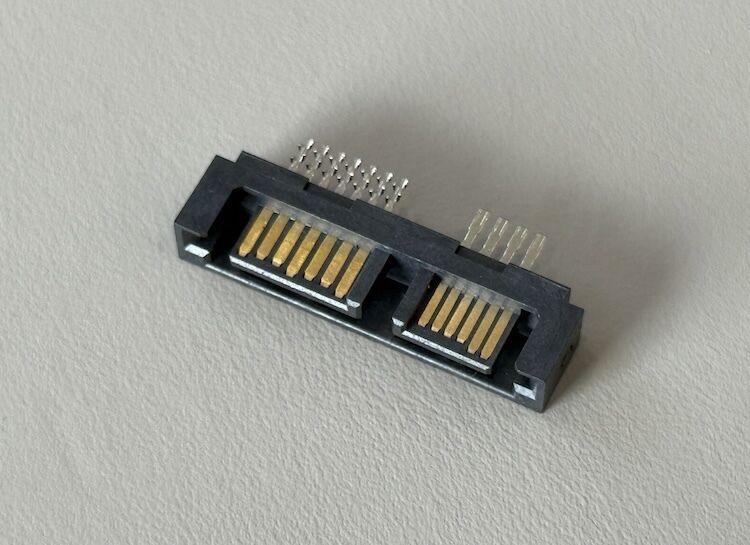

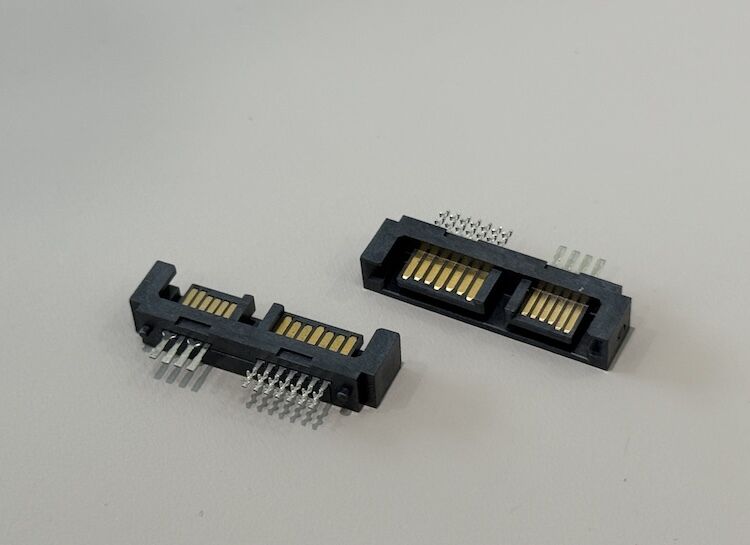

This PCB SATA male connector integrates power and high-speed signal terminals in a compact housing, providing a reliable interface between electronic boards and storage devices. Gold-plated contacts ensure low contact resistance and stable data transmission, while the reinforced housing supports repeated mating cycles in harsh electrical environments. Mixed SMT/through-hole tails improve solder joint strength and alignment on the PCB, making the connector suitable for dense layouts in modern server and industrial boards.

The connector supports customized pin configuration, plating thickness, and special requirements for transmission performance, enabling tailored designs for storage systems, power-signal mixed routing, and OEM cable assemblies.

Applications

Server and data-center storage backplanes, RAID cards, and embedded systems

Industrial control units, PLCs and automation equipment requiring compact SATA interfaces

Automotive infotainment, diagnostic equipment and onboard storage modules

Communication equipment, network appliances and edge-computing devices using SATA drives

Custom PCB-to-device wire and cable assemblies for power and signal transmission
