SATA 7p/F 90° Solder Type Wire to Board Connector

SATA 7p/F 90° Solder Type Wire to Board Connector

Place of Origin:

China

Brand Name:

Shuangyi

Certification:

ISO9001,ISO14001

Model Number:

SATA-C07F-A6S5A5-000H

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
5000size
Price
Negotiation
Packaging Details
1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time
7~10 work days
Payment Terms
T/T
Supply Ability
1000000/Year
Product Description

I. Basic Information
Type: SATA 7P/F (Female, i.e. Female chassis) 90° solder type (Solder Type) Wire to Board connector.
Number of pins: 7 pins (Pin), in line with the SATA interface standard.
Angle: 90°, this design allows the connector to be mounted at a 90° angle on the board, which helps to save space and improve layout flexibility.

II. Product Features
1. Solder Type Connection: Connecting the connector pins to the circuit board by soldering provides a solid and reliable electrical connection. This type of connection is especially common in applications requiring high reliability and durability.
2. Gold-plated contacts: Connector contacts are usually plated with gold (Plated Au) to improve electrical conductivity, corrosion resistance and wear resistance, thereby extending the life of the connector.
3.SATA interface standard: Compliant with SATA interface standard, supporting high-speed data transmission and power connection, ensuring compatibility with various SATA devices.
4. Compact design: 90° design makes the connector easy to install even in limited space, suitable for a variety of compact electronic devices.

III. Technical Specifications
Pin Arrangement: According to the standard pin arrangement of SATA 7P, ensuring the correct mating with the corresponding male connector.
Electrical performance: meets the electrical performance requirements of SATA interface standards, including voltage withstand, insulation resistance, contact resistance, etc.
Contacts: made of high quality conductive materials and gold plated to improve performance.
Insulator: made of materials with good insulation and high temperature resistance to protect the internal circuit from external interference.

Fourth, the field of application
The connector is widely used in computers, servers, storage devices and other fields, especially those devices that require SATA interface connection and have high requirements for connection quality. It can be used for connection between motherboards, hard disk drives, optical drives and other components, providing stable, high-speed data transmission and power connection.

V. Installation and Precautions
During installation, please make sure that the pins of the connector correspond correctly to the soldering points on the board to avoid poor or damaged connections.
Follow the guidelines and recommendations provided by the manufacturer when soldering to ensure that the soldering quality meets the requirements.
Regularly check the contact status and electrical performance of the connector to ensure stable operation of the equipment.

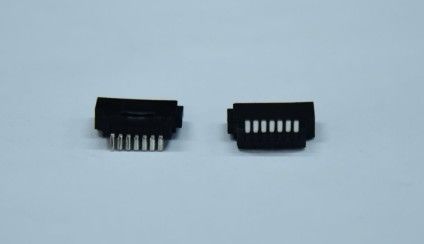

SATA 7p/F 90° Solder Type Wire to Board Connector 0

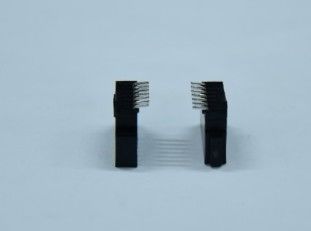

SATA 7p/F 90° Solder Type Wire to Board Connector 1

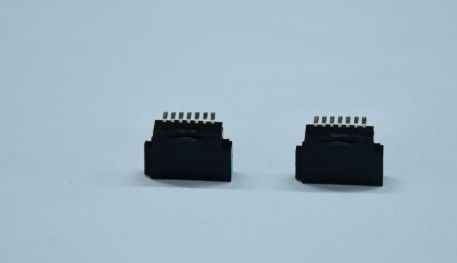

SATA 7p/F 90° Solder Type Wire to Board Connector 2

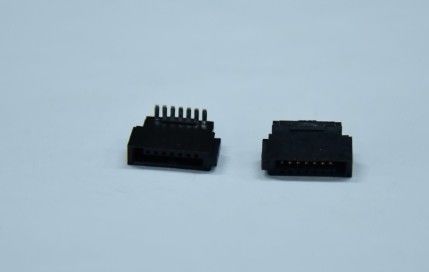

SATA 7p/F 90° Solder Type Wire to Board Connector 3

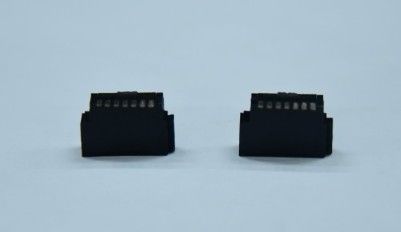

SATA 7p/F 90° Solder Type Wire to Board Connector 4
