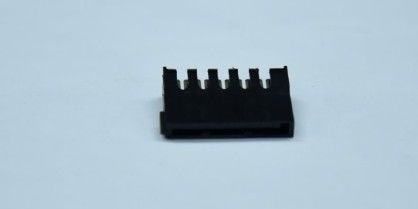

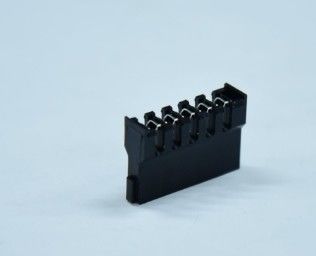

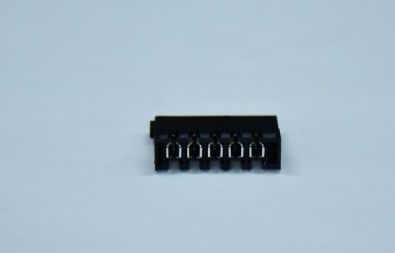

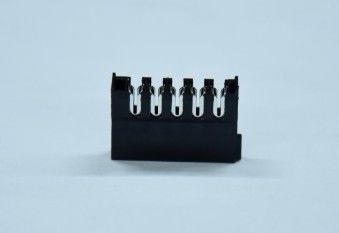

SATA 15p/F Puncture Type Au 15u'' Plated Wire to Board Connector

I. Product overview
Type: SATA 15-pin/F-type puncture connector
Gold plating thickness: 15 microinches (Au 15u ")
Connection method: Wire to Board
Features: Puncture connection, easy to install and disassemble

II. product characteristics
1. High-performance gold-plated pin:
The pin surface is plated with a 15-microinch gold layer, which effectively improves corrosion and wear resistance, while ensuring excellent electrical conductivity and signal transmission quality.
2. Puncture connection:
The connector can be fixed to the circuit board without welding, which simplifies the installation process and improves the installation efficiency.
3. High-speed transmission:
The high-speed data transmission feature of SATA interface is supported, which meets the high data transmission speed requirements of modern storage devices.
4. Stable and reliable:
The use of high-quality materials and advanced production processes to ensure the connector's stable performance and reliability in a variety of environments.
5. Widely used:
This method is applicable to scenarios that require SATA interfaces, such as computer motherboards, server motherboards, and data storage devices.

III. Technical specifications
Pin count: 15 pins
Interface type: SATA
Connection mode: Puncture type
Gold plating thickness: 15u "(micro inch)
Electrical performance:
Rated current: depends on the specific product
Contact resistance: Low value to ensure signal transmission quality
Insulation resistance: High value to ensure electrical isolation
Physical size: including the connector height, width, pin spacing, etc., the specific value needs to refer to the product specification.

IV. Application scenarios
Mainly used in computer motherboard, server motherboard, solid state drive (SSD), hard disk drive (HDD) and other storage devices and motherboard connection.

V. Precautions
During use, ensure that the connector is correctly connected to the device to avoid signal transmission problems caused by poor contact.
Pay attention to the use of the connector environment, avoid the use of humid, high temperature or strong electromagnetic interference environment, to ensure the stability and reliability of data transmission.
During the installation process, follow the installation steps and precautions to ensure the correct installation and use of the connector.

to sum up, SATA 15P/F Puncture Type Au 15u "Plated Wire to Board Connector is a high-performance, stable and reliable SATA interface connector, which is suitable for various application scenarios requiring high-speed data transmission.
