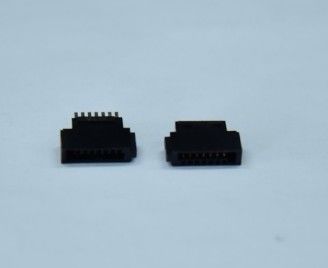

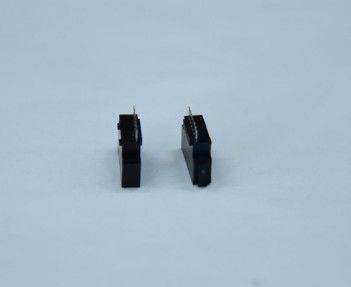

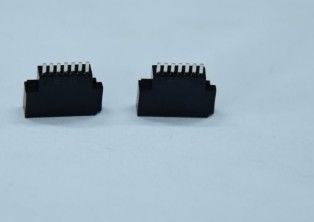

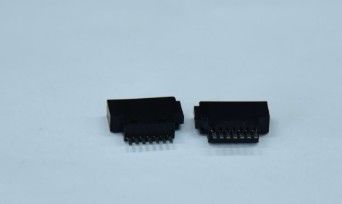

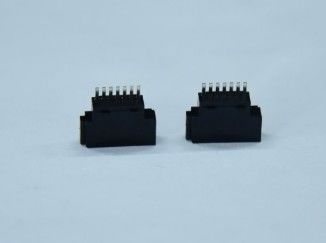

SATA 7p Femal Solder Type 180° Au 15u'' Plated Wire to Board Connector

SATA 7p Femal Solder Type 180° Au 15u'' Plated Wire to Board Connector

Place of Origin:

China

Brand Name:

Shuangyi

Certification:

ISO9001,ISO14001

Model Number:

SATA-C07F-A21S47A5-020R

Contact Us
Request A Quote
Product Details
Connector:
SFF-8087 (36-pin) To SATA
Feet:
1.6
Storage Temperature:
-40°C To 85°C
Cable Color:
Black
Internal:
Yes
Angle:
90 Degree
Length:
1 Meter
Pcba:
PBT 94V-0
Connector A:
Mini Sas SFF8087 36pin Male
Meterial:
Black PVC Jacket+Blue Aluminum Foil
Adjust:
Switch
Jacket Material:
PVC
Warranty:
1 Year
Each Tested:
Yes
Target:
Drive
Payment & Shipping Terms
Minimum Order Quantity
5000size
Price
Negotiation
Packaging Details
1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time
7~10 work days
Payment Terms
T/T
Supply Ability
1000000/Year
Product Description

I. Basic Information
Type: SATA 7P Female Solder Type Wire to Board Connector
Angle: 180°
Plating: Au 15u'' (gold plating, 15 micro inches thick, provides excellent electrical conductivity and corrosion resistance)

II. Product Features
1. High-quality connection: Designed with gold plating to ensure that the connector maintains a stable electrical connection over long periods of time, reducing signal attenuation and contact resistance.
2. Solder mounting: Fixed to the circuit board by soldering to provide a solid and reliable connection, suitable for application scenarios requiring high reliability.
3. 180° Design: The unique 180° design makes the connector more flexible when mounting, facilitating efficient layout in limited space.
4. SATA interface standard: Compliant with SATA interface standard, it supports high-speed data transmission and power connection and is suitable for various SATA devices.

Third, technical specifications
Number of pins: 7 pins (meets the basic requirements of SATA interface)
Electrical performance: meets the electrical performance requirements of the SATA interface standard, including voltage withstand, insulation resistance, contact resistance, etc.
Contacts: Usually made of high quality conductive materials (e.g. phosphor bronze or brass) and gold plated to improve conductivity and corrosion resistance.
Insulators: made of materials with good insulating properties and high temperature resistance.

Application areas
The connector is widely used in computers, servers, storage devices and other fields to provide stable, high-speed data transmission and power connection for these devices. It is especially suitable for application scenarios that require high-density connection and limited space layout.

V. Precautions
During use, please make sure that the pins of the connector correspond correctly with the soldering points of the circuit board to avoid poor connection or damage.
Please select the appropriate soldering method and installation procedure according to the product specification and actual situation.
Regularly check the contact status and electrical performance of the connector to ensure stable operation of the equipment.
