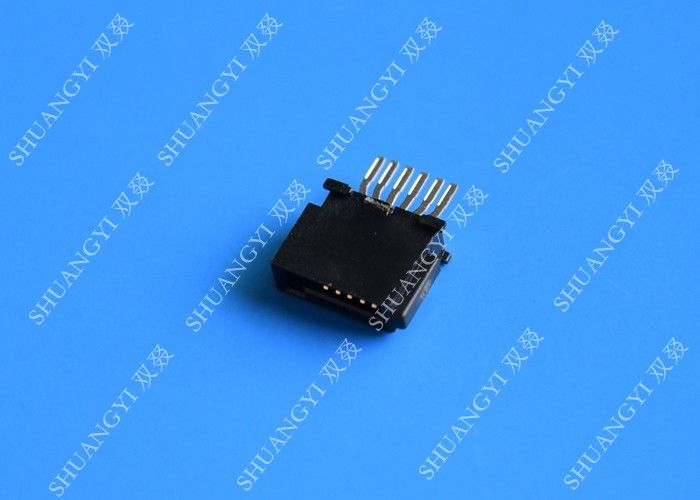

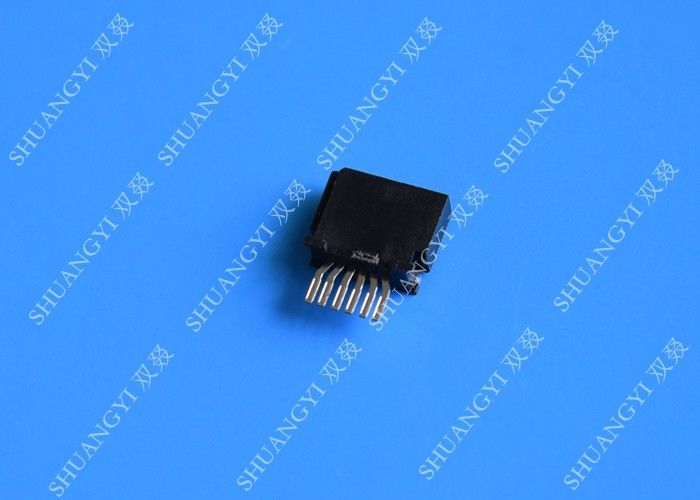

Female SMT 6 Pin ESATA Port Connector , Laptop External SATA Connector

Female SMT 6 Pin ESATA Port Connector , Laptop External SATA Connector

external sata connector

esata usb connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

ESATA Connector

Contact Us
Request A Quote
Product Details
Contact Resistance:
30Ω(MAX)
Appliacable Wire Range:
AWG #18-#30
Poles:
6 Pin
Insurance Resistance:
1000MΩ(MIN.)
Withstand Voltage:
500VA/Minute
Temperature Range:
-20°C--- +85°C
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Delivery Time
7~10 Work days
Payment Terms
T/T, L/C
Supply Ability
10000 Pieces Per Day
Product Description

Female SMT 6 Pin ESATA Port Connector , Laptop External SATA Connector





Sata 6 pin connector solder type with latch(Our Patent)

Specifications:

Poles

6 Pin

Withstand Voltage

500VA/Minute

Available

6 Circuits

Contact Resistance

30Ω(MAX)

Pitch Between Poles

1.27mm

Insulation Resistance

1000MΩ(MIN.)

Rated Voltage

40VAC

Temperature Range

-20°C--- +85°C

Rated Current

1.5A

Applicable Wire Range

AWG #18-#30



Materials:

1:Insulator:LCP/PBT G/F UL 94V-0

2:Terminal:Copper Alloy

3:Ni 50 u Min Plated over Terminal

4:Au Plated on Contact Area

5:Tin 80 u Min Plated on Solder Area

6:Copper Alloy shell

7: Plated Su 80 u on Contact Area

8: Ni 40u Plated over shell



Applications:

Products are widely used in computers, laptops, mobile phones, communications, medical and electrical equipments, support power .



Our advantages:

1. We have patent for this item.

2. Free sample is available and any color as your requirement
3. We have strong research and development team of products and mould design

4. Inspections:100% tested before delivery
5. ODM/OEM order are welcomed
6. Passed ISO9001:2008 and all of our materials are compliant with ROHS.

7. Providing best after sales service.



Packing & Delivery:

1. Packing Details:500pcs per PE bag and in carton.

2. Delivery Date:10-15 days after all details confirmed.



Thank you for your attention to our website. Please don't hesitate to send me message if you are interested in any of our products. In the mean time, please kindly offer the details of your products if you have special requirement. I assure that any of your enquiry will receive our prompt attention.
