SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A14D1A2-00LR

Contact Us
Request A Quote
SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies
Product Details
Product Type:
SATA 13-pin Female Board Connector
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
13 Pins
Mounting Type:
SMT To PCB With Mechanical Pegs
Housing Material:
High-temperature Thermoplastic, UL94V-0
Contact Material:
Copper Alloy, High Conductivity
Contact Plating:
Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
−40 °C To +85 °C
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Environmental Compliance:
RoHS / HF / REACH Compliant
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.15-0.22 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies online

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price
Good price SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems online

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price
Good price High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector online

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price
Good price SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications online

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

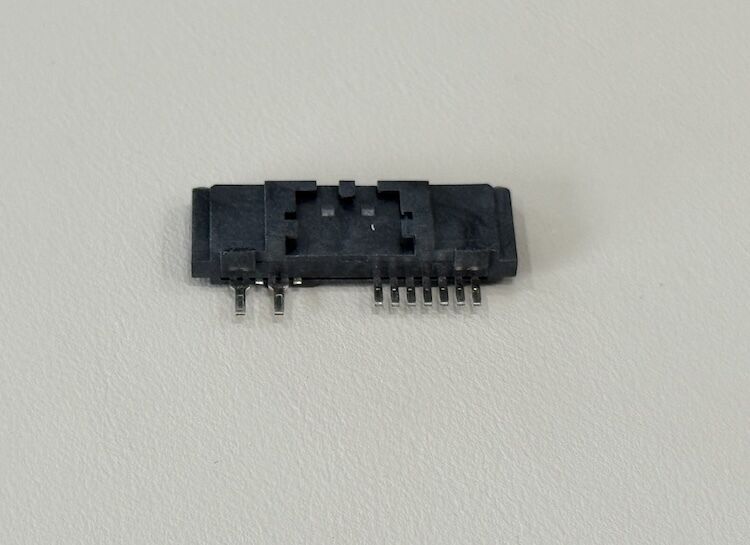

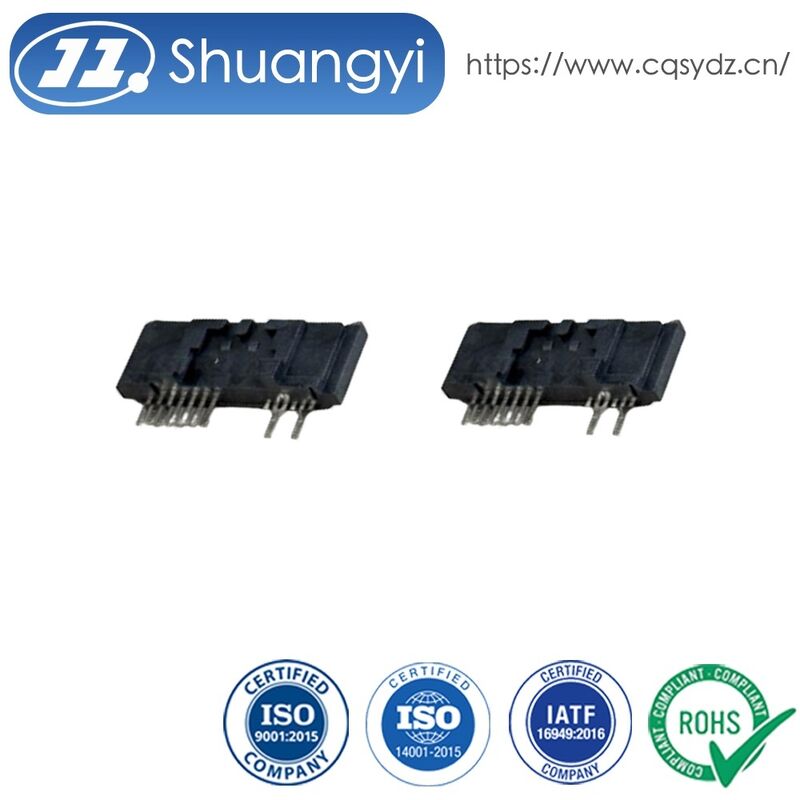

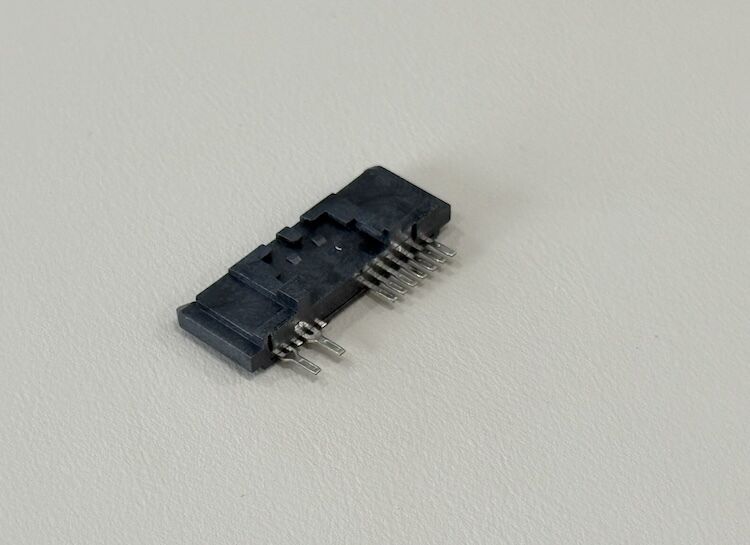

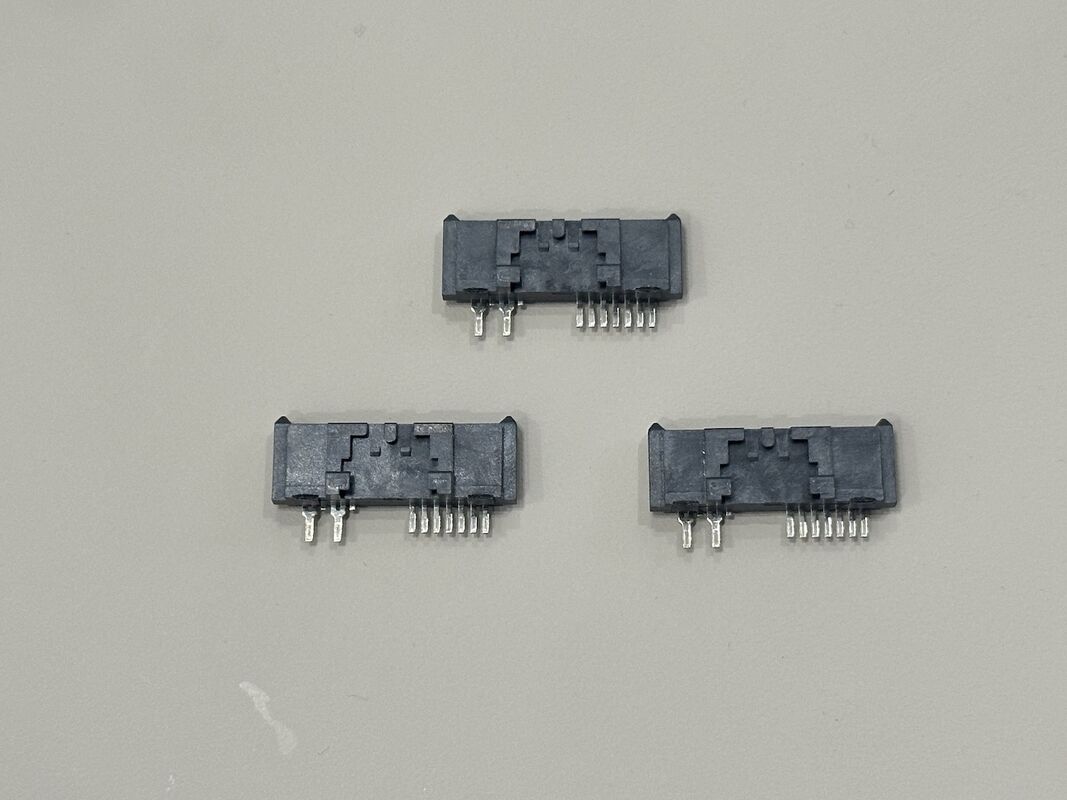

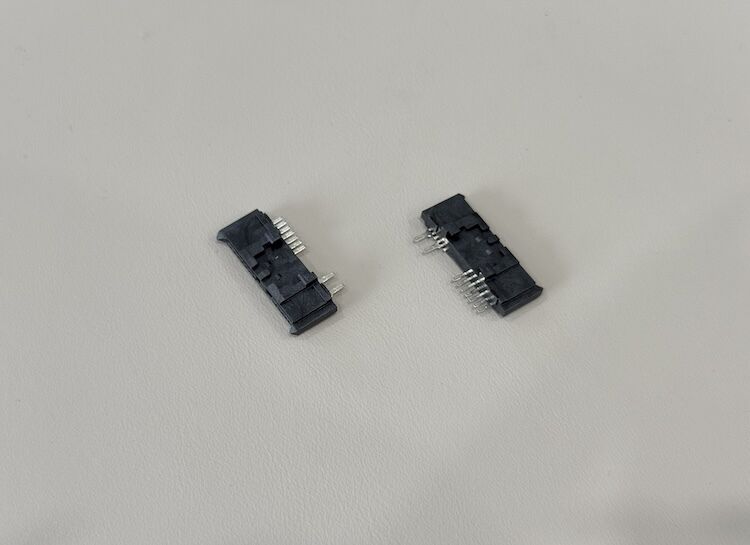

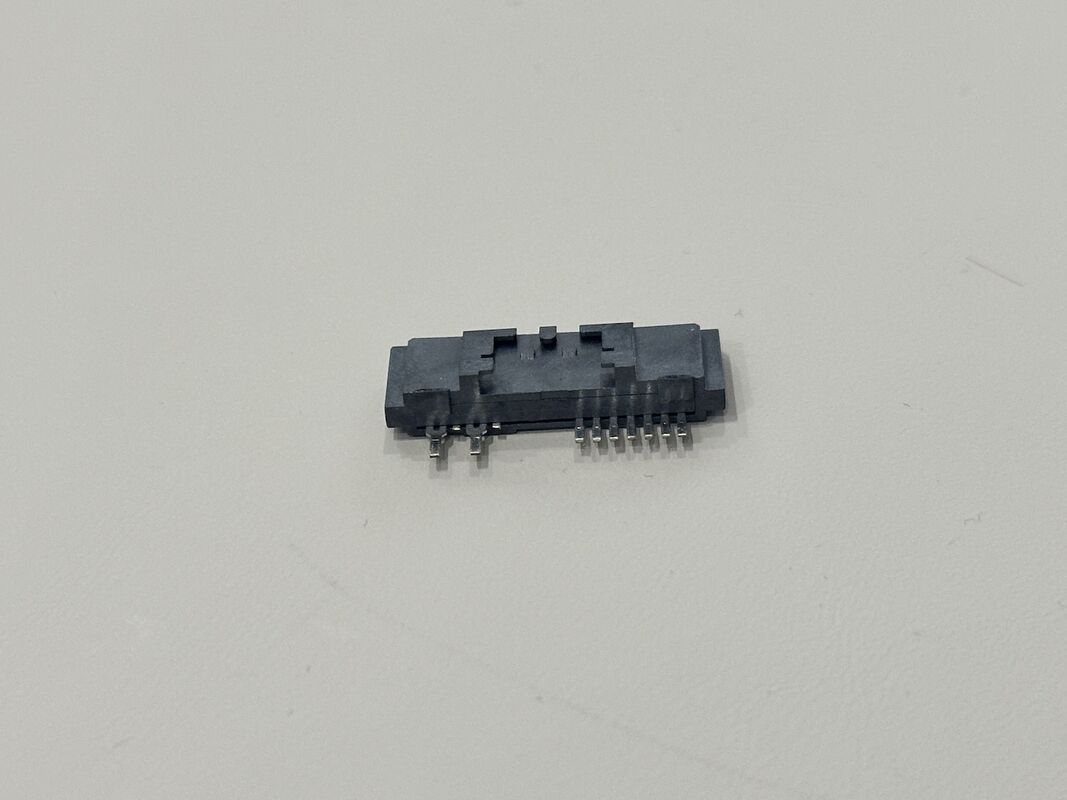

This 22-pin SATA female PCB connector combines power and high-speed signal terminals in one compact housing, ideal for modern storage and embedded designs. The gold-plated contacts provide low contact resistance and stable signal transmission, while tin-plated solder tails ensure reliable solderability on the PCB. The right-angle structure saves vertical height and supports dense backplane or daughterboard layouts. Dimensions can be customized to match your existing SATA footprint or specific PCB keep-out area.



SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 0SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 1SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 2





Connector type SATA 22-pin female PCB connector
Interface 7-pin signal + 15-pin power
Mounting style Right-angle board-mount, solder tail termination
Pitch Approx. 1.27 mm
Contact material Copper alloy terminals
Contact plating Gold over nickel on contact area, tin-plated solder tails
Housing material High-temperature thermoplastic, UL94V-0, black
Rated current Up to 1.5 A per signal pin, higher current capability on power pins
Rated voltage Up to 50 V DC (typical 5–12 V HDD/SSD power systems)
Operating temperature -40 °C to +85 °C
Compliance RoHS / halogen-free options, REACH compatible
Customization Tail length, plating thickness, housing color and packaging available



Applications

Server and workstation HDD/SSD backplanes

Industrial PCs, DVR/NVR, telecom and networking equipment

Embedded storage modules and RAID cards

Automotive data recorders and infotainment systems using SATA drives

Precautions

Ensure the PCB footprint and keying match the mating SATA plug to avoid mis-insertion.

Follow recommended reflow/wave solder profiles to prevent housing deformation.

Keep the contact area clean; avoid touching the gold fingers to maintain low contact resistance.

Provide adequate mechanical support on the PCB (screws or brackets) in applications with frequent mating or vibration.





SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 3

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 4
SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 5
SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 6
SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 7
SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies 8
