Home > Products > SATA >

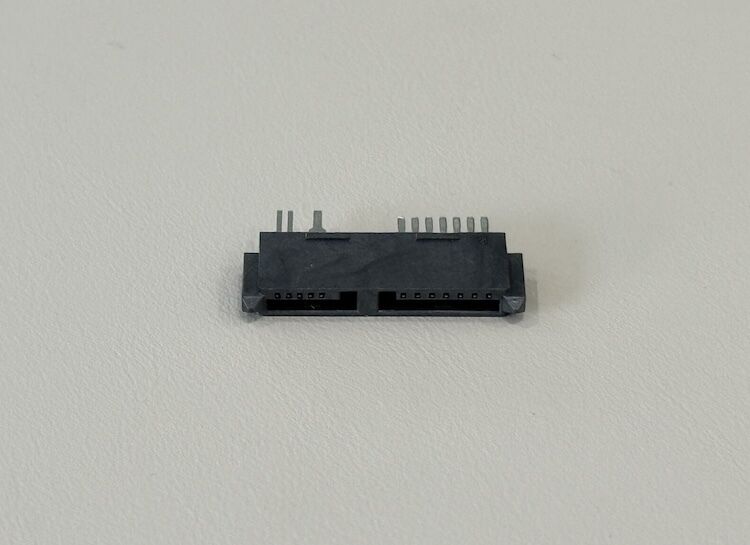

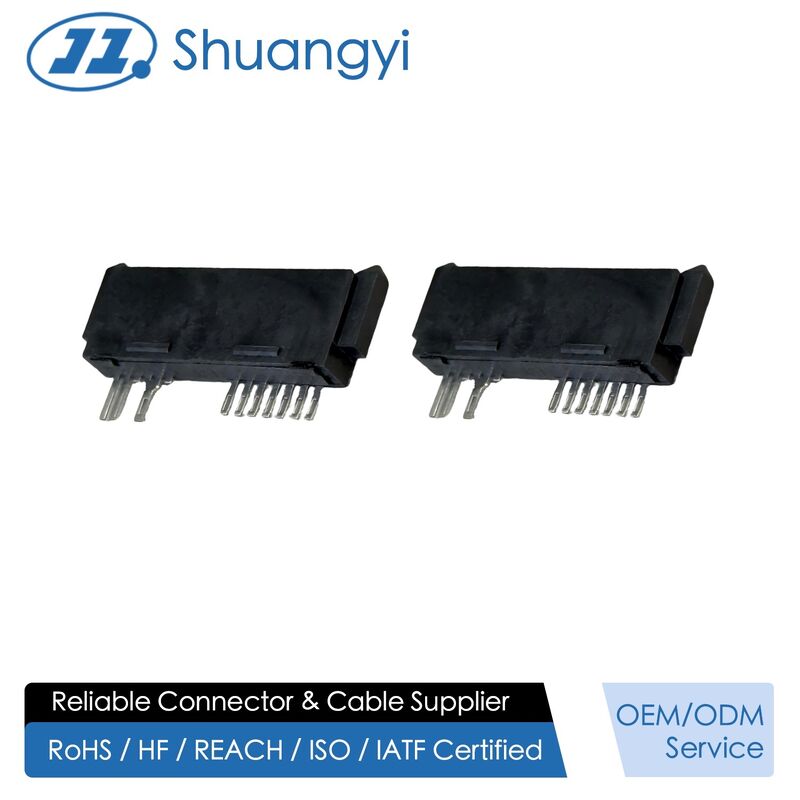

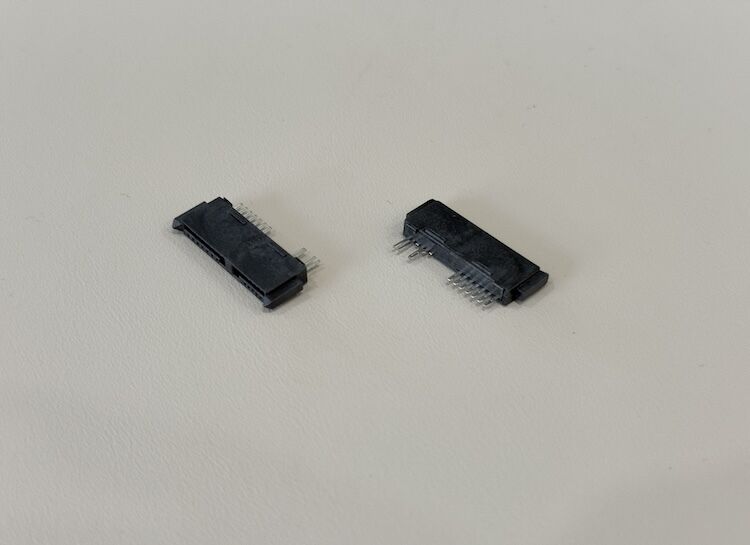

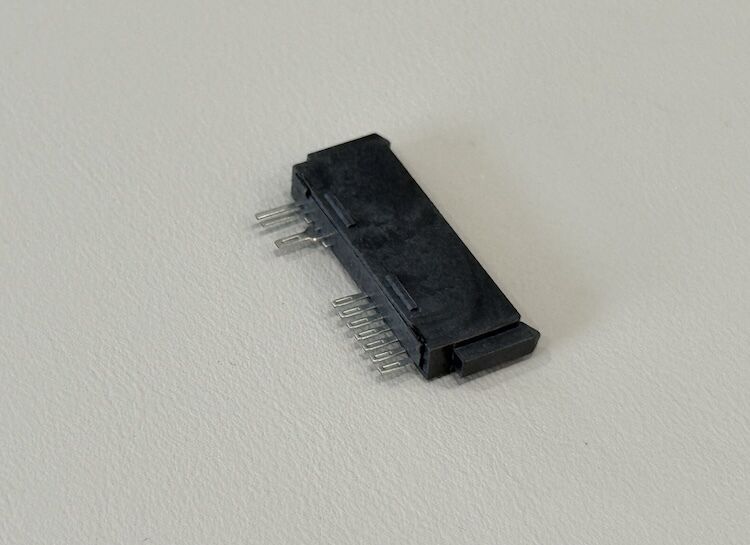

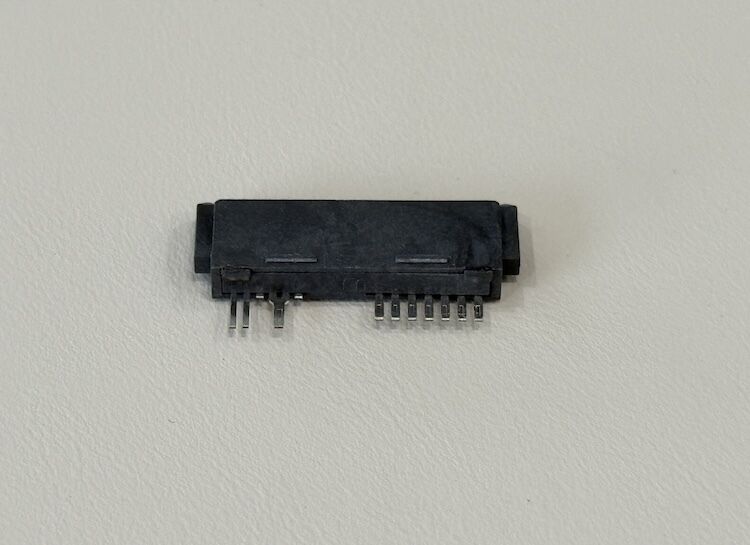

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A9S18A2-00LH

Request A Quote

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Product Details

Product Type:

SATA 13-pin Female Board Connector

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

13 Pins

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy, High Conductivity

Contact Plating:

Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.14-0.22 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

This 13-pin SMT PCB connector is designed for compact electronic equipment where reliable signal and low-power distribution are required on a small footprint. Gold-plated contacts ensure stable transmission and low contact resistance, while the high-temperature, flame-retardant housing supports standard reflow soldering processes.

Reinforced solder tabs on both sides improve PCB retention strength, making the connector suitable for applications exposed to vibration or repeated plugging, such as storage devices, communication equipment, and embedded industrial controllers. Customization of pin count, plating thickness, pitch and keying features is available to match specific harness and mating connector requirements.

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector 0

Connector type	13-pin SMT PCB signal/power connector
Contact pitch	1.27 mm (custom pitches available)
Number of positions	13 pins
Mounting style	Right-angle, surface-mount with hold-down posts
Termination to PCB	SMT contacts + soldered retention tabs
Contact material	Copper alloy
Contact plating	Gold over nickel in mating area, tin on tails
Housing material	High-temperature thermoplastic, UL94 V-0
Rated current	Up to 1.5 A per contact (application-dependent)
Rated voltage	30–50 V AC/DC (low-voltage systems)
Insulation resistance	≥ 1000 MΩ @ 500 V DC
Contact resistance	≤ 30 mΩ (initial)
Operating temperature	−40 ℃ to +105 ℃
Durability	500 mating cycles typical
Compliance	RoHS / HF / REACH compliant

Applications

Connection between storage devices (SSD/HDD modules) and main PCBs in computers, set-top boxes and consumer electronics

High-density server and data-center boards, RAID cards, industrial storage backplanes and embedded systems

Communication and networking equipment requiring reliable SATA data and auxiliary power transmission

Customized cable assemblies and adapter boards where a 13-pin SATA style interface is needed

Precautions

Name: High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C13F-A9S18A2-00LH
Price: 0.14 USD
Availability: InStock
