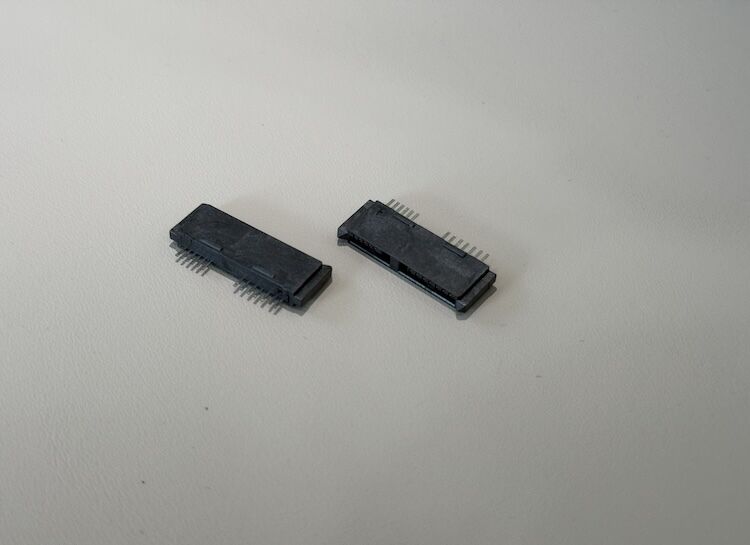

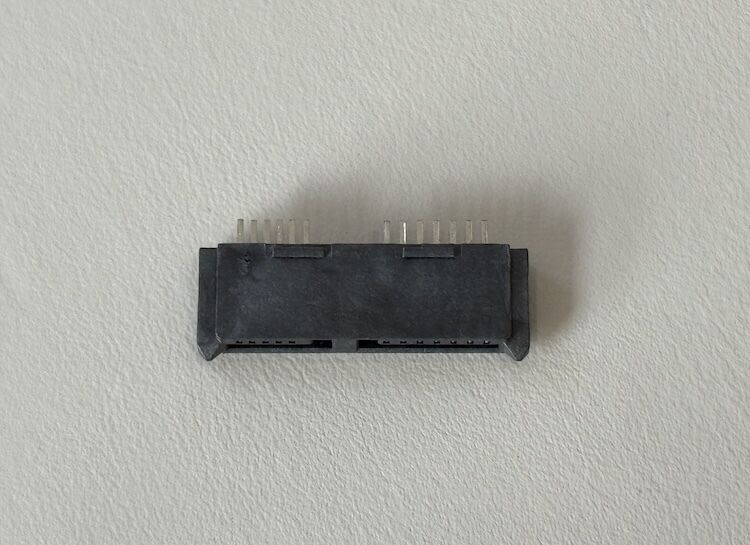

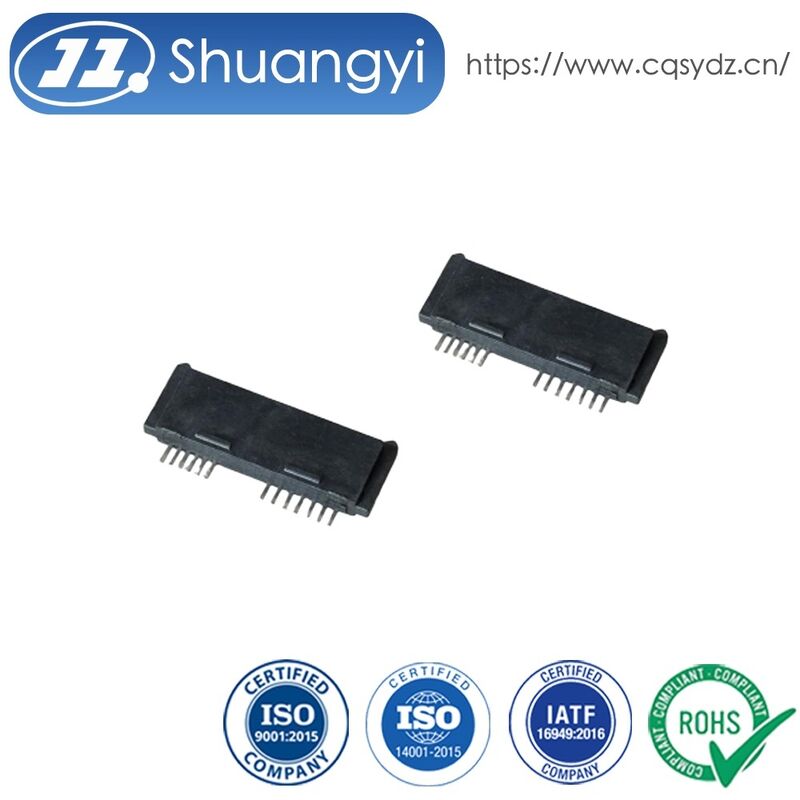

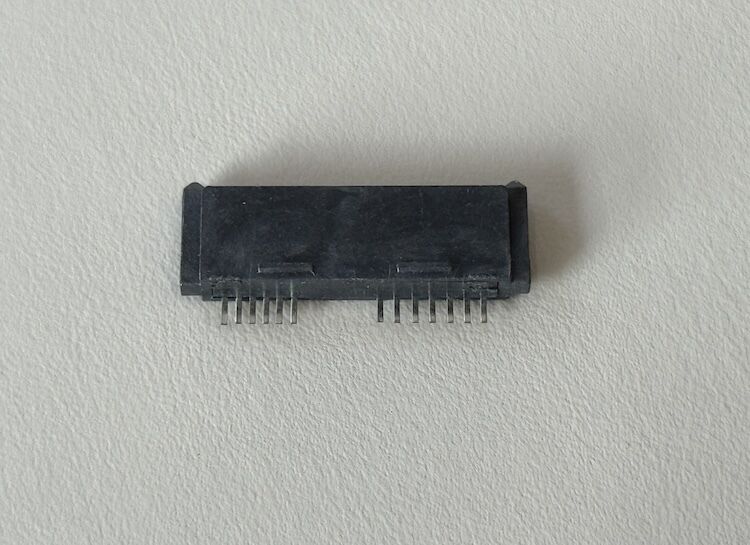

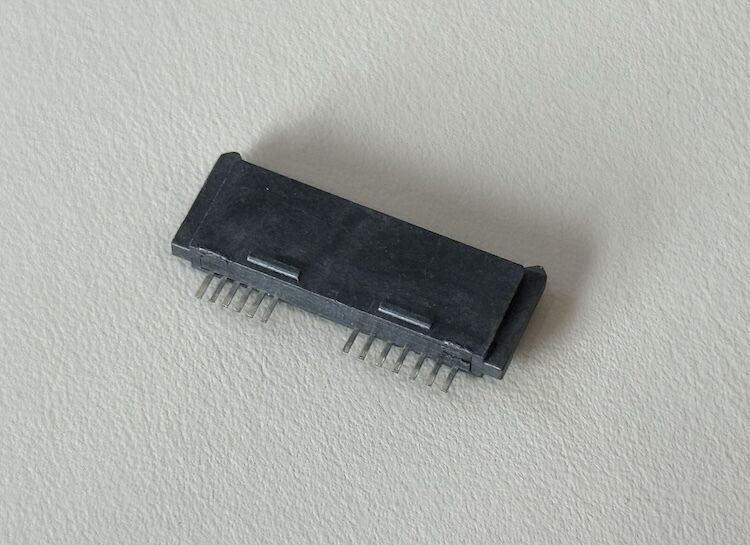

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A14D1A2-00LR

Contact Us
Request A Quote
SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems
Product Details
Product Type:
SATA 13-pin Female Board Connector
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
13 Pins
Mounting Type:
SMT To PCB With Mechanical Pegs
Housing Material:
High-temperature Thermoplastic, UL94V-0
Contact Material:
Copper Alloy, High Conductivity
Contact Plating:
Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
−40 °C To +85 °C
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Environmental Compliance:
RoHS / HF / REACH Compliant
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.14-0.22 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies online

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price
Good price SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems online

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price
Good price High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector online

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price
Good price SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications online

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This SATA 13-pin female SMT PCB connector is designed for high-density, high-reliability signal transmission in storage and computing equipment. The 1.27 mm fine pitch and compact housing save PCB space while maintaining controlled impedance for high-speed data lines.

Gold-over-nickel contacts provide low contact resistance and excellent corrosion resistance, and tinned solder tails ensure reliable reflow soldering. The UL94V-0 high-temperature thermoplastic housing is suitable for lead-free processes and harsh industrial or automotive environments. OEM/ODM customization is available for pin definition, plating thickness and mechanical keying.



SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems 0SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems 1SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems 2





Connector type SATA 13-pin female SMT connector
Interface standard SATA signal interface
Number of positions 13 contacts
Contact pitch 1.27 mm (fine pitch)
Mounting style Surface-mount, right-angle
Termination to PCB SMT gull-wing terminals
Contact material Copper alloy
Contact plating Gold over nickel on mating area, tin on tails
Housing material High-temperature thermoplastic, UL94V-0
Rated voltage 30–50 V AC/DC (signal level)
Rated current Up to 1.0 A per contact
Insulation resistance ≥ 1000 MΩ @ 500 V DC
Dielectric withstand voltage 500 V AC for 1 minute
Contact resistance ≤ 30 mΩ (initial)
Operating temperature –40 ℃ to +105 ℃
Durability 500 mating cycles
Compliance RoHS / HF / REACH compatible
Packaging Tape & reel / tray
Customization Pin count, plating thickness, keying, footprint



Applications

SATA HDD/SSD connection in PCs, industrial computers and embedded systems

Server backplanes, RAID cards, NAS and storage arrays

Industrial controllers, data loggers and measurement equipment

Automotive infotainment, DVR and telematics units

Communication and networking devices requiring compact SATA interfaces

Precautions

Confirm pin count, pitch and PCB footprint with your layout before tooling and mass production.

Follow the recommended reflow profile to avoid housing deformation or plating damage.

Do not twist or lever the connector during unmating; excessive force may bend terminals.

Keep contacts clean and free of flux residue or dust to maintain high-speed signal integrity.

Respect the rated current, voltage and temperature; apply derating in sealed or high-ambient systems.

Protect SMT terminals from mechanical impact during storage, transport and pick-and-place handling.
