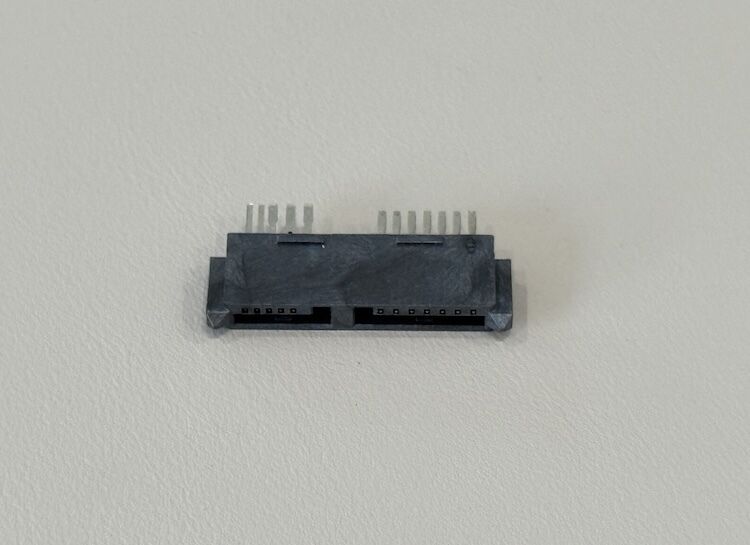

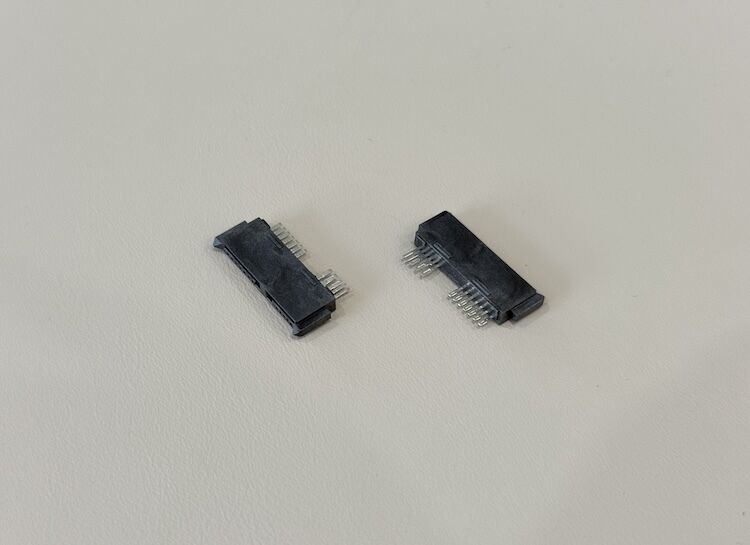

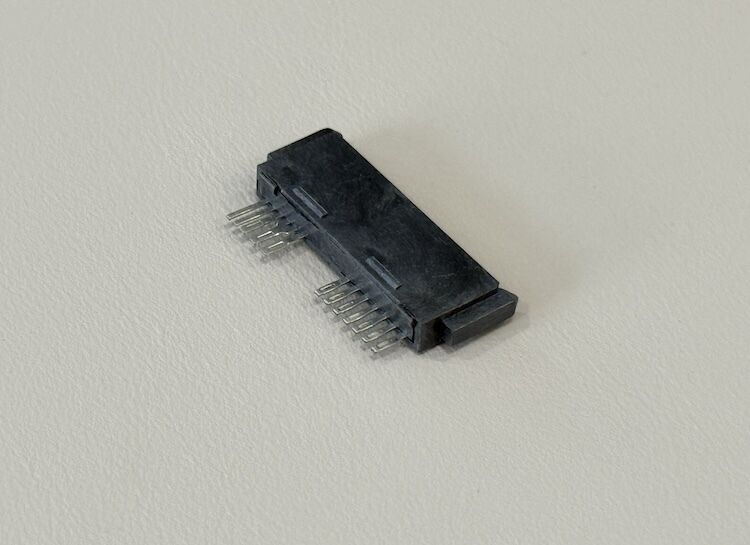

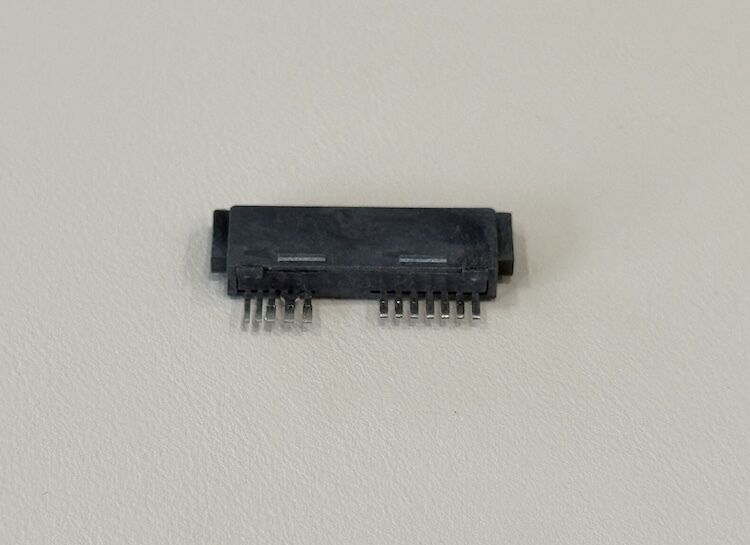

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A9S5A5-00LR

Request A Quote

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Product Details

Product Type:

SATA 13-pin Female Board Connector

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

13 Pins

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

High-temperature Thermoplastic, UL94V-0

Contact Material:

Copper Alloy, High Conductivity

Contact Plating:

Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.14-0.22 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

This board-mount SATA power and signal connector combines a 7-pin high-speed signal terminal block with a 15-pin power terminal block to support standard SATA storage interfaces. The right-angle, through-hole design provides strong mechanical retention on the PCB, making it suitable for vibration-prone industrial and server systems.

Gold-plated contacts ensure low contact resistance and stable electrical transmission, while the high-temperature, flame-retardant housing maintains dimensional stability during soldering. Polarized keying prevents mismating and protects both the connector and the mated device.

This series can be customized for different board heights, tail lengths, plating thickness, and special requirements, providing flexible customization for data-center servers, DVRs, embedded controllers, and other electronic equipment.

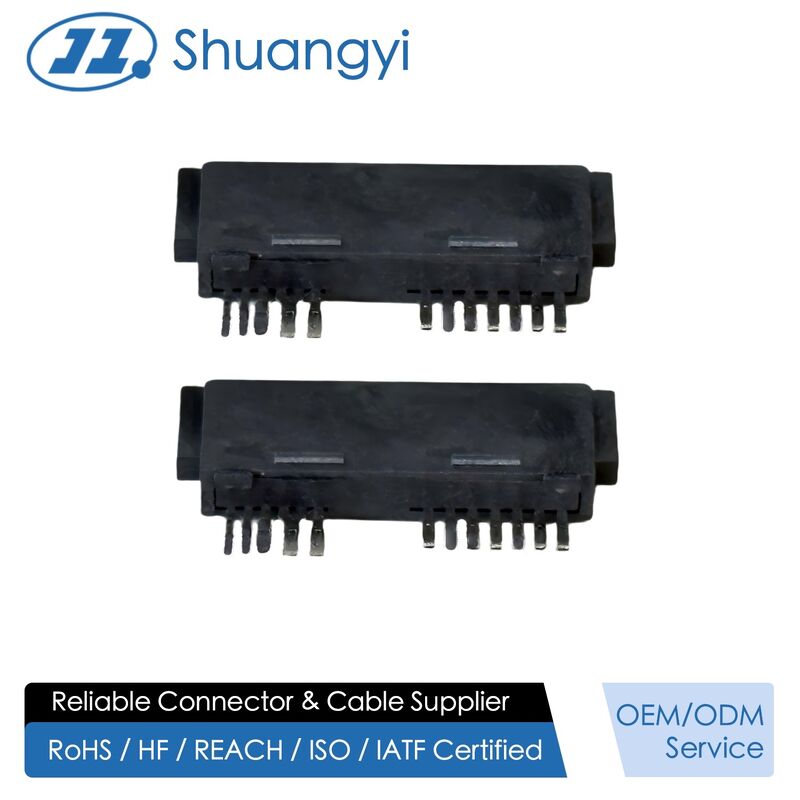

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications 0

Connector type	SATA 13-pin female board connector
Application interface	Data / low-voltage power signal transmission
Mounting type	SMT to PCB with mechanical pegs
Pitch	1.27 mm (contact spacing)
Number of positions	13 pins, single row
Contact material	Phosphor bronze or equivalent copper alloy
Contact plating	Gold over nickel on mating area, tin over nickel on tails (custom thickness available)
Housing material	High-temperature thermoplastic, UL94V-0
Rated current	up to 1.5 A per contact (application dependent)
Rated voltage	up to 30 V AC/DC
Contact resistance	≤ 30 mΩ (initial)
Insulation resistance	≥ 1000 MΩ at 500 V DC
Dielectric withstand voltage	500 V AC for 1 minute, no breakdown
Operating temperature	−40 °C to +105 °C
Mating direction	Horizontal/right-angle to PCB
Mating cycles	≥ 500 insertion/withdrawal cycles
Compliance	RoHS, halogen-free, REACH compatible
Customization options	Different gold thickness, pin length, packaging, and matching cable assemblies

Applications

Connection between storage devices (SSD/HDD modules) and main PCBs in computers, set-top boxes and consumer electronics

High-density server and data-center boards, RAID cards, industrial storage backplanes and embedded systems

Communication and networking equipment requiring reliable SATA data and auxiliary power transmission

Customized cable assemblies and adapter boards where a 13-pin SATA style interface is needed

Precautions

Name: SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C13F-A9S5A5-00LR
Price: 0.14 USD
Availability: InStock
