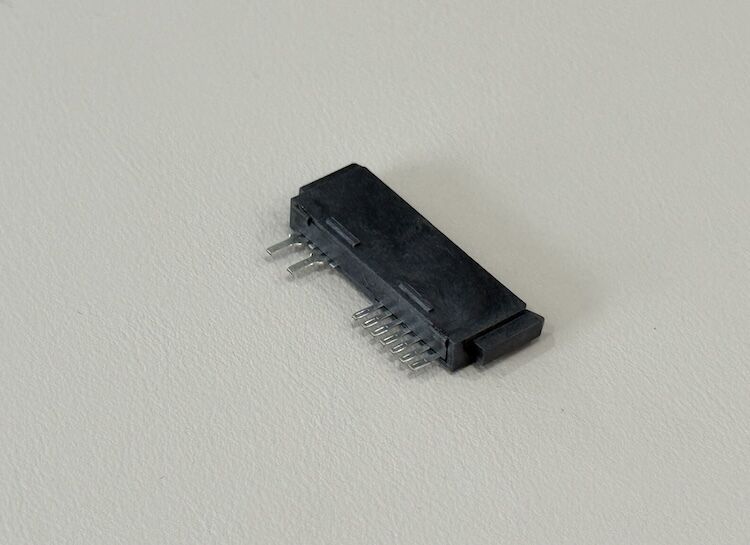

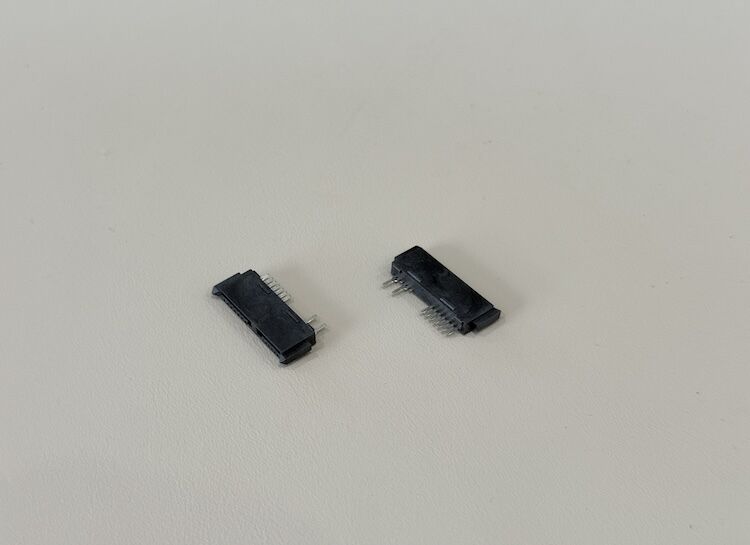

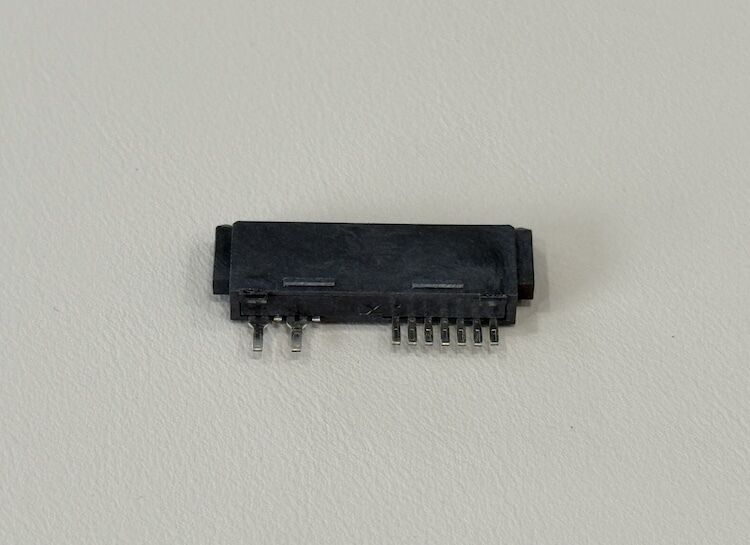

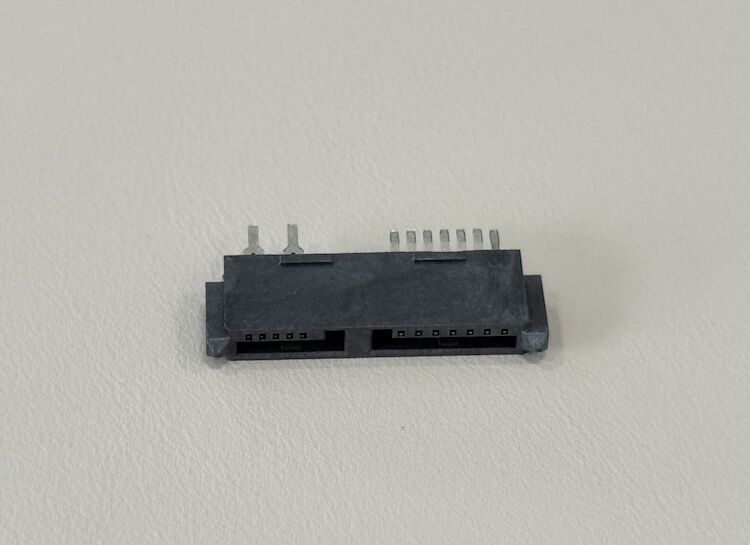

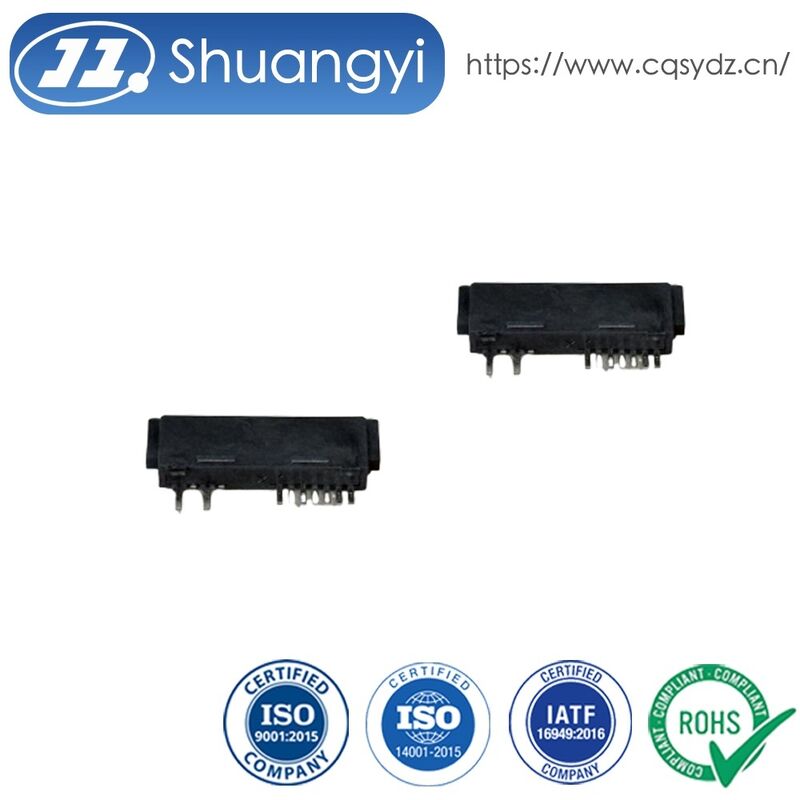

SATA 22-pin 7+15 female power and signal connector right-angle through-hole PCB mounting gold-plated terminals, reliable high-speed data transmission for HDD/SSD storage devices and embedded systems

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A9S5A5-00LR

Request A Quote

SATA 22-pin 7+15 female power and signal connector right-angle through-hole PCB mounting gold-plated terminals, reliable high-speed data transmission for HDD/SSD storage devices and embedded systems

Product Details

Product Type:

SATA 7+15 Female PCB Connector, Power + Signal

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

13 Pins

Mounting Type:

SMT, Right-angle To PCB

Housing Material:

High-temperature Thermoplastic, UL94 V-0, Black

Contact Material:

Copper Alloy, High Conductivity

Contact Plating:

Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.14-0.22 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

This board-mount SATA power and signal connector combines a 7-pin high-speed signal terminal block with a 15-pin power terminal block to support standard SATA storage interfaces. The right-angle, through-hole design provides strong mechanical retention on the PCB, making it suitable for vibration-prone industrial and server systems.

Gold-plated contacts ensure low contact resistance and stable electrical transmission, while the high-temperature, flame-retardant housing maintains dimensional stability during soldering. Polarized keying prevents mismating and protects both the connector and the mated device.

This series can be customized for different board heights, tail lengths, plating thickness, and special requirements, providing flexible customization for data-center servers, DVRs, embedded controllers, and other electronic equipment.

SATA 22-pin 7+15 female power and signal connector right-angle through-hole PCB mounting gold-plated terminals, reliable high-speed data transmission for HDD/SSD storage devices and embedded systems 0

Product type	SATA 7+15 female PCB connector, power + signal
Number of contacts	22 positions (7 signal + 15 power)
Mounting style	Right-angle through-hole (DIP) for PCB
Typical body length	Approx. 25.40 mm
Contact pitch	1.27 mm between adjacent terminals
Contact material	Copper alloy, high conductivity
Contact plating	Gold over nickel on mating area, tin over nickel on solder tails
Housing material	High-temperature thermoplastic, UL94 V-0, black
Rated current	Up to 1.5 A per signal pin, 3.0 A per power pin (reference value)
Rated voltage	Up to 15 V DC
Insulation resistance	≥ 1000 MΩ @ 500 V DC
Dielectric withstanding voltage	500 V AC / 1 min
Operating temperature	−40 °C to +85 °C
Soldering method	Wave / reflow compatible, through-hole pins
Environmental compliance	RoHS / HF / REACH compliant
Customization	Different pin lengths, plating thickness, and housing styles available

Applications

HDD / SSD storage modules in servers, workstations, and industrial PCs

Network video recorders, set-top boxes, and telecom baseband boards

Embedded control boards and compact storage carrier cards

Custom wire / cable assemblies where board-edge SATA connector is required
