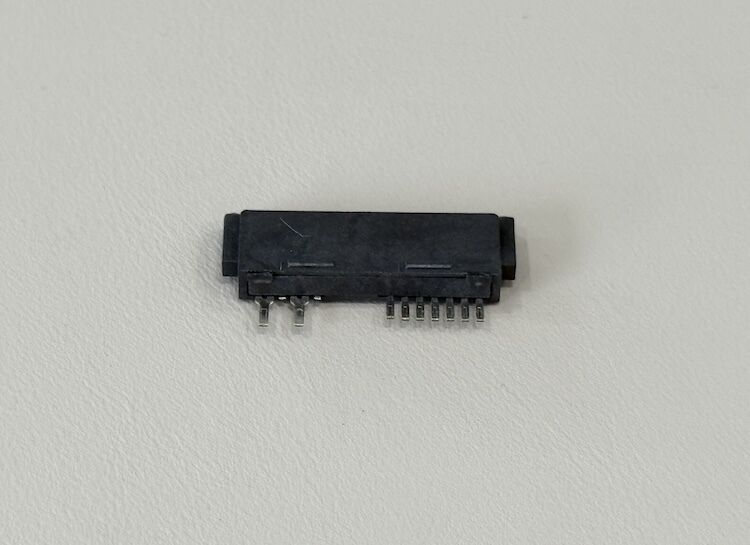

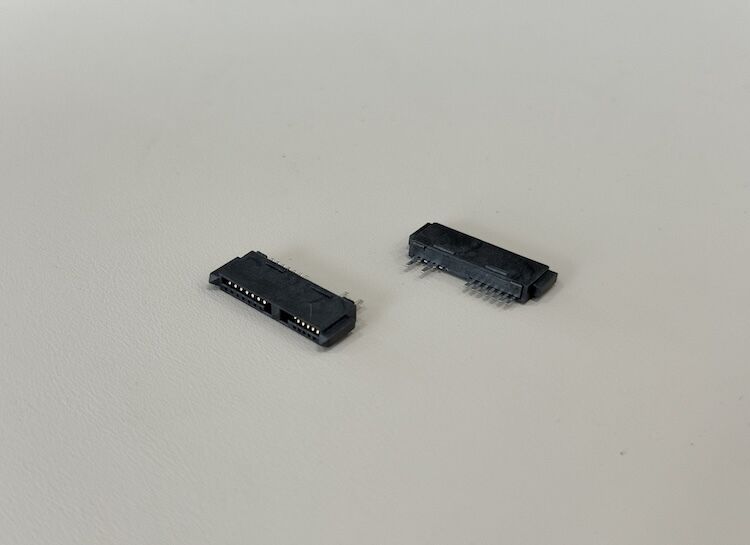

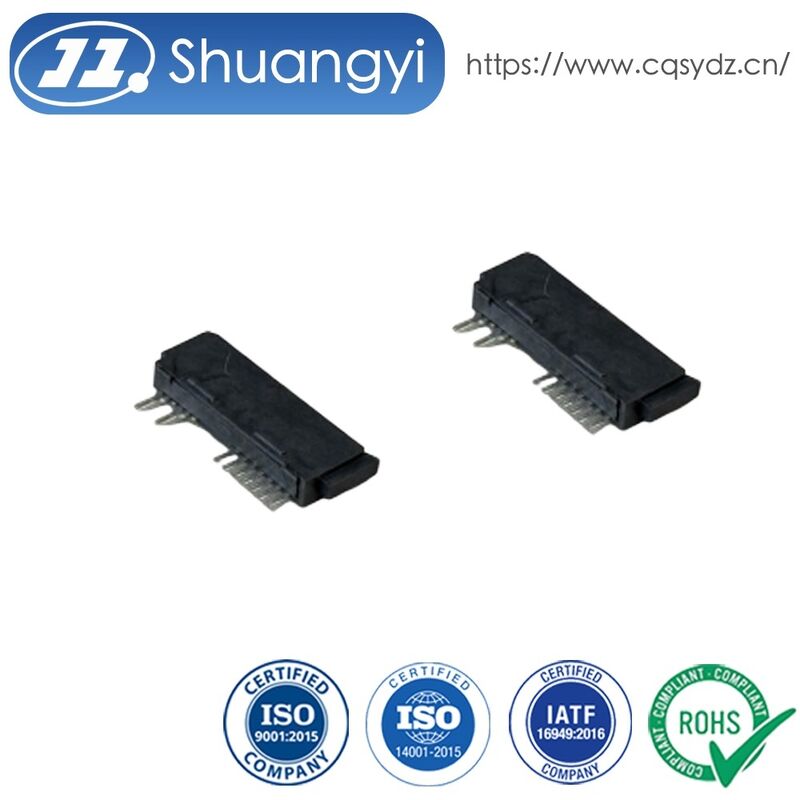

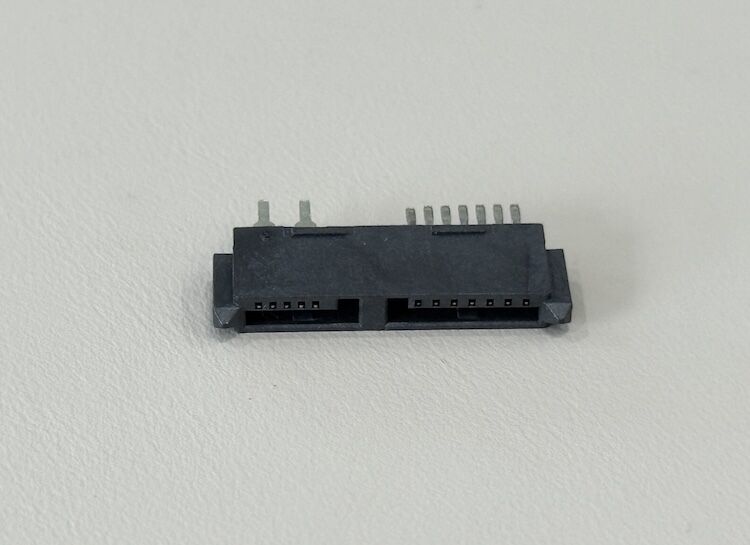

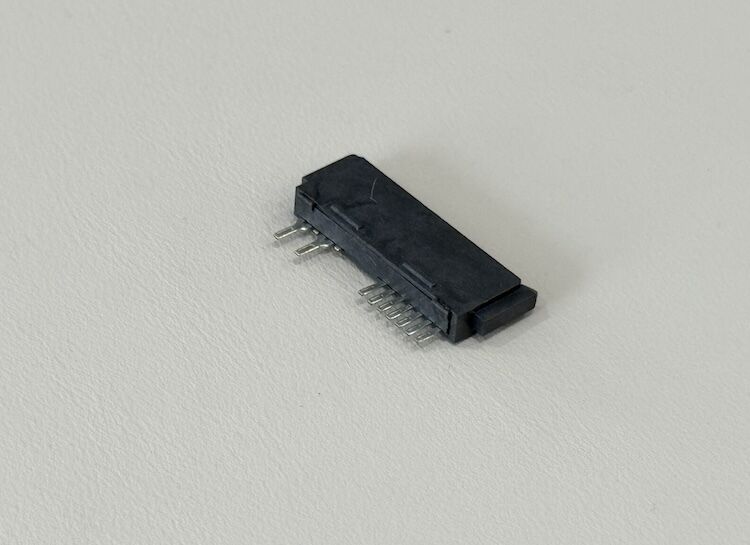

SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies

SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A9S5A2-00LH

Contact Us
Request A Quote
SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies
Product Details
Product Type:
Slimline SATA 13-pin Female SMT Connector
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
13 Pins
Mounting Type:
SMT, Right-angle To PCB
Housing Material:
Thermoplastic, UL94 V-0, Halogen-free
Contact Material:
Copper Alloy Terminals
Contact Plating:
Nickel Under-plating, Gold Flash Or Customized Thickness
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
–40 °C To +105 °C
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.14-0.22 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies online

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price
Good price SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems online

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price
Good price High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector online

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price
Good price SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications online

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This PCB SATA female connector is designed for compact board-to-wire applications where reliable power and high-speed signal transmission are critical. Fine-pitch copper-alloy terminals with selective gold plating provide low contact resistance and stable impedance for HDD/SSD data lines, while robust ground and power pins support continuous current in demanding server, industrial and automation systems. The SMT right-angle housing saves vertical space and allows easy routing on dense PCB layouts. Reinforced solder-tabs and a rigid thermoplastic body improve vibration resistance and long-term mechanical stability. The connector can be supplied as part of a customized cable assembly, matching specific wire gauges, jackets and harness layouts.





SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 0SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 1SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 2



Connector type SATA female board-to-wire connector
Interface Combined power and signal contacts
Number of contacts 13 pins (custom pin counts available)
Mounting style SMT right-angle, PCB board-edge
Contact pitch Standard SATA contact pitch, fine-pitch terminals
Rated voltage Up to 30 V AC/DC (application-dependent)
Rated current Up to 1.5 A per contact (power pins higher on request)
Contact material Copper alloy, high-conductivity
Plating Nickel underlayer with selective gold on contact area
Housing material Thermoplastic, UL94 V-0, halogen-free
Operating temperature –40 °C to +105 °C
Wire connection style Mates with crimped / soldered cable harnesses
Compliance RoHS, HF, REACH compatible materials



Applications

Storage backplanes for servers, workstations and RAID systems

Embedded PCs, DVRs, industrial computers and automation controllers

Power and signal interfaces between mainboard and removable drives

Precautions

Confirm PCB pad layout, pin assignment and keying direction before production.

Avoid exceeding recommended current and temperature limits on power pins.

Ensure proper strain-relief on mating cable harness to prevent solder-joint stress.





SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 3

SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 4
SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 5
SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 6
SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 7
SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness and Cable Assemblies 8
