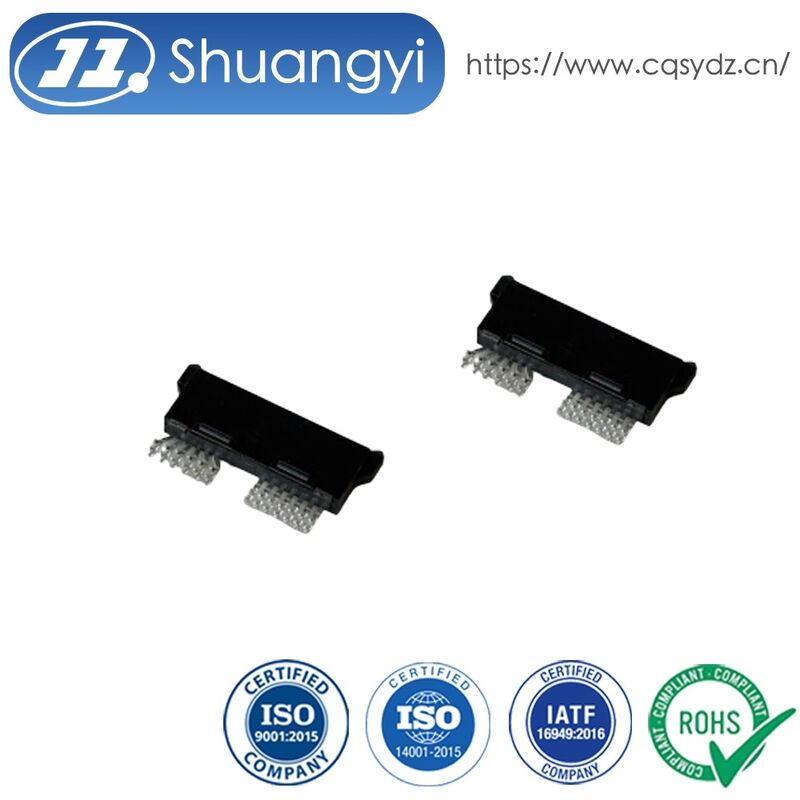

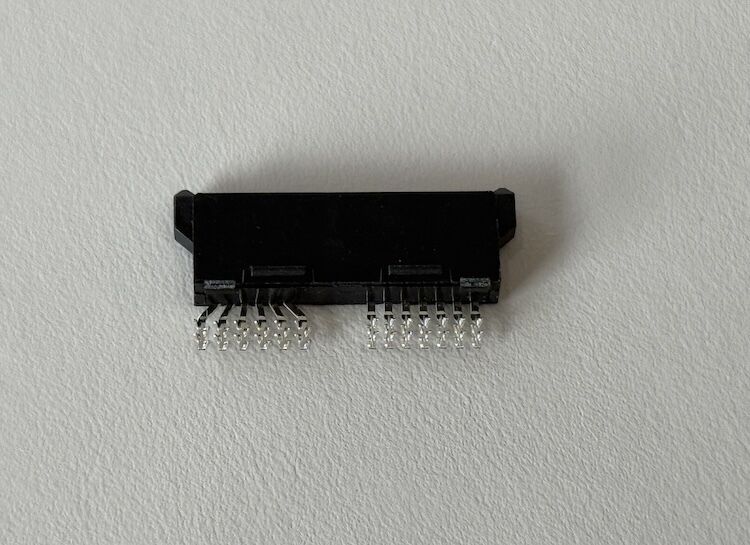

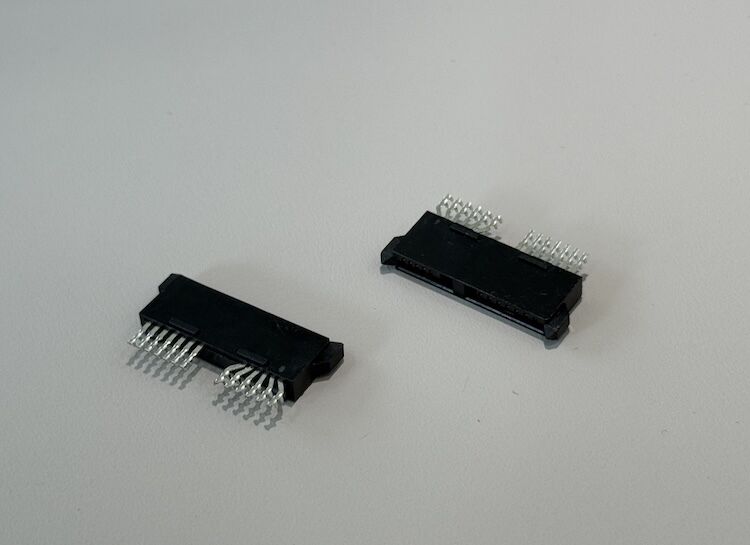

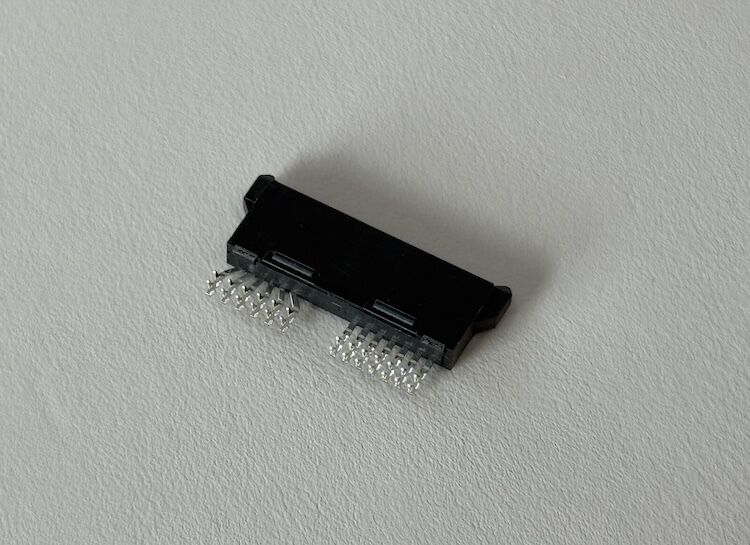

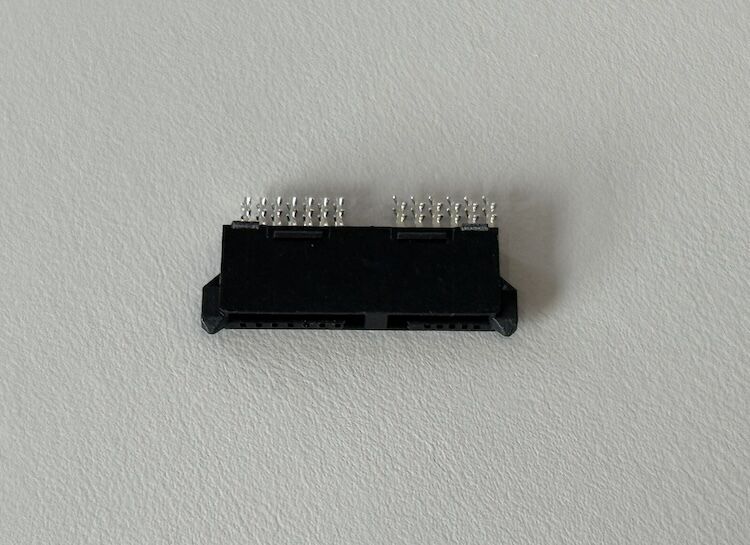

Slimline SATA 13-Pin Female SMT connector for PCB HDD SSD signal power transmission, 1.27mm pitch electronic terminal customizable server storage cable assemblies for automotive equipment applications

Slimline SATA 13-Pin Female SMT connector for PCB HDD SSD signal power transmission, 1.27mm pitch electronic terminal customizable server storage cable assemblies for automotive equipment applications

Name: Slimline SATA 13-Pin Female SMT connector for PCB HDD SSD signal power transmission, 1.27mm pitch electronic terminal customizable server storage cable assemblies for automotive equipment applications
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C13F-A7C1A2-000R
Price: 0.09 USD
Availability: InStock

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-A7C1A2-000R

Request A Quote

Slimline SATA 13-Pin Female SMT connector for PCB HDD SSD signal power transmission, 1.27mm pitch electronic terminal customizable server storage cable assemblies for automotive equipment applications

Product Details

Product Type:

Slimline SATA 13-pin Female SMT Connector

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

13 Pins

Mounting Type:

SMT, Right-angle To PCB

Housing Material:

High-temperature Thermoplastic, UL94 V-0

Contact Material:

Copper Alloy Terminals

Contact Plating:

Nickel Under-plating, Gold Flash Or Customized Thickness

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.09-0.14 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

This slimline SATA 13-pin female SMT connector is designed for compact signal and power transmission between PCB and storage devices. The 1.27 mm pitch copper-alloy terminals with gold plating provide low contact resistance and stable data integrity. A high-temperature, UL94 V-0 housing ensures reliable soldering in reflow processes and long-term performance in demanding electronic and electrical equipment.

The footprint and terminal arrangement follow slimline SATA practice, making it suitable for high-density PCB connector layouts where space and height are limited. OEM/ODM customization is available, including different plating thicknesses and integration into complete wire / cable assemblies.

Product type	Slimline SATA 13-pin female SMT connector
Interface standard	SATA / Serial ATA, slim optical drive style
Number of positions	13 pins
Pitch	1.27 mm
Mounting type	SMT, right-angle to PCB
Contact material	Copper alloy terminals
Contact plating	Nickel under-plating, gold flash or customized thickness
Housing material	High-temperature thermoplastic, UL94 V-0
Rated current	up to 1.5 A per contact (application dependent)
Rated voltage	up to 30 V AC/DC
Contact resistance	≤ 30 mΩ (initial)
Insulation resistance	≥ 1000 MΩ @ 500 V DC
Dielectric withstand	500 V AC / 1 min
Operating temperature	−40 °C to +85 °C
Mating cycles	≥ 500 cycles (properly mated)
PCB recommendation	Solder pad layout per 1.27 mm pitch SATA footprint
Customization options	Pin count variations, plating thickness, tape-and-reel or tray packing, cable harness assembly
