Product Description

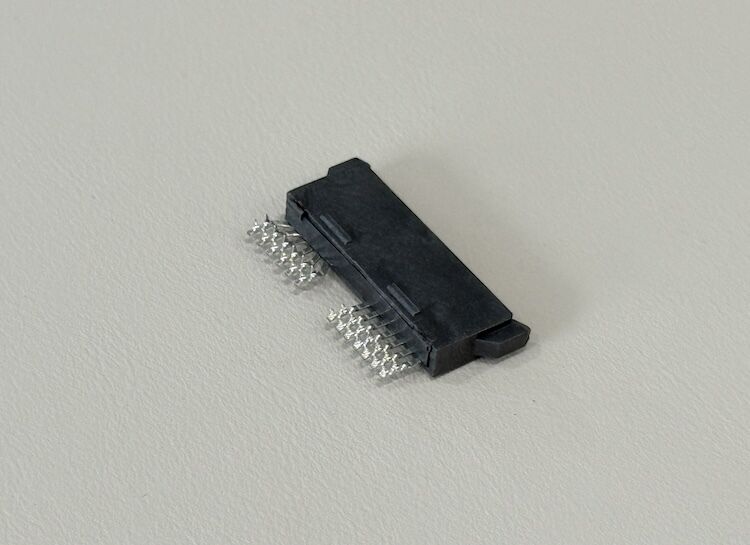

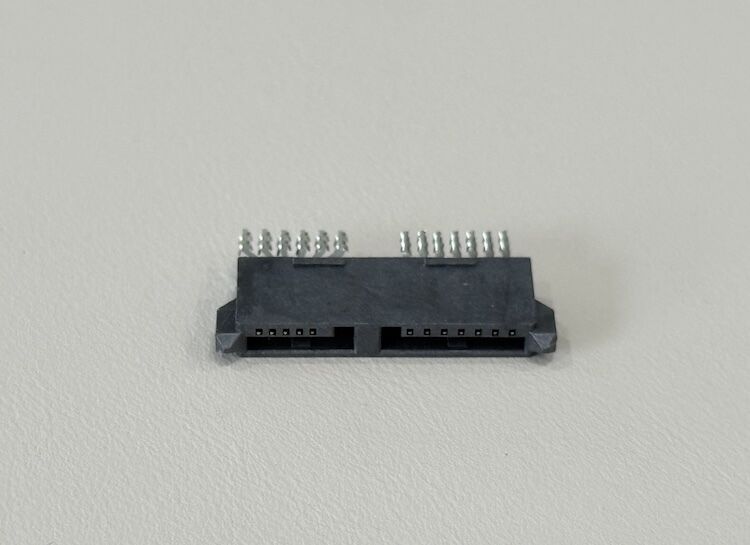

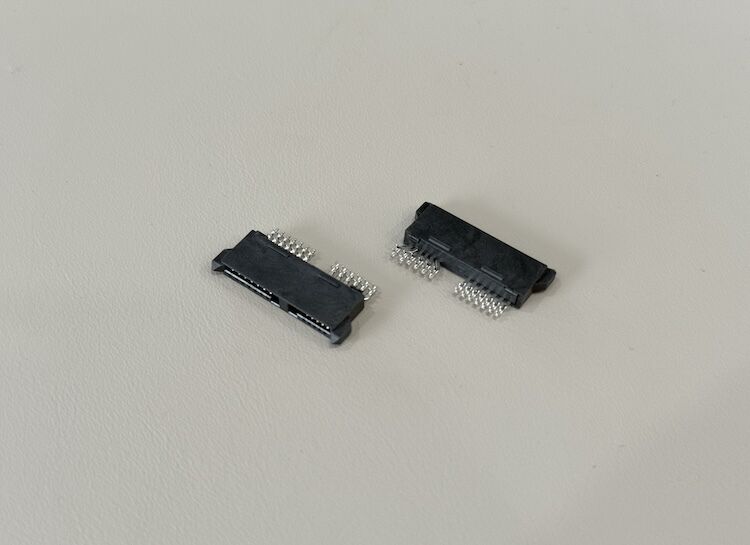

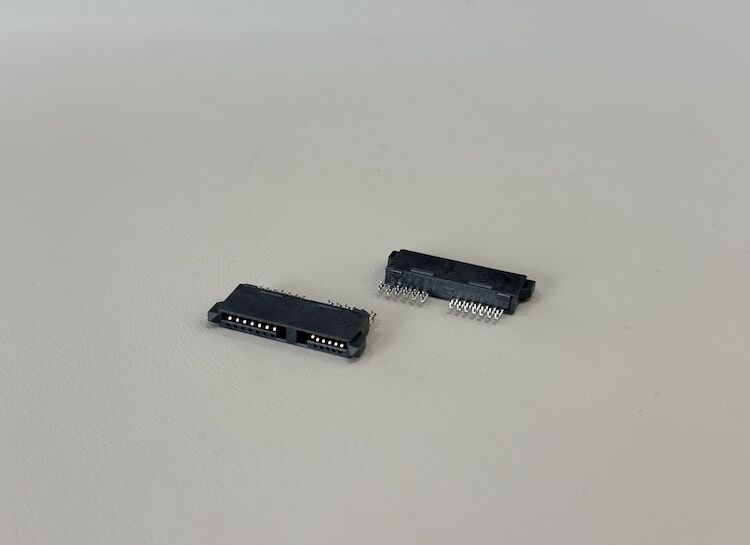

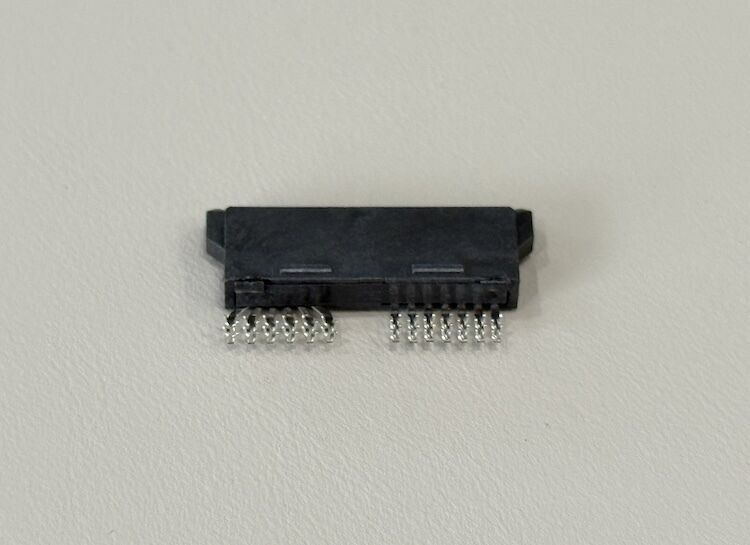

This SATA female PCB connector uses a 1.27 mm pitch 7-pin layout to carry high-speed differential signal transmission between storage devices and host systems. The right-angle SMT design keeps the profile low while allowing compact routing on the PCB, ideal for densely populated server and industrial controller boards.

Copper-alloy contacts with gold plating ensure stable contact resistance and long-term reliability under repeated mating, vibration, and temperature cycling. The high-temperature, flame-retardant housing supports standard lead-free solder reflow and offers excellent mechanical strength around the terminal area.

This connector can be supplied as a standalone PCB component or as part of a customized cable and harness solution, matching different SATA cable styles, board layouts, and mechanical envelopes used in server, storage, automotive, and embedded electronics.

Applications

Data and power connection for HDDs, SSDs, and hybrid storage devices on server or industrial motherboards

Embedded systems, mini-PCs, DVRs, and NVRs requiring compact SATA signal connectors

Industrial controllers and automation equipment using SATA-based storage modules

Custom cable assemblies linking daughter boards, backplanes, or removable storage bays
