2.54mm PCB Female Connector 10 Pin Right Angle Gold-Plated Terminals for Board-to-Wire Power Signal Transmission in Automotive, Server, Industrial Control, and Custom Electronic Applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07M-C18P35A6-G4LH

Request A Quote

2.54mm PCB Female Connector 10 Pin Right Angle Gold-Plated Terminals for Board-to-Wire Power Signal Transmission in Automotive, Server, Industrial Control, and Custom Electronic Applications

Product Details

Product Type:

2.54mm PCB Female Connector

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

7 Pins

Termination:

SMD Solder Tails

Housing Material:

PBT Or PA66, UL94V-0 Flame Retardant

Contact Material:

Phosphor Bronze Or Equivalent High-strength Copper Alloy

Contact Plating:

Tin Or Selective Gold Over Nickel, Optimized For Low Contact Resistance

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.26-0.40 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

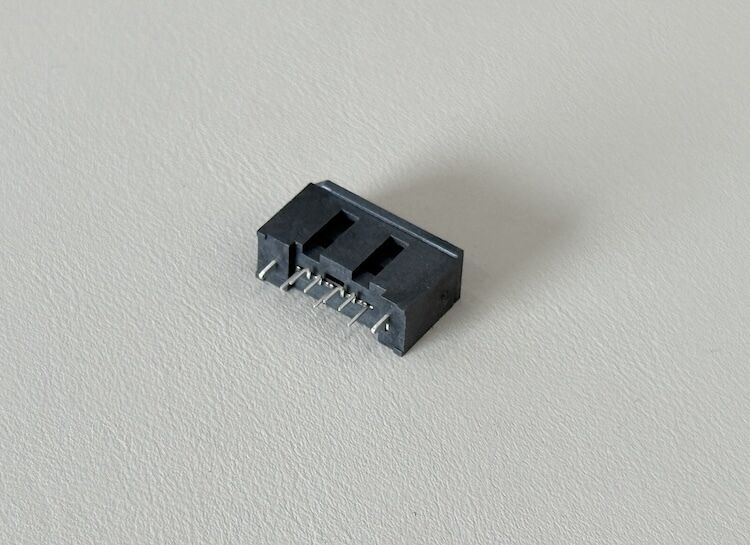

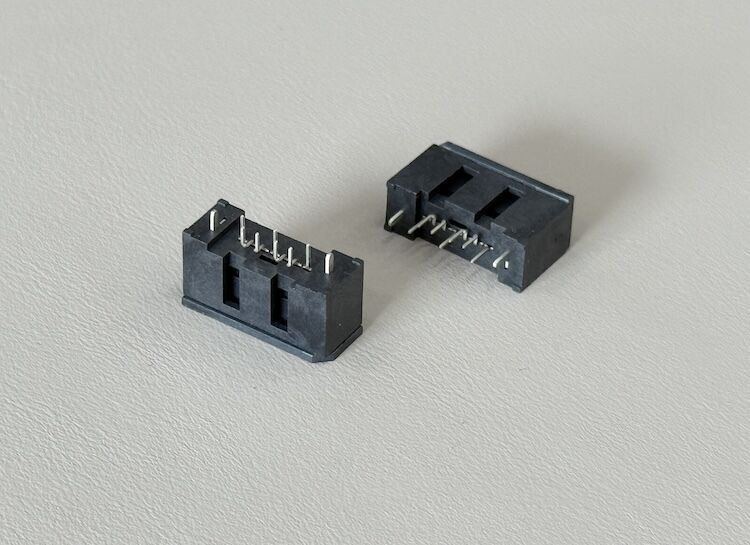

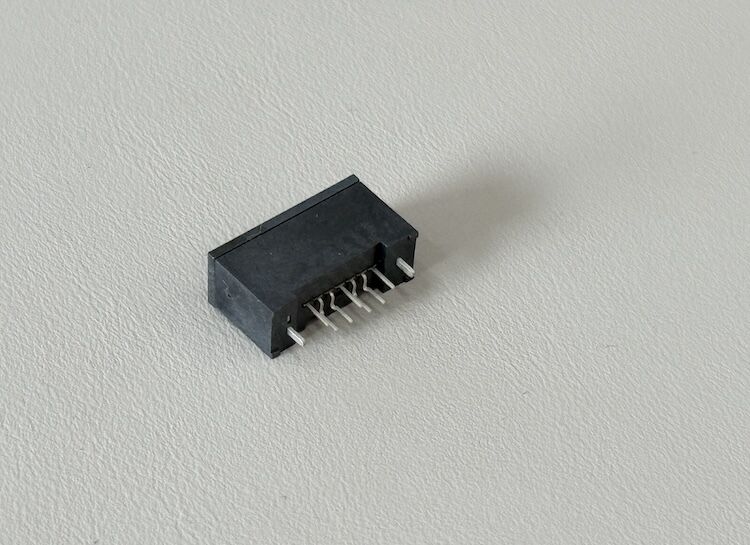

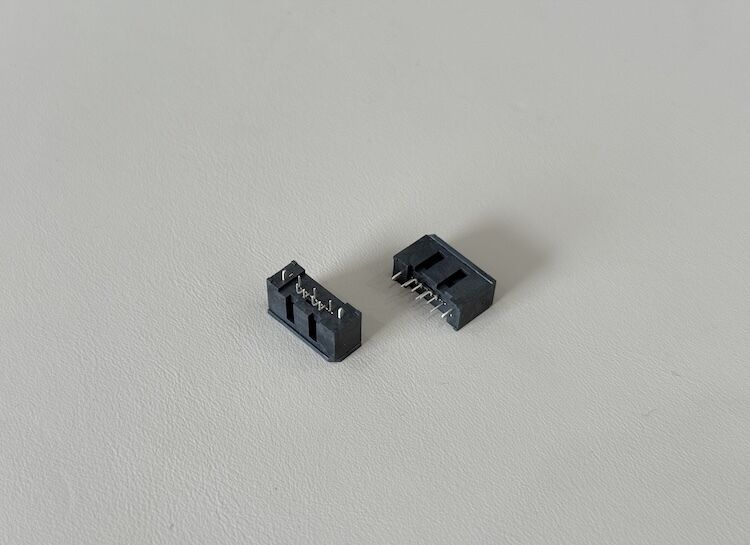

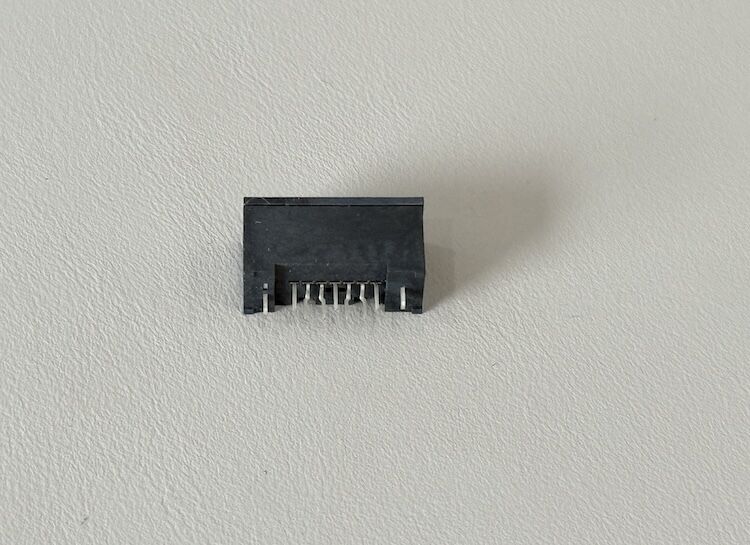

This 2.54mm pitch PCB female connector provides reliable board-to-wire or board-to-board signal and power transmission. The gold-plated copper alloy terminals ensure high conductivity, corrosion resistance, and long-term electrical stability. Its right-angle design is ideal for compact PCB layouts where vertical space is limited.

The connector housing is made of high-temperature, flame-retardant engineering plastic (PBT/PA66 UL94V-0), ensuring mechanical strength and durability even under harsh environmental or reflow conditions. The connector is compatible with industry-standard 2.54mm pin headers, offering excellent retention and stable mating alignment for consistent contact performance.

This connector is suitable for power, signal, or data applications in automotive electronics, industrial control systems, servers, consumer electronics, and instrumentation devices.

2.54mm PCB Female Connector 10 Pin Right Angle Gold-Plated Terminals for Board-to-Wire Power Signal Transmission in Automotive, Server, Industrial Control, and Custom Electronic Applications 0

Connector Type	2.54mm PCB Female Connector
Mounting Style	Right Angle Through-Hole
Pitch	2.54 mm
Number of Positions	10 Pins
Contact Type	Female Socket
Plating	Gold over Nickel on Contact Area, Tin on Solder Area
Contact Material	Copper Alloy
Housing Material	PBT or PA66, UL94V-0 Flame Retardant
Rated Current	3A per Contact (Max)
Rated Voltage	250V AC/DC
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ at 500V DC
Dielectric Strength	1000V AC/min
Operating Temperature	−40°C to +105°C
Mating Cycles	≥ 500
Compliance	RoHS, REACH, Halogen-Free
Customization	Pin Count, Plating Thickness, Cable Assembly, and Orientation Options Available

Applications

Automotive ECU and energy management modules

Server and communication equipment PCB connections

Power and signal boards in industrial automation systems

Consumer electronics and smart devices with compact designs

Customized harness and terminal block assemblies for OEM use

Precautions

Name: 2.54mm PCB Female Connector 10 Pin Right Angle Gold-Plated Terminals for Board-to-Wire Power Signal Transmission in Automotive, Server, Industrial Control, and Custom Electronic Applications
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C07M-C18P35A6-G4LH
Price: 0.26 USD
Availability: InStock
