Product Description

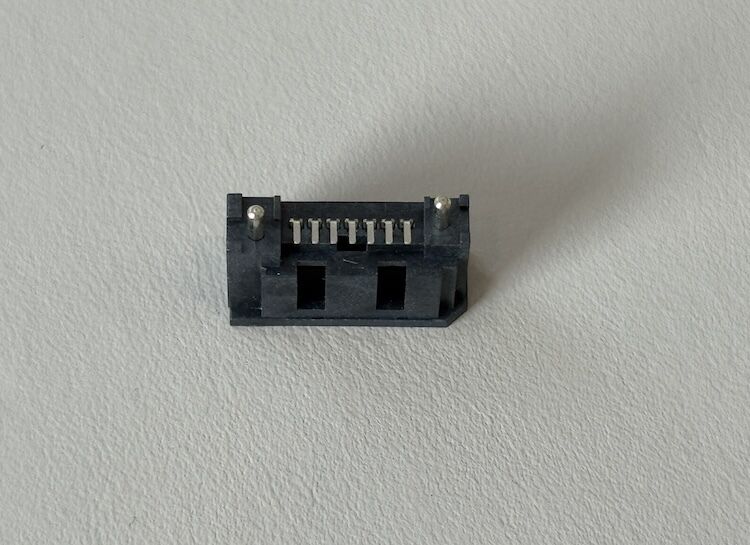

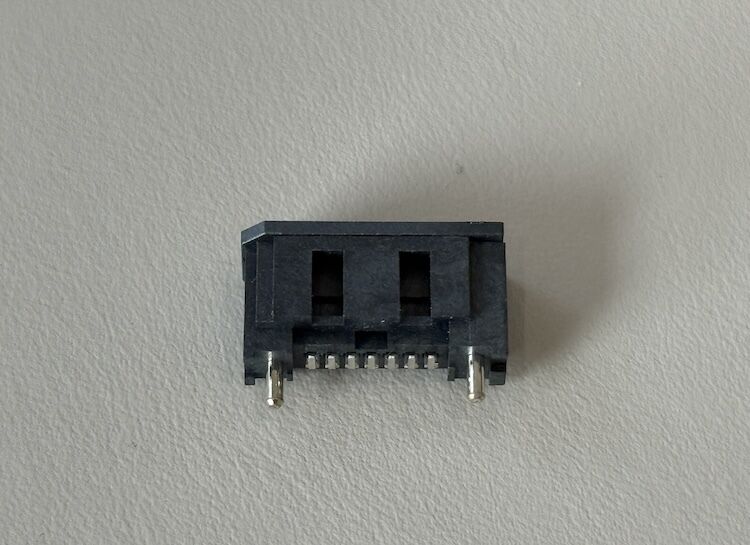

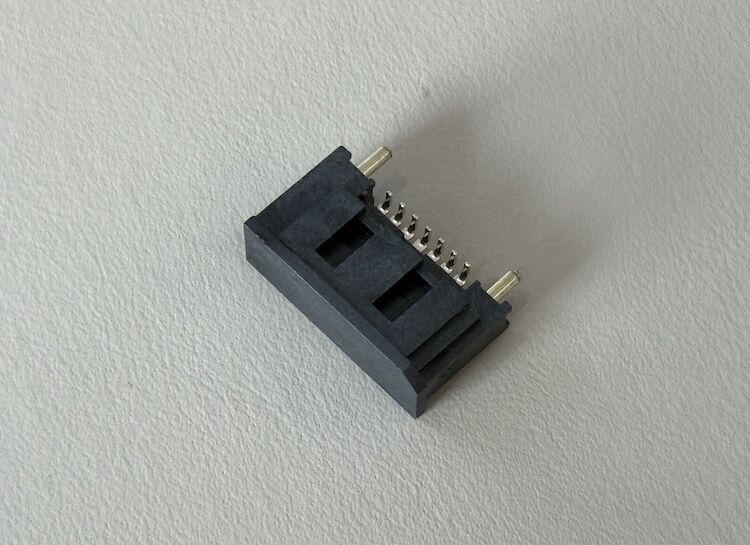

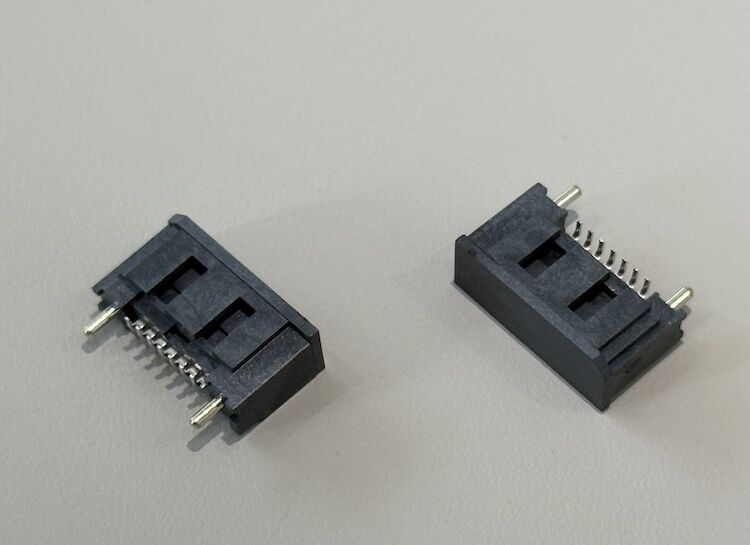

This SATA 7-pin PCB connector is designed for reliable high-speed signal and power transmission in compact electronic devices. The connector uses a 1.27 mm pitch contact layout, allowing a small footprint while maintaining sufficient creepage and clearance distance for stable operation.

Precision-stamped copper-alloy terminals with gold-over-nickel plating on the mating area provide low contact resistance and long-term corrosion resistance, while tin-plated solder tails ensure consistent solderability on standard PCB processes. The housing is molded from high-temperature, flame-retardant thermoplastic, suitable for reflow or wave soldering and repeated thermal cycles.

Positioning posts and a robust housing structure improve retention strength on the PCB and resist mechanical shock and vibration in demanding applications such as industrial equipment and servers.

Applications

Connection between motherboard and 2.5" / embedded SATA storage modules

Industrial controllers, PLCs and data-logging equipment requiring compact board-to-device SATA connections

Server and telecom boards where high-density power/signal connectors are needed for storage backplanes

Customized harness and cable assemblies for automotive data recorders, DVR/NVR, and embedded computers

Test fixtures and adapter boards for HDD/SSD verification and burn-in equipment
