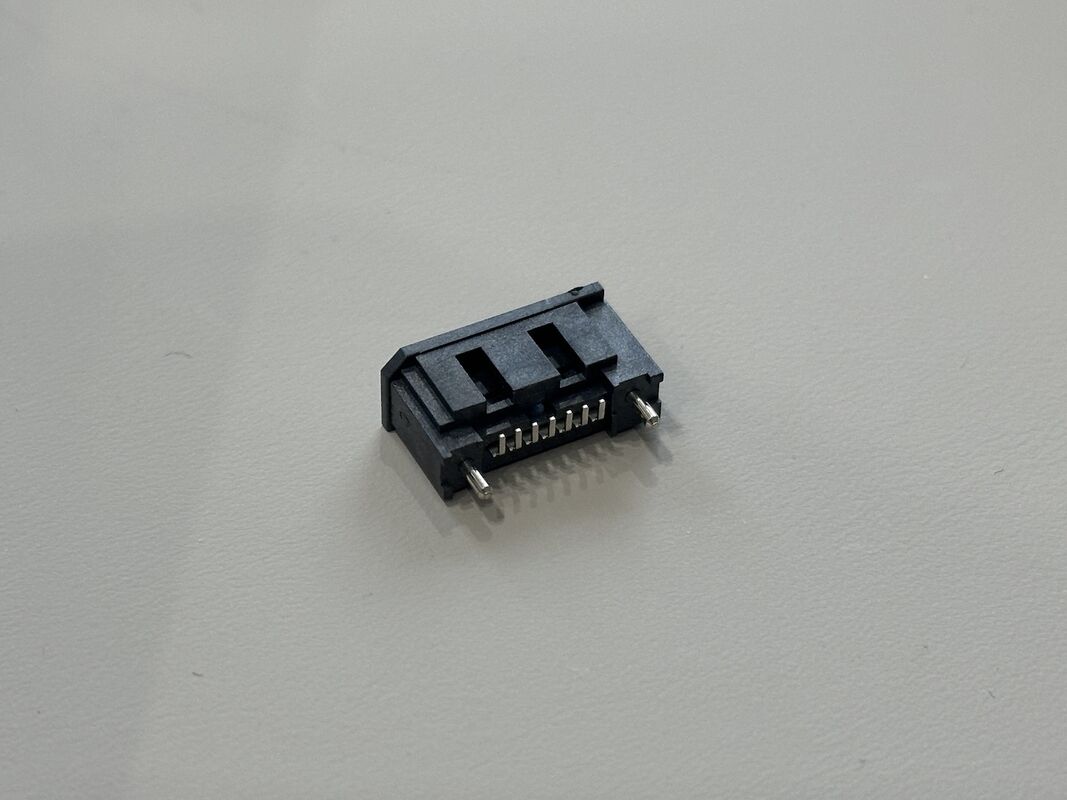

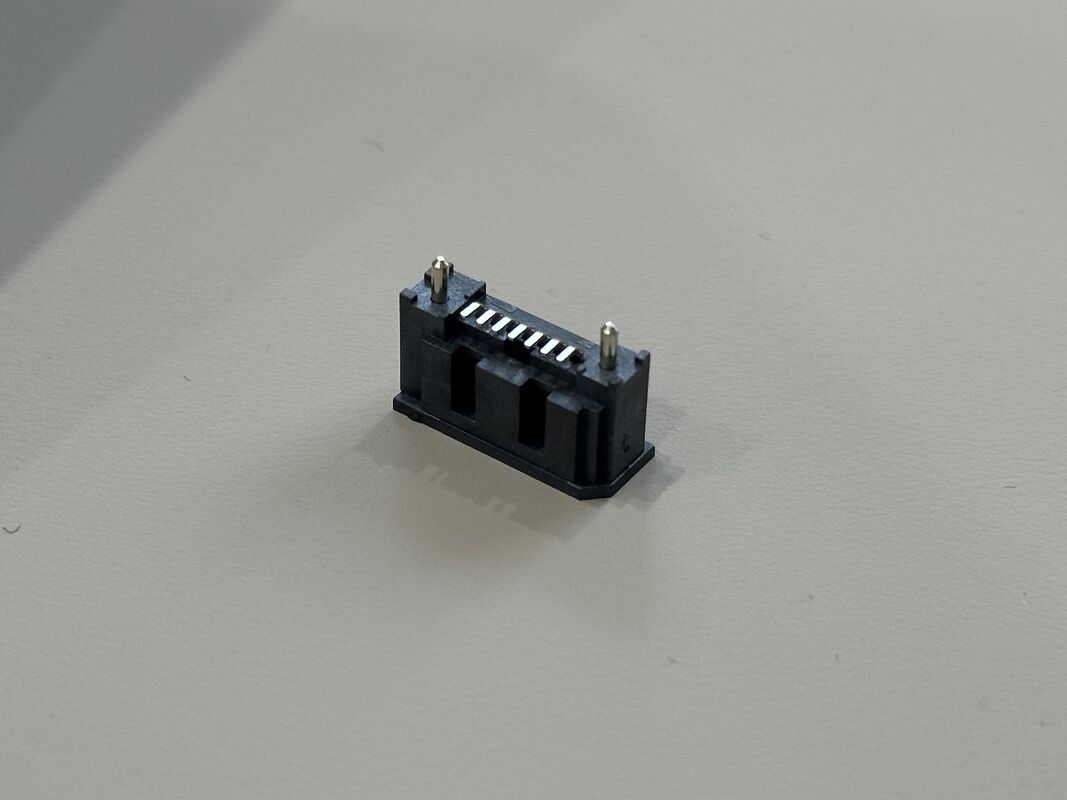

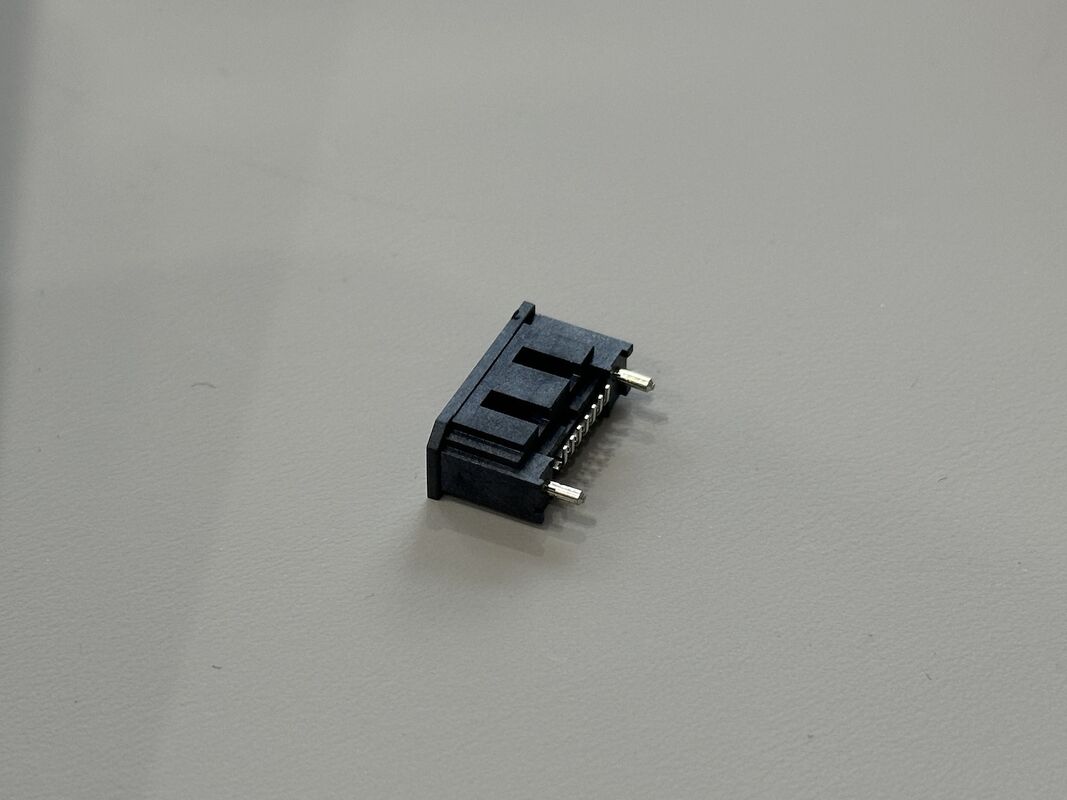

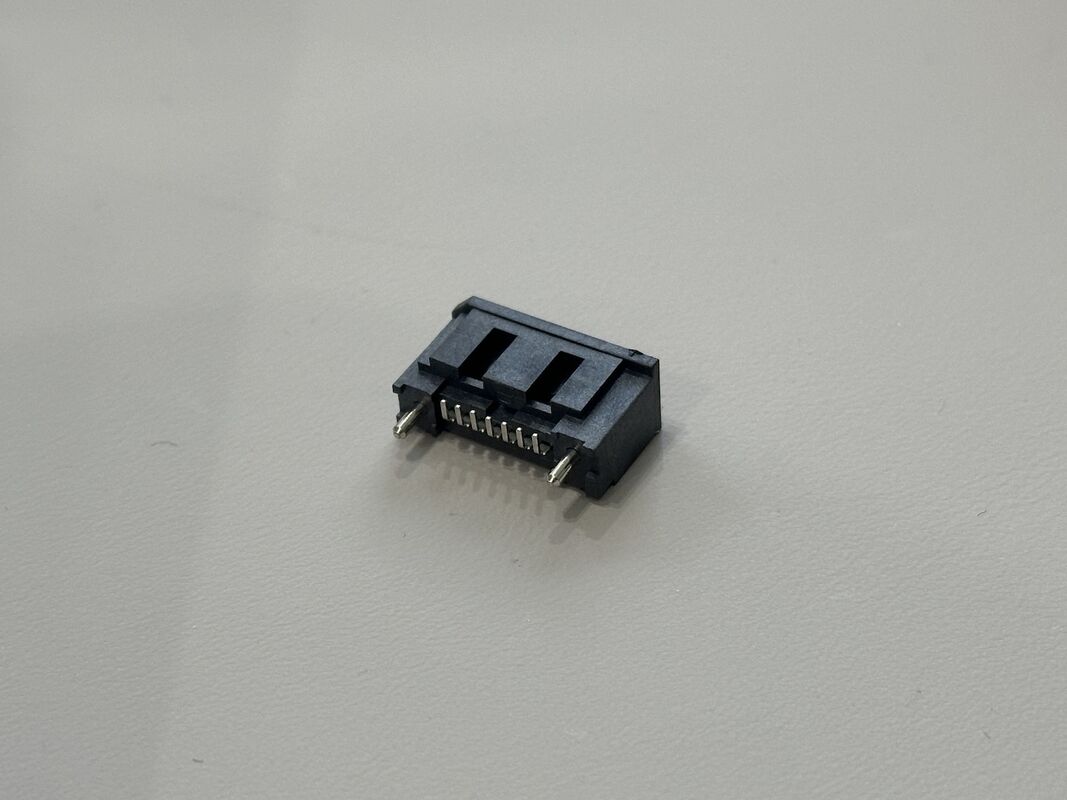

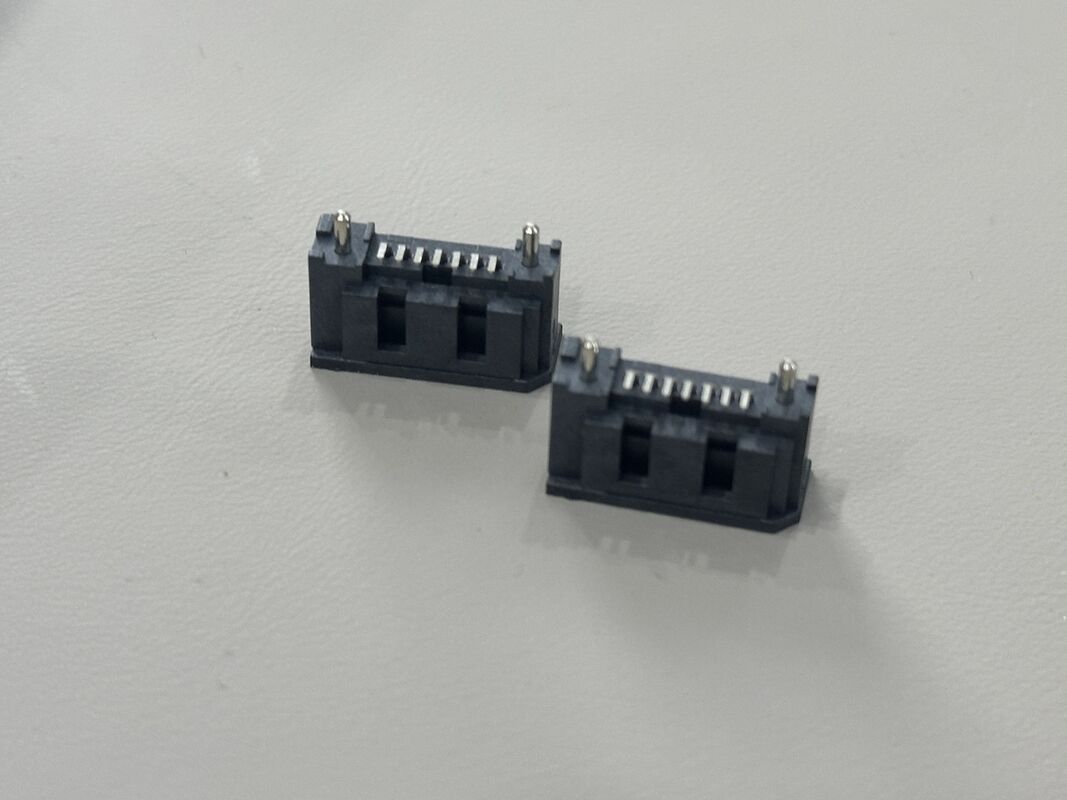

2.0mm Pitch PCB Male Signal Power Connector with Positioning Pegs Through Hole Electrical Terminals, Customization for Automotive Wire Harness, Server Board Transmission Applications, industrial equip

2.0mm Pitch PCB Male Signal Power Connector with Positioning Pegs Through Hole Electrical Terminals, Customization for Automotive Wire Harness, Server Board Transmission Applications, industrial equip

Name: 2.0mm Pitch PCB Male Signal Power Connector with Positioning Pegs Through Hole Electrical Terminals, Customization for Automotive Wire Harness, Server Board Transmission Applications, industrial equip
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C07M-C7M10A2-00LH
Price: 0.16 USD
Availability: InStock

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07M-C7M10A2-00LH

Request A Quote

2.0mm Pitch PCB Male Signal Power Connector with Positioning Pegs Through Hole Electrical Terminals, Customization for Automotive Wire Harness, Server Board Transmission Applications, industrial equip

Product Details

Product Type:

SATA 7-pin Signal Connector

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

7 Pins

Termination:

SMD Solder Tails

Housing Material:

High-temperature Thermoplastic, UL94-V0

Contact Material:

Phosphor Bronze Or Equivalent High-strength Copper Alloy

Contact Plating:

Tin Or Selective Gold Over Nickel, Optimized For Low Contact Resistance

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.16-0.26 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

This 2.0 mm pitch PCB connector provides a compact solution for combined signal and low-power transmission on densely populated boards. The vertical through-hole design with robust copper-alloy pins ensures strong solder joints and reliable electrical performance under vibration or thermal cycling. Integrated positioning pegs lock into the PCB for precise assembly and help maintain coplanarity during soldering. The high-temperature, flame-retardant housing supports lead-free reflow and wave solder processes. Multiple plating and pin-count options are available, making this connector suitable for customized wire harness interfaces and OEM/ODM projects.

Connector type	Wire-to-board / board-to-board male connector
Number of positions	8 pins (other pin counts available on request)
Pitch	2.0 mm
Mounting style	Through-hole, vertical to PCB
Termination	Solder pins for wave or selective soldering
Locating features	Two metal positioning pegs for accurate PCB alignment
Contact material	Copper alloy
Contact plating	Tin or optional gold over nickel
Housing material	High-temperature thermoplastic, UL94-V0
Rated voltage	125 V AC/DC (reference design)
Rated current	2–3 A per contact (application dependent)
Insulation resistance	≥ 1000 MΩ at 500 V DC (typical)
Dielectric withstand	1000 V AC for 1 minute, no breakdown (typical)
Operating temperature	−40 ℃ to +105 ℃
PCB thickness range	1.2–1.6 mm (custom on request)
RoHS / HF / REACH	Compliant, halogen-free options available
Customization options	Pin length, pin count, plating thickness, housing color, logo, packaging
