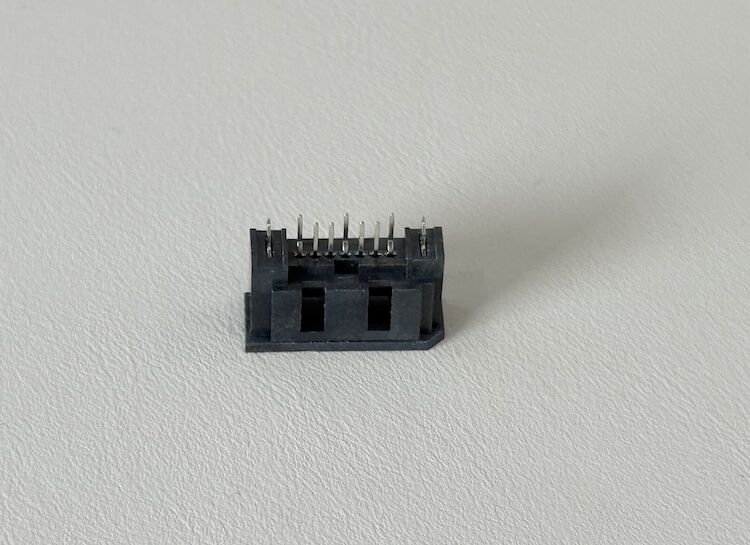

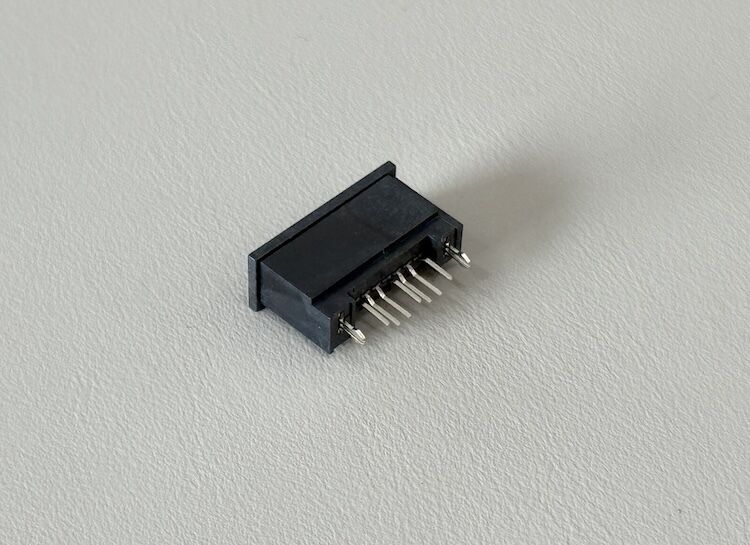

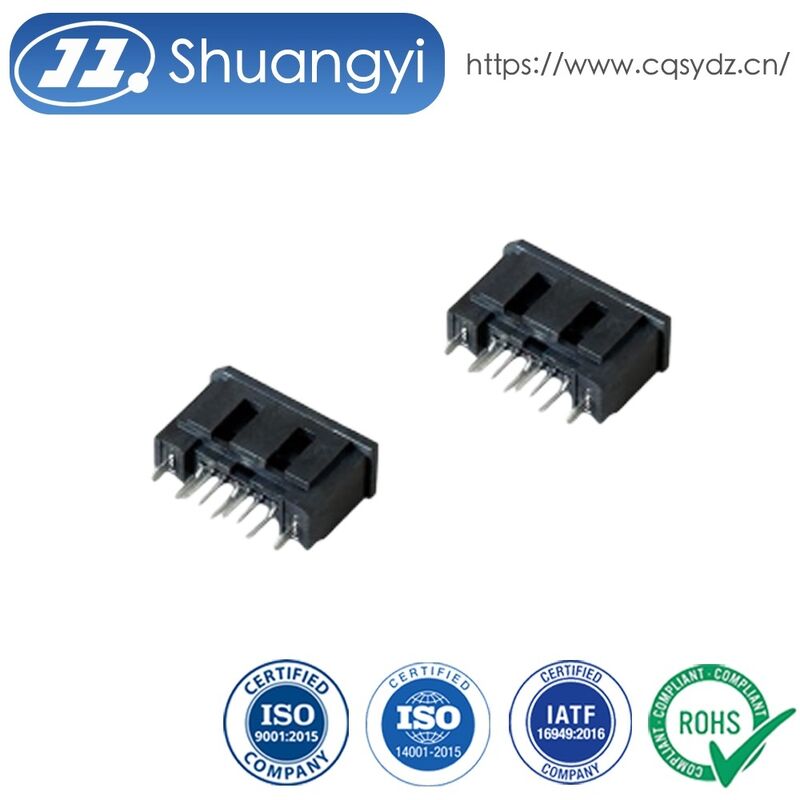

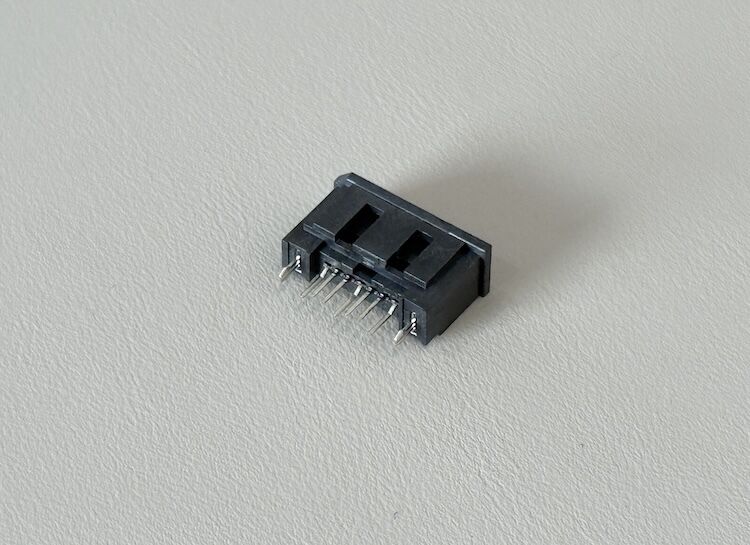

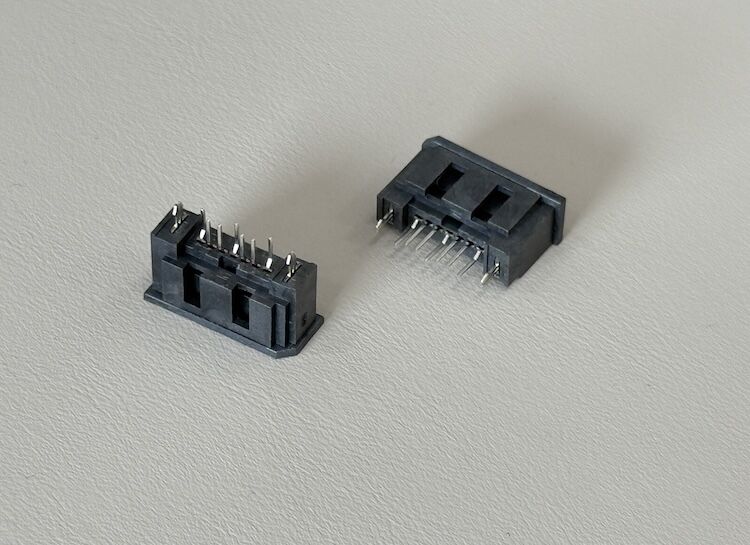

7 Pin SATA 1.27mm pitch male PCB connector, right angle through hole gold-plated signal terminals, customization for server storage, industrial electronic power transmission applications systems

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07M-C6P20A2-G24LH-02

Request A Quote

7 Pin SATA 1.27mm pitch male PCB connector, right angle through hole gold-plated signal terminals, customization for server storage, industrial electronic power transmission applications systems

Product Details

Product Type:

SATA 7-pin Signal Connector

Function:

Board-level Electrical / Electronic Signal Connection

Pin Count:

7 Pins

Termination:

SMD Solder Tails

Housing Material:

High-temperature Thermoplastic, UL94-V0

Contact Material:

Phosphor Bronze Or Equivalent High-strength Copper Alloy

Contact Plating:

Tin Or Selective Gold Over Nickel, Optimized For Low Contact Resistance

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−40 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.14-0.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price

Contact Now

Product Description

Product Description

This 7-pin SATA PCB connector is a right-angle, through-hole male connector designed for high-reliability data signal transmission between HDD/SSD devices and host boards. The 1.27 mm pitch contact layout follows the standard SATA signal footprint, allowing easy routing on compact PCBs. Gold-plated contacts with nickel under-plating provide low contact resistance and stable signal performance over long service life, even under frequent mating cycles. The high-temperature, flame-retardant housing supports lead-free soldering processes and ensures mechanical strength during assembly and operation. Custom variants can be produced to match specific board heights, pin lengths, or plating requirements, supporting OEM/ODM projects.

7 Pin SATA 1.27mm pitch male PCB connector, right angle through hole gold-plated signal terminals, customization for server storage, industrial electronic power transmission applications systems 0

Interface type	SATA 7-pin signal connector
Number of positions	7 pins
Pitch	1.27 mm
Mounting type	Through-hole, right-angle to PCB
Termination	Solder pins, suitable for wave soldering
Gender	Male / plug type connector
Contact material	Copper alloy
Contact plating	Nickel under-plate with gold-plated contact area
Housing material	High-temperature thermoplastic, UL94-V0
Rated voltage	30 V AC/DC (typical SATA interface)
Rated current	1.5 A per contact (reference design)
Insulation resistance	≥ 1000 MΩ (at 500 V DC, reference)
Dielectric withstanding	500 V AC, 1 minute, no breakdown (reference)
Operating temperature range	−40 ℃ to +105 ℃ (depending on cable/PCB design)
RoHS / HF / REACH	Compliant, halogen-free options available
Customization options	Pin length, plating thickness, housing color, logo, packaging

Applications

Storage devices: 2.5"/3.5" HDDs, SSDs, SATA DOM, and embedded storage modules

Servers and data-center equipment: RAID cards, backplanes, hot-swap bays

Industrial computers, monitoring systems, DVR/NVR equipment, medical analyzers

Communication and networking devices requiring compact, high-reliability SATA signal interconnects

Custom PCB assemblies in automation, instrumentation, and test equipment

Precautions

Name: 7 Pin SATA 1.27mm pitch male PCB connector, right angle through hole gold-plated signal terminals, customization for server storage, industrial electronic power transmission applications systems
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C07M-C6P20A2-G24LH-02
Price: 0.14 USD
Availability: InStock
