13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization

13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07M-B3P37A5-38LH

Contact Us
Request A Quote

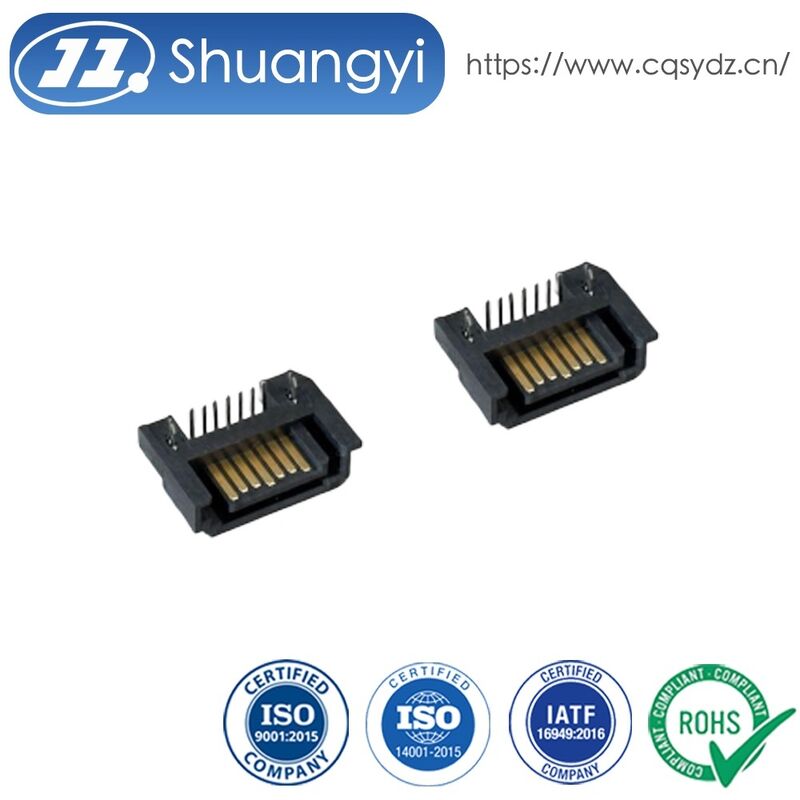

13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization
Product Details
Product Type:
7-pin SATA Male PCB Connector With Fork-type Terminals
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
7 Pins
Termination:
SMD Solder Tails
Housing Material:
High-temperature Thermoplastic, UL94-V0
Contact Material:
Phosphor Bronze Or Equivalent High-strength Copper Alloy
Contact Plating:
Tin Or Selective Gold Over Nickel, Optimized For Low Contact Resistance
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
−40 °C To +105 °C
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.18-0.27 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies online

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price
Good price SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems online

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price
Good price High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector online

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price
Good price SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications online

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This SATA PCB connector uses a compact 13-pin layout with a fine 1.27 mm pitch, designed for reliable high-speed data and power transmission on electronic boards. The copper-alloy terminals with gold-plated contact area provide low contact resistance and stable signal integrity during repeated mating. A high-temperature, flame-retardant housing ensures mechanical strength and soldering reliability for reflow processes.

It is suitable for OEM/ODM customization, including special pin lengths, different plating thicknesses, and tailored packaging to match your PCB layout, storage modules, or embedded boards.

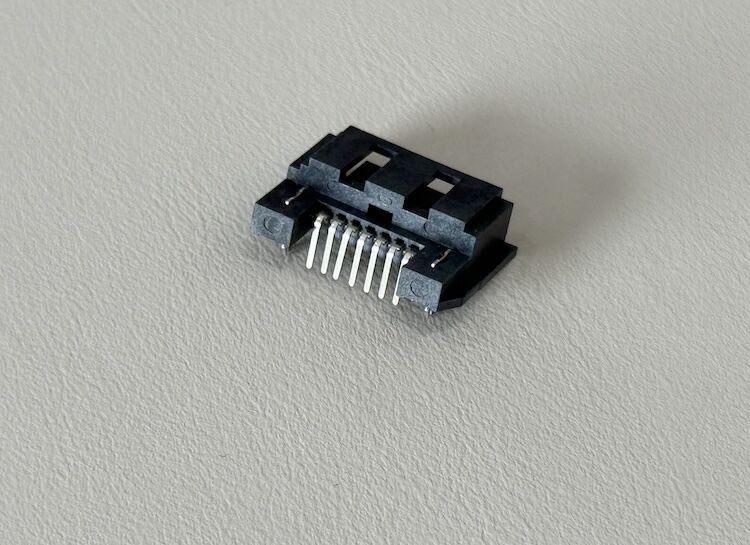

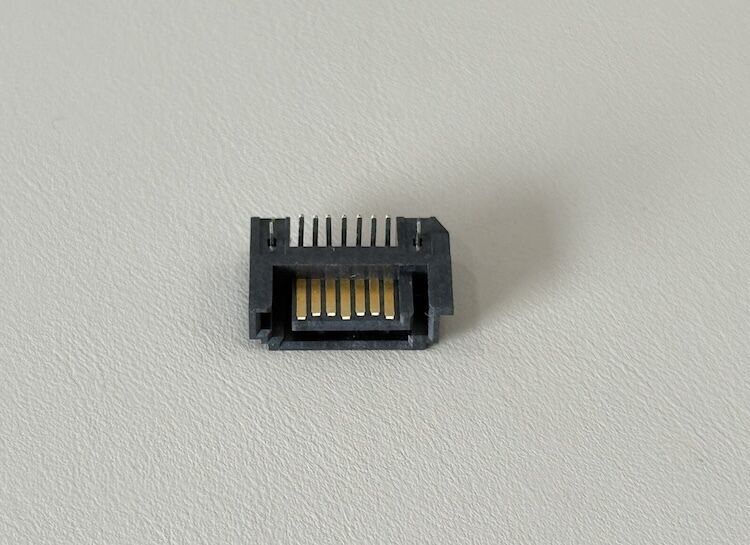

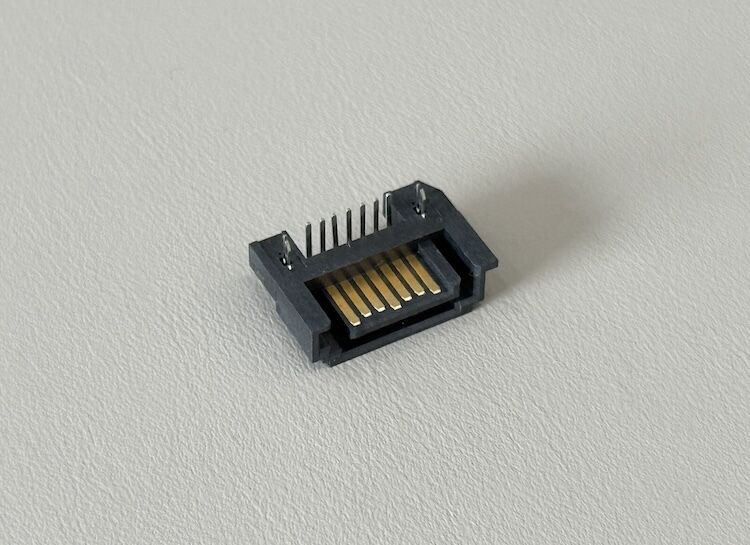

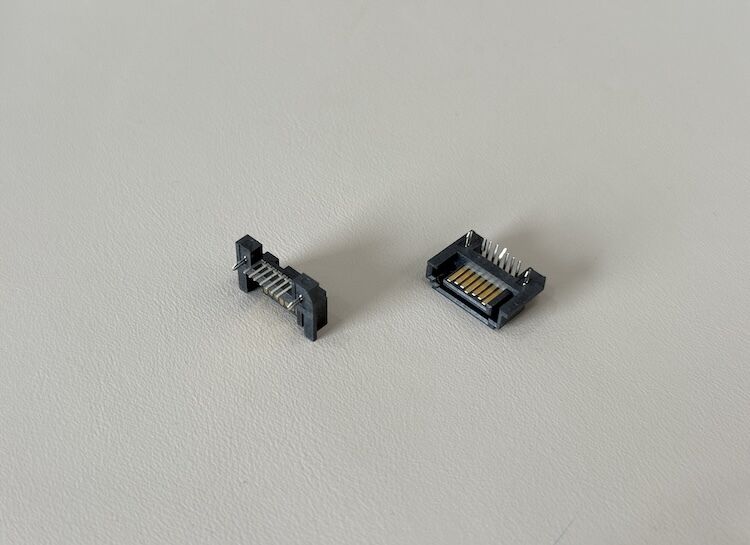

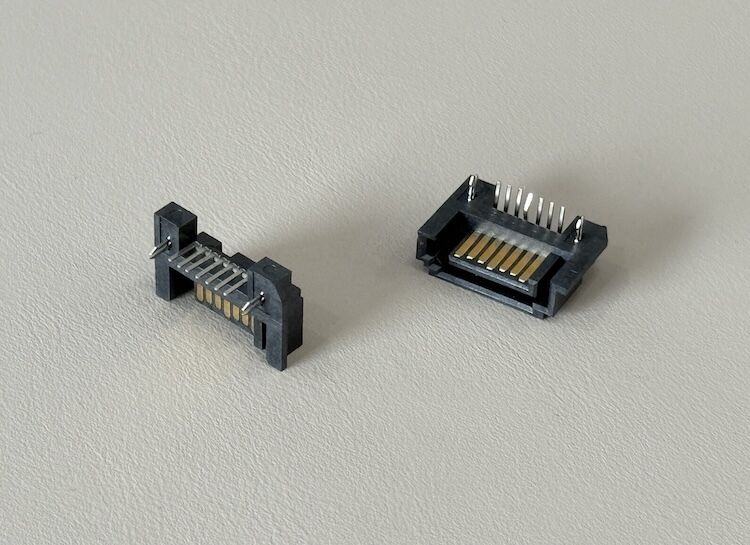

13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 013 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 113 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 2



Product type 7-pin SATA male PCB connector with fork-type terminals
Interface type SATA signal connector
Positions 7 pins
Pitch 1.27 mm
Mounting style Through-hole (DIP)
Mounting orientation Right-angle to PCB
Rated current 1.5 A / contact @ 40 VAC
Rated voltage 40 VAC
Contact resistance ≤ 30 mΩ
Insulation resistance ≥ 1000 MΩ
Dielectric withstand voltage 500 VAC / 1 min
Contact base material Copper alloy
Under-plating Ni ≥ 50 µ" on terminals
Contact area plating Gold (e.g. 15 µ" typical, customizable)
Solder/peg plating Sn ≥ 80 µ"
Operating temperature −20 °C to +85 °C
Compliance RoHS / HF / REACH-compatible
Custom options Different gold thickness, peg length, packaging and tape-and-reel



Applications

SATA signal connector for 2.5"/3.5" HDDs, SSDs and storage modules

Server and data-center backplanes requiring compact, robust board-to-connector interfaces

Industrial PCs, medical electronics and automation controllers using SATA-based storage

Communication equipment and networking devices with high-density PCB layouts

Customized OEM/ODM storage and edge-computing systems needing tailored SATA connector solutions

Precautions

Match with the corresponding SATA female connector and follow the recommended PCB footprint for this series.

Do not exceed the rated current, voltage or operating temperature; derate appropriately in high-temperature environments.

Avoid contamination of contact areas; keep connectors clean and dry before soldering and mating.

Use proper wave or selective soldering profiles to prevent damage to the housing and ensure full wetting of solder tails.

Provide adequate mechanical support on the PCB (such as correct peg hole size and panel thickness) to withstand insertion and extraction forces.



13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 3
