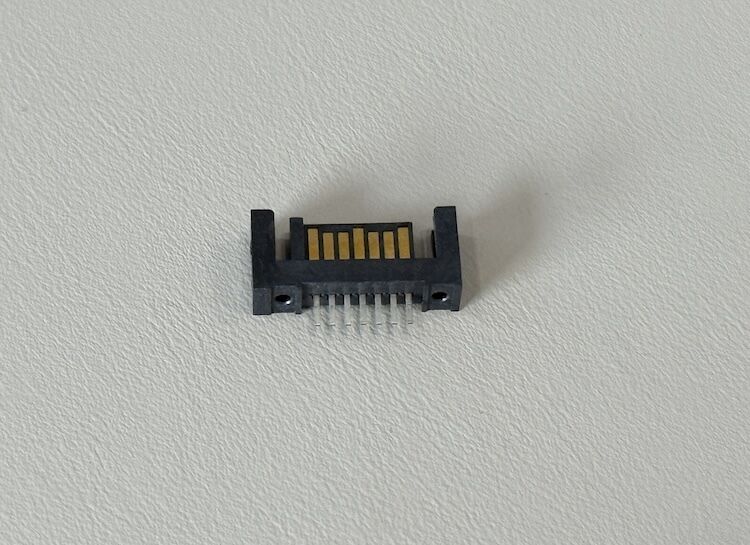

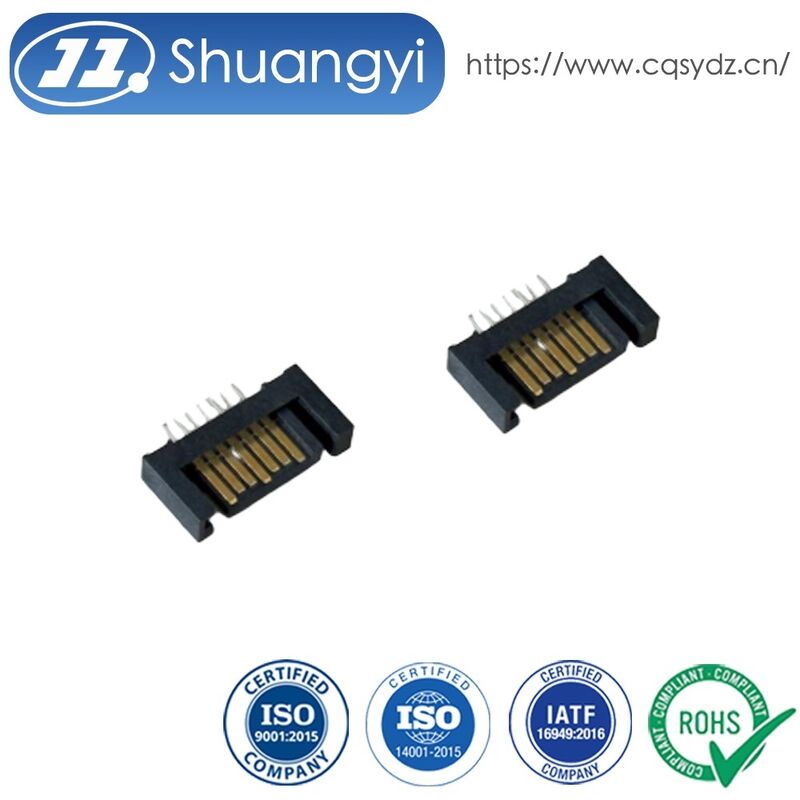

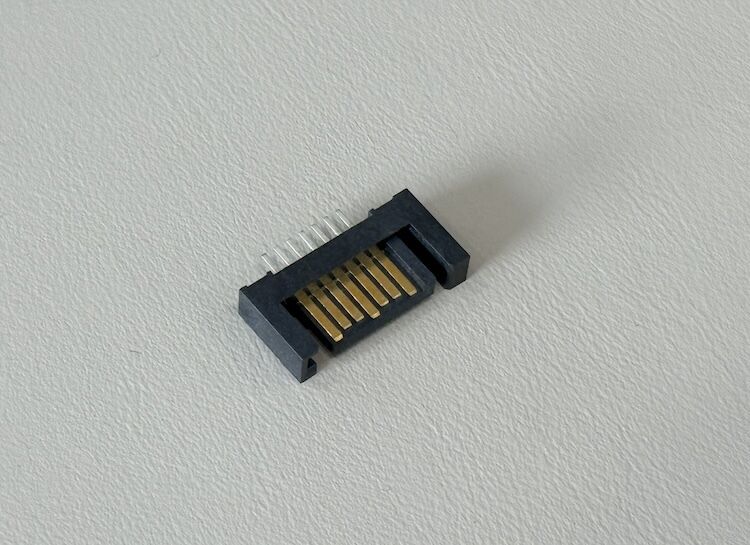

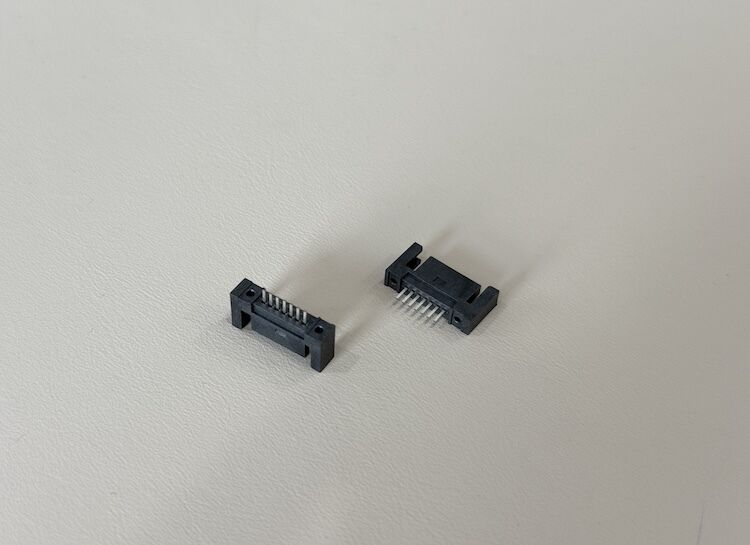

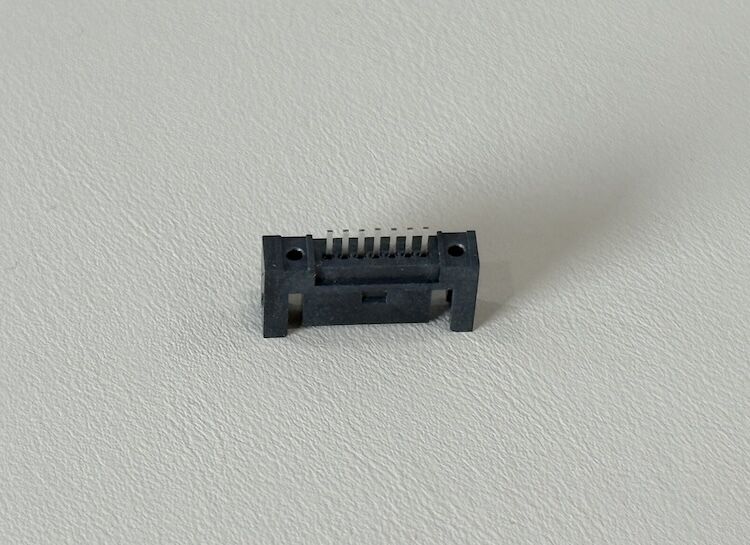

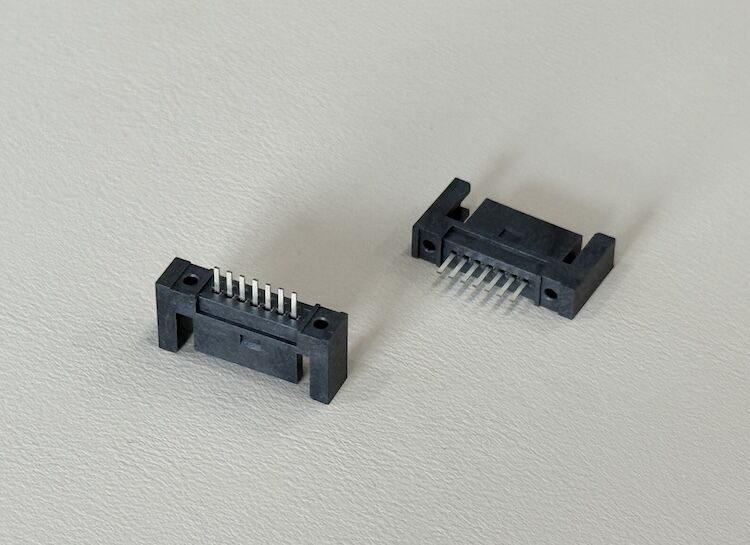

13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization

13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07M-A5P13A5-00LH

Contact Us
Request A Quote
13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization
Product Details
Product Type:
SATA PCB Connector
Function:
Board-level Electrical / Electronic Signal Connection
Pin Count:
7 Pins
Termination:
SMD Solder Tails
Housing Material:
High-temperature Thermoplastic, UL94-V0
Contact Material:
Phosphor Bronze Or Equivalent High-strength Copper Alloy
Contact Plating:
Tin Or Selective Gold Over Nickel, Optimized For Low Contact Resistance
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
−40 °C To +105 °C
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$1.44-2.21 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies online

SATA 22-Pin Female SMT PCB Connector, Power and Signal Terminals, 1.27mm Pitch Board Connector for Server Storage, SSD, Automotive Electronic Transmission, Custom Wire Cable Assemblies

Get Best Price
Good price SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems online

SATA 13P Female SMT PCB connector 1.27mm pitch board-to-board signal connector for HDD SSD server transmission, RoHS-compliant customization for automotive industrial power systems

Get Best Price
Good price High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector online

High-reliability 13-Pin SMT PCB connector, gold-plated electronic signal/power connector for storage device, server transmission, industrial control, customization wire harness mating Connector

Get Best Price
Good price SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications online

SATA 13 Pin Female Board-to-Board Connector, 1.27mm Pitch SMT Right Angle for PCB Storage Device, Server Transmission, High Reliability Electronic Signal Power Interface Customizable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This SATA PCB connector uses a compact 13-pin layout with a fine 1.27 mm pitch, designed for reliable high-speed data and power transmission on electronic boards. The copper-alloy terminals with gold-plated contact area provide low contact resistance and stable signal integrity during repeated mating. A high-temperature, flame-retardant housing ensures mechanical strength and soldering reliability for reflow processes.

It is suitable for OEM/ODM customization, including special pin lengths, different plating thicknesses, and tailored packaging to match your PCB layout, storage modules, or embedded boards.



13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 013 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 113 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 2



Product type SATA PCB connector
Interface standard Serial ATA (SATA)
Number of pins 13 pins (signal + power)
Contact type Male pin terminals
Pitch 1.27 mm (approx.)
Mounting style SMT, board mount
Orientation Vertical, through-front mating
Housing material High-temperature thermoplastic, UL94-V0
Contact material Copper alloy
Plating Nickel underlayer, gold on contact area
Rated current up to 1.5 A per contact (design dependent)
Rated voltage up to 50 V AC/DC (design dependent)
Operating temperature −40 °C to +105 °C
RoHS / HF / REACH Compliant
Customization Pin length, plating thickness, packaging



Applications

HDD / SSD storage devices and docking boards

Industrial computers, servers and data-logging equipment

Network storage, RAID cards and communication devices

Embedded control boards, test fixtures and evaluation PCB assemblies

Precautions

Verify PCB footprint, pitch and pin count before production to ensure full compatibility with your SATA layout.

Follow recommended SMT reflow profiles and avoid overheating to protect the thermoplastic housing and plating.

Keep contacts free from dust, flux residue and mechanical damage to maintain low contact resistance and stable high-speed signal transmission.

When used for power lines, ensure current and temperature rise remain within the rated limits of the connector and PCB traces.



13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 3

13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 4
13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 5
13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 6
13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 7
13 Pin SATA board mount connector, 1.27mm pitch vertical SMT PCB connector for high speed data transmission, HDD / SSD storage, industrial electronic server customization 8
