Product Description

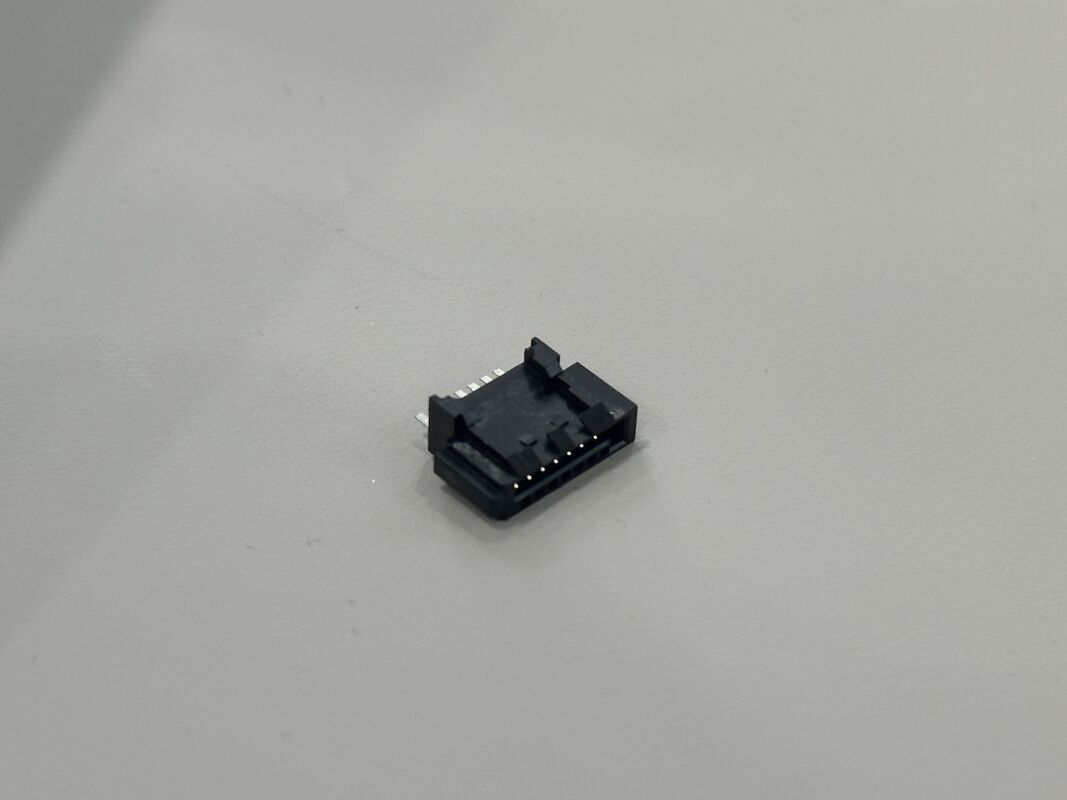

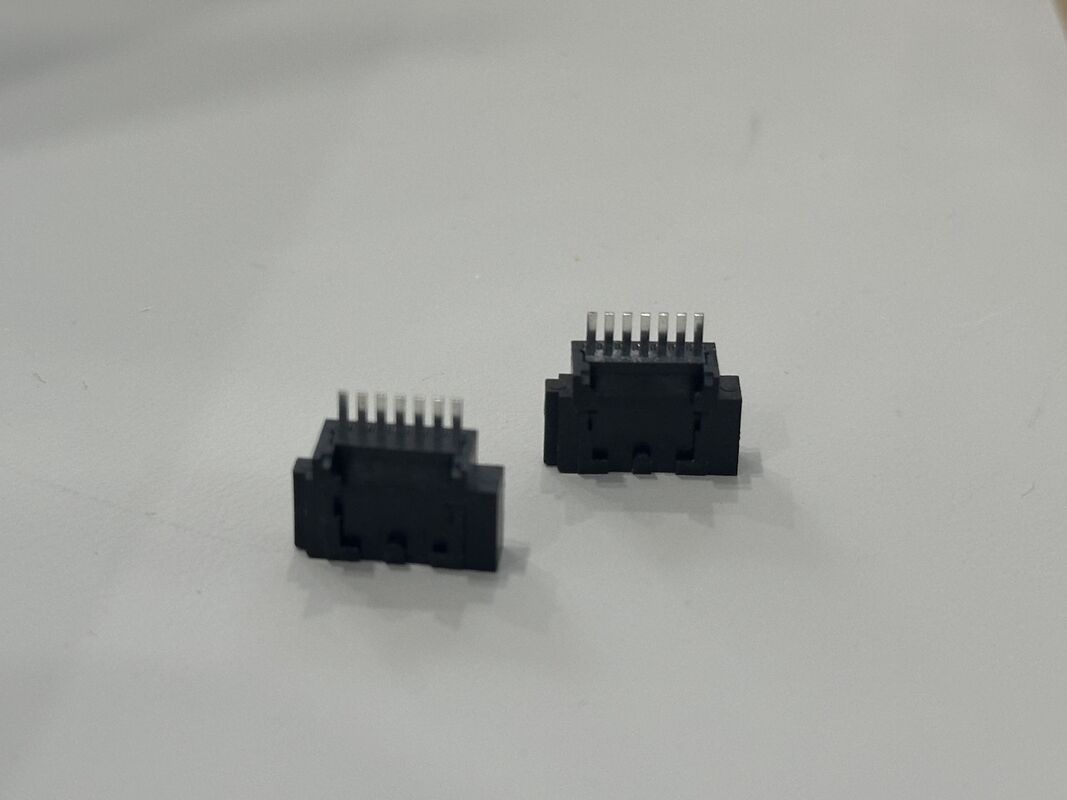

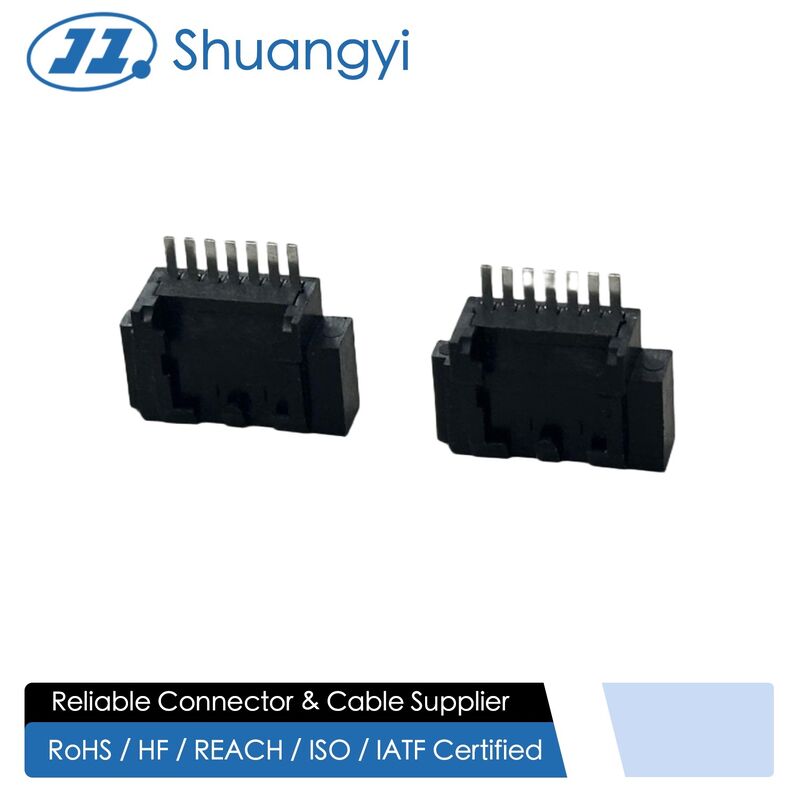

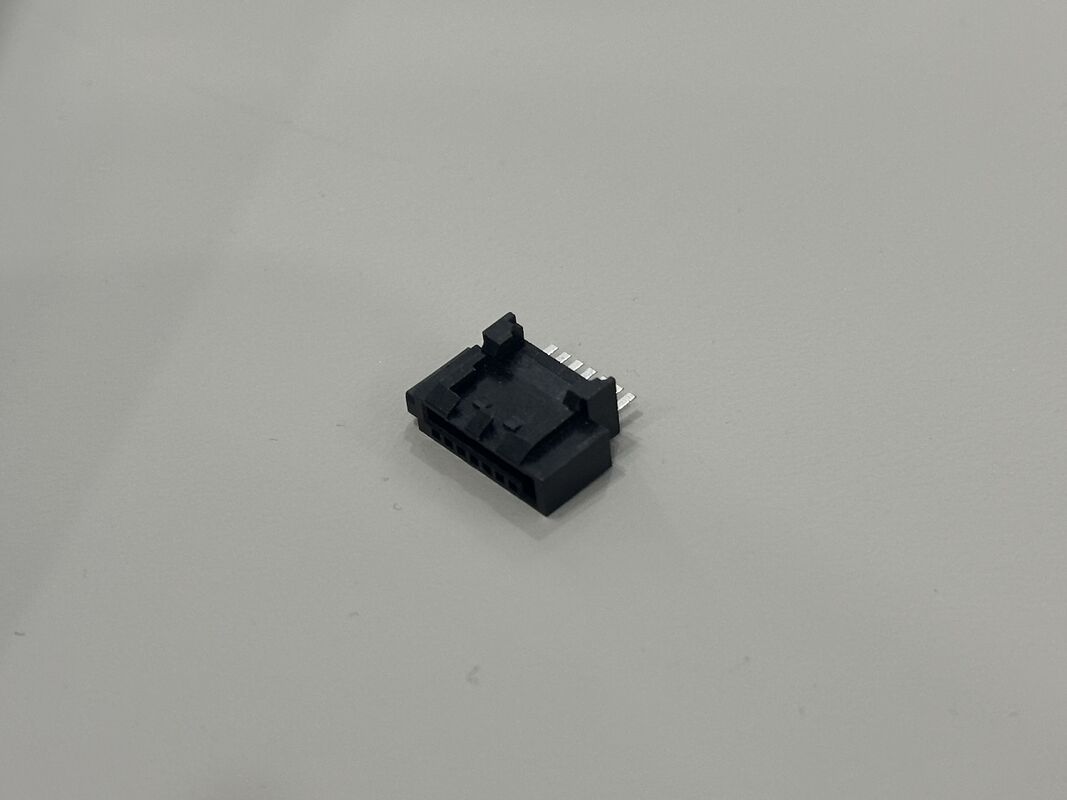

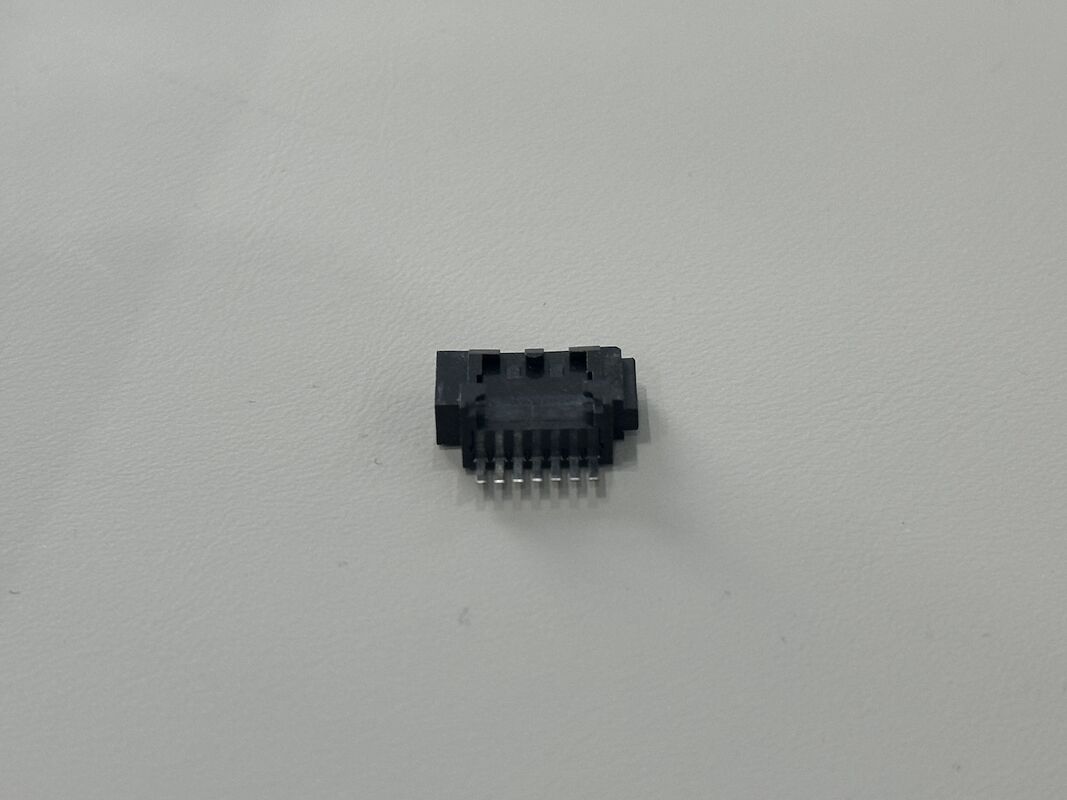

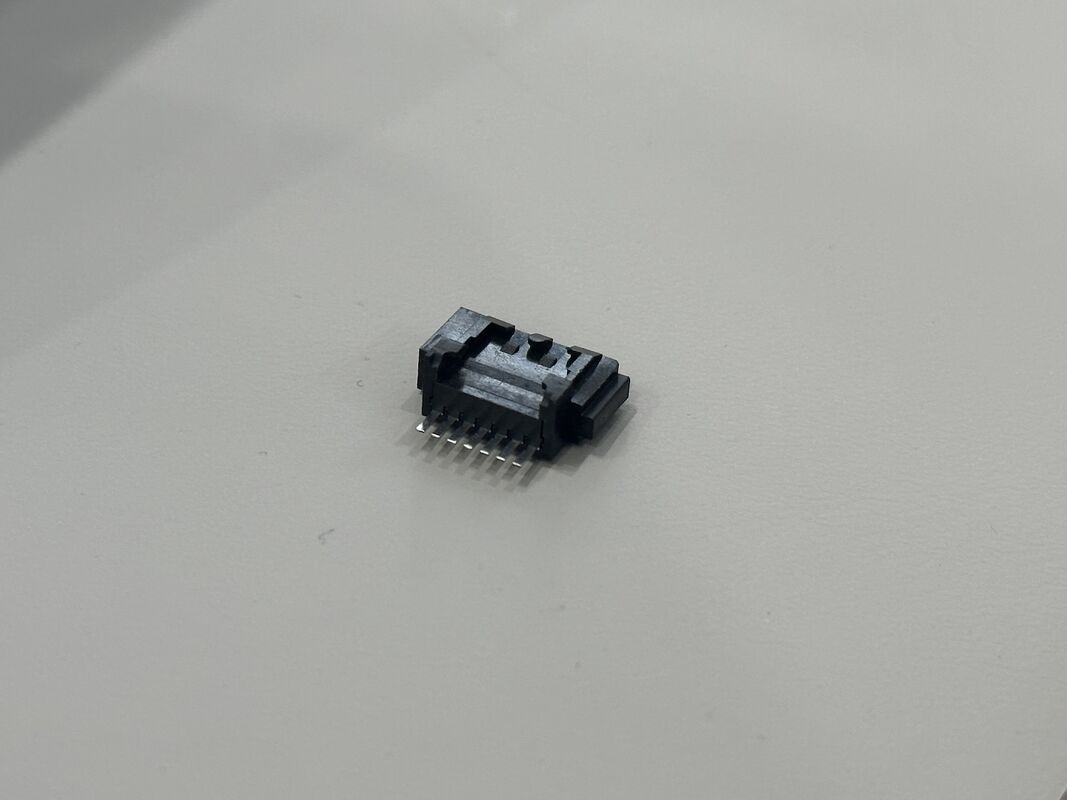

This compact SMT PCB female connector provides a reliable 10-pin, 1.0mm pitch signal interface for dense electronic assemblies. The low-profile housing and side-entry structure save board space while offering secure mating with the matching header or plug. Copper-alloy contacts with optional gold plating deliver stable contact resistance and long-term durability under repeated insertion cycles.

Designed for automated production, the connector is supplied in tape-and-reel and is compatible with standard SMT reflow processes. Multiple customization options are available, including different pin counts, plating schemes, keying features and laser marking, enabling tailored solutions for specific PCB layouts or wire harness interfaces.

Applications

PCB-to-board signal connector in automotive control modules, BMS and infotainment units

Compact interface on industrial controllers, PLC I/O boards and sensor modules

Signal connection on server, storage and communication equipment daughter cards

Board connector for customized wire harness assemblies in power tools and small appliances

Embedded interface for consumer electronics such as set-top boxes, cameras and smart devices
