Product Description

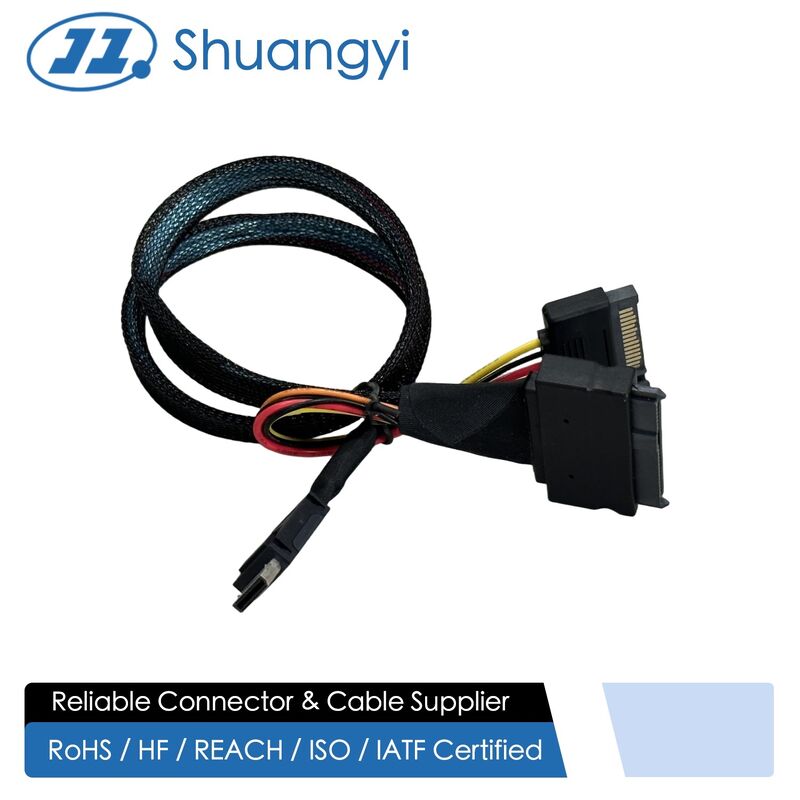

This braided backplane power and data connector cable harness is designed for compact server and industrial computer platforms where a proprietary board connector must be adapted to standard Slimline SATA and 15-pin SATA power interfaces. High-quality copper wire, precision-crimped terminals and robust over-molding deliver stable electrical performance and low insertion loss for both power and high-speed signal transmission.

The round cable construction with PET braided sleeving resists abrasion and bending fatigue, while helping organize wiring inside dense 1U/2U chassis. Color-coded power lines and clearly keyed connectors reduce installation errors and make field maintenance easier. With full OEM/ODM customization capability, this harness can be tuned for different PCB pitch, connector types and cable lengths used in automotive data recorders, embedded computers and storage expansion modules.

Applications

Connecting a server or NAS backplane PCB connector to Slimline SATA SSDs and 2.5" SATA drives

Power and signal harness for industrial PCs, DVR/NVR recorders and electronic test equipment using mixed backplane interfaces

Custom storage cages or RAID modules where proprietary high-density board headers must fan out to standard SATA power and Slimline SATA connectors

Embedded and automotive systems that require reliable, vibration-resistant power and data wiring within limited PCB and chassis space
