eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire

eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

ESATA 7P TO ESATA 7P L=250MM

Contact Us
Request A Quote
eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire
Product Details
Product Type:
IEEE1394 FireWire High-speed Data Cable
Interface Standard:
ESATA / SATA, Compatible With SATA I / II / III Devices Via ESATA Port
Connector Type:
7Pin ESATA Male Connector To 7Pin ESATA Male Connector
Pin Count:
7 High-speed Signal Pins Per Connector
Cable Structure:
Shielded Differential Pair Cable For High-speed Transmission
Conductor:
28–30AWG Stranded Copper
Impedance:
100 Ω Differential Characteristic (typical)
Max Data Rate:
Up To 6 Gb/s Transmission
Contact Material:
Copper Alloy Terminals, Selective Gold Over Nickel
Housing Material:
Flame-retardant PA / PBT, UL94V-0 Compatible
Operating Voltage:
Low-voltage Electronic Signal Application
Operating Temperature:
-20 °C To +80 °C
Compliance:
RoHS / REACH
Custom Options:
Length, Color, Straight/right-angle Mix, PCB Side Plug, Label Printing And Bundled Harness Customization
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$1.44-2.21 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price Mini SAS HD SFF-8643 to SFF-8643 High-Speed Cable Connector Assembly 1m | Internal Server Storage Signal & Power Wire Harness online

Mini SAS HD SFF-8643 to SFF-8643 High-Speed Cable Connector Assembly 1m | Internal Server Storage Signal & Power Wire Harness

Get Best Price
Good price PCI-E 8Pin Male to 6+2Pin GPU Power Cable Connector – Braided Wire Harness for Modular PSU / Server online

PCI-E 8Pin Male to 6+2Pin GPU Power Cable Connector – Braided Wire Harness for Modular PSU / Server

Get Best Price
Good price Mini SAS HD to U.2 NVMe SSD Connector Cable – SFF-8643 to SFF-8639 Braided Wire Harness for Server Storage online

Mini SAS HD to U.2 NVMe SSD Connector Cable – SFF-8643 to SFF-8639 Braided Wire Harness for Server Storage

Get Best Price
Good price Braided SATA 7Pin Data Cable Connector – Right Angle to Right Angle Shielded Wire for HDD / SSD / Gaming PC / Server online

Braided SATA 7Pin Data Cable Connector – Right Angle to Right Angle Shielded Wire for HDD / SSD / Gaming PC / Server

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

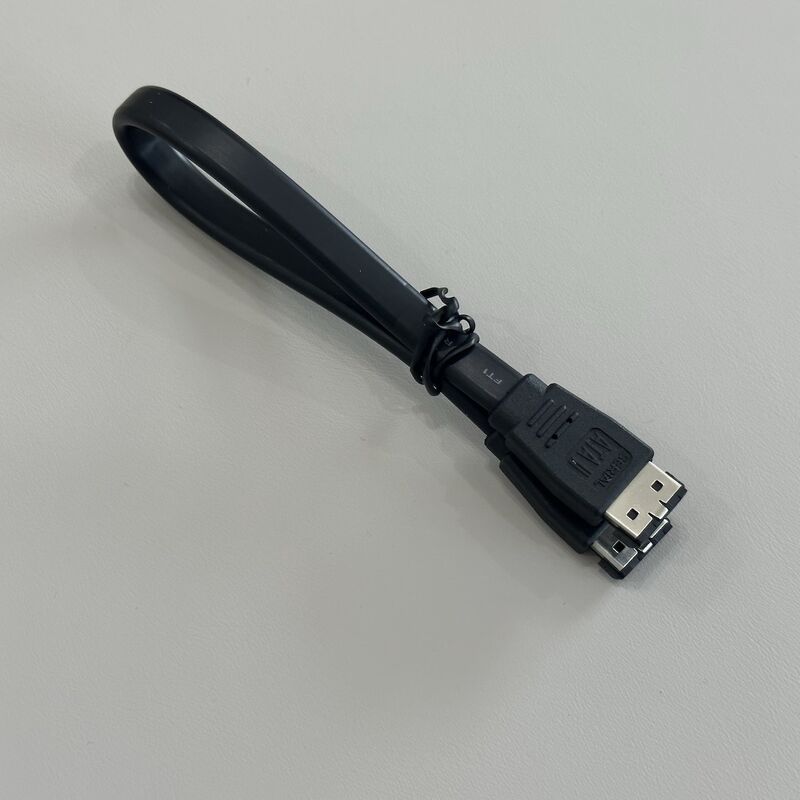

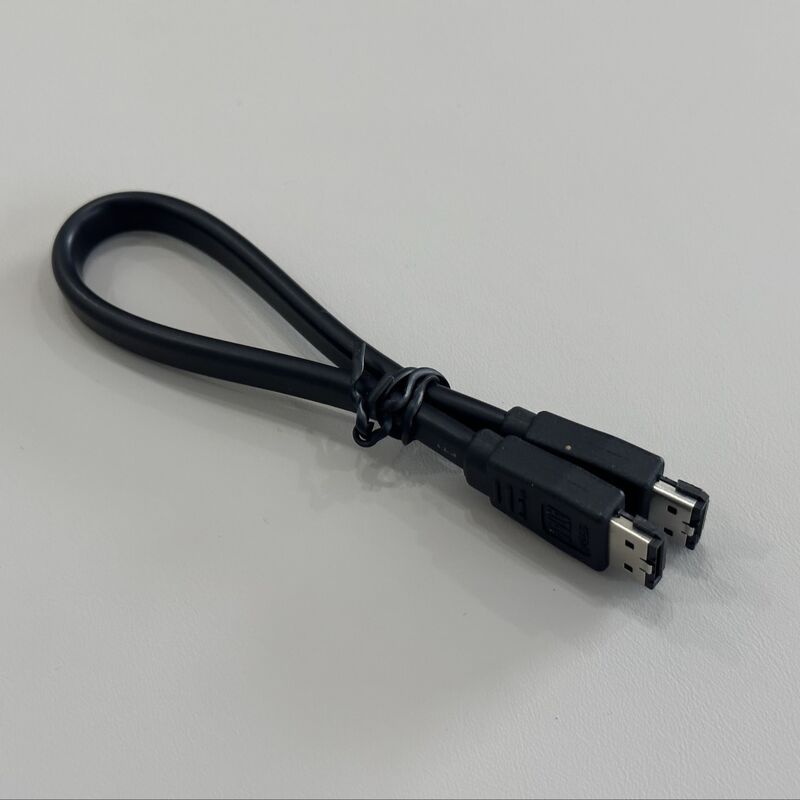

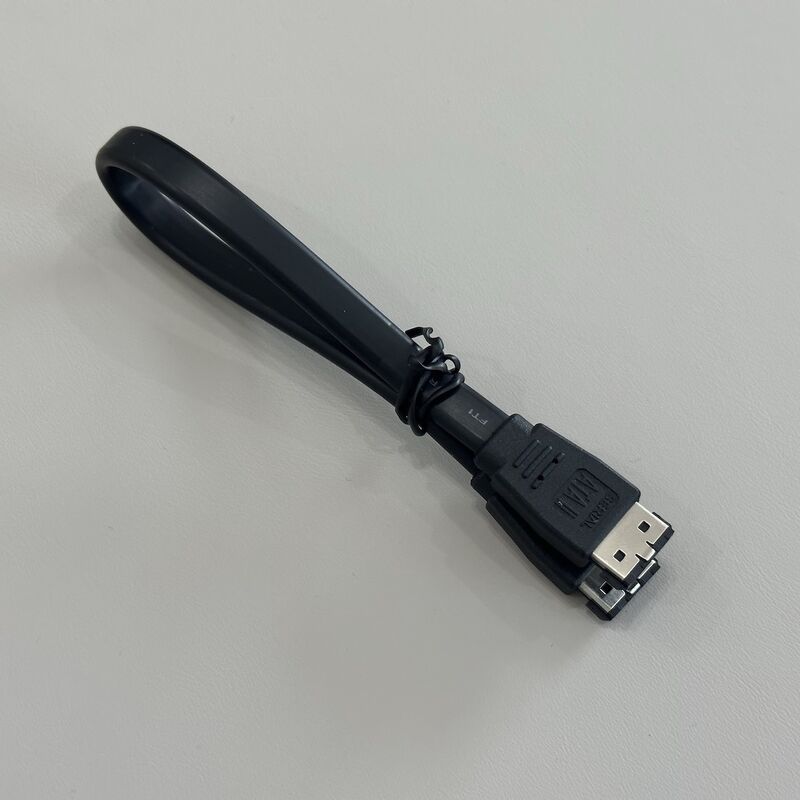

This eSATA external cable connector is designed for reliable, high-speed point-to-point data transmission between computers and storage devices. The 7-pin male connectors on both ends provide a secure fit with eSATA ports, while the shielded copper cable minimizes crosstalk and signal loss over longer runs. A durable molded strain-relief and flexible jacket improve bending performance and extend service life.

The cable supports SATA II and SATA III protocols, making it suitable for external HDD enclosures, RAID arrays, DVRs, backup systems and other professional storage devices that require stable, high-bandwidth serial data links.



eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 0eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 1eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 2



Connector type eSATA external SATA connector, male to male
Interface standard SATA II / SATA III compatible, high-speed serial transmission
Number of pins 7-pin signal interface
Application External hard drive, DVR, docking station, server and PC storage connection
Cable structure Twisted-pair copper wire, shielded
Conductor material Tinned oxygen-free copper
Insulation High-temperature PVC or custom material
Jacket Flexible PVC outer jacket, black
Cable OD Approx. 5.0–6.0 mm (customizable)
Data rate Up to 6 Gb/s depending on system support
Operating voltage 5 V signal level
Operating temperature -20 ℃ to +70 ℃ (typical)
Flame rating UL-listed cable, RoHS-compliant materials
Length options Standard 0.3 m / 0.5 m / 1 m; other lengths customizable
Customization Connector molding, cable length, jacket color, labeling, OEM/ODM
Typical lifespan ≥5000 mating cycles (under correct usage)
Packaging Individual PE bag or custom packing carton



Applications

Connecting an external SATA hard drive enclosure to a desktop or industrial PC

Linking DVR or NVR recorders to high-capacity external storage for video surveillance

Connecting external RAID or JBOD boxes to servers in data-center and workstation environments

Laboratory, test-bench and development setups requiring frequent plug-and-unplug operations

Customized eSATA cabling in OEM equipment, industrial controllers and embedded systems

Precautions

Ensure both devices support eSATA before connection; do not force the connector into non-eSATA ports.

Insert the male connector fully until it locks to avoid intermittent contact or data errors.

Do not sharply bend, crush or pull the cable by the connector head; hold the plug housing when unplugging.

Keep the cable away from strong electromagnetic sources (high-power motors, transformers) to maintain signal quality.

Use appropriate ESD protection when connecting to sensitive storage or server equipment.

For outdoor or harsh environments, select customized versions with enhanced jacket materials and additional shielding.




eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 3

eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 4
eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 5
eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 6
eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 7
eSATA External Cable Connector Male to Male High-Speed Data Transmission Wire 8
