Product Description

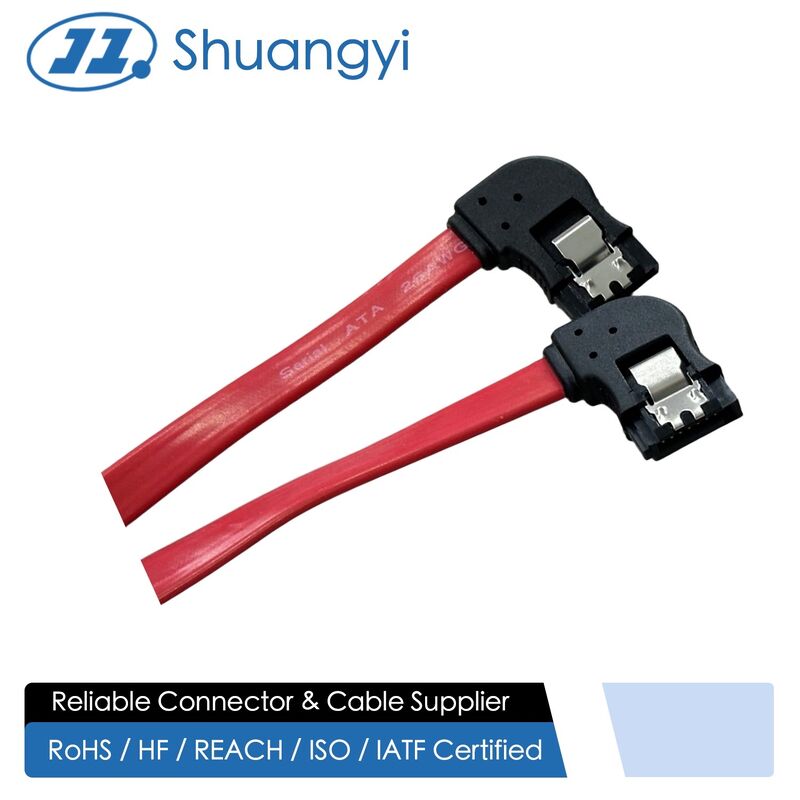

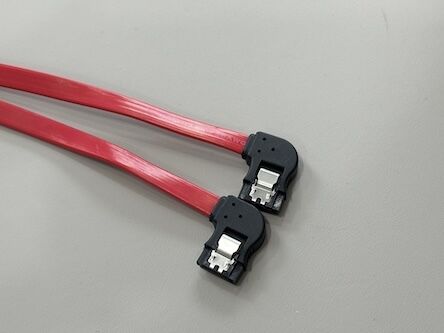

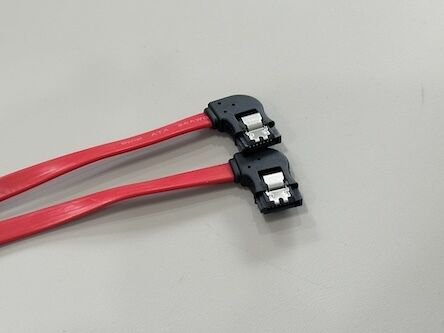

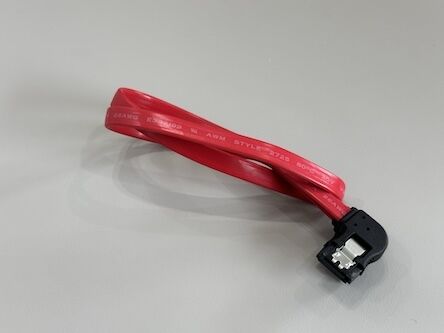

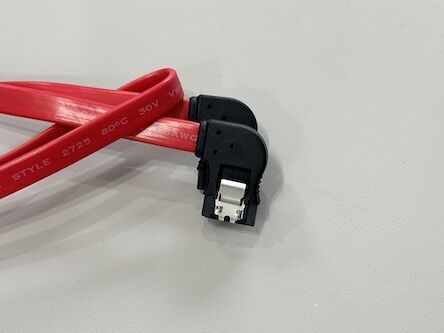

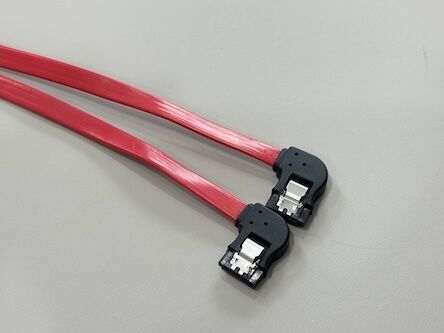

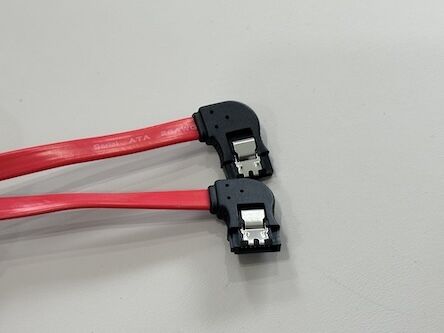

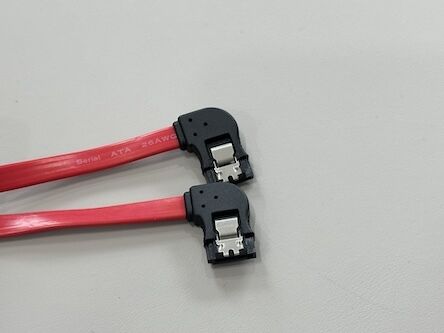

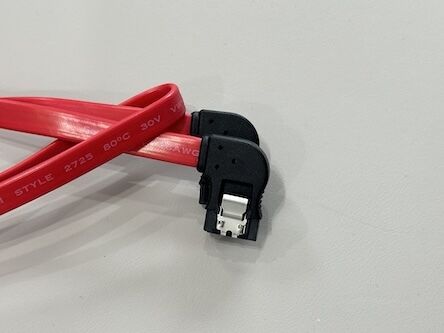

This red flat SATA 7Pin data cable connector is designed for reliable internal signal transmission between hard drives, solid-state drives and host controllers. The low-profile 90-degree right-angle SATA plug with metal latch provides a secure connection to the device while easing routing in narrow bays and along chassis walls. The opposite straight plug interfaces directly with motherboard, HBA card or backplane terminals, making it suitable for a wide range of electronic storage systems.

Flat 24–26AWG copper wire cable construction with shielded differential pairs helps maintain controlled impedance and reduces crosstalk, ensuring stable 1.5 / 3 / 6 Gb/s SATA performance in desktop PCs, workstations and server environments. The robust molded housings and strain-relief design improve mechanical reliability under vibration and frequent plugging operations. OEM/ODM customization is available for cable length, connector orientation, color and integration with power harnesses or PCB headers.

Applications

Internal SATA connection between motherboard or RAID controller and 2.5"/3.5" HDD / SSD

Space-constrained cabling in 1U / 2U rack-mount servers, NAS and JBOD enclosures

DVR / NVR and industrial data-logging equipment using Serial ATA interfaces

Embedded systems and compact PCs where a right-angle SATA connector reduces stress on drive sockets

Custom test fixtures and electronic modules requiring high-speed SATA signal links with flat, easy-to-route cables
