Product Description

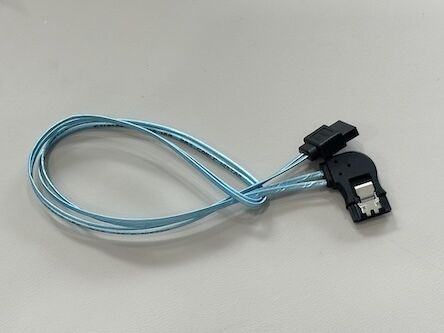

This right-angle to straight SATA 7Pin data connector cable is designed for compact, reliable signal transmission between drives and host controllers. The blue shielded wire cable uses impedance-controlled copper pairs and full-coverage foil shielding to minimize crosstalk and attenuation, ensuring stable 1.5 / 3 / 6 Gb/s Serial ATA performance in desktop, server and industrial systems.

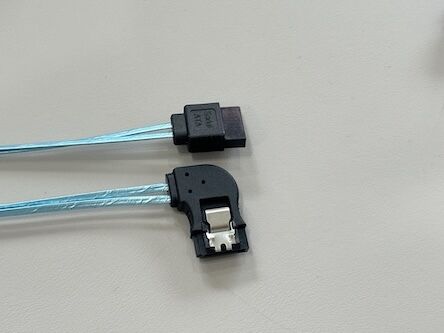

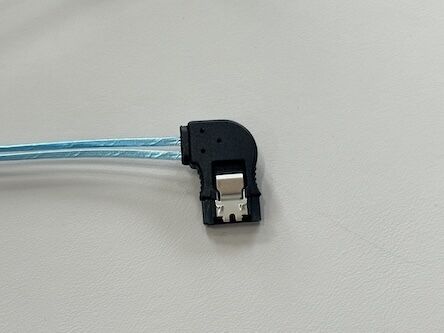

One end adopts a 90-degree right-angle SATA male connector with a stainless-steel latch, ideal for drives mounted close to the chassis wall or inside low-profile bays. The opposite straight plug mates directly with motherboard, RAID card or backplane terminals, providing a secure electrical interface for HDD, SSD and other electronic storage devices. This assembly can be tailored as an OEM customization item, including length, jacket color, PCB plug or mixed data-plus-power harness for integrated storage wiring.

Applications

Connecting 2.5"/3.5" SATA HDD / SSD to motherboard or HBA in space-constrained cases

Internal data cabling in 1U/2U rack-mount servers, NAS units and JBOD enclosures

DVR / NVR, data-logging and automation equipment using SATA headers on PCB backplanes

Compact industrial PCs and embedded systems where a right-angle SATA connector eases routing along chassis edges

Custom electronic test fixtures and storage modules requiring flexible, shielded SATA wire cable assemblies
