Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA

Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P Fx4 TO SATA 7P Fx4+MX 4.2 2x10P

Contact Us
Request A Quote
Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA
Product Details
Product Type:
SATA Data & Power Cable Connector Harness
Rated Data Speed:
Up To 6 Gb/s SATA III Transmission
Power Lines:
12 V / 5 V / GND, Yellow-red-black Electrical Wires
Rated Current:
1.5–2.5 A Per Power Line (depending On Wire Gauge)
Conductor Material:
Tinned Oxygen-free Copper For Low-loss Power And Signal Transmission
Contact Resistance:
≤10mΩ
Insulation Resistance:
≥1000MΩ
Operating Temperature:
-20 °C To +80 °C
Housing Material:
UL94V-0 Rated PA / PBT
Compliance:
RoHS / REACH
Application:
GPU / PSU / Server / Industrial Power System
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$1.44-2.21 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price USB-A to Lightning Power & Data Cable Connector, Flexible Charging Wire for Mobile Phone & Tablet online

USB-A to Lightning Power & Data Cable Connector, Flexible Charging Wire for Mobile Phone & Tablet

Get Best Price
Good price SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission online

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission

Get Best Price
Good price SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Female Connector for Server, Automotive, Wire Cable Applications online

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Female Connector for Server, Automotive, Wire Cable Applications

Get Best Price
Good price SATA 22P Female Connector | 32-Wire Solder Type 180° G/F Gold Plated | Electrical PCB Signal Terminal Connector for Server, Automotive, Wire Cable Applications online

SATA 22P Female Connector | 32-Wire Solder Type 180° G/F Gold Plated | Electrical PCB Signal Terminal Connector for Server, Automotive, Wire Cable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

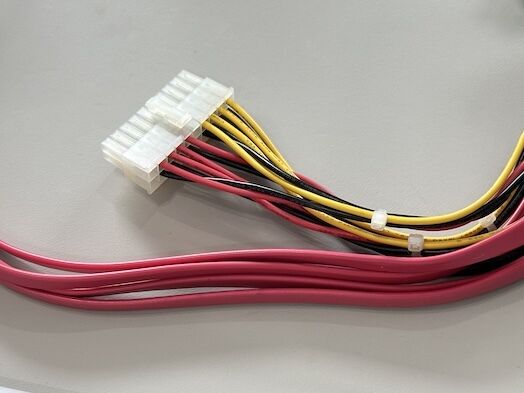

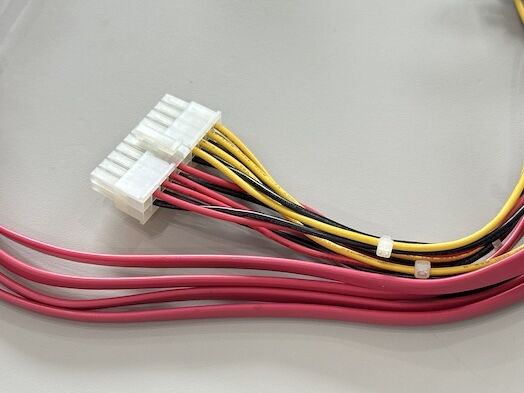

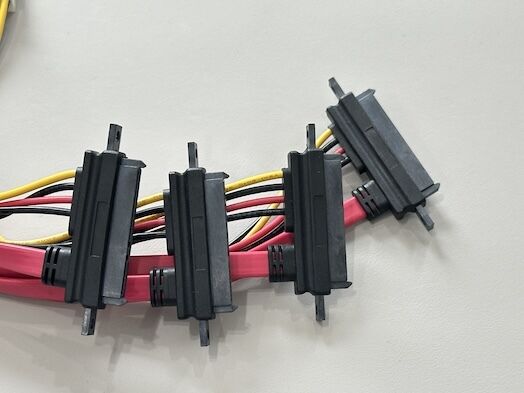

This multi-drop SATA power and data connector harness is designed to fan out one high-density PCB connector to multiple 2.5" / 3.5" drives. A single multi-pin input at the controller or backplane side carries both signal and power, which are then distributed through five flat Serial ATA cables with integrated 22Pin device connectors.

The low-profile red ribbon wire cable keeps routing neat in crowded racks, while colour-coded 12 V / 5 V / ground power lines ensure safe electrical distribution to each drive. Oxygen-free copper conductors and precision-formed terminals maintain stable data transmission up to 6 Gb/s and reliable power delivery for enterprise storage, industrial recorders and compact server systems. OEM customization is available for pin-out, cable length, number of ports, and connector pitch to match different controller boards or metal work.



Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 0Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 1Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 2



Product Type SATA power & data cable connector wire harness
Input Connector 20–24Pin board / PCB connector, female housing with crimp terminals
Output Connectors 5 × 22Pin SATA device connectors (7Pin signal + 15Pin power), male type
Interface Standard Serial ATA, compatible with SATA I / II / III
Max Data Rate Up to 6 Gb/s per SATA channel
Power Lines 12 V / 5 V / GND, yellow-red-black electrical wires
Wire Type Data: 26/28AWG flat red cable; Power: 18–22AWG stranded tinned copper
Conductor Material Oxygen-free copper for low-loss signal and power transmission
Insulation PVC electronic wire, 300 V rated
Cable Jacket Flat ribbon outer, easy-route design
Color Red data cable, black / yellow / red power wires
Cable Length Typical 0.6–1.0 m (overall), customizable on request
Operating Temperature -20 °C to +80 °C
Flame Class UL94V-0 compatible plastic materials
Compliance RoHS / REACH compliant
Typical Application HDD / SSD backplane, server storage cage, DVR / NVR disk array, industrial PCB power distribution



Applications

Connecting a storage controller or RAID card to five SATA HDD / SSD in a hot-swap cage

Power and data harness for NAS, rack-mount server and JBOD enclosures

Disk array wiring in DVR / NVR and industrial logging equipment

Custom electronic cabinets where multiple drives share one board-mounted power connector

Retrofit of existing backplanes that need organized multi-drop SATA cabling

Precautions

Confirm the pin assignment of the 20–24Pin board connector and each SATA device connector before installation; incorrect mapping of power and ground pins may damage drives or the PCB.

Ensure the total load of all drives does not exceed the rated current of the harness and upstream power rail; select higher AWG for high-power configurations if required.

Avoid sharp bends and excessive twisting near molded housings to protect the internal conductors and maintain long-term electrical performance.

Route the assembly away from hot components and sharp metal edges, and secure it with clamps or cable ties to reduce strain on the terminals.

Variants with shielded pairs, different SATA quantities, or special automotive / industrial grade jackets can be produced for batch and project orders.


Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 3

Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 4
Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 5
Multi-Drop SATA Power Data Connector Cable Harness – 24Pin PCB Connector to 5×22Pin Serial ATA 6
