SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage

SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7+15P F TO SATA 7P F 90° WITH LOCK +SATA 15P F IDC

Contact Us
Request A Quote
SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage
Product Details
Product Type:
SATA Data & Power Cable Connector Harness
Rated Data Speed:
Up To 6 Gb/s SATA III Transmission
Rated Voltage:
5 V / 12 V DC
Rated Current:
1.5–2.5 A Per Power Line (depending On Wire Gauge)
Conductor Material:
Tinned Oxygen-free Copper For Low-loss Power And Signal Transmission
Contact Resistance:
≤10mΩ
Insulation Resistance:
≥1000MΩ
Operating Temperature:
-20 °C To +80 °C
Housing Material:
UL94V-0 Rated PA / PBT
Compliance:
RoHS / REACH
Application:
GPU / PSU / Server / Industrial Power System
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$1.44-2.21 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price USB-A to Lightning Power & Data Cable Connector, Flexible Charging Wire for Mobile Phone & Tablet online

USB-A to Lightning Power & Data Cable Connector, Flexible Charging Wire for Mobile Phone & Tablet

Get Best Price
Good price SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission online

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission

Get Best Price
Good price SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Female Connector for Server, Automotive, Wire Cable Applications online

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Female Connector for Server, Automotive, Wire Cable Applications

Get Best Price
Good price SATA 22P Female Connector | 32-Wire Solder Type 180° G/F Gold Plated | Electrical PCB Signal Terminal Connector for Server, Automotive, Wire Cable Applications online

SATA 22P Female Connector | 32-Wire Solder Type 180° G/F Gold Plated | Electrical PCB Signal Terminal Connector for Server, Automotive, Wire Cable Applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

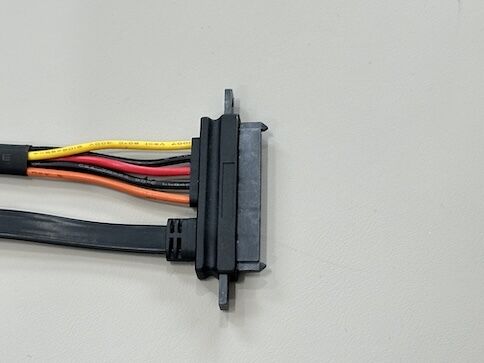

This assembly is a compact SATA power and signal connector harness that links a standard 22Pin SATA interface to a micro / slim SATA device. The flat ribbon cable combines high-speed 7Pin data lines and multi-core power wires, providing a tidy solution for tight storage bays and embedded electronic equipment.

Oxygen-free copper conductors and precision-formed terminals ensure low-loss transmission and stable supply of 5 V and 12 V to 2.5" SSDs, HDDs or optical drives. The low-profile black housing with mounting ears helps fix the device securely to the chassis or PCB frame, reducing stress on the pins in vibrating server or industrial environments. The structure supports further customization of cable length, connector gender (male / female), and additional branches for multi-drive power distribution.



SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 0SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 1SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 2



Product Type SATA power & data cable connector assembly
Connector A 22Pin SATA device connector with mounting ears
Connector B Micro SATA / slim SATA power & data connector
Function Combined 7Pin signal + 15Pin power transmission
Contact Pitch 1.27 mm SATA contact pitch
Pin Count 22 pins side to 16/22 pins side (customizable)
Data Cable Flat ribbon SATA cable, 26/28AWG stranded copper
Power Wires Yellow / red / black / orange 18–22AWG copper wire
Rated Data Speed Up to 6 Gb/s SATA III transmission
Rated Voltage 5 V / 12 V DC
Rated Current 1.5–2.5 A per power line (depending on wire gauge)
Insulation PVC electrical insulation, 300 V / 80 °C
Housing Material UL94V-0 PBT / PA, high temperature resistant
Terminal Type Copper alloy crimp terminals, tin or gold plated
Cable Length Typical 30–50 cm; length and routing customizable
Operating Temperature -20 °C to +80 °C
Compliance RoHS / REACH compliant
Custom Options Different pin-outs, wire gauge, over-mold, labeling, PCB plug or other power connector types



Applications

Connecting 2.5" SSD / HDD or slim optical drives to controller boards or backplanes

Space-saving storage cabling inside 1U/2U servers, NAS appliances and DVR / NVR recorders

Embedded systems, kiosks and industrial PCs where micro SATA devices share a main 22Pin connector

Custom storage modules and test fixtures requiring flat, flexible wire cable routing rather than rigid PCBs



Precautions

Verify the pin definition on both SATA and micro SATA connectors before installation; incorrect mapping of power and signal pins can damage the drive or controller.

Do not exceed the rated current of individual power wires; consider heavier gauge when multiple high-load devices are powered in parallel.

Avoid sharp bending or twisting near the molded housings to protect the internal conductors and maintain stable data transmission.

Keep the harness away from hot components and sharp metal edges, and secure it with clips or cable ties to provide strain relief.

Variants with shielded data pairs, different pitch headers, multiple outlets or automotive-grade materials can be produced to match project-specific requirements.





SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 3

SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 4
SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 5
SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 6
SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 7
SATA 22Pin to Micro SATA Power Data Cable Connector – Flat Ribbon Electrical Wire Harness for SSD / Server Storage 8


Tags：
